How To Set Workpiece Zero Point In DSP A15 Handle Control System

Position: Home > User Guide > CNC Controller System > DSP Controller > DSP A1X > How To Set Workpiece Zero Point In DSP A15 Handle Control System
How To Set Workpiece Zero Point In DSP A15 Handle Control System
Click:

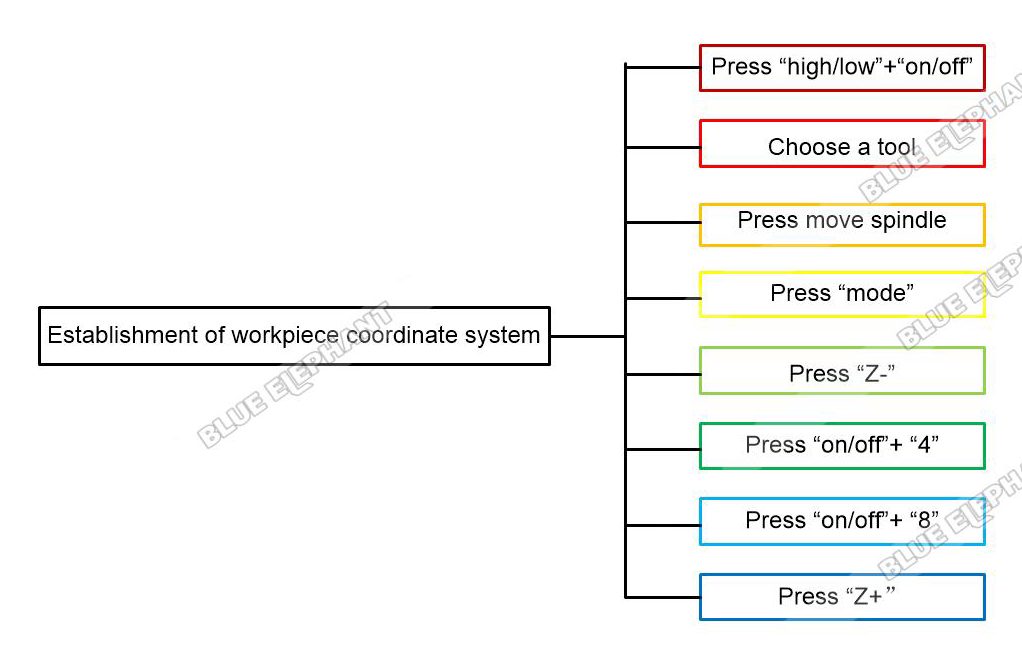

The steps are as follows.

  • Press “high/low”+“on/off” combination key
  • Choose a tool
  • Press move spindle
  • Press “mode”,for changing model from “continue”to “step”
  • Press “Z-”
  • Press “on/off”+ “4”,combination key
  • Press “on/off”+ “8”,combination key
  • Press “Z+”

The video is as follow.
