How To Set Parameters Of Ball Screw CNC Router In DSP A11

The steps are as follows.

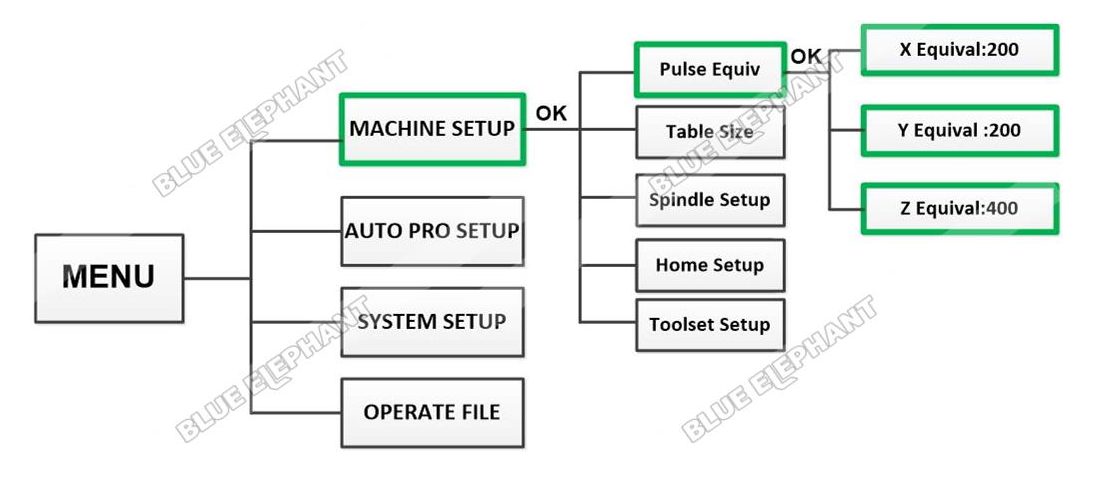

• The first part is “Pulse Equiv”
  • 1.Press“MENU”button,then choose“MACHINE SETUP”
  • 2.Press“OK”button,then choose“Pulse Equiv”
  • 3.Press“OK”button, then Press“DELETE”button to clean the number
  • 4.Input the data.The normal pulse of X axis is 200,Y axis is 200,Z axis is 400.Don’t forget press “OK”button after you set the data.

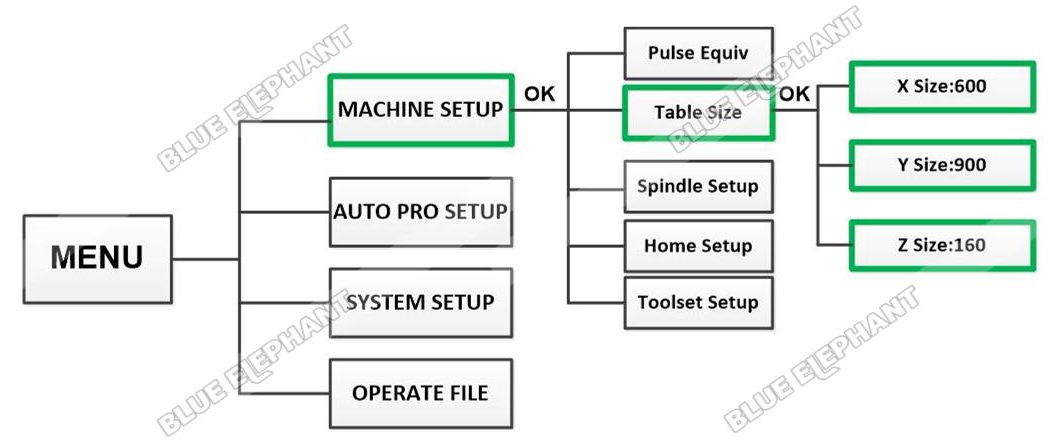

• The second part is “Table Size”
  • 1.Press“STOP/CANCEL”button,we will back to menu list,then choose“Table Size”
  • 2.Input the data.The normal size of X axis is 600, Y axis is 900 ,  Z axis is 160.Don’t forget press “OK”button after you set the data.

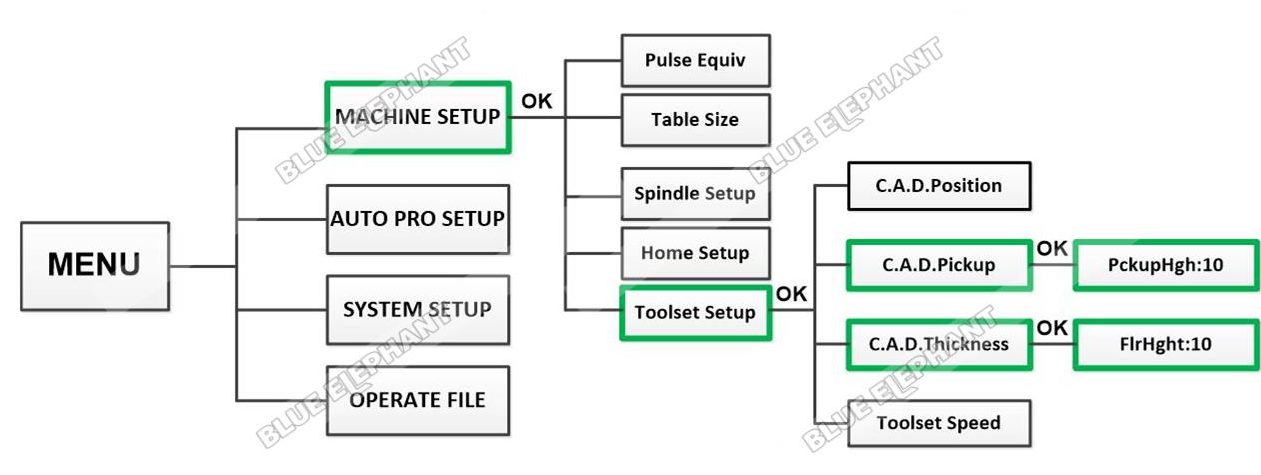

• The third part is “Toolset Setup”
  • 1.Press“STOP/CANCEL”button,we will back to Toolset list,then choose“Toolset Setup”
  • 2.Press“OK”button,then choose“C.A.D Pickup”
  • 3.Press“OK”button,we will see the data of “PckupHgh”is 10 It’s a safe data,so there is no need to change.
  • 4.Press“OK”button,we will back to Toolset list,then choose“C.A.D Thickness”
  • 5.Press“OK”button,we will see the data of “FlrHght”is 10 It’s a safe data,so there is no need to change.
  • 6.Keep pressing“STOP/CANCEL”button,we will back to “Information” interface.
• The last step is restarting the handle.

The video is as follow.
