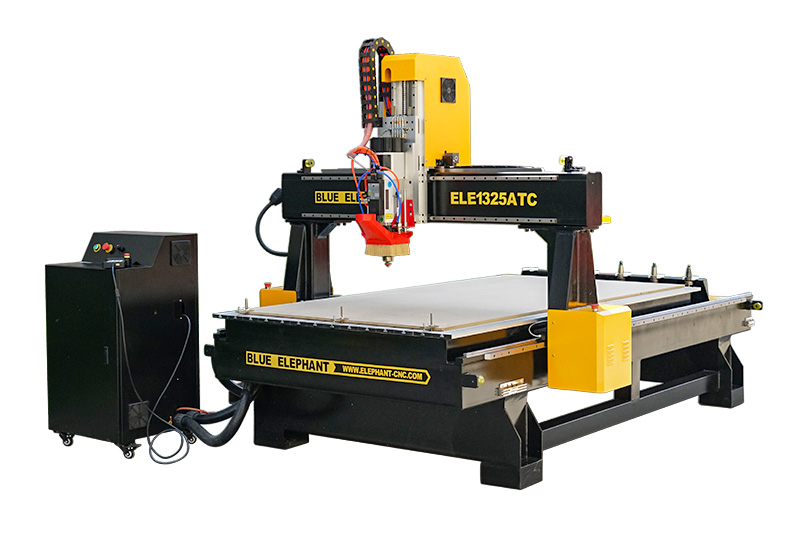

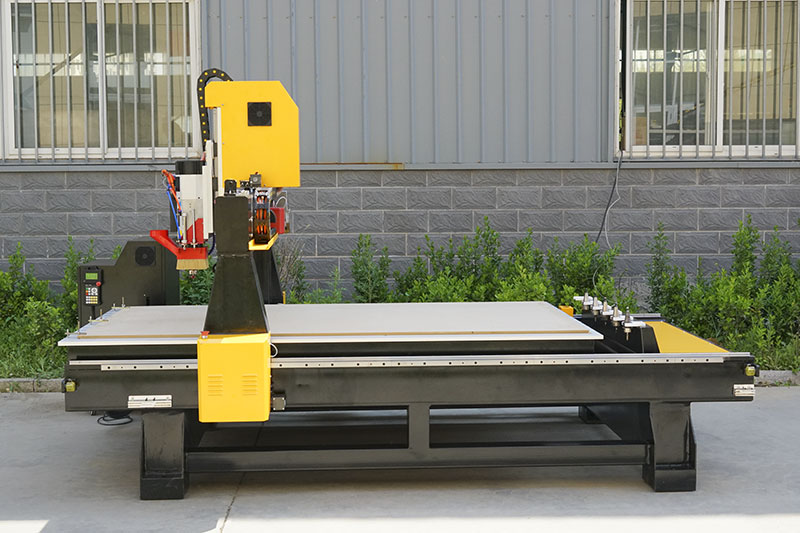

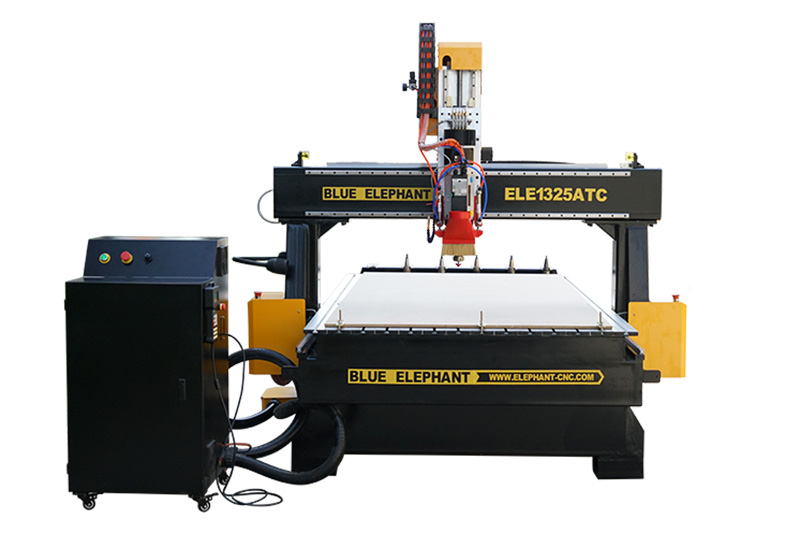

ELECNC-1325 4x8 automatic woodworking carving machine is popularly used in woodworking, making signs, molds making, art crafts making, etc. The automatic tool changer magazine carries more than 6 cutters. It can change different tools for your reference.
1. High power air cooling spindle, it can make the machine work with higher precision and have a longer service life.
2. Big power and high precision servo motor and driver, the machine has a stronger engraving ability.
3. Vacuum & T-slot working table, it can fix the material more stable.
4. Linear tool change function, 6 tools are automatically switched, saving time and improving production efficiency.
| Model | ELECNC1325ATC |
| X, Y axis travel | 1300*2500*300mm, option: 1500*300mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 9kw HQD ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw Fuling inverter |
| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | NK105 G3 Control system |
| Driving system | 850W Leadshine servo motor and driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot work table |
| Linear guide | Taiwan 20# Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ARTCAM and Aspire |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Table | Vacuum work table |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw HSD ATC spindle |
| Control system | LNC2200, SYNTEC 50WE |
Click for details
Yes, you can also choose a tool magazine that holds 10, 12, or 16 tools as you wish .
Handle control system, NK105.
First, you need to create a file on the computer, and then transfer it to the machine via the USB. Then the CNC router machine will start to operate after generating the G-codes automatically.

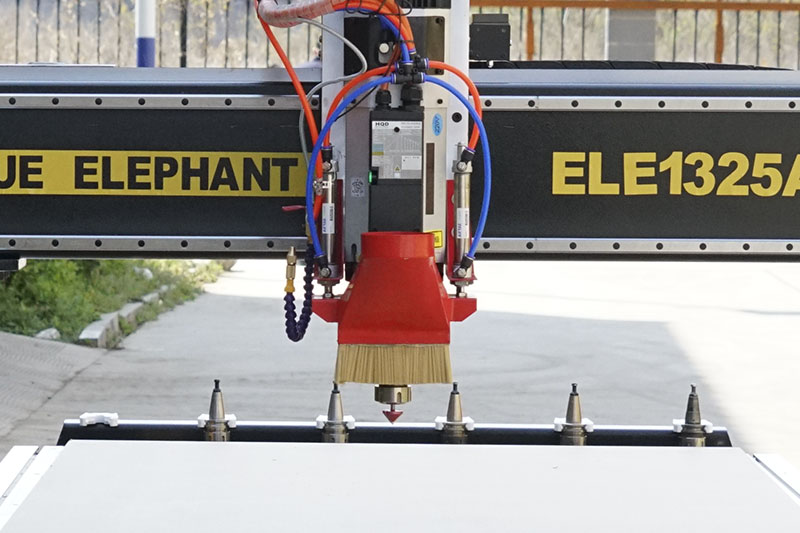

Z axis

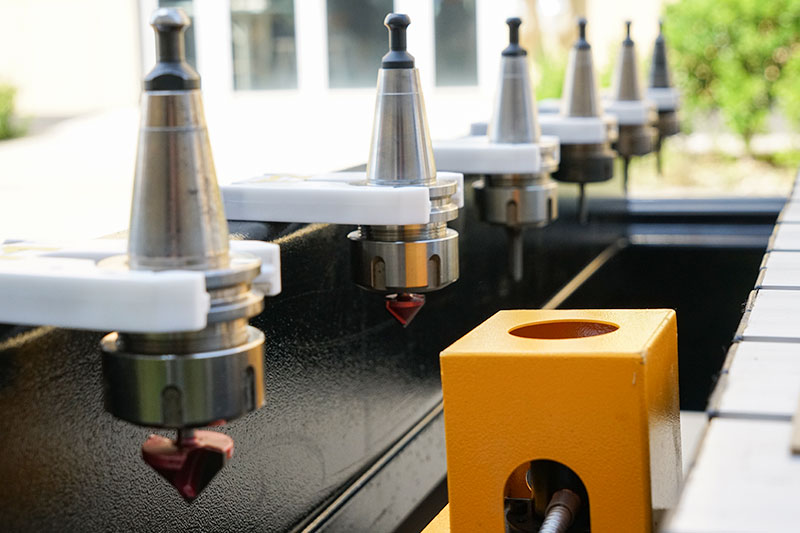

Tool holder

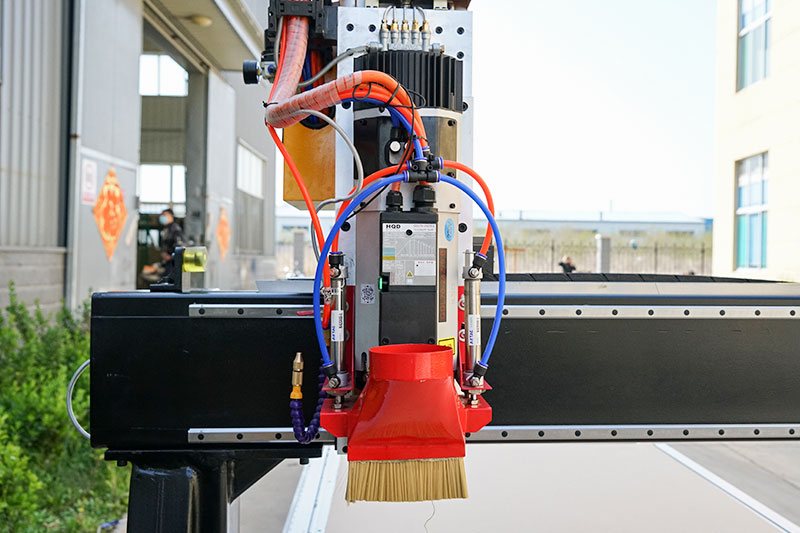

Spindle

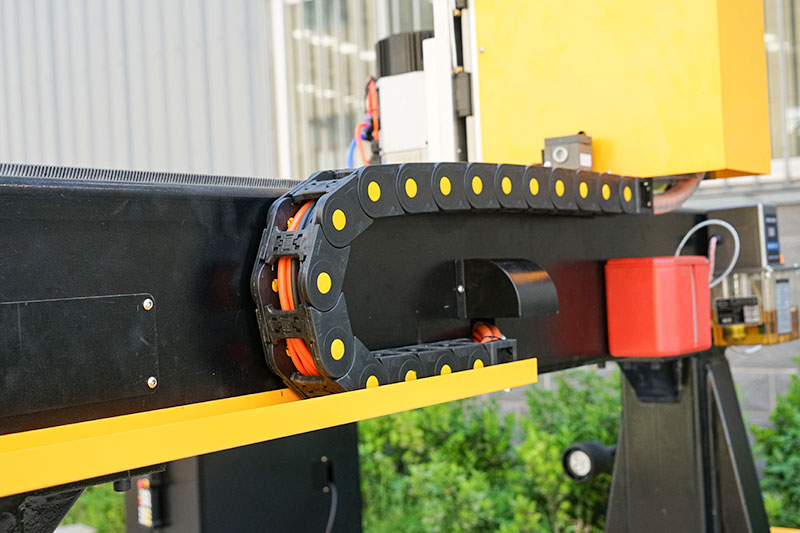

Towline
