4x8 ATC CNC with Oscillating Cutter
1325 ATC Oscillating Knife CNC Router
The 6×10 ATC CNC oscilatting machine with EOT-3 oscillating knife cutter helps the man out of the manual operation of choosing and fixing tool/bits. And it also greatly saves much time. EOT-3 oscillating knife cutter meets the cutting needs of leather, carpet, carton, cardboard, rubber, etc.

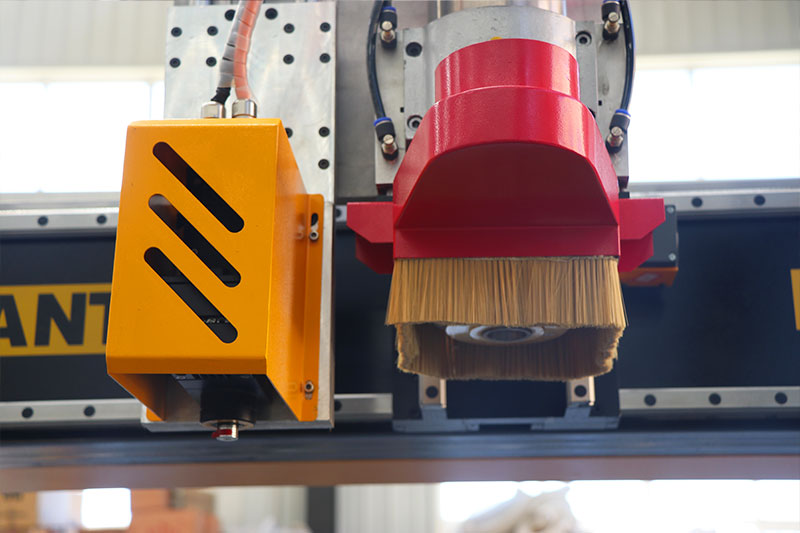

1. German EOT-3 oscillating knives cut soft materials such as leather, carton, and cloth as well as ordinary materials like wood, MDF, acrylic, etc.

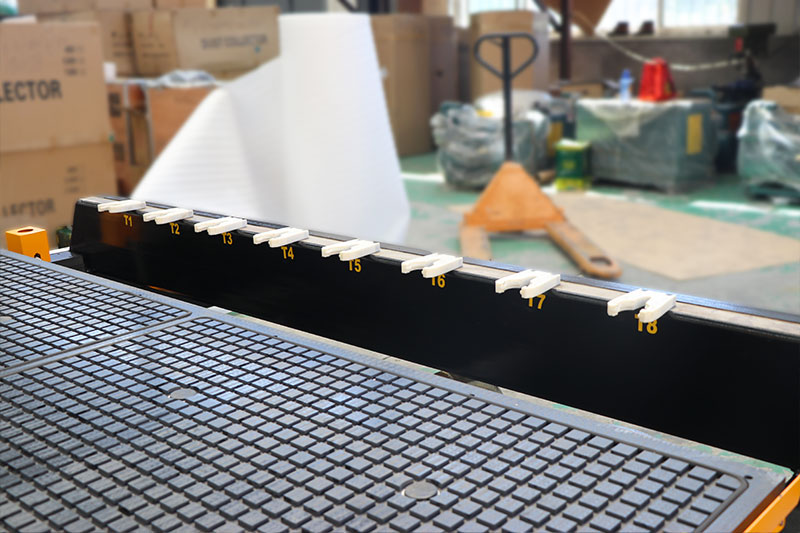

2. Linear auto tool changer with 8 tool magazines, cost-effective for automatic woodworking.
3. Vacuum table with stronger adsorption force, for a better fix of material.
4. A high-performance drive motor ensures high speed and accuracy.
| Model | ELECNC2030ATC |
| X,Y axis travel | 2000x3000mm, option: 1300*2500mm; 1500*3000mm; 2100*4000mm, etc. |
| Z axis travel | 500mm, option: 200mm, 300mm, 400mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan LNC controller, option：Taiwan Syntec |
| Driving system | 850w Leadshine AC servo driver and 850w AC servo motor,4 sets. option:850w Japan Yaskawa servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc |
Click for details
Spindles

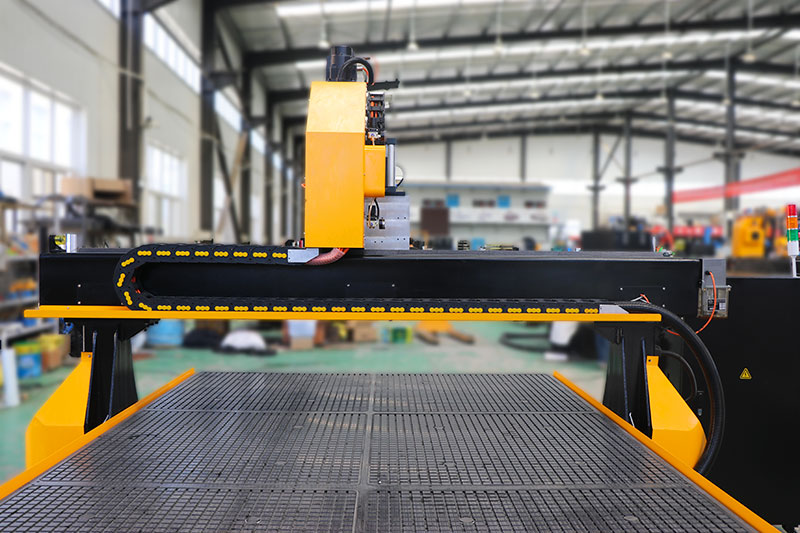

Gantry
