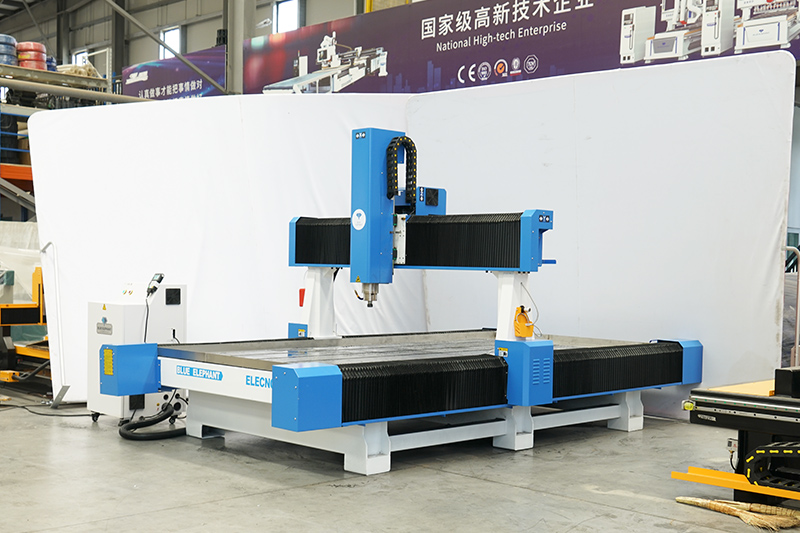

Portable 1228 Granite CNC Engraving Machine with Horizontal Saw Spindle for Sale

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-1228
Category : Stone Engraving Machine
Price Range : $7000 to $9000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

This customized stone engraving machine is able to cut, engrave, and shape stone slabs. We add the DSP A11 control system to manages the movement and speed of the machine. Moreover, the extra added a powerful saw spindle can horizontally cut stone slabs at high speed.

Features

1. DSP A11 control system has a built-in watchdog timer that monitors the system and prevents it from crashing or malfunctioning. It also has a fault self-diagnosis function that can detect and diagnose any problems with the system, making it easier to troubleshoot and fix issues.
2. The high 400mm Z axis allowes 600mm materials feeding height, which made loading be more convenient.
3. Fuling inverter uses advanced control algorithms to maintain a constant speed and torque, even when the load changes. This allows for consistent cutting performance and reduces wear and tear on the machine.

Parameters

Model	ELECNC1228
X, Y axis travel	12002800mm, option: 15003000mm; 21003000mm; 21004000mm, etc
Z axis travel	400mm, option: 200mm, 300mm, etc

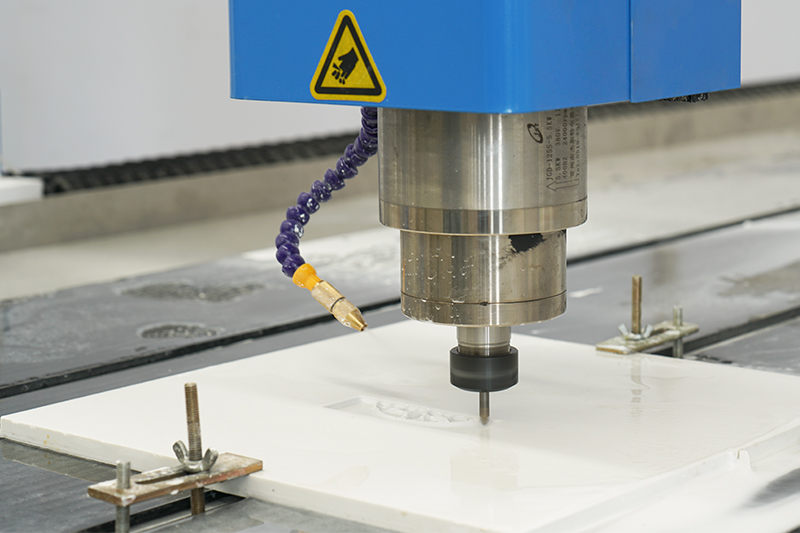

Spindle type	5.5kw water cooling spindle
Inverter type	7.5kw Fuling inverter

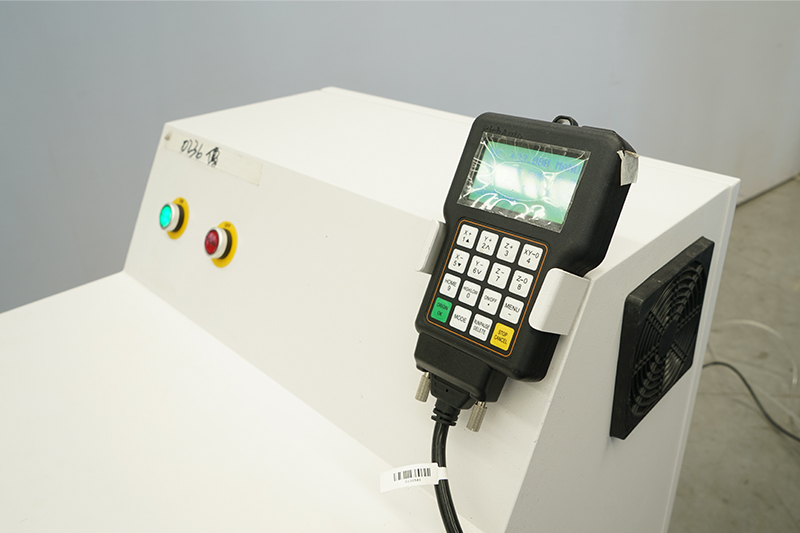

Control system	DSP A11
Motor & Driver	850w Leadshine servo motor and driver
Machine structure	Heavy duty body with quenching treatment
Work table	T- slot with PVC working table
Linear guide	Taiwan Linear guide, # 25
Limit	Japan Omron limit

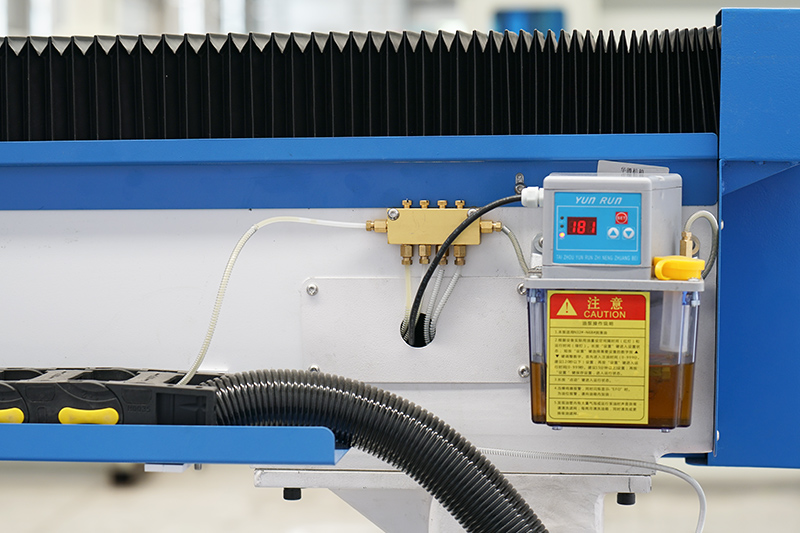

Lubrication system	Automatic lubrication system
Tool calibration	Manual tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam / Aspire, etc
Command language	G Code
Traveling speed	25m/min
Working speed	0-15m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.05mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

X,Y,Z Working Area	12002600400mm
Table Surface	T- slot with PVC working table
Spindle	5.5kw water cooling spindle, 24000rpm
X, Y Structure	Taiwan linear guide 25#
Z Structure	Taiwan TBI ball screw
Motor and driver	850w Leadshine servo motor and driver
Inverter	7.5kw Fuling inverter
Control System	DSP A11 control system
Dust cover	3 axis dust cover

Click for details

Frequent Asked Questions

1.Is it difficult to operate the machine?

The machine is easy to install. We have manuals and teach videos in English to help you. Our engineers can also teach you step by step.

2.Does it need special tools for stone?

Yes, the tools for stone are different with tools for wood. It needs stone processing tools.

3.Can I operate the machine by laptop?

Yes, it is with Mach3 control system. You can operate it by laptop. Mach3 system has upgraded since 2020. It also has memory function.

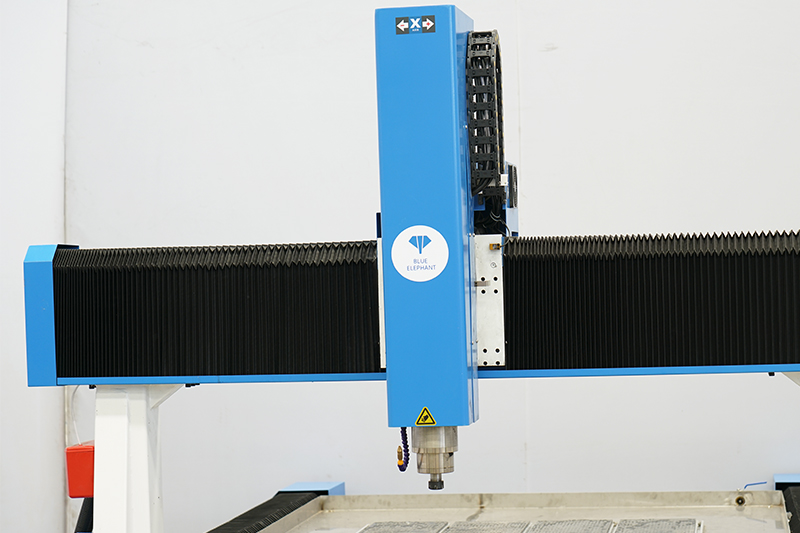

Stone Engraving Machine Details

Application

INDUSTRIES

Stone Fabrication: The stone fabrication industry is the primary user of 3-axis stone CNC routers. These machines are used to cut, engrave, and shape stone slabs to create intricate designs.

Architectural: 3-axis stone CNC routers are used to create ornamental and decorative elements for buildings, such as pillars, moldings, and facades.

Sculpture: 3-axis stone CNC routers are used in the sculpting industry to create intricate designs on large blocks of stone.

Samples
