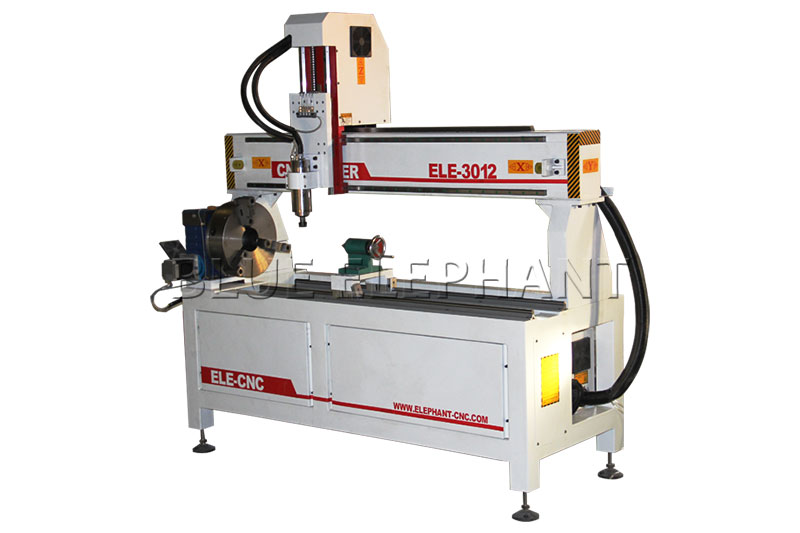

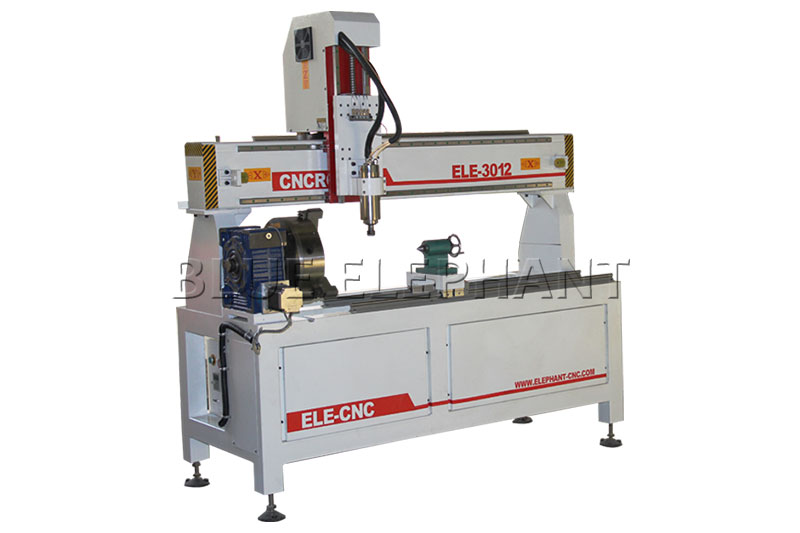

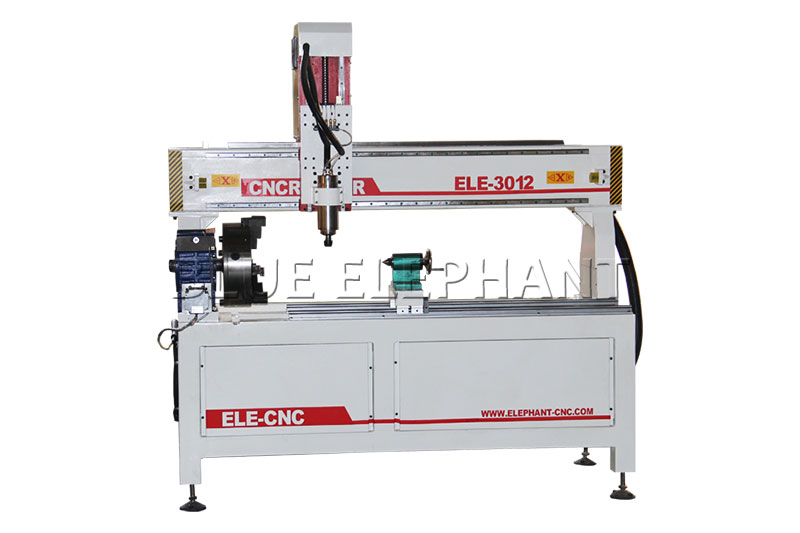

This CNC lathe has the advantages of high processing efficiency, high processing precision and high intelligence. It can quickly change from processing one part to processing another part, so it provides great production convenience for single parts, small batches and trial production of new products, not only shortening the production preparation cycle, but also saving a lot of tool costs.
1. Simple drawing. Computer drawing, U disk input, random design, input is more accurate. Therefore, the machining accuracy is improved.
2. The bed adopts casting technology, which has the characteristics of large thickness, never deformation and sufficient weight, which increases the overall stability of the equipment.
3. Inverter: step less variable speed inverter, high precision, stable performance and durability.
4. Equipped with Leadshine motor drive, it has the advantages of stable performance, high precision and no loss of steps.
| Model | ELE-3012 |
| Rotary diameter | 300mm |
| Rotary length | 1200mm |
| Z axis | 300mm |
| Max speed | 5m-6mm/min |
| Precision | ±0.005mm/300mm |
| Interface | USB |
| Command | G code*.u00*.mmg* |
| Surroundings for software | Windows98/2000/XP |
| Power(not include the spindle) | 500W |
| Power | 220v,1phase, 50/60HZ |
| Spindle Power | 2.2kw |
| Spindle speed | 0-18000 rpm/min |
| motor | Stepper |
