1325 Three Spindles CNC Router

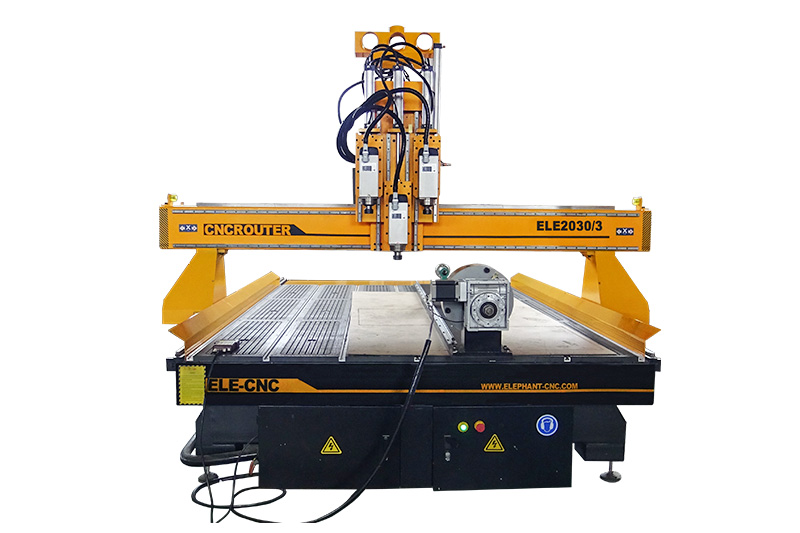

2040 Multi Spindle CNC Router

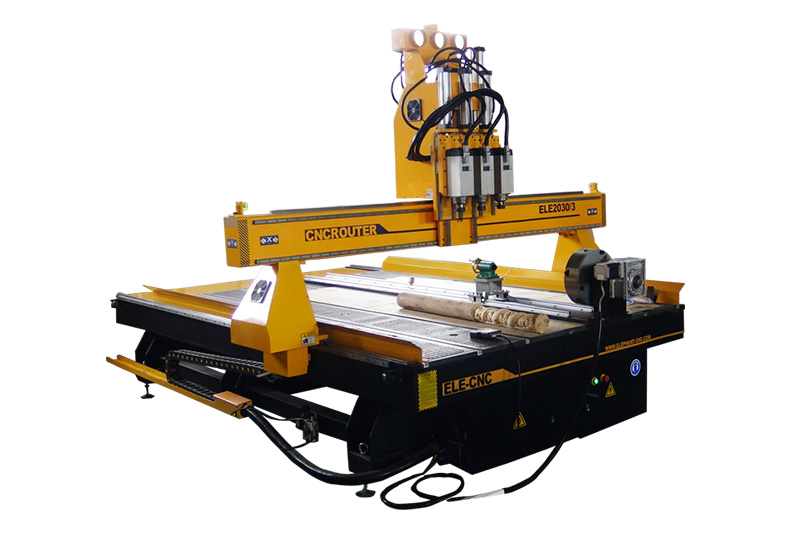

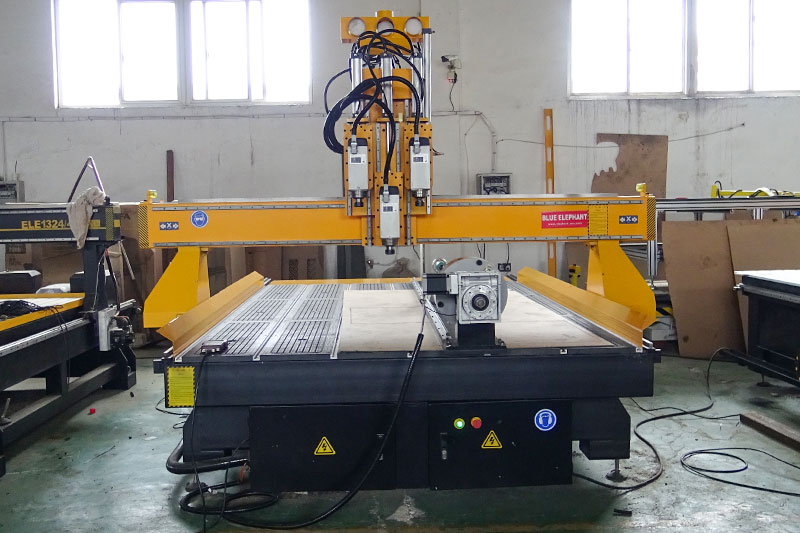

This multi head CNC router can engrave the material with 3 different tools. And the machine was designed with rotary device to engrave both plates and cylinders.
1. Designed with 3 sets of HQD air cooling spindle, and the multi head can work one by one, so the machine can improve the working efficiency.
2. This multi spindle CNC router can be used in the furniture industry, decorate industry.
3. Head amounts and working area can be changed according to your requests.
4. The machine is very suitable for the clients who have limited budget for auto tool change ATC CNC router.
| Model | ELECNC2030 |
| X,Y axis travel | 2000x3000mm, option: 1300x2500mm, 1500*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 3kw air cooling spindle, ER25, 3sets |
| Inverter type | 3.7kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ER25collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP A123 |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5kw, 6kw spindles |
Click for details

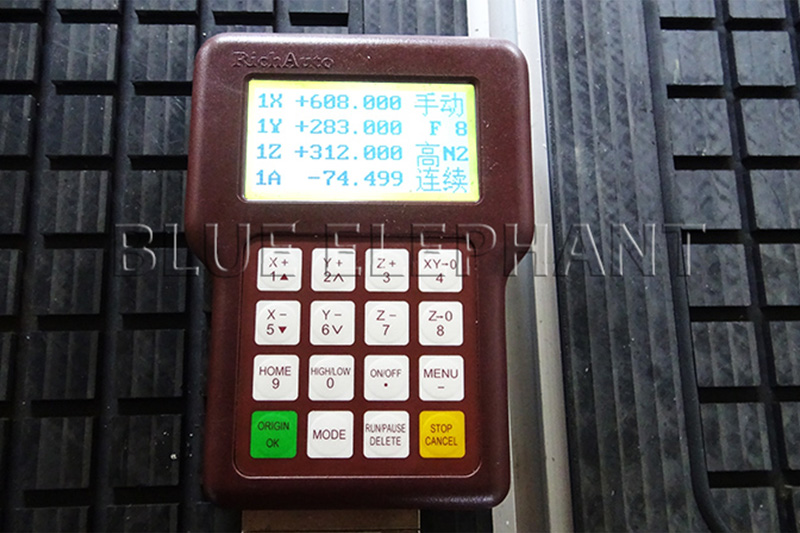

DSP A123 Control System

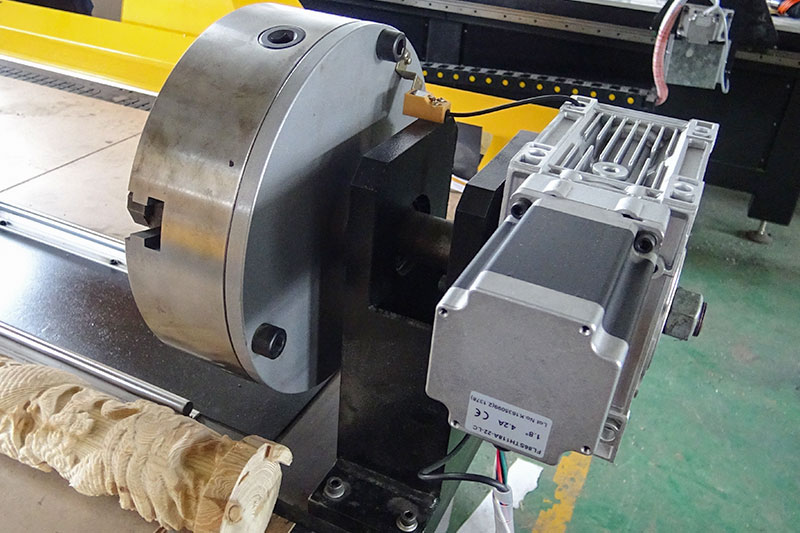

Rotary device

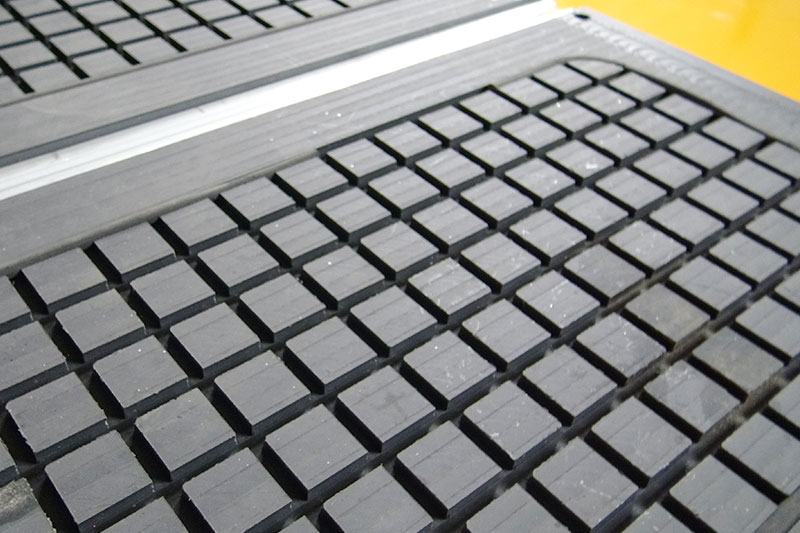

T-slot&Vacuum table

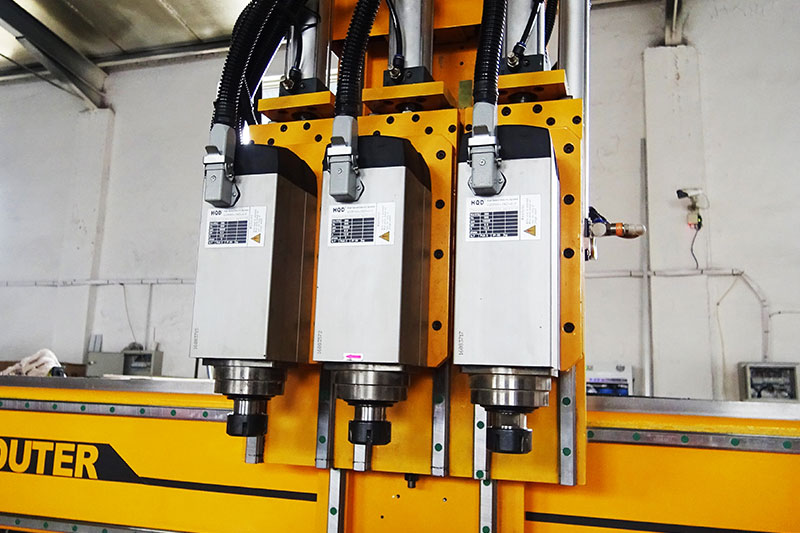

Multiple spindles
