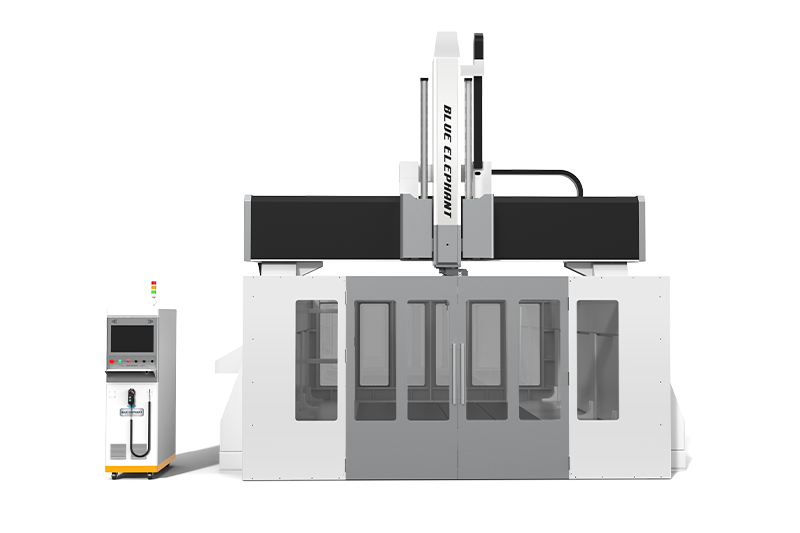

3050 5 Axis CNC Machining Center
1530 ATC XPS CNC Machine

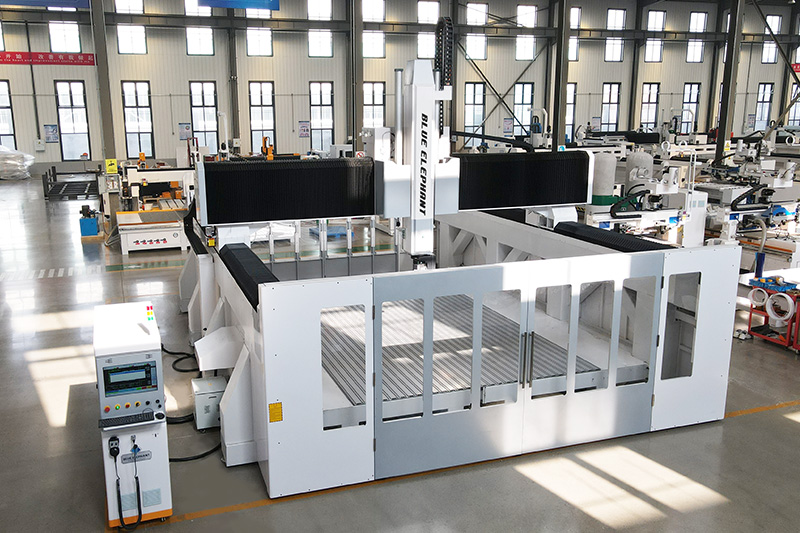

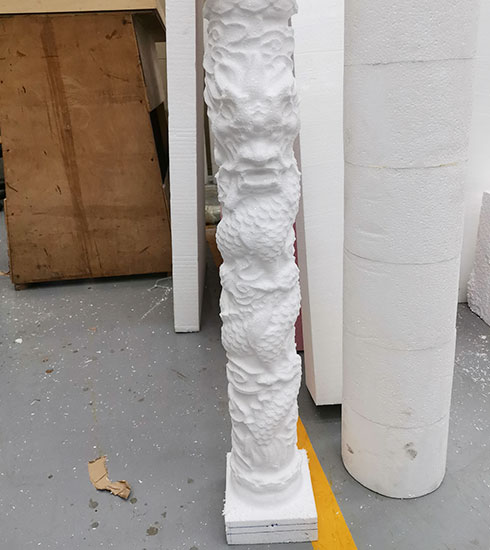

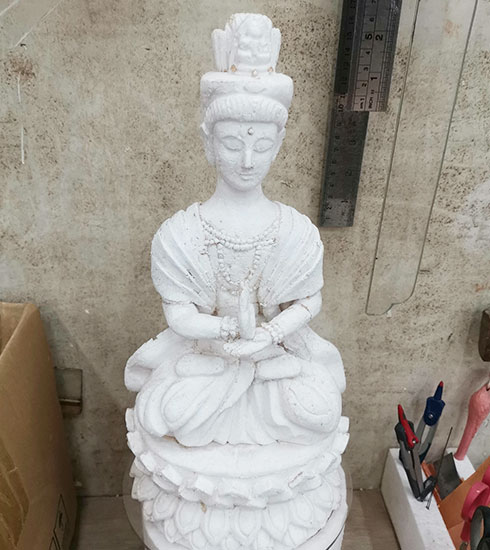

This best-selling 5 axis CNC machining center with a 5 axis head, adopts a heavy-duty bridge structure, high precision and strong stability. In addition, it is equipped with a variety of high-quality, high-performance parts to ensure stable and precise processing. It is used to process many different kinds of materials, such as carbon fiber, fiberglass, wood, medium-density fiberboard, polyurethane, foam, stone, plastic, etc.

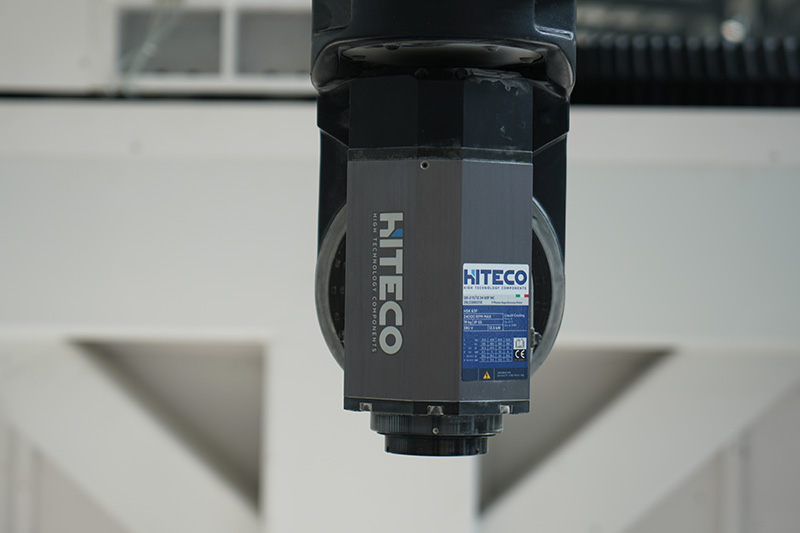

1.This 5-axis foam CNC machining center uses an Italy Hiteco 11KW water-cooling spindle with a speed of up to 24000rpm. It can rotate 270°±90° at the same time to accurately and quickly cut and engrave more complex projects.
2.The 5-axis EPS foam CNC cutter is also equipped with a CW5300AL water chiller, which can better cool the spindle to extend its service life.
3.This 3D foam 5-axis machining center with A-axis that can rotate ±120° and C-axis that can rotate ±245°.
4.The cutting machine can accommodate 8 kinds of tools with different functions, realizing automatic tool change and improving processing efficiency.
| Model | EW4-3050 ATC 5 Axis |
| Chassis voltage/frequency | 380V,3PH,50HZ |
| Control system | Syntec 5-axis system 610 with RTCP function |
| Spindle power/speed | Italy Hiteco 5 axis head＋Italy Hiteco 11 kw liquid cooling spindle, 24000rpm |
| Inverter | 15kw Delta inverter |
| Motor and driver | Y axis 2.9kw Yaskawa servo, X, Z axis 1.8kw Yaskawa servo, Z axis brake |
| Bed structure | Styrofoam bed structure |
| Reducer | Japan SHIMPO reducer |
| Table structure | Ordinary countertop + PVC |
| Side panel type | Welded side panel |
| Linear Guide | Taiwan PMI square linear guide rails, 35# |
| Rack | Taiwan YYC rack 3M Z Axis 4010 screw |
| Lubrication system | 1.5L Automatic lubrication system |
| Machine dust protection type | X，Y Axis |
| Water Chiller | CW5300AL 1 PH 220V, 50HZ |
Click for details

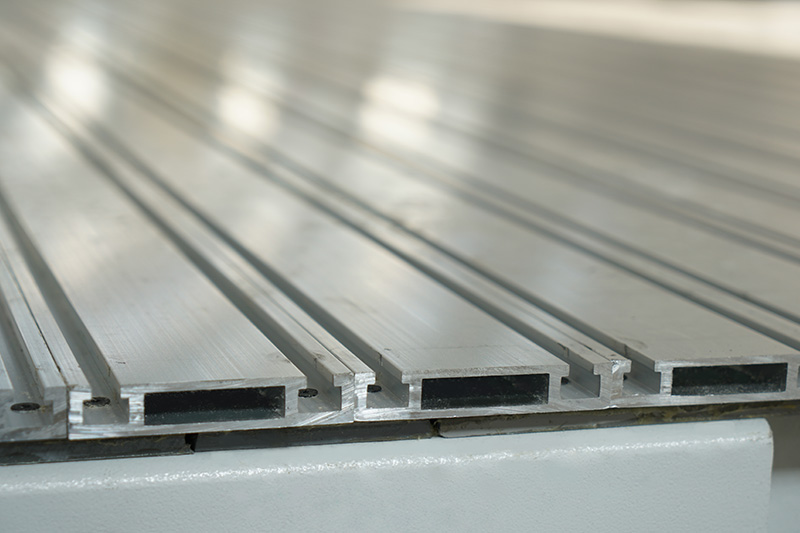

T-slot Table

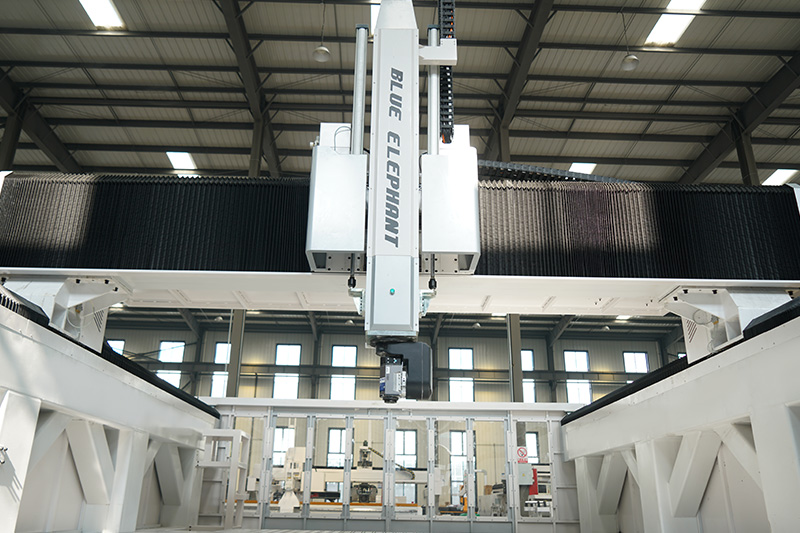

Heavy Duty Reinforced Beam

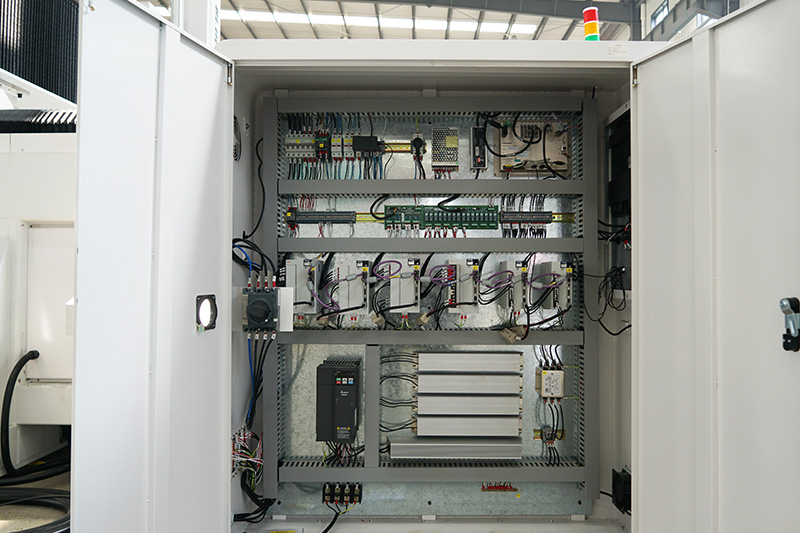

Control Box
Water Chiller
