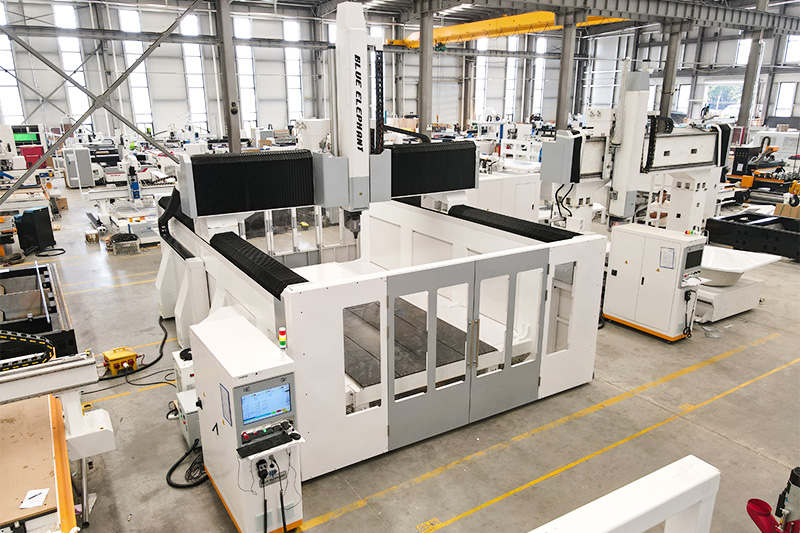

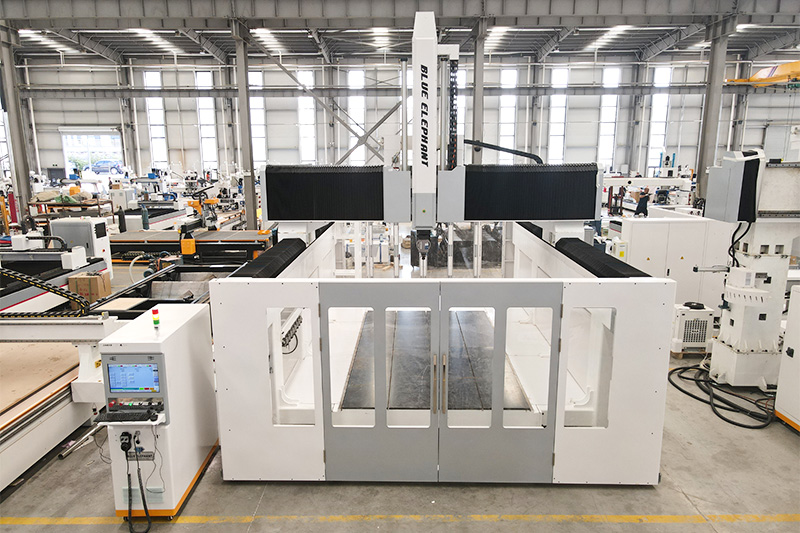

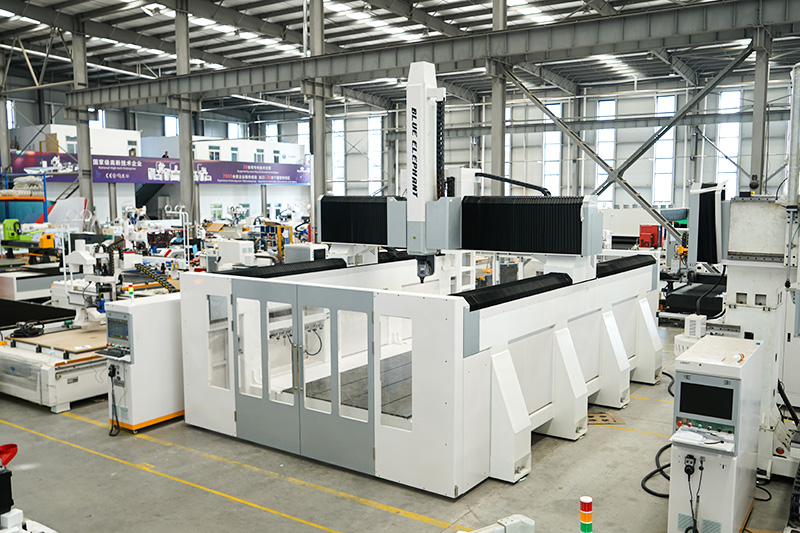

2040 5 Axis Foam CNC Machine
This is an advanced and new design Blue Elephant EPS CNC foam cutter with 5 axis head for Sale. It is equipped with various good-quality and high-performance parts to guarantee stable and precise processing. It is used to process many different kinds of materials like carbon fiber, fiberglass, wood, MDF, polyurethane, foam, stone, plastic, etc. In general, it is an ideal choice for mold industries, furniture industries, bathroom industry, etc.
1. This 5 axis foam CNC machining center adopts an Italian HSD ES779 HSK F63 10KW spindle, which can rotate 270°±90° to cut and carve more complex projects accurately.
2. The 5-axis EPS Foam CNC cutters can hold 6 different functions tools, realize automatic tool changing and improving process efficiency.
3. This 3D foam 5 axis processing center is also equipped with a CW5300 water chiller, which can better cool spindle to get longer life time.
4. The styrofoam cutting machine is widely used in the furniture industry, bathroom industry, construction industry, advertising industry, mold industry, and so on.
5. The A xis of this 5-axis EPS cutting machining center can rotate ±120°, while the C axis can rotate ±245°.
| Model | ELECNC2040ATC-5AXIS |
| X,Y axis travel | 2000x4000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 1200mm, option: 800mm, 1000mm, etc |
| Spindle | Itlay Hiteco 5axis head with 10KW Hiteco spindle |
| Inverter | 15kw Taiwan Delta inverter |
| Tool magazine | Linear type with 8 positions Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec 610-E5 5 axis control system |
| Driving system | 2.9kw YASKAWA servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | EPS Heavy Duty Structure Machine Body |
| Work table | T-slot working table with PVC protected |
| Linear guide | Taiwan PMI square Linear guide rails for all axis, #35 for Y, #35 for XZ |
| Transmission | X,Y axis: Helical Rack and Pinion, 3M Z axis:Taiwan TBI -4010 |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | UG, Power-mill, Artcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 60m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V±10%, 3PH, 60HZ |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc |
Click for details
Spindle

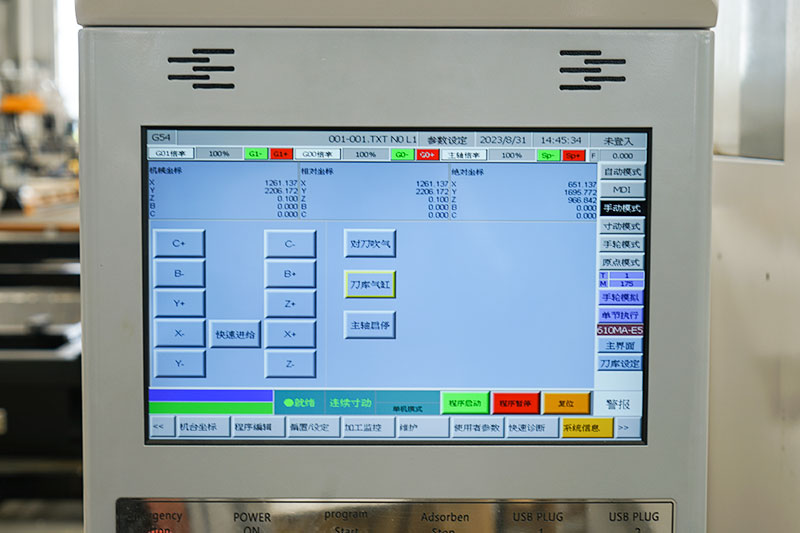

Control System

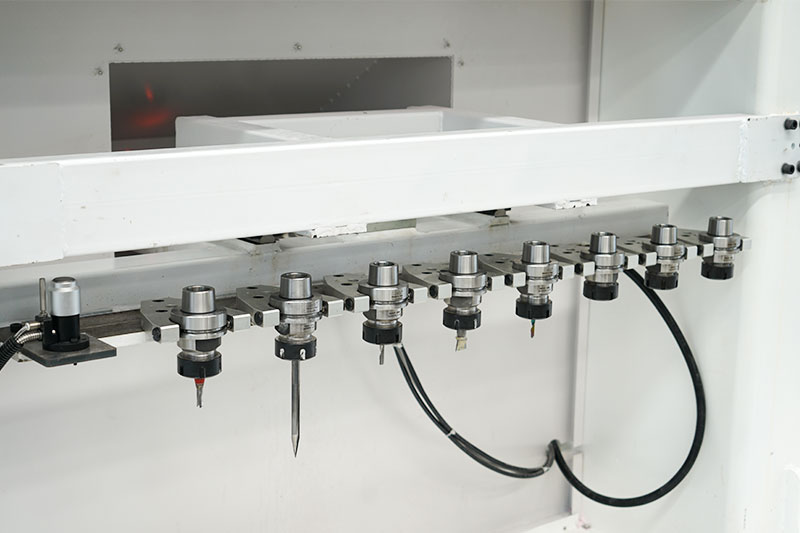

Linear Tool Changer

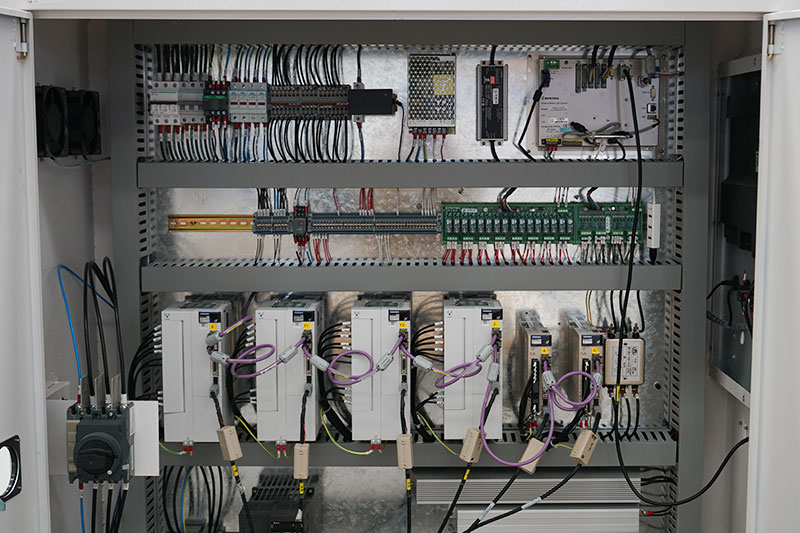

Control Box
