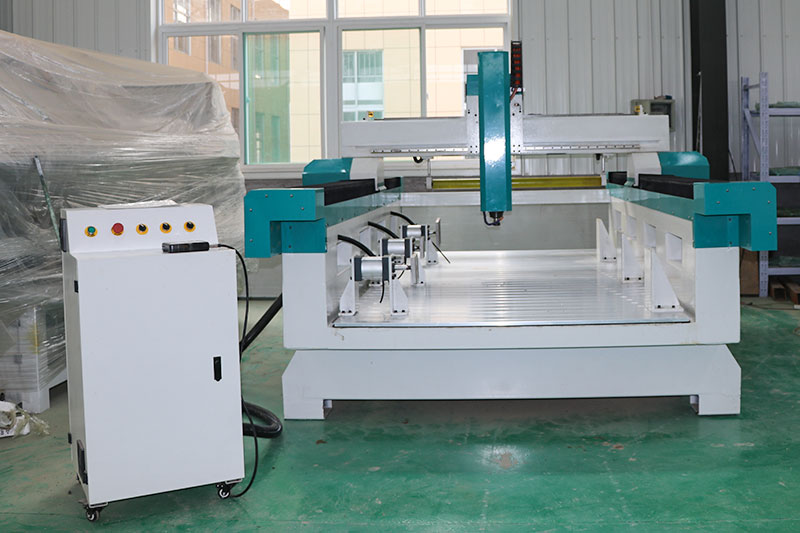

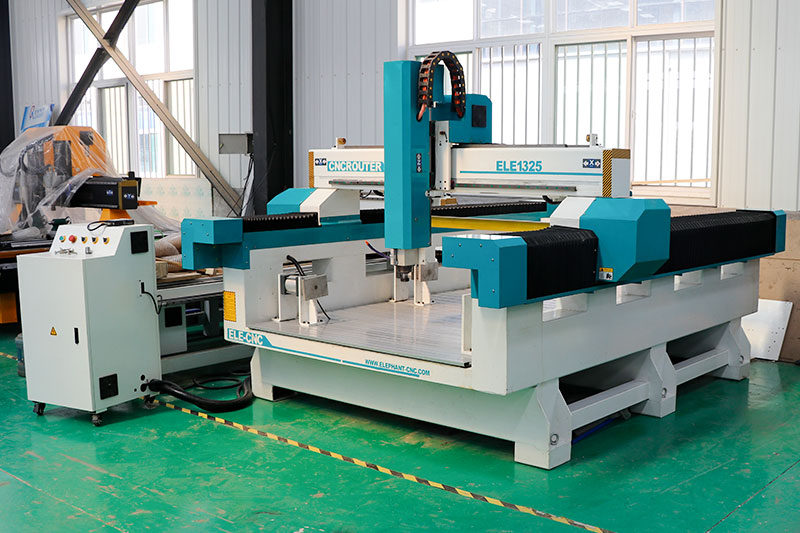

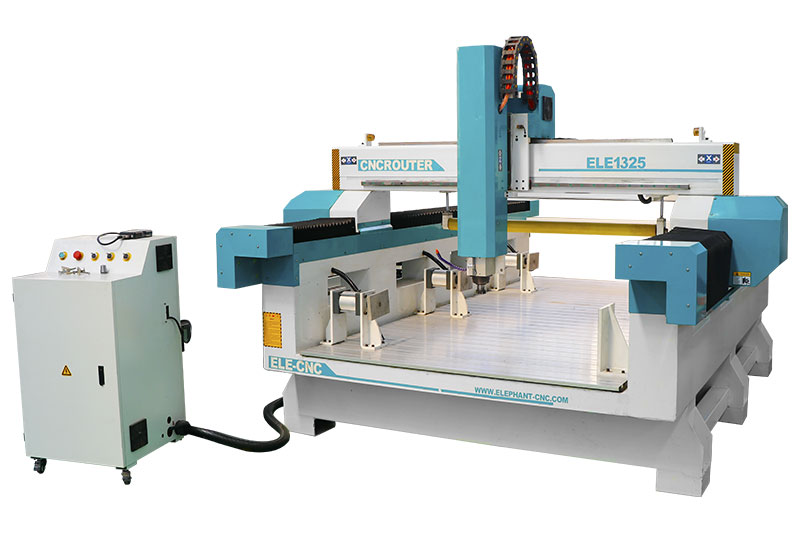

The CNC foam carving machine can engrave various large nonmetallic molds, especially for auto foam mold, wooden molds for ship, aviation and train. And it is also suitable for precise manufacture of casting wooden mold, food mold (such as moon-cake mold) and other molds.

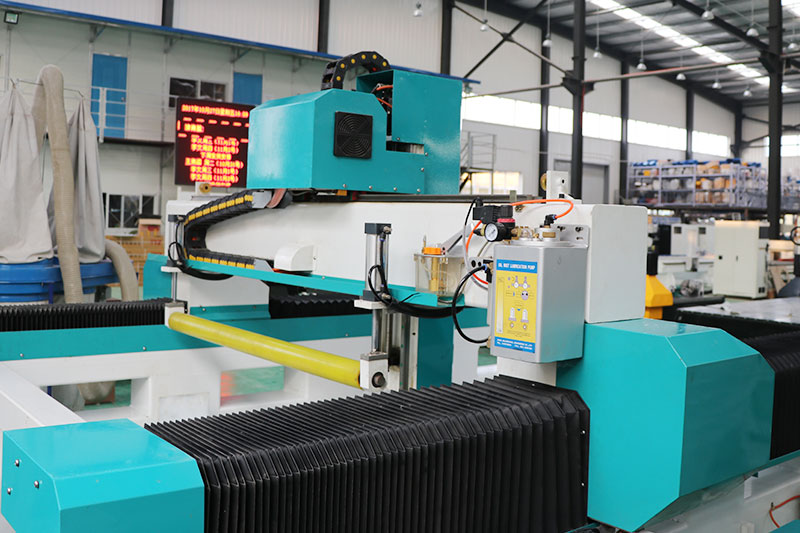

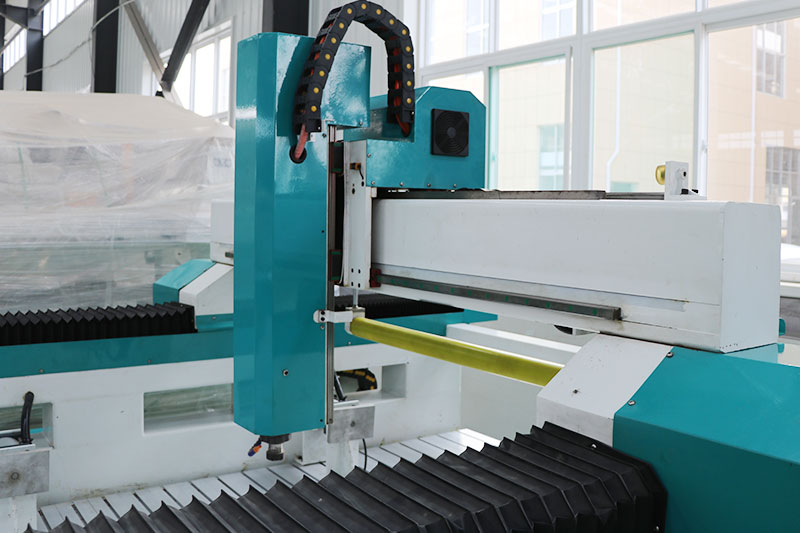

1. Designed with the press roller, it can keep the machine not moving.
2. With Japan YASKAWA servo system, it has the advantages of higher precision and big torque.
3. Manufactured with Original Italy HSD spindle, it has many features of high speed and high efficiency.
4. The Z axis and the whole working size can be heightened according to your special requirements.
| Model | ELECNC1325 EPS |
| X,Y axis travel | 1300*2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 500mm, option: 600mm, 700mm, 1000mm, etc |
| Spindle type | 6kw HSD Italy air cooling spindle |
| Inverter type | 7.5kw Delta inverter |
| Control system | DSP A11 controller |
| Driving system | 850W leadshine servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Slot & aluminum work table |
| Positioning cylinder | 4 pcs cylinder |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Manualtool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |
Click for details
Pump

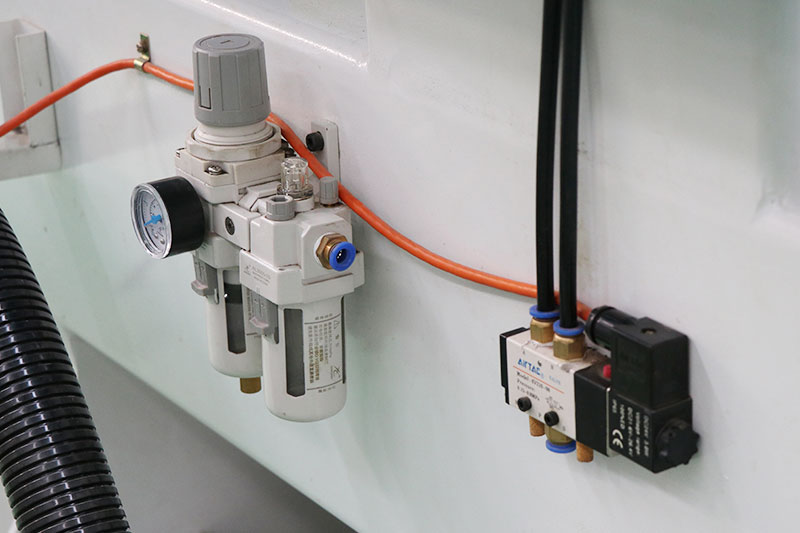

Pneumatic system

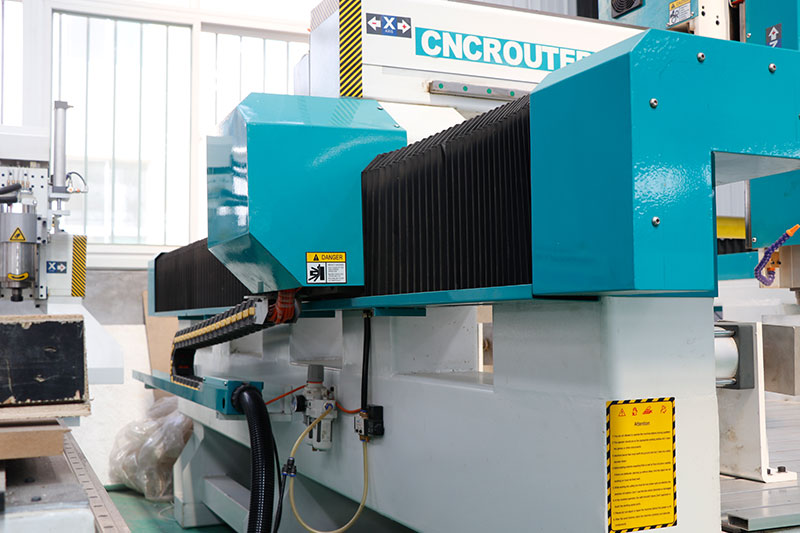

Towline
Z axis
