Description

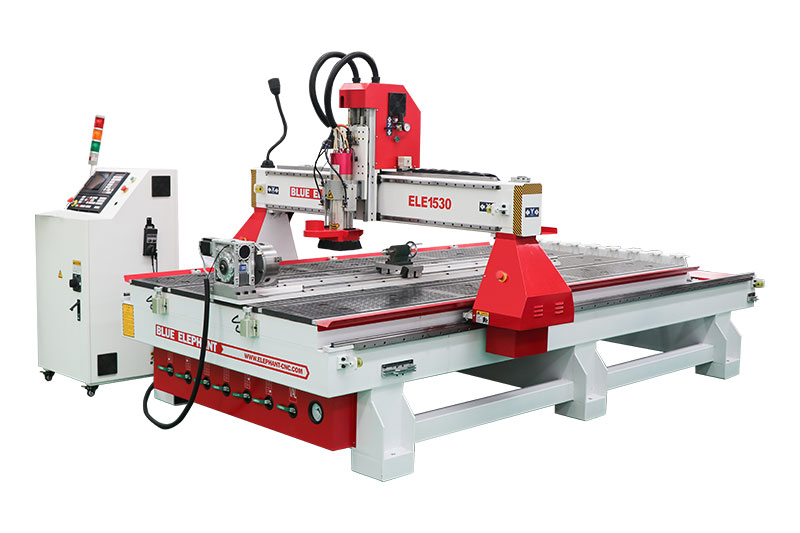

CNC 3D wood carving machine is the best choice for 3D wood carving, cutting, and engraving. The portable rotary device on the table meets the needs of column, pillar, etc. and take no space. The auto tool changer magazine manages tool bits shifting. All things are done automatically.

Features

1. 5.5kw Changsheng ATC water cooling spindle with 1200rps/min, enabling the machine to process some complex objects and molds.
2. Larger working area and processing area greatly improve work efficiency.
3. Heavy-duty frame and gantry make the machine work more stable.
4. High-performance drive motor to ensure high-speed and high-precision work of the machine.

Parameters

Model	ELECNC1530ATC
X,Y axis travel	1500x3000mm, option: 13002500mm; 21003000mm; 2100*4000mm, etc
Z axis travel	200mm, option: 300mm, 400mm, 500mm, 600mm, etc
Spindle type	5.5kw ATC water cooling spindle, BT30, ER32
Inverter type	5.5kw
Drilling bank	Option
Tool magazine	Linear type auto tool changer Option: carousel type auto tool changer
Tool holder with collet	BT30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan LNC controller, option：SYNTEC
Driving system	750W Panasonic servo 4 sets. option: Taiwan Syntec servo
Reducer	Japan SHIMPO reducer as option
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces (X2, Y3) as option
Linear guide	Taiwan linear guide ( dust proof as option)
Transmission	X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language	G Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

X,Y,Z Working Area	15003000300mm
Table Surface	Vacuum and T-slot working table with 6 zones
X, Y Structure	Helical Gear and rack transmission, Taiwan PMI Linear Rail #20
Spindle Power	5.5kw Chang sheng water cooling spindle 0-12000RPM
Drive Motors	750W Japan Panasonic servo
Operating System	Taiwan LNC control system with MPG hand wheel
Lubrication System	Automatic oil lubrication system

Click for details

Frequent Asked Questions

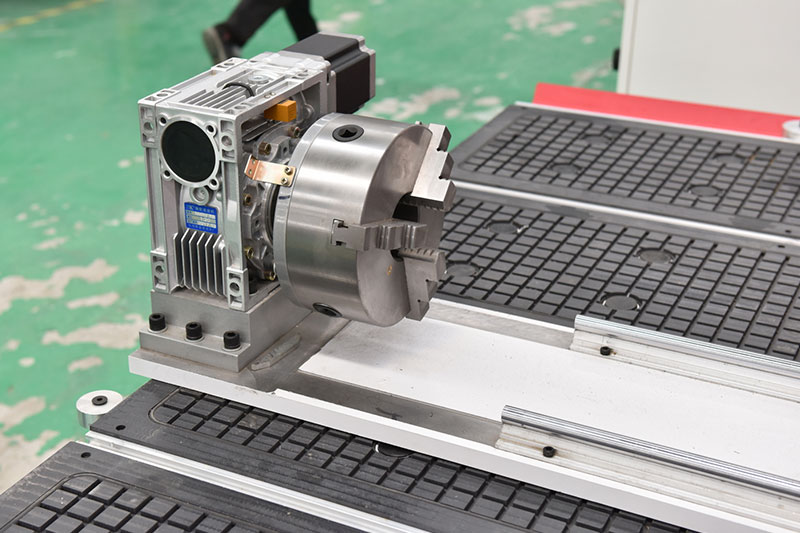

1.What is the rotary device ?

This rotary CNC router machine is also called a 4-axis CNC router with the rotary device. And it mainly used to process cylinder work pieces.

2.Is the water cooling spindle suitable for working on wood?

The water cooling spindle has low noise and does not spray water, which is suitable for working on wood for a long time.

3.Can the CNC machine be equipped with the Mach3 controller ?

Mach3 ATC control board is not stable in China. Although the LNC controller is similar to the Mach3 controller, it has higher level and higher precision. Besides, it is also equipped with the Key board and mouse.

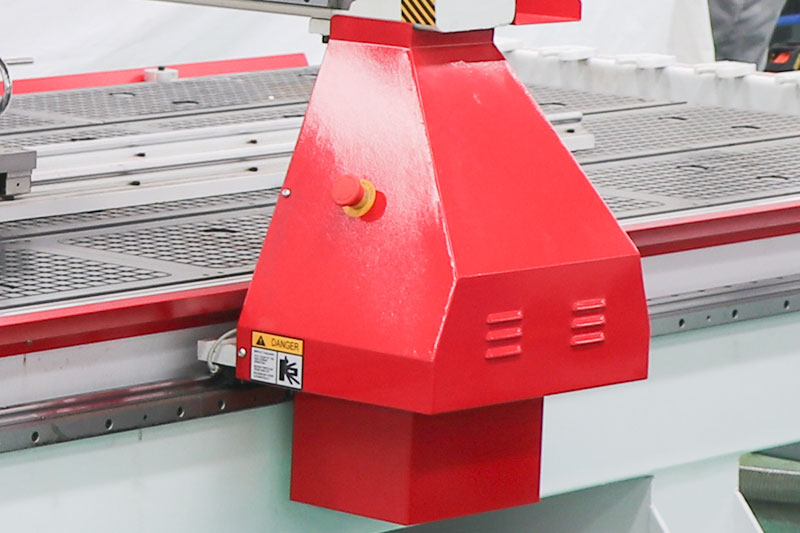

ATC CNC Router Details

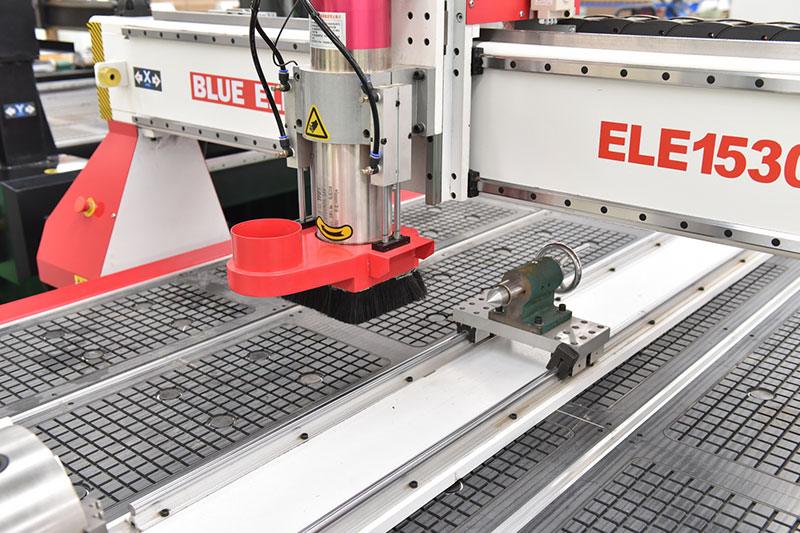

ATC spindle

Chuck

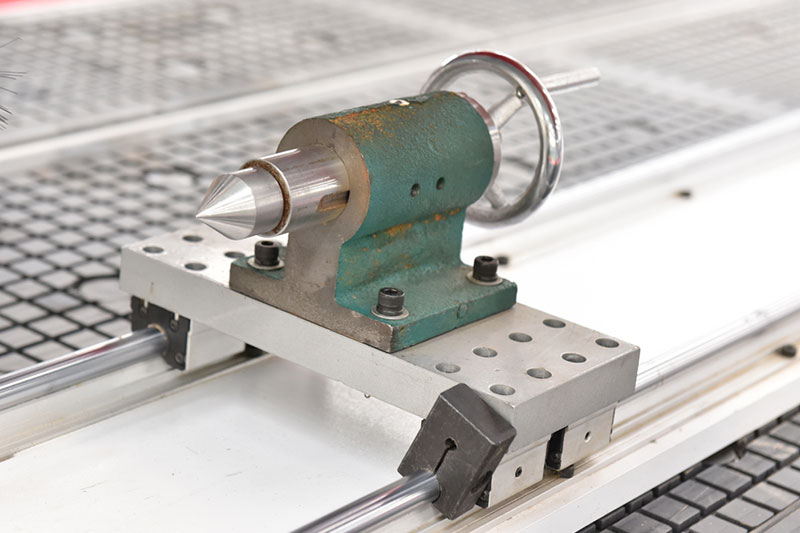

Thimble

Motor

Application

Woodworking industry: Processing of three-dimensional wave board, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window, and auxiliary processing of shoe polishers, game machine cabinets and panels, mahjong tables, computer tables and panel furniture. Advertising industry: Advertising signage, logo making, acrylic cutting, plastic molding, and processing of various advertising materials and decorative products. Mold industry: It can engrave copper, aluminum, iron and other metal molds, as well as artificial marble, sand and stone, plastic plates, PVC pipes, wooden boards and other non-metal molds. Craft gift industry: It can carry out a variety of shadow carvings, reliefs, and widely used in crafts industry, and gun stock / woodn butt making.Musical instruments, such as guitar making, and violin, guzheng, erhu, guitar, huqin, matouqin, banhu, coconut and other bowed string instruments and percussion instruments such as clapper, wooden fish, castanets, drums and so on

Samples

Click for solution

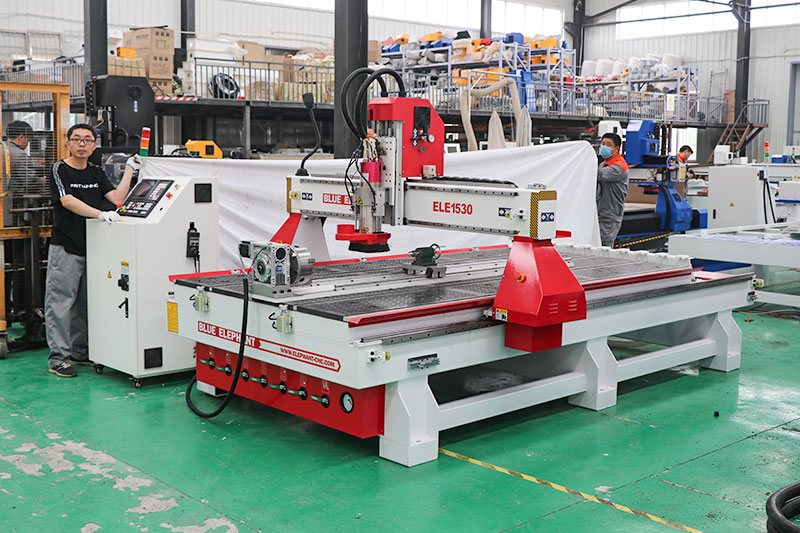

Production Facility
