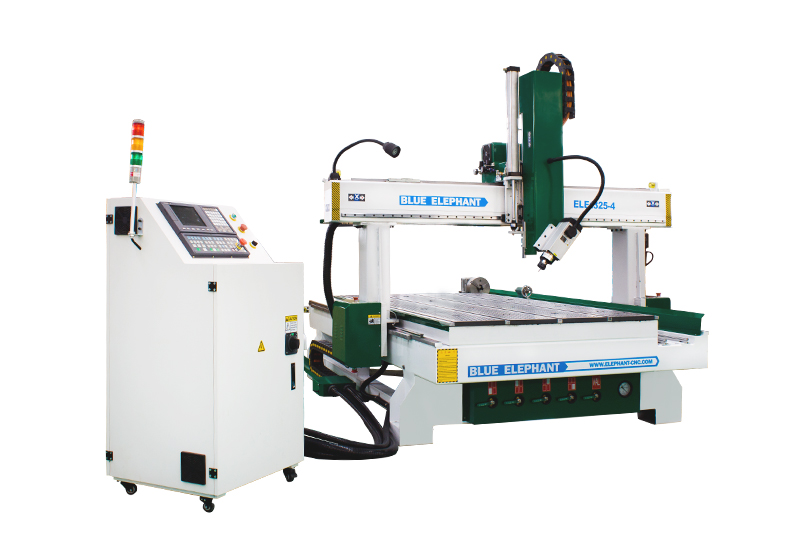

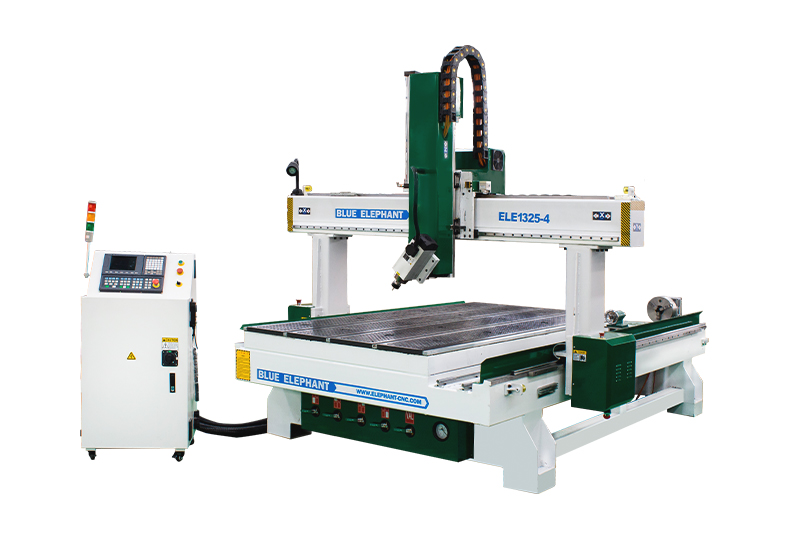

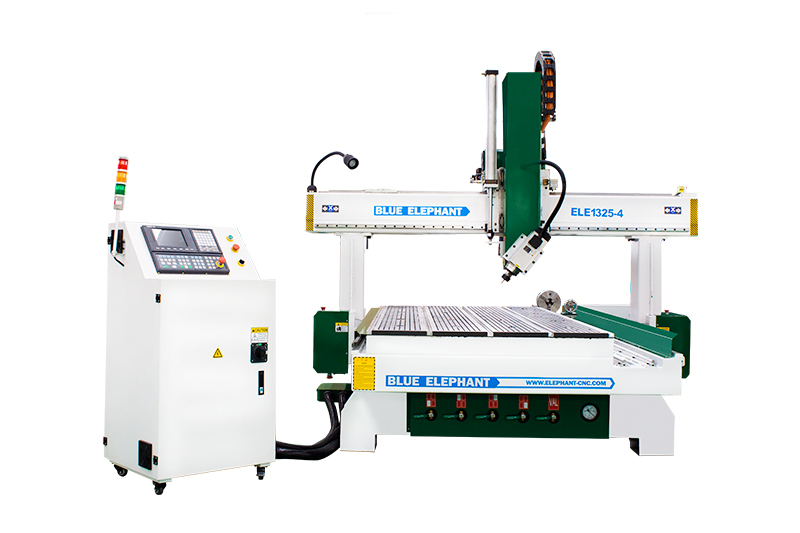

Best 4 Axis Rotary CNC Router 4x8 Wood Engraving Machine for Sale

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-1325-4
Category : Rotary Axis CNC Router
Price Range : $10,000 to $25000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

4th axis CNC wood engraving machine is designed with a rotary device and a swing spindle. So it can complete 2D and 3D engraving work and process cylindrical objects. The rotary device can be customized according to your requirements.

Features

1. CNC Wood Engraving Machine is equipped with an HQD air cooling spindle, and it can swing in 180 degrees to engrave side surfaces of the workpiece.
2. With Japan YASKAWA servo motors and drivers, it has the features of high efficiency and high speed.
3. Adopting high-quality CNC router kits, such as Sweden ABBA linear guide and Taiwan TBI ball screw for Z axis, the machine has higher precision and good stability.
4. All specifications of this 4th Axis CNC Router can be made and designed according to your requirements.

Parameters

Model	ELECNC1325-4A
X,Y axis travel	1300x2500mm, option: 15003000mm; 20003000mm; 200*6000mm, etc.
Z axis travel	400mm, option: 500mm, 600mm, etc.
Spindle type	6kw air cooling spindle, ER32
Inverter type	7.5kw
Drilling bank	Optional
Tool magazine	No tool magazine Option: Linear type or carousel type auto tool changer
Tool holder with collet	ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan Syntec controller, option: Taiwan LNC
Driving system	750w Japan Yaskawa AC servo driver and 750w AC servo motor, 5 sets. option: 850w Japan Yaskawa servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	Optional: 7 pieces (X2,Y3)
Linear guide	Taiwan Linear guide
Transmission	X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Manual tool sensor calibration
Cables	Germany Igus cables with CE,cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc.
Command language	G Code & M Code
Traveling speed	40m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.07mm
Working air pressure	0.8MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane,oil-free: Tongyou,Taiwan Eurovac,Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, all full set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63),12kw(ISO30,HSK F63),etc

Click for details

Frequent Asked Questions

Can I use this CNC router machine to cut aluminum?

Yes, of course. Our CNC router machine can process wood, solid wood, MDF, HDPE, plastic, foam, soft metal, such as aluminum, etc.

What kind of maintenance is required for this CNC router machine?

After using the CNC router, please clean the machine timely, especially the helical rack gear and square linear guide. Meanwhile, please pay attention to lubrication linear guide.

Can I use 415V for this machine?

Yes, 415V is OK for this CNC router, since the working voltage is 380V±10%. For vacuum pump and dust collector, you need to work with 415V for steady working.

Rotary Axis CNC Router Details

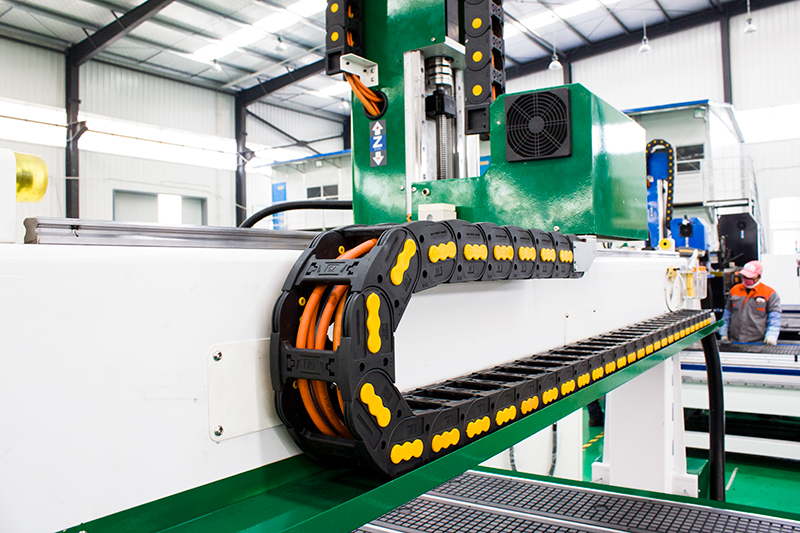

Towline

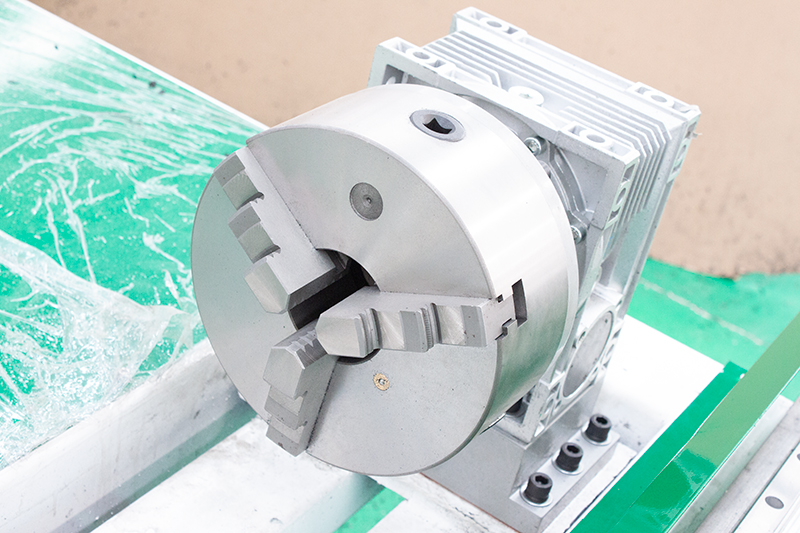

Rotary device

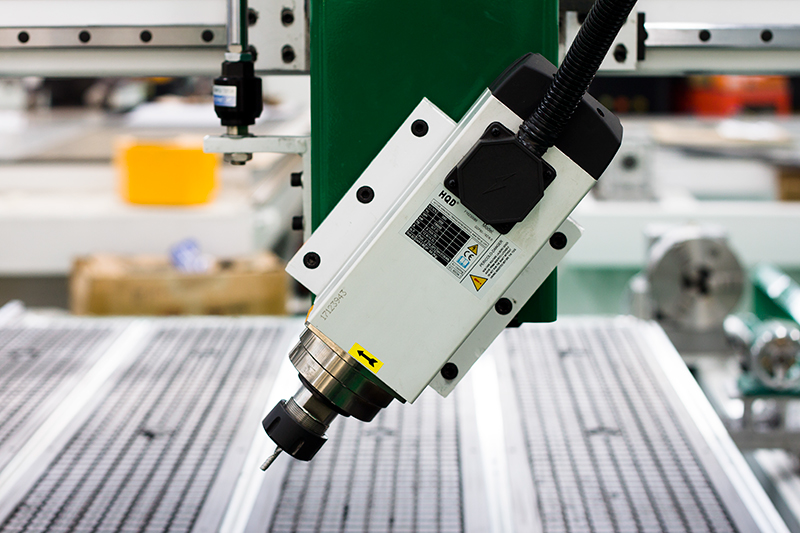

Spindle

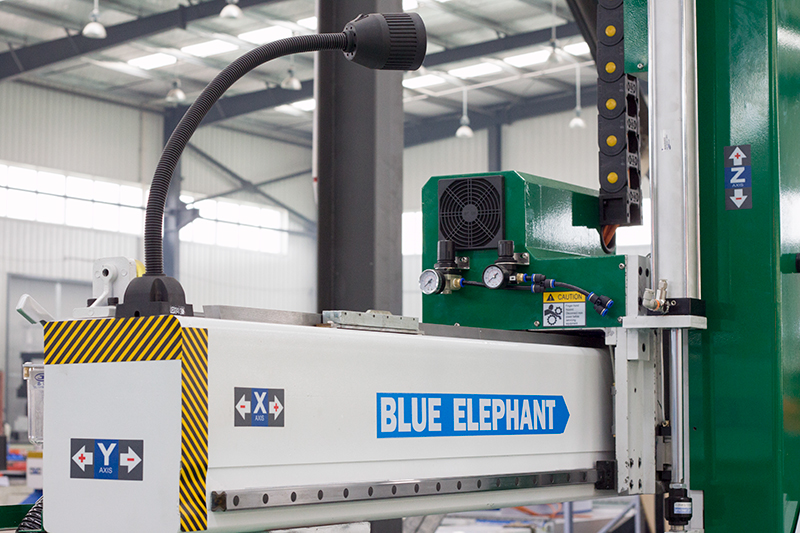

Z axis

Application

4 Axis CNC Router is suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.

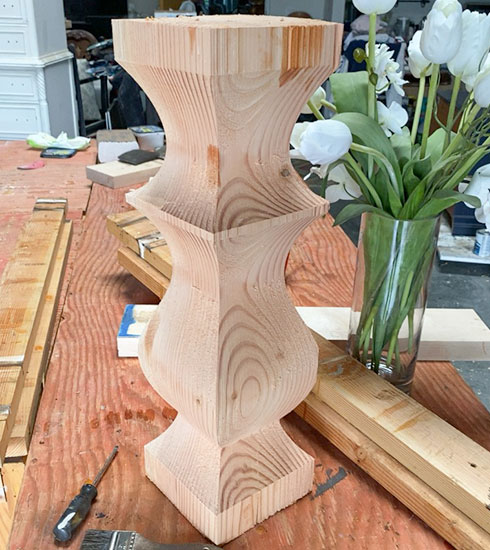

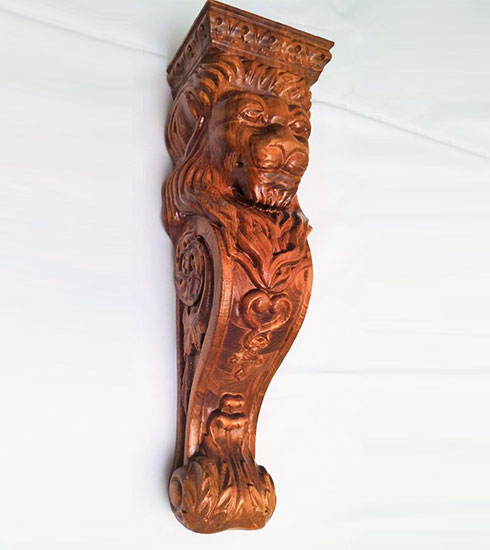

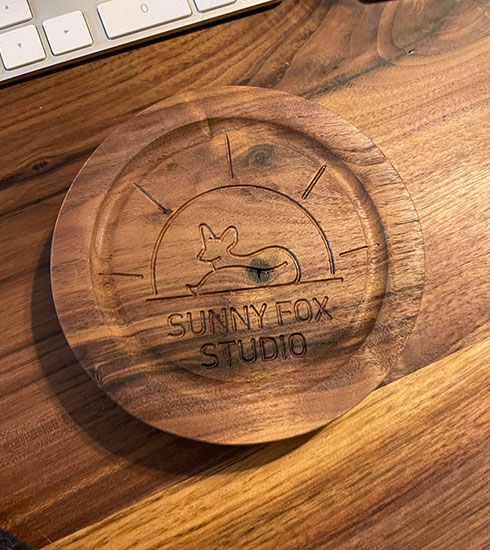

Samples
