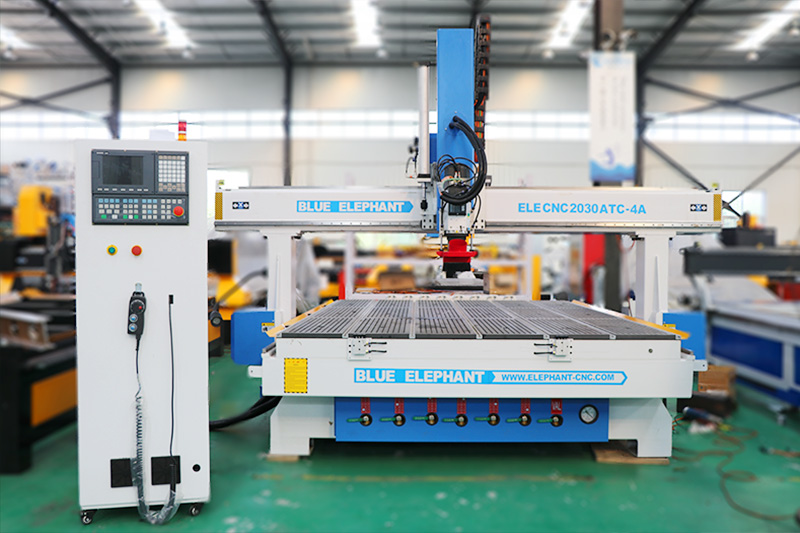

2030 CNC wood cutting machine with 4 axis ATC spindle is good at heavy-duty and complex 3d wood cutting and carving of wood panel, MDF, polywood, etc. All the working areas and specifications can be customized according to your requests. Now 4 axis ATC CNC wood engraving Machine is for sale at cost price. Contact us to get professional suggestions.
1. Linear auto tool magazine holds 8 pieces of tools. Italy HSD air cooling spindle changes tools quickly and automatically.
2. ATC spindle swings 180 degrees, it can make a more complex 3D wood carving than basic 3 axis CNC router.
3. Thoughtful and safe design, such as dust collect function, Automatic lubrication system, T-slot & vacuum working Table, etc.
4. Router Cutting has a lower cutting speed but more complex cutting path than a traditional wood cutting machine.
| Model | ELECNC2030ATC-4A |
| X,Y axis travel | 2000*3000mm, option: 1300*2500mm; 1500*3000mm; 2000*4000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4th axis | Spindle swing from -90°to +90° |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30,ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. Option:1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | ≥0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc. |
| Rotary device | Industrial-grade support of rotary device,diameter 200mm, 300mm |
Click for details

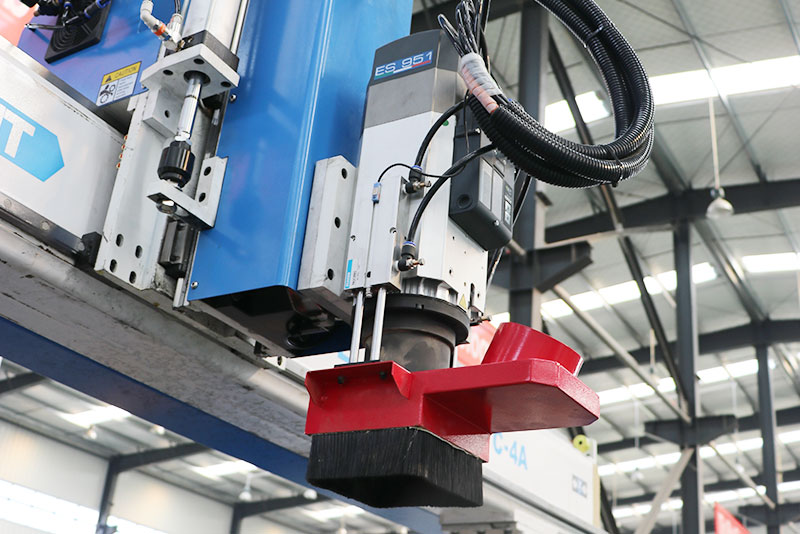

Spindle

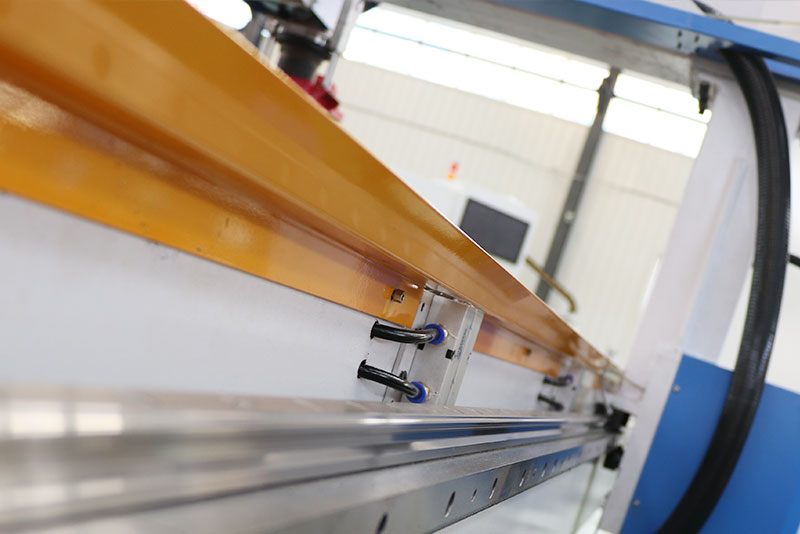

Guide rail

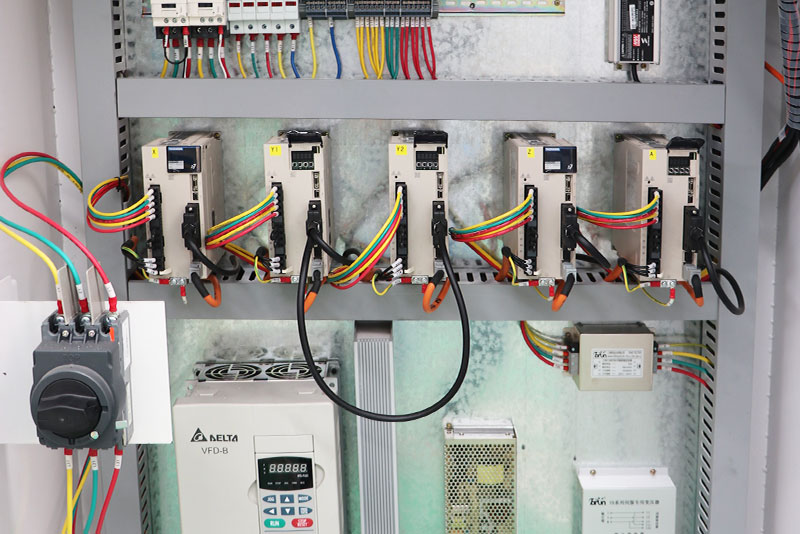

Electric parts

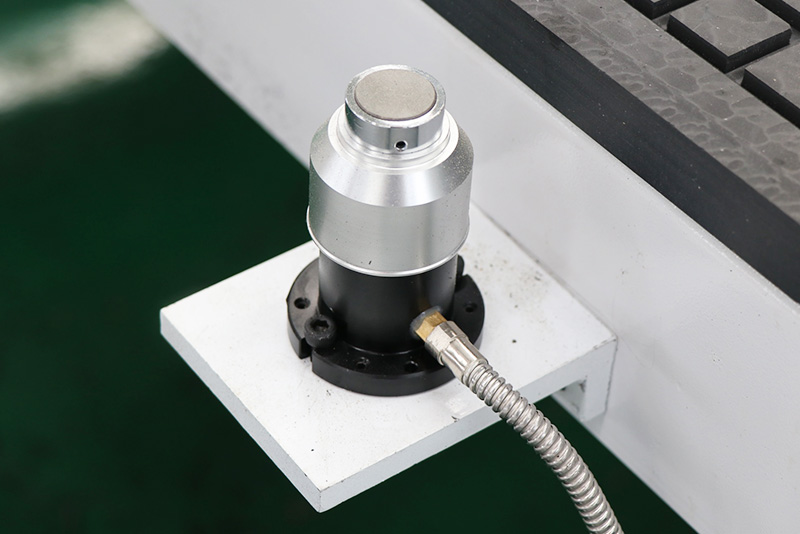

Tool sensor
