6090 Rotary Axis CNC Wood Router
6090 Wood CNC Router Carving MDF

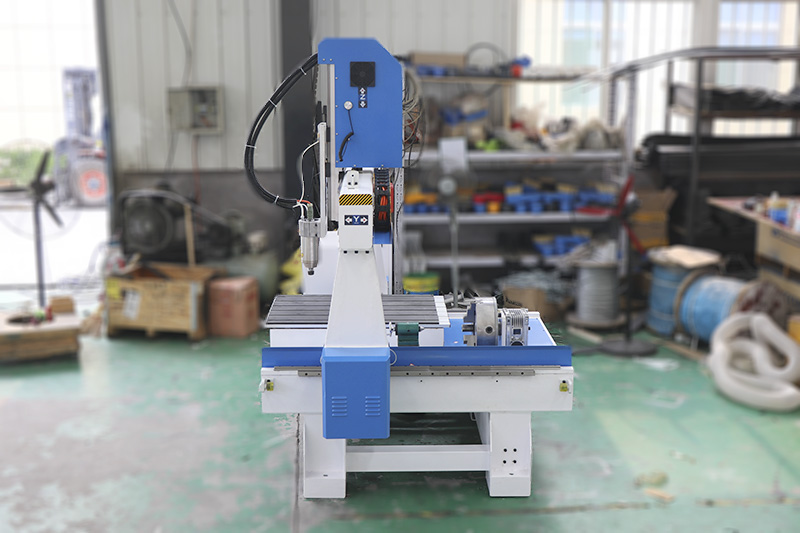

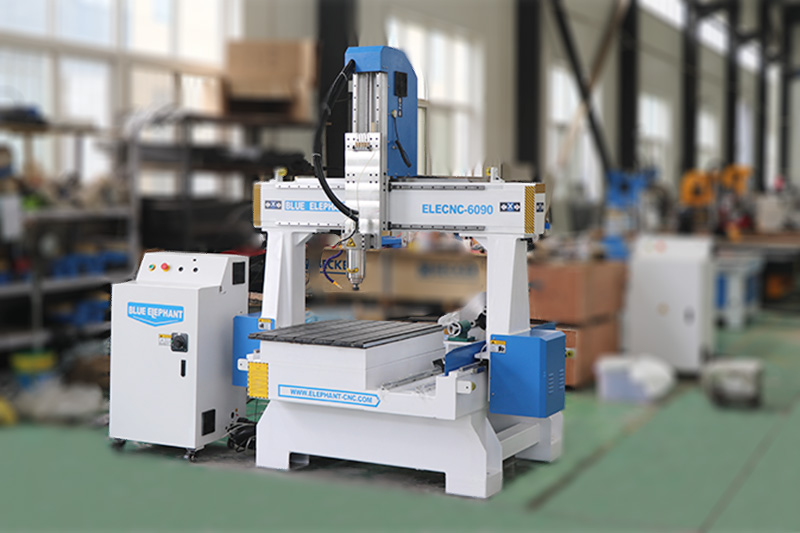

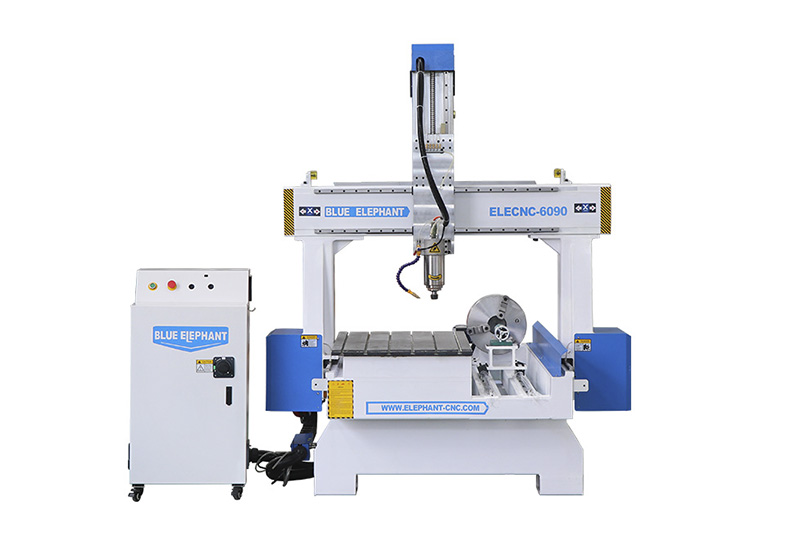

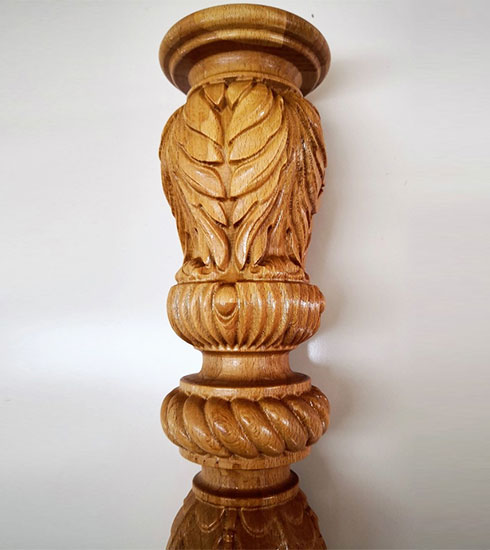

This is a hobby wood CNC machine with a rotary device. Compared with ordinary small CNC engraving machines, it has a wider range of applications. It can meet the processing of both flat workpieces and cylindrical workpieces.
1. With small footprint, it is easy to operate and suitable for home use and other small format processing.
2. Equipped with a rotary device, the machine can process three-dimensional and cylindrical work pieces.
3. The machine bed after a full welding process and vibration aging treatment, which ensure that the machine work stably at high speed.
4. Equipped with a water cooling spindle, it has the features like high processing precision, low noise and long service life.
| Items | Parameter |
| Model | ELECNC-6090 |
| Whole machine size | 600*900*500mm (optional) |
| Spindle | Changsheng water cooling spindle |
| Spindle speed | 0-24000RPM |
| Motor and drive | Leadshine motor and driver |
| Safety switch | France Schneider |
| Inverter | Fuling Inverter |
| Oil lubrication system | Manual |
| Limit switch | Japan OMRON |
| Machine structure | Heavy duty body with quenching treatment |

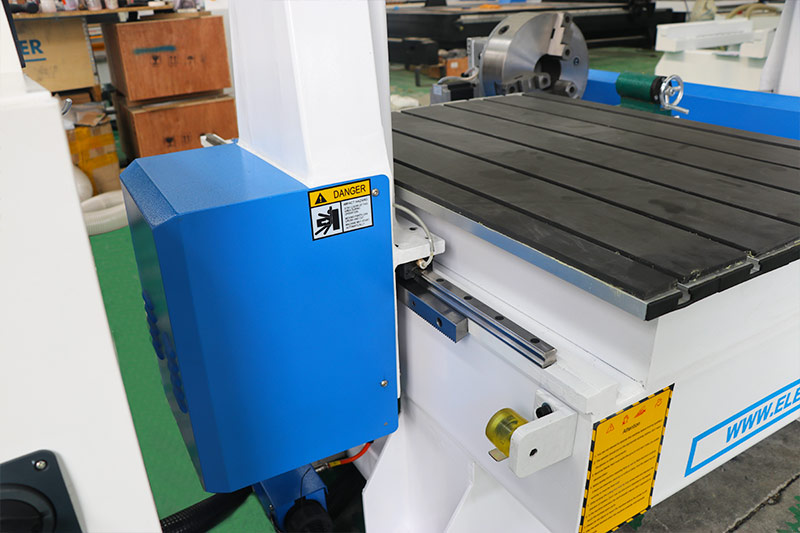

| Work table | T-slot work table (vacuum table for option) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool Calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible Software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command Language | G Code |
| Work table | Vacuum work table |
| Lubrication system | automatic lubrication system |
| Dust collect system | 1.5, 2.2kw, etc., including dust hood, pipe, all full set |
| Spindle type | Air cooling spindle, ATC spindle,etc |
| rotary | 80mm diameter, 100mm diameter |
Click for details

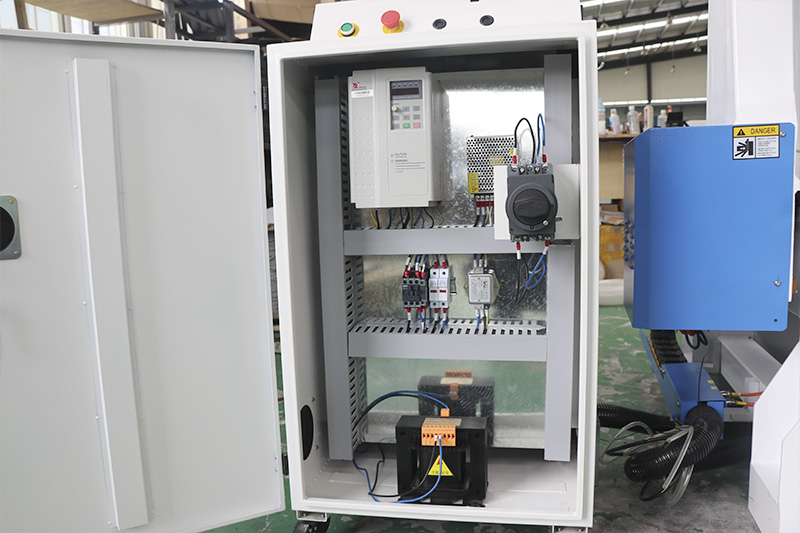

Control cabinet

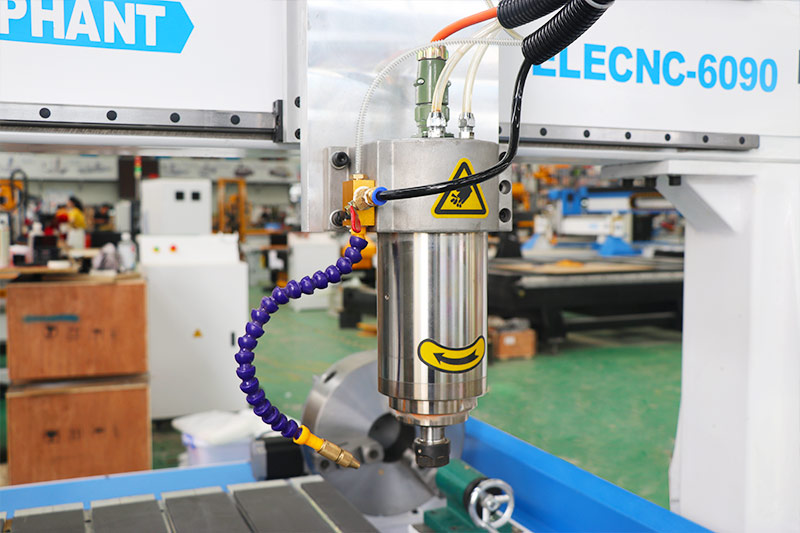

Spindle

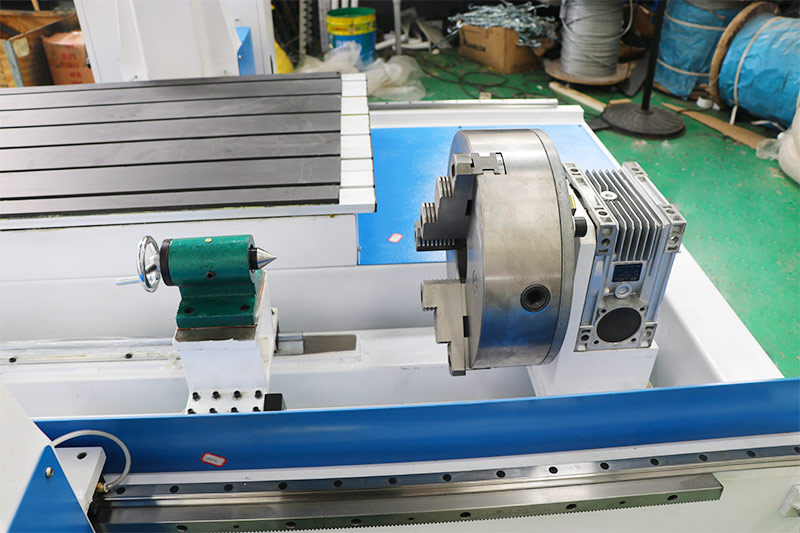

Rotary device
Motor
Click for solution
Click for quotation
I have been very busy with work and haven't had much spare time, but I did make a couple test cuts and it seems to be working great! Once I can work it into my production I will get you some video to share.
Machine arrived. Its all good, 0 damage. I want to buy three more machines next week since our business is growing.
It cuts well. I have been recommending it to others that I know to buy. Thank you, hopefully I will be able to buy more in the future.
The small CNC machine is installed and debugged. Can't wait to try the processing, it's simpler than I thought. It is very easy to operate. Look at my first processed sample, I am really satisfied.
