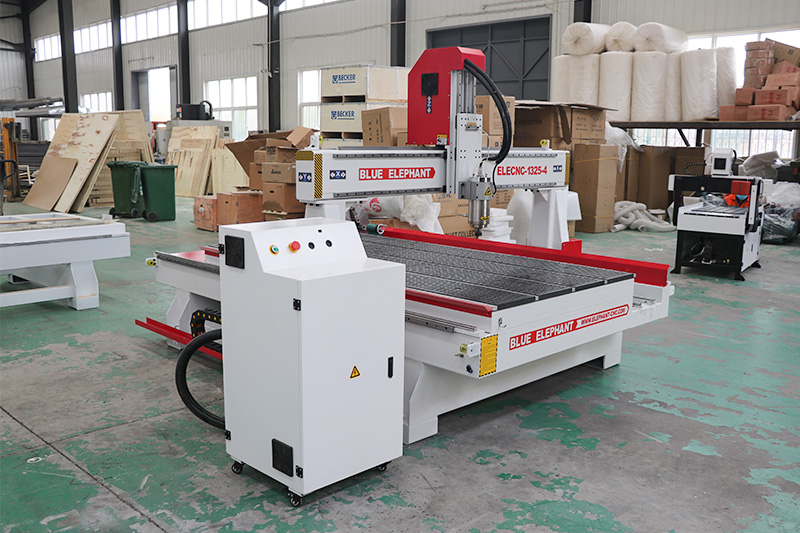

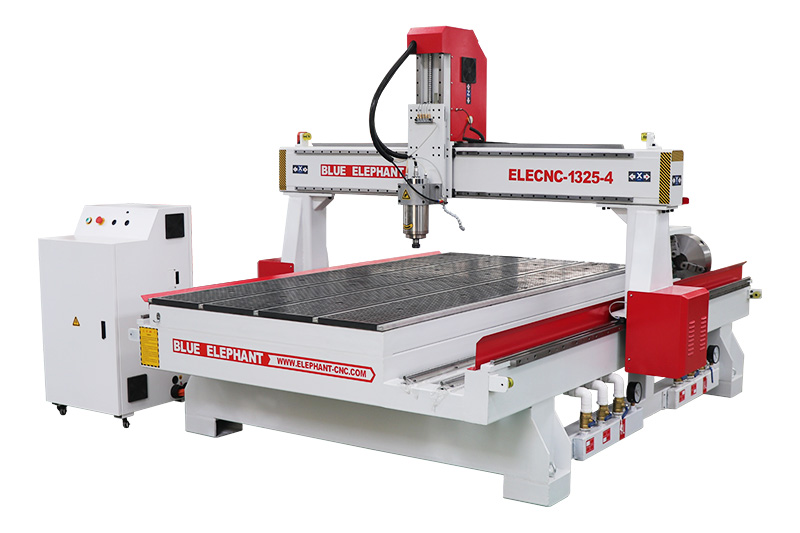

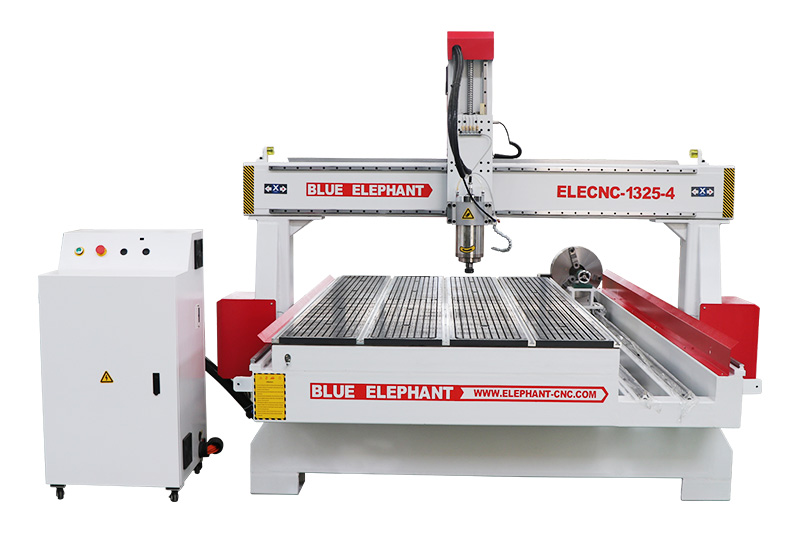

1325 ATC Rotary CNC Wood Router
1325 ATC CNC Router with Rotary Device
This rotary axis woodworking CNC machine has the advantages of low cost, simple operation, convenient maintenance, and complete functions. It is deeply loved by domestic and foreign customers. It can process both flat workpieces and cylindrical workpieces.
1. Equipped with a Changsheng water cooling spindle with better cooling effect, it is suitable for long-term processing.
2. With Mach3 4-axis control system connected to the computer, it is easy to operate.
3. Adopting large square tube machine bed, it can improve the stability of the machine operation.

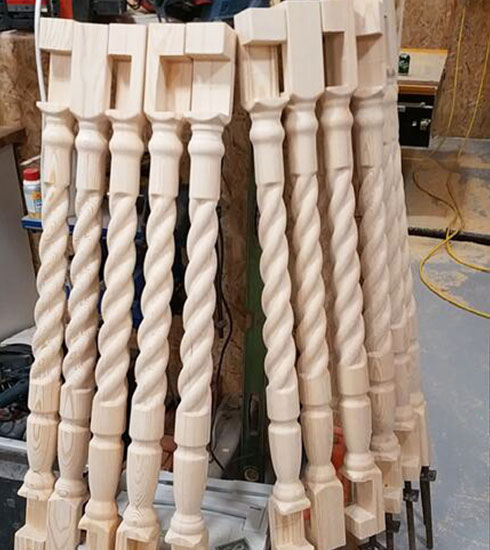

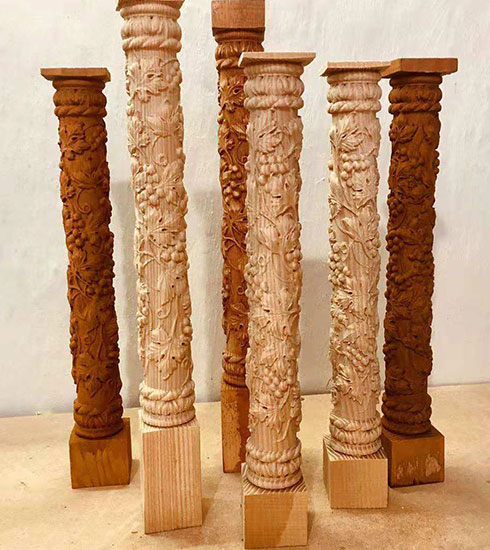

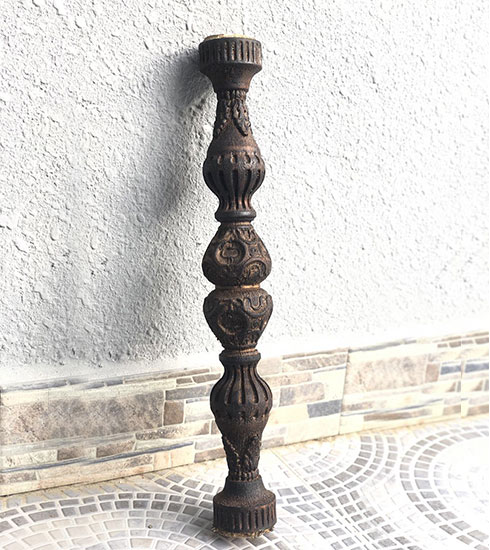

4. The 4th axis rotary table expands the processing field and it is suitable for cylindrical workpiece such as table legs, guns, and house decorations.
| Model | ELECNC1325-4 |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 300mm, option: 200mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3kw water cooling spindle |
| Inverter type | 3.7kw |
| Control system | Mach3 for 4 axes |

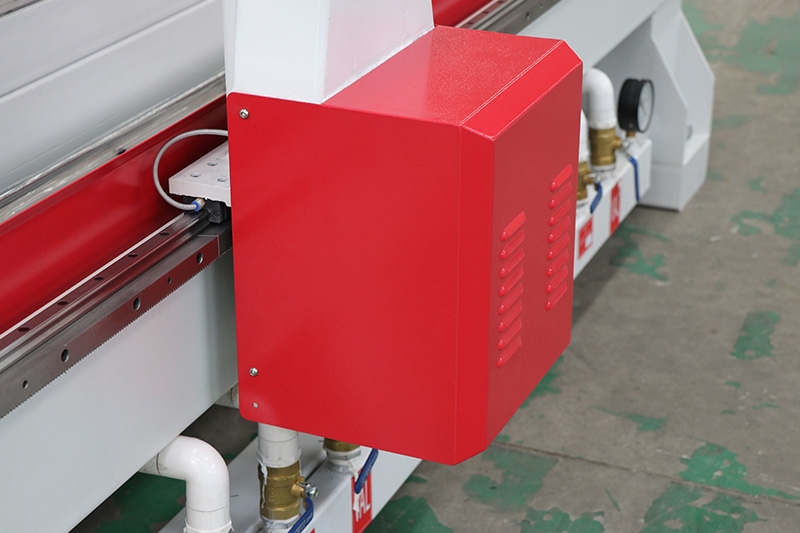

| Driving system | Stepper motor and Leadshine driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Linear guide | Taiwan linear guide |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Manual lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 45m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
Click for details

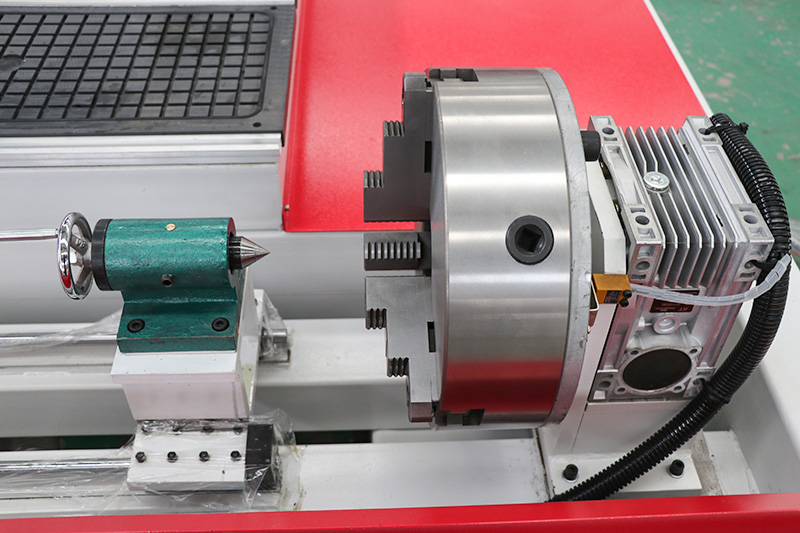

Rotary device

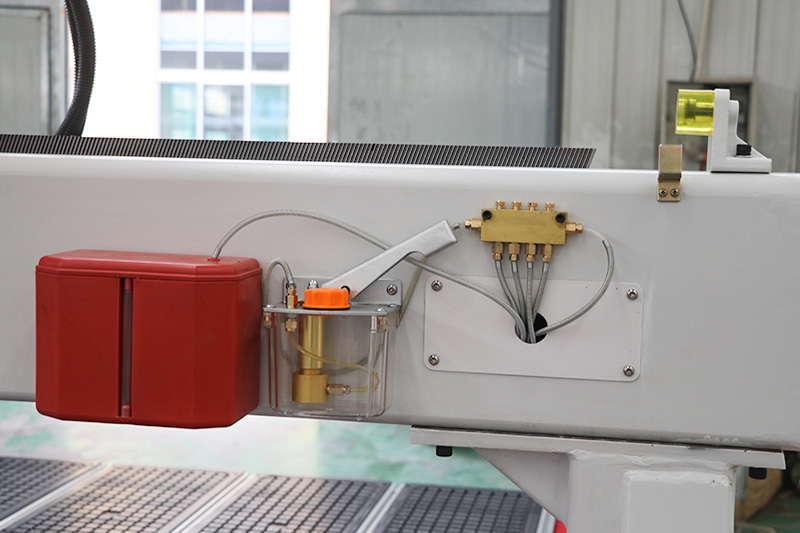

Manual lubrication system

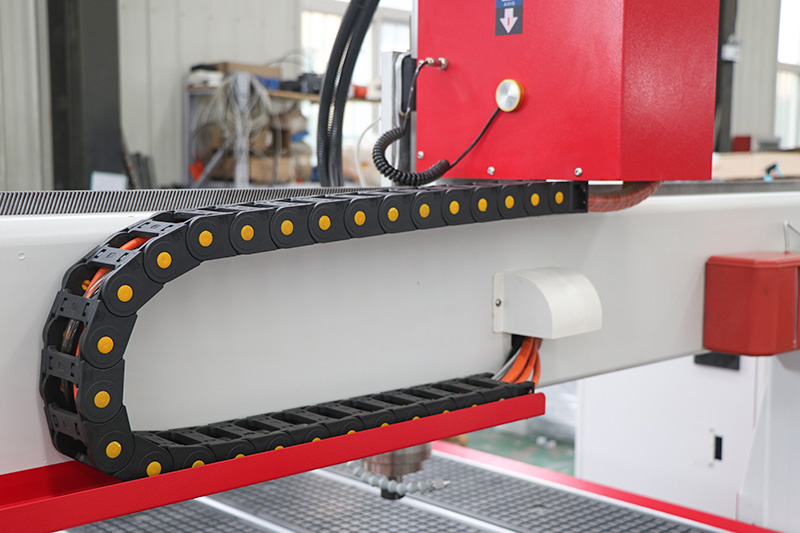

Towline
