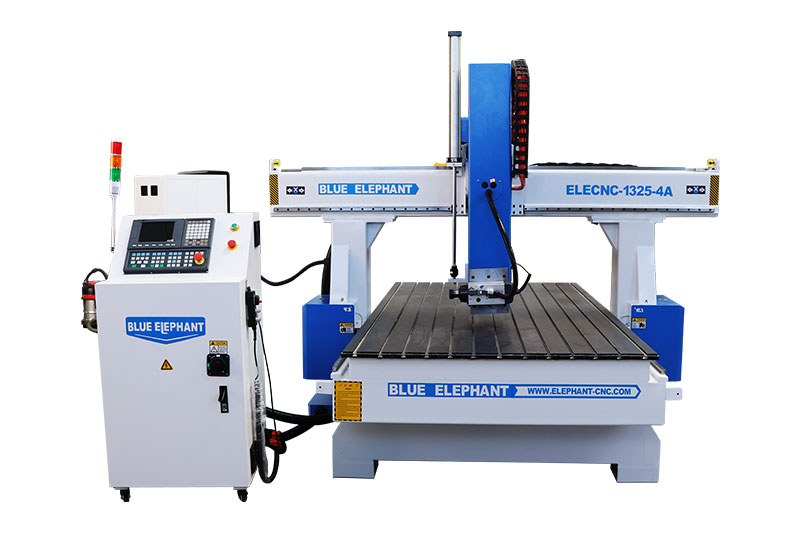

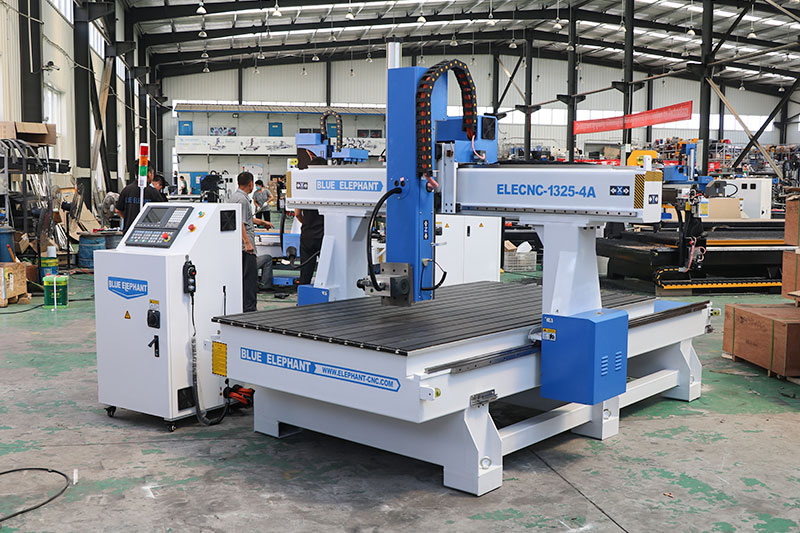

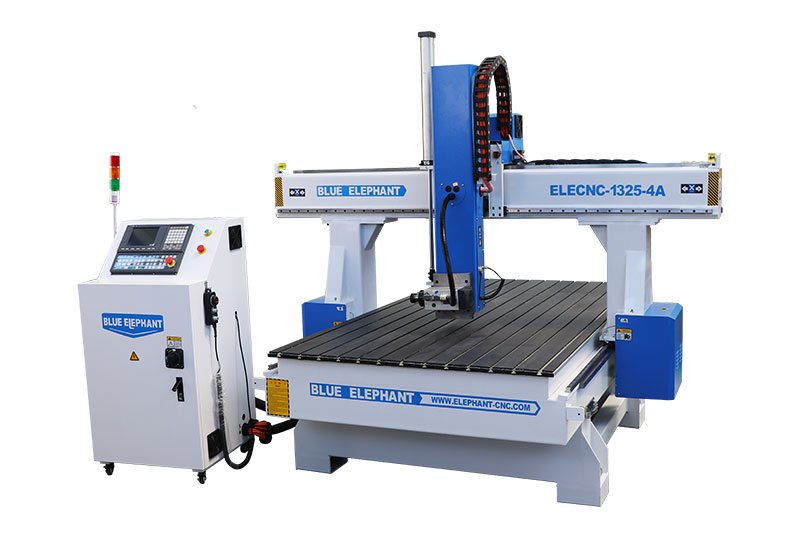

ELECNC1325 4x8 4-Axis CNC router 3D wood carving machine has a popular table size of 1300*2500mm (4x8ft). And IT is the one of the best selling 4 axis CNC woodworking machine for sale. 4 axis CNC machine is powerful and can do anything that basic 3 aixs CNC machine can do. If your need 3D carving, 4 axis CNC machine is your essential need.
1. Global Spare Parts: SYNTEC 6MB control system, HSD air cooling spindle, YASKAWA servo driver and servo motor.
2. T-slot aluminum table, High Z axis height, popular table size for most woodworking. And we can design new CNC machien on your request.
3. 4 axis wood carving machine is mainly used to process some more complex workpieces.
| Model | ELECNC1325-4A |
| X,Y axis travel | 1300*2500mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 500mm, 600mm, etc |
| Spindle type | 6kw air cooling spindle |
| Inverter type | 7.5kw |
| The 4thaxis | cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
| Control system | Taiwan SYNTEC controller |
| Driving system | 1kw Japan YASKAWA AC servo driverand 850w AC servo motor, 4 sets. |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30,HSK F63), etc |
| Rotary device | Industrial-grade support of rotary device, diameter 200mm, 320mm. |
Click for details
Yaskawa servo motor

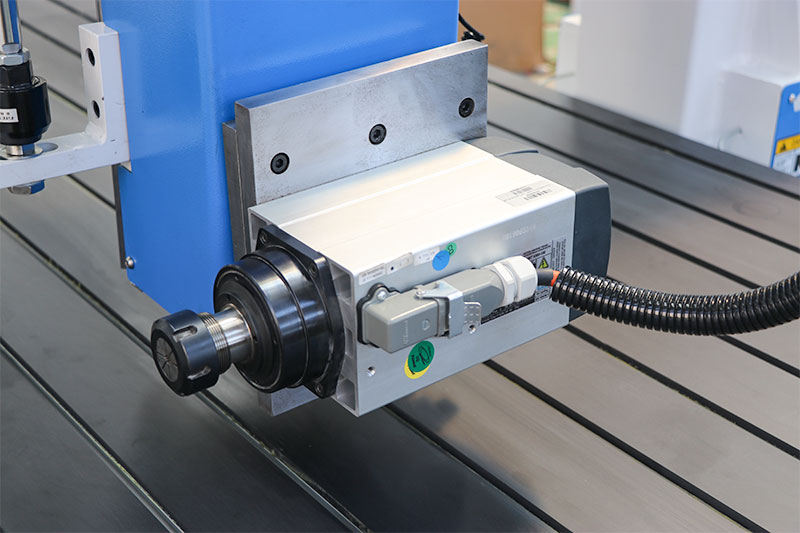

HSD air cooling spindle

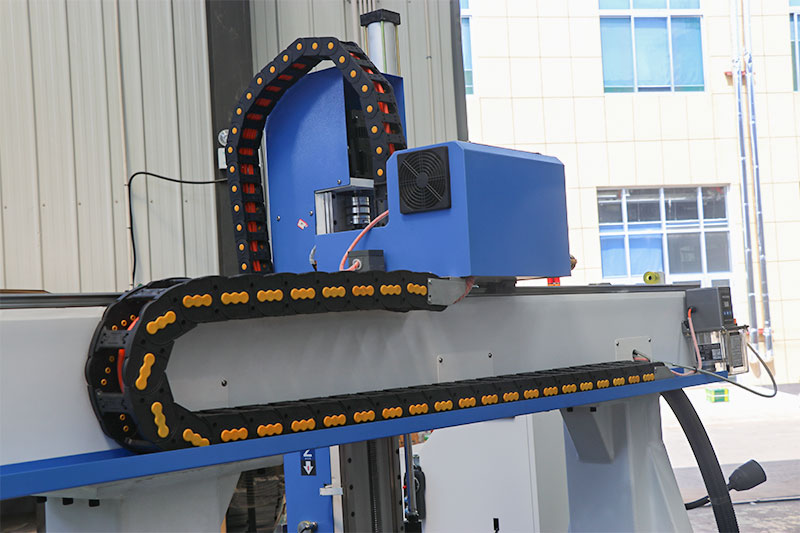

Towline

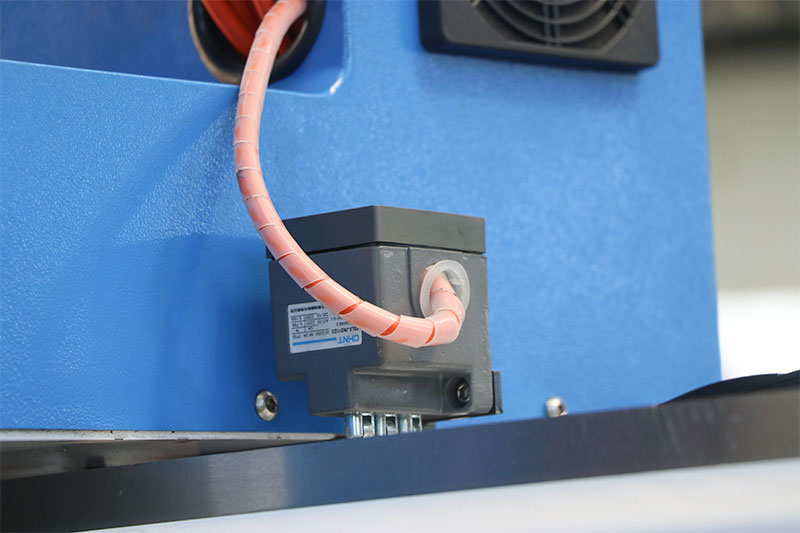

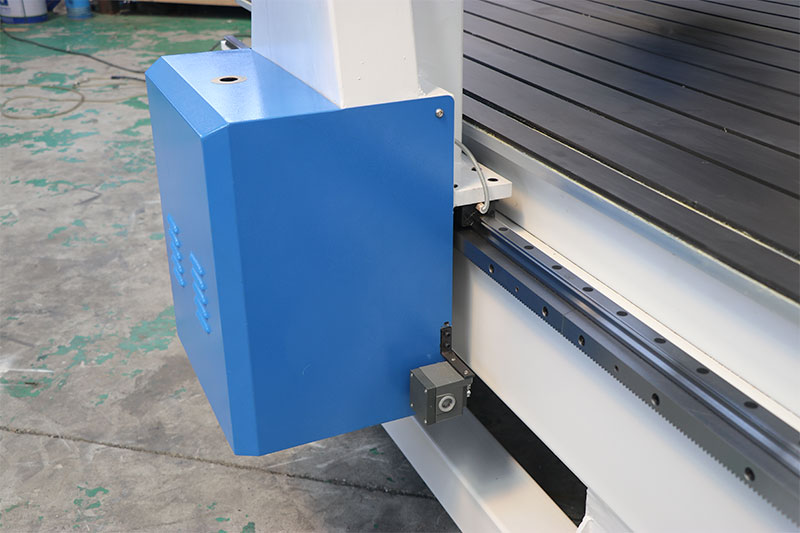

Limit switch
