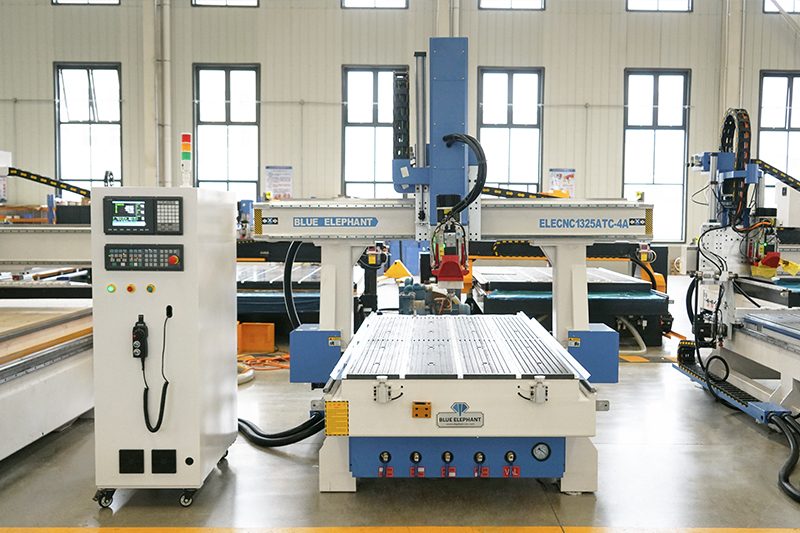

2050 4 Axis ATC CNC Router
1540 4 axis ATC CNC Router

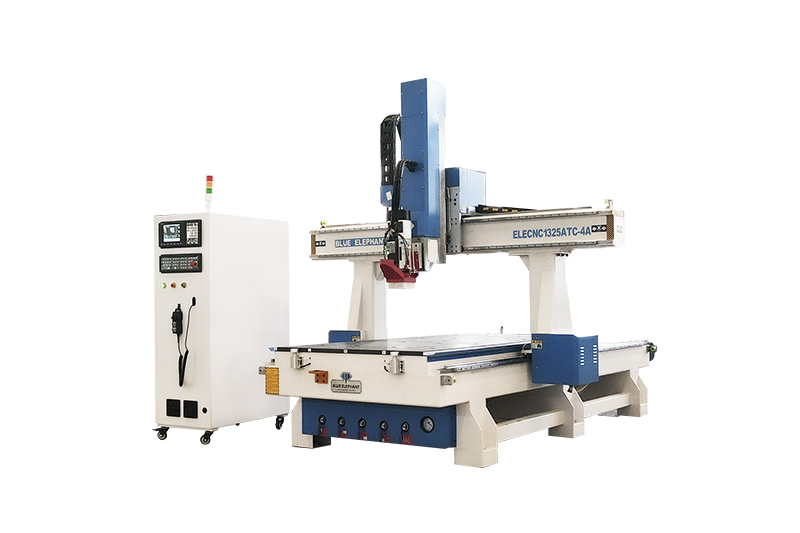

4 axis CNC router machine is mainly used for 3D model and molds, it also can used to make 3D engraving and side punching. ATC HQD spindle can automatically change tools from tools changer during all process without manual assistant. Thus it saves a lot of time and improves work efficiency.
1. This 4 axis CNC router is equipped with a linear automatic tool changer, which automatically changes tools, saves time and manpower.
2. Air cooling HQD Spindle has a strong cutting ability, is very good at long time woodworking.
3. Syntec servo motor is quality and very famous, it ensures working with high speed and accuracy.
4. 4 Divisions Vacuum & T-slot combined work table absorbs big materials by vacuum power and fixes small materials by clamps.
| Model | ELECNC1325ATC-4 |
| X,Y,Z axis travel | 1220*2440*400mm |
| Working voltage | 380V 3PH 50HZ |
| Control system | SYNTEC 60WE,5 axis system with RTCP function |

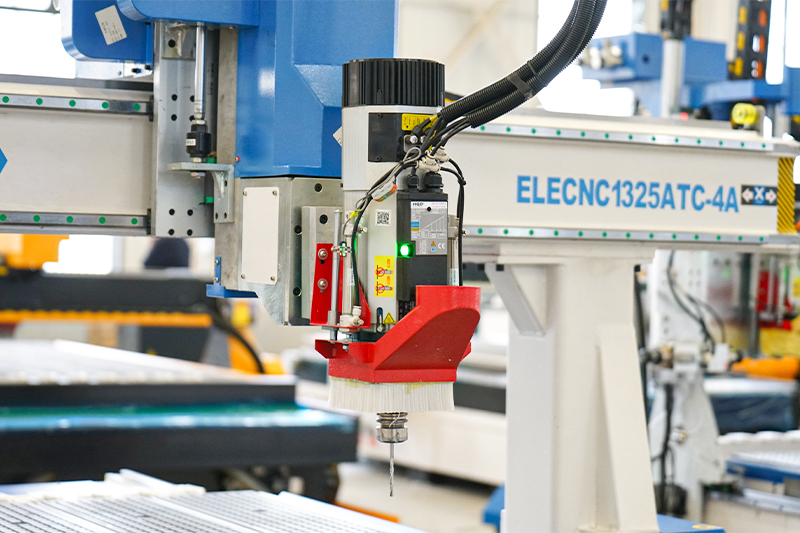

| Spindle | 9kw HQD tool change spindle, 18000 rpm |
| Inverter | 11KW Fuling H1 |
| Drives and motors | 1kw SYNTEC absolute servo |
| Bed structure | Large square tube |
| Reducer | Shimpo |
| Table structure | T-slot & vacuum work table,4 divisions |
| Side panel type | Column side panel |
| Chassis | Rittal, white |
| Linear guide | Taiwan Square Track #25 |
| Limit switch | Absolute servo, no limit |
| Rack | PCRCH 1.5M |
| Lubrication system | 1.5L automatic lubrication |
| Vacuum pump | TY 5.5KW, 250E (415V, 3PH, 50HZ) with connector |
| Positioning cylinder | 5（X2Y3） |
| Tool sensor | Automatic tool sensor |
Click for details

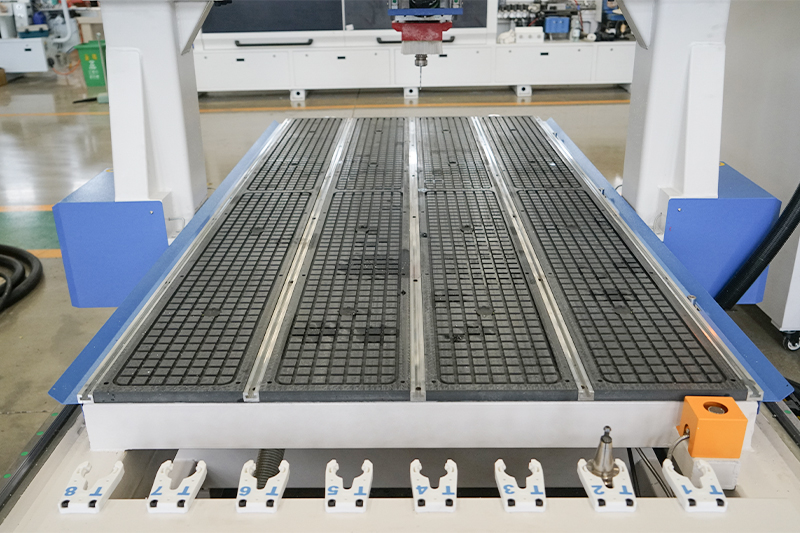

T-slot & vacuum work table

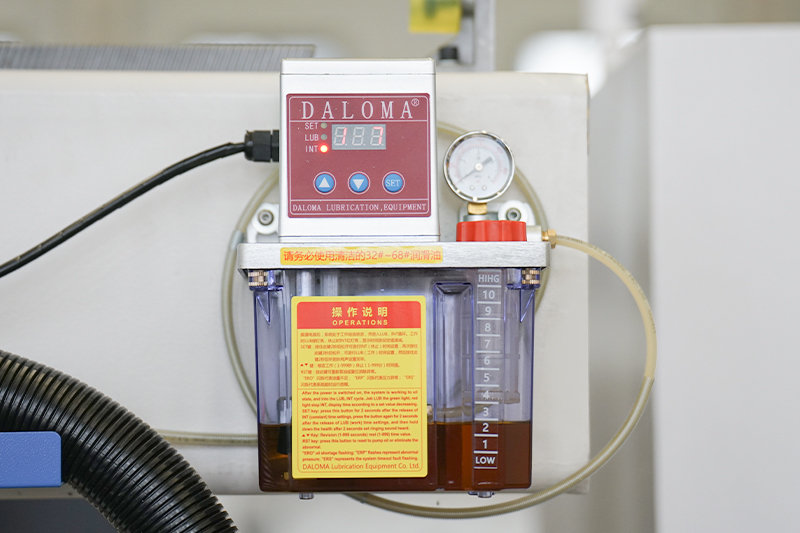

Lubrication system

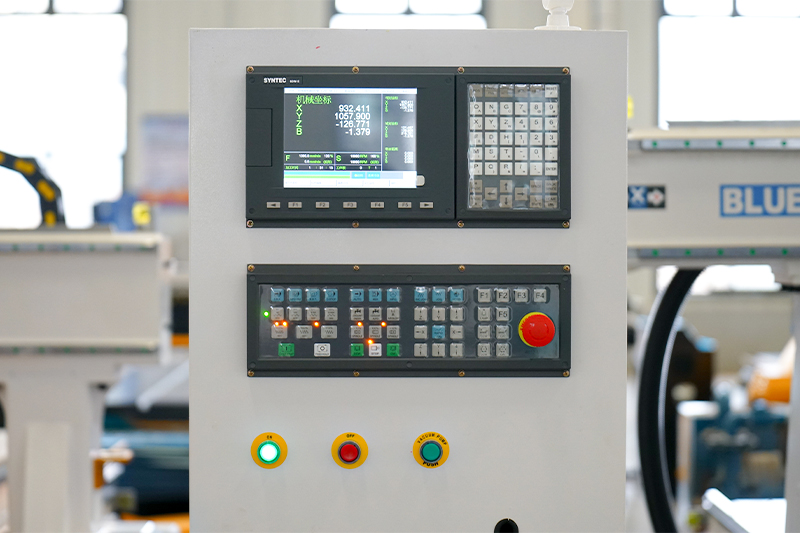

Control panel

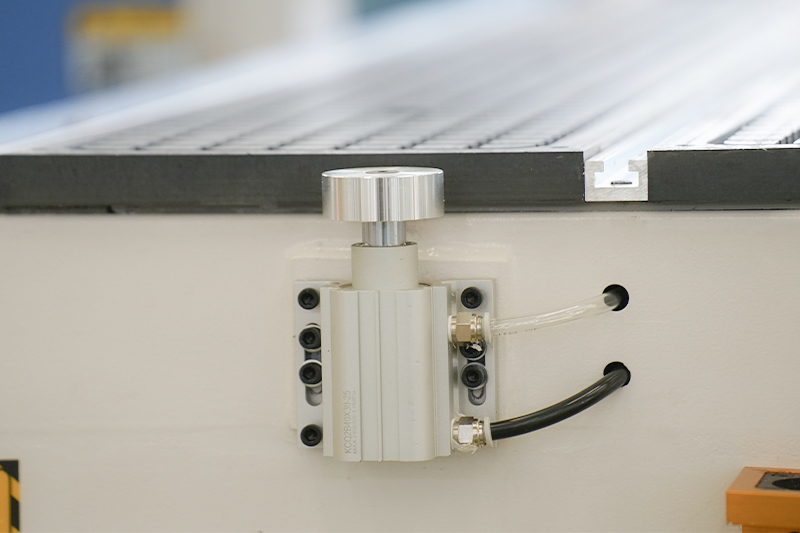

Positioning cylinder
Click for solution
Click for quotation
We received the machine and get it into our office. Did not have any problems. We have done some preliminary tests and it looks good so far. We are happy with the machine quality.
We have already buy CNC for aluminum cutting from your company 4 years ago. We are satisfied, there were not any problems so far. We have good experience with your company.
We have tested the machine, it’s working properly. We are planing to purchase the second one, please send PI. Thanks very much.
I use this machine to do more cabinets. The machine works great. Cutting surface is smooth, it’s a very good machine for my work. Now I’m planning to buy edge banding machine and side drilling machine from Blue Elephant. They’re becoming more and more professional in offering furniture production line.
