1330 ATC 4-Axis Wood CNC router
1530 4-Axis CNC Wood Router

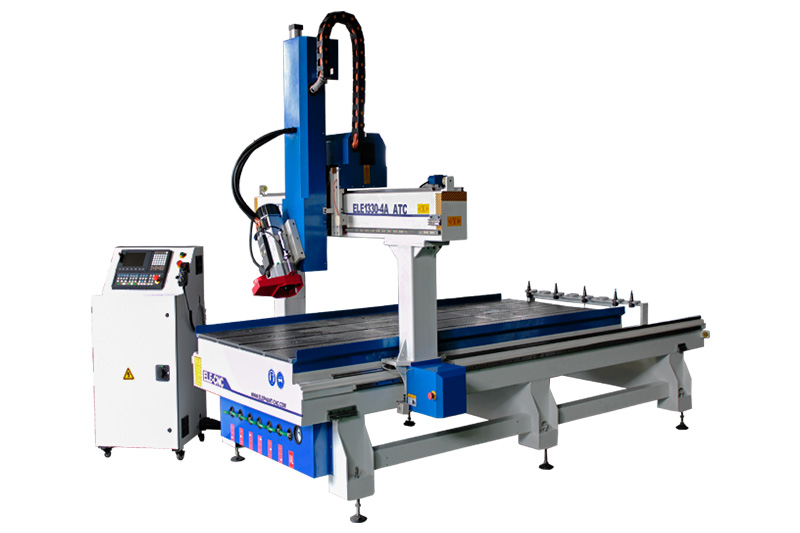

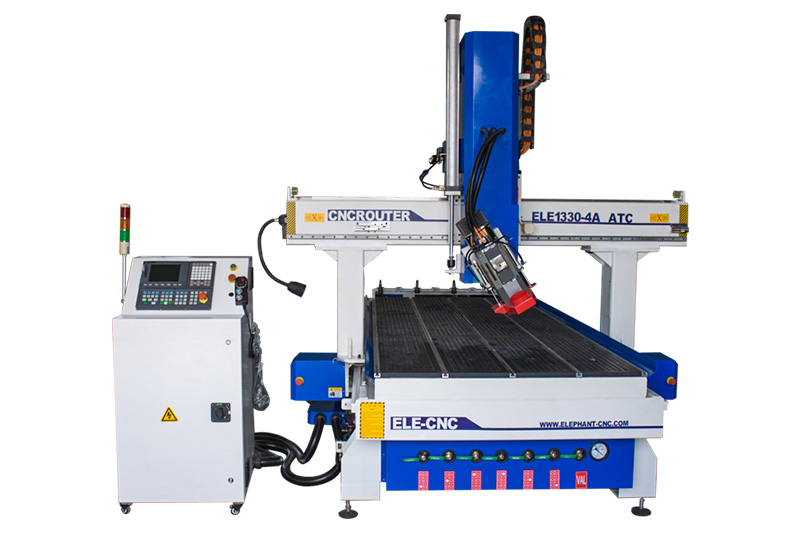

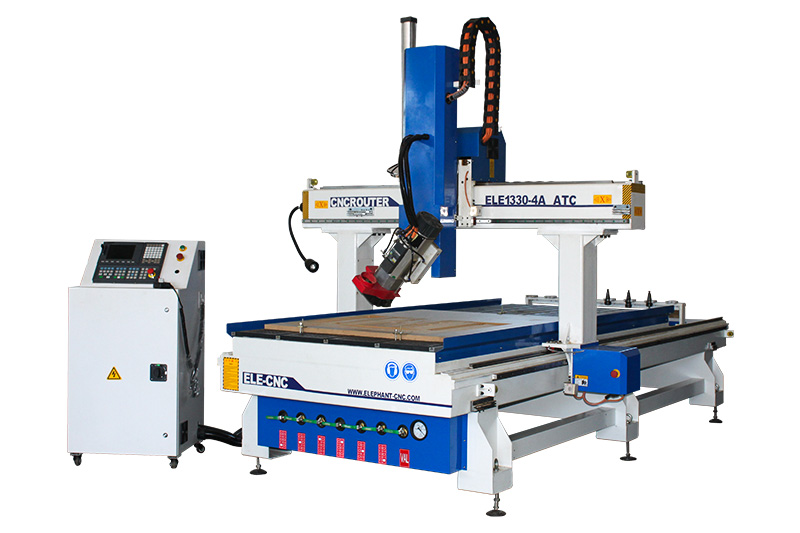

This is Blue Elephant 1330 affordable 4 axis ATC CNC Router for 3D wood carving. It is mainly used for processing complex 3D patterns on wood, MDF, acrylic, etc. And the ATC HSD spindle is suitable for automatic processing.

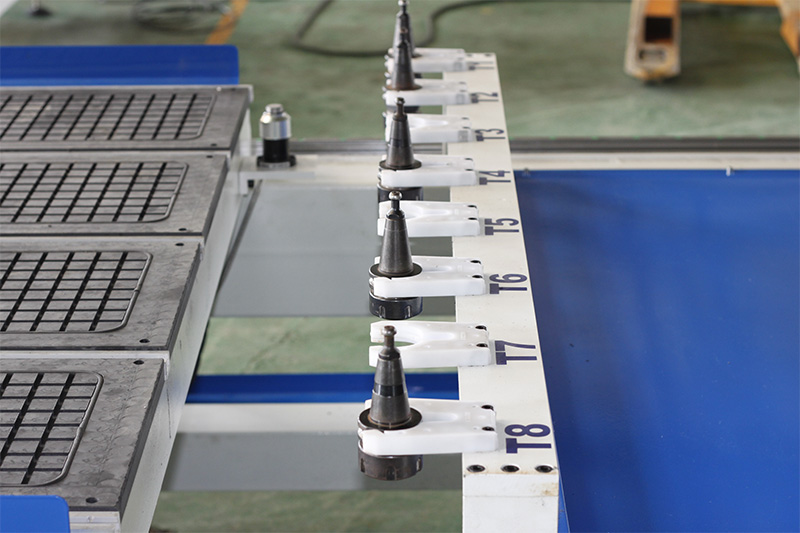

1. The CNC router is equipped with a linear tool changer. Carousel tool change type is also available according to your requirements.
2. ATC CNC Router can use more than 8 sets of tools automatically in the engraving process, which saves time and manpower.
3. 4 Axis CNC Router can carve 3D objects and molds, the spindle can swing 180 degrees.
4. All CNC parts of the components are famous brands.
5. The heavy-duty frame is sturdiness and reliability, cause all our frames are processed by the annealing and other heat treatment methods.
| Model | ELECNC13304 Axis ATC |
| X,Y axis travel | 1300x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 600mm, option: 400mm, 500mm, 700mmetc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4thaxis | cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
| Tool magazine | lineartype auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC/LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 5 pieces (X2, Y3) |
| Linear guide | TaiwanLinear guide |
| Transmission | X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc |
| Rotarydevice | Industrial-grade support of rotary device, diameter200mm, 320mm. |
Click for details

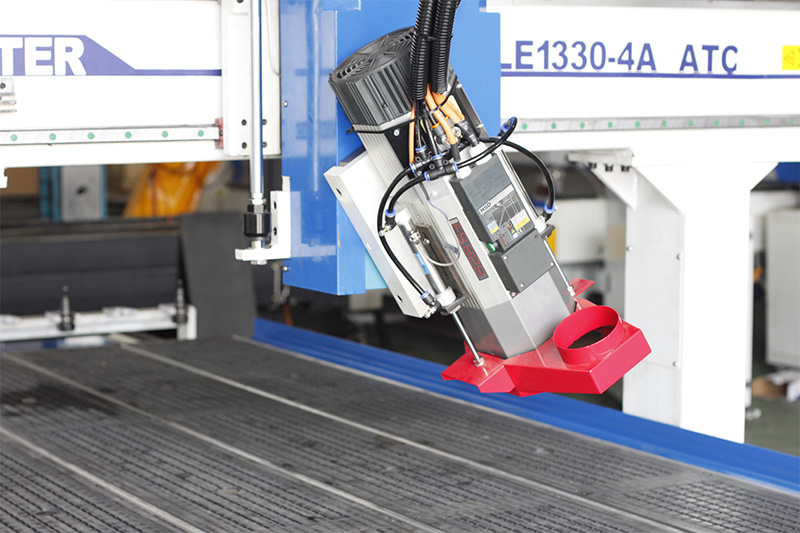

ATC spindle

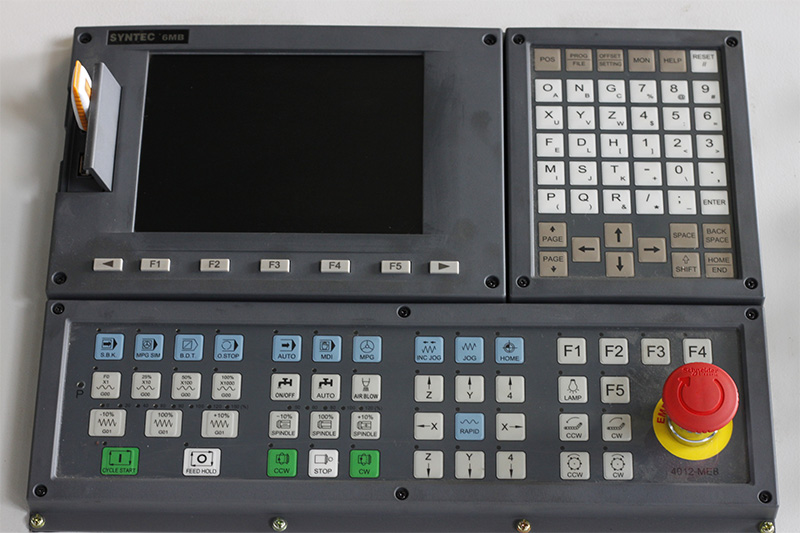

Control Panel

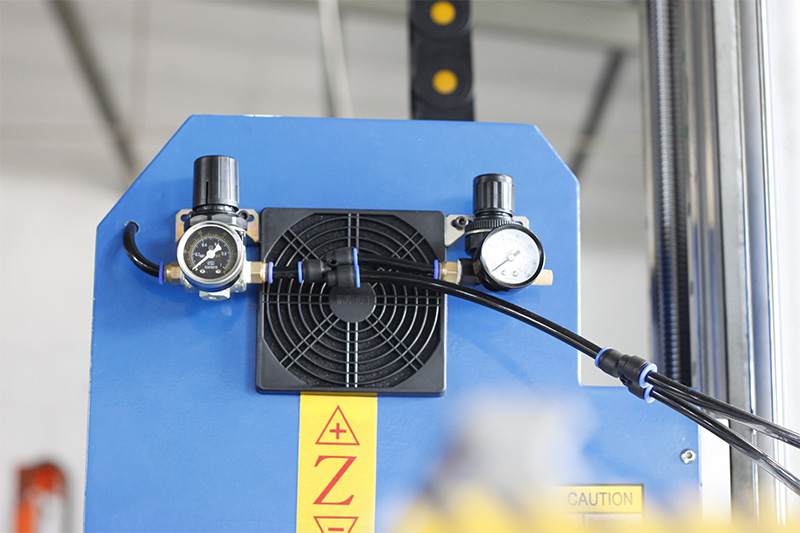

Exhaust fan
