ATC 6 sided CNC Drilling Machine with Double Drill Units
Six-sided Drilling Double Machine Connection
This automatic single drill unit compact CNC drilling machine optimizes the overall size of the machine, occupies a small area, and reduces transportation costs. It has the advantages of high processing efficiency and high degree of automation. Through wireless code scanning, automatic sorting, automatic positioning, and automatic loading and processing, it can realize six-sided processing and front and rear groove processing at one time.
1.The6 six sided CNC drilling machine features an innovative skin-breaking function, ensuring smoother punching and maximizing plate yield.
2.Dual-drive technology enhances slotting and punching speeds, significantly boosting production efficiency.
3.A high-end air-floating table ensures more precise processing accuracy.
4.Automatically optimize the direction of the plate to achieve forward movement and forward exit.
5.The clamp is upgraded to three sets of positioning devices, which can flexibly adapt to the positioning of various narrow boards.
| Model | ET5-1325 |
| Panel size | Length:200-2800mm Width:30-1220mm Thickness:12-45mm |
| Moving speed | X:115m/min |
| U:115m/min | |
| Y:70m/min | |
| Z:25m/min | |
| V:70m/min | |
| W:25m/min | |
| A:75m/min | |
| Number of tools | Upper drill unit:12 Vertical top drilling + 8 horizontal drilling |
| Bottom drill unit:9 vertical drilling | |
| Spindle: 3.5KW*2 | |
| Servo parameters | X1、U:750W |
| Y:1.3KW | |
| Z:1.3KW brake | |
| V:750W | |
| W:750W brake | |
| A:750W | |
| Guide rail | X1 U: 25 |
| Y：25 | |
| Z：25 | |
| V：25 | |
| W：25 | |
| A：25 | |
| Rack | X1、X2、V、A:1.5M |
| Y:2M | |
| Lead screw | Z 、W:2510 |
| Reducer | Japan Shimpo |
| Worktable | Airfloatation table |
| Control system | Blue Elephant Custom System |
| Scanner | Standard equipped |
| Working pressure | 0.7-0.8Mpa |
| Voltage | 380V/3P/50HZ |
| Total power | 20KW |
| Machine size | 3750*2800*2600mm |
| Weight | 2.8T |
| Vacuum cleaner | Recommended 5.5kw |
| Handwheel | Optional |
Click for details

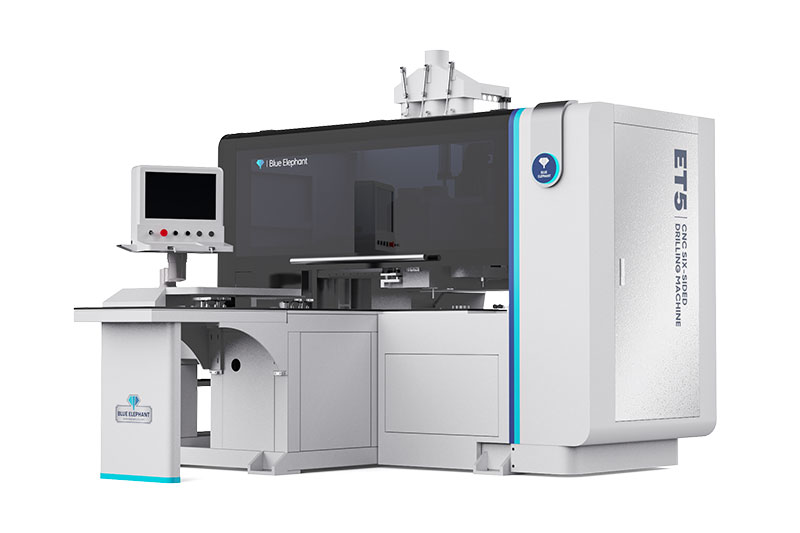

It only have one drill unit. Upper drill unit:12 Vertical top drilling + 8 horizontal drilling.Bottom drill unit:9 vertical drilling.

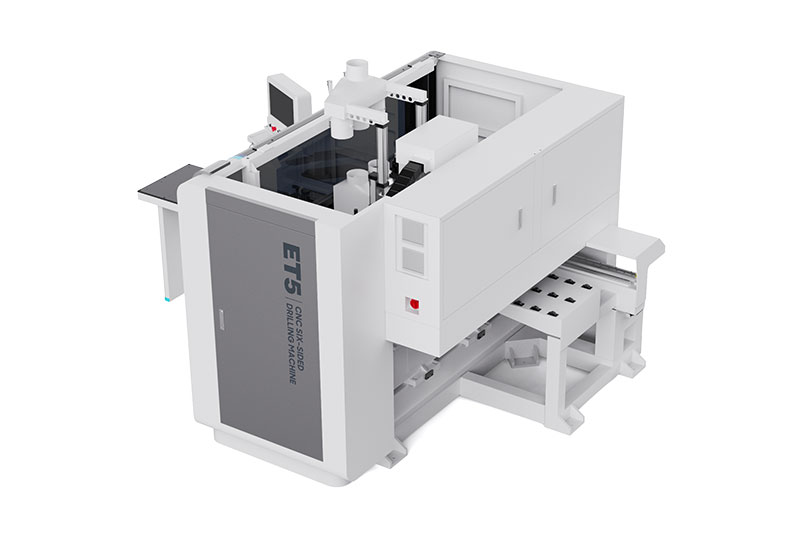

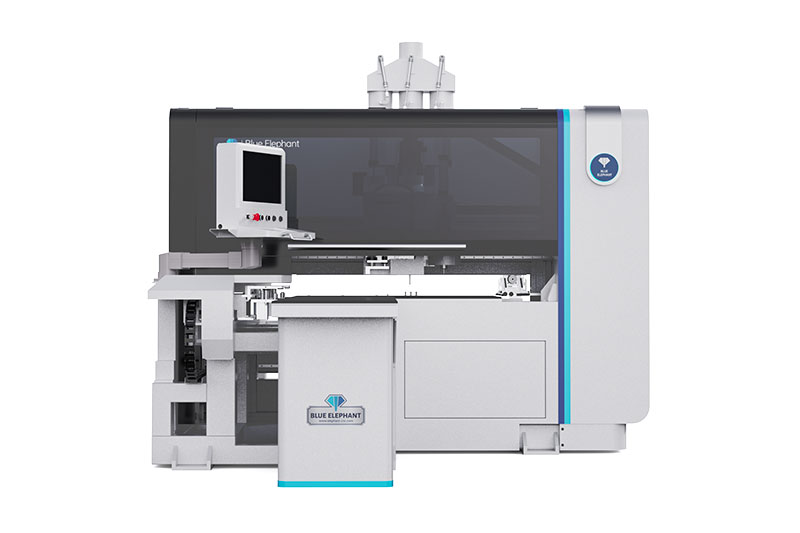

Six sided CNC drill

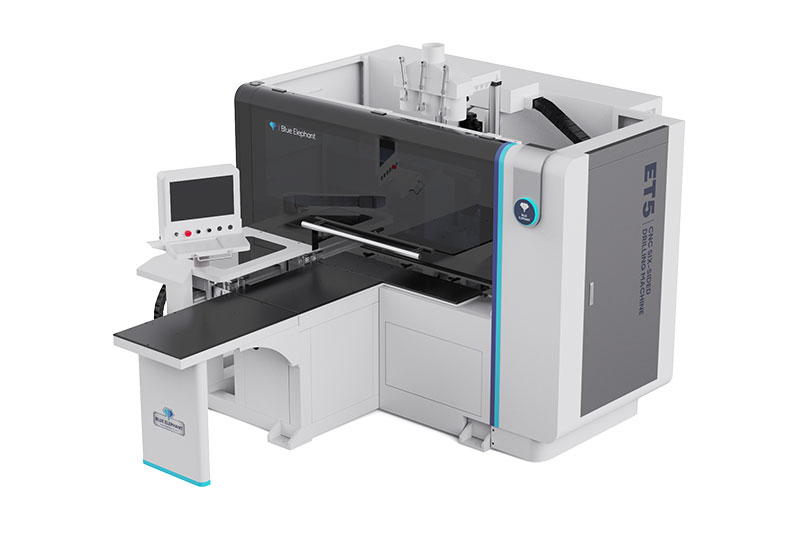

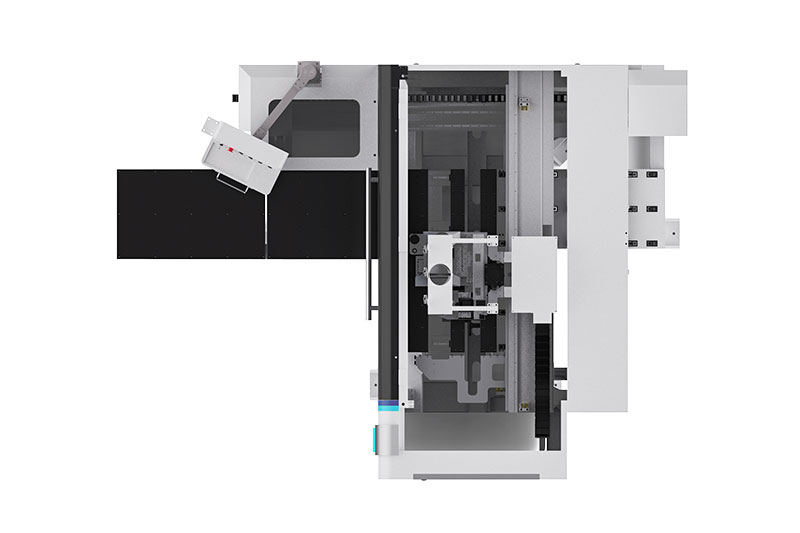

Six sided CNC drill

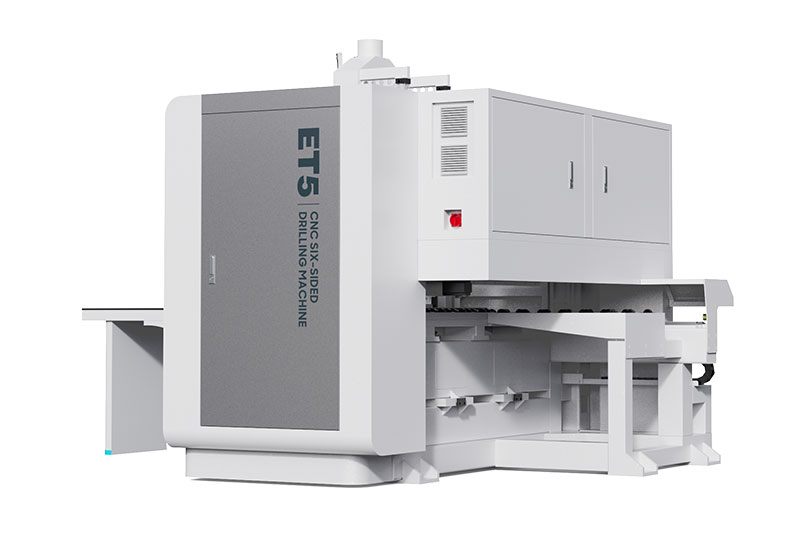

Six sided CNC drill

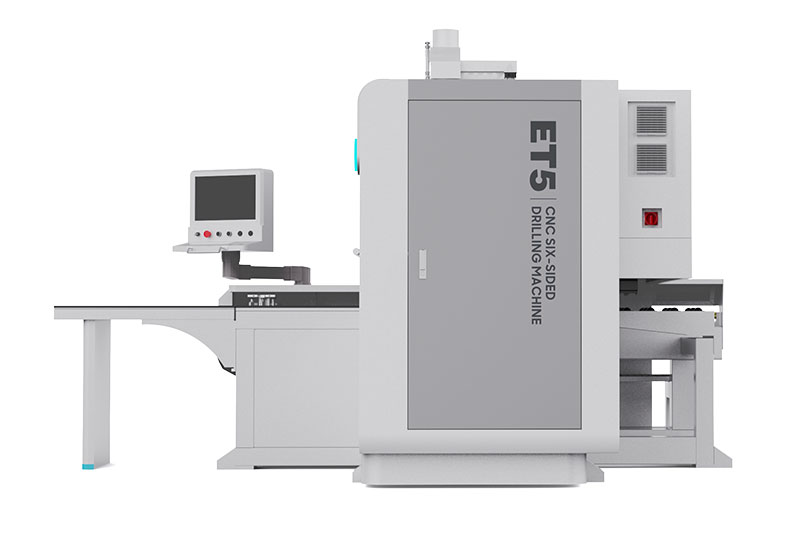

Six sided CNC drill
