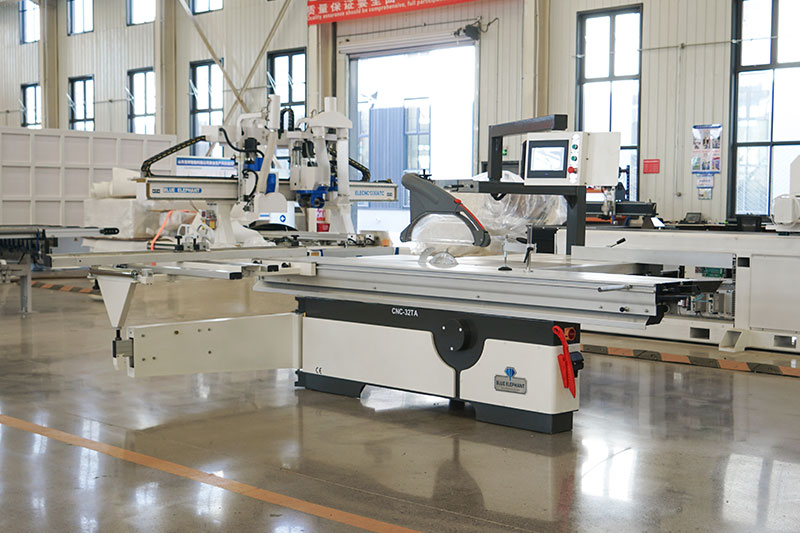

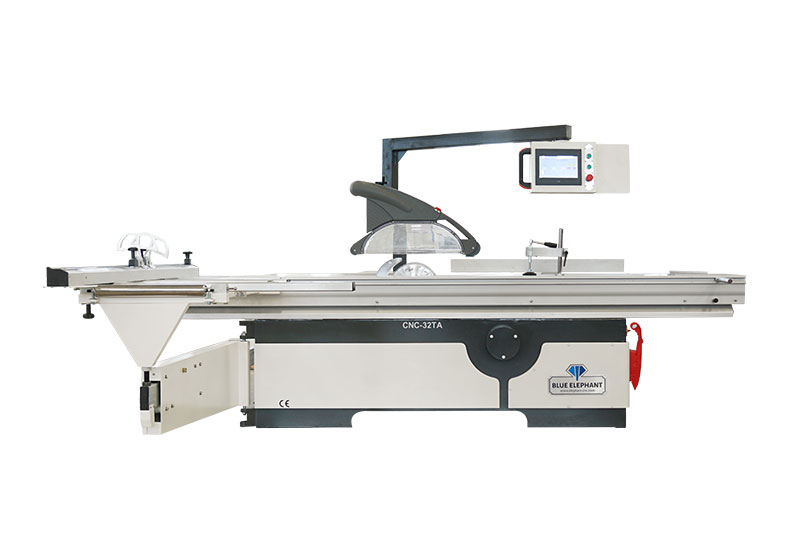

CNC-32TA Sliding Table Saw
H45E Precision Panel Saw
This CNC-32TA sliding table saw adopts a heavy-duty body and has good stability in gantry milling processing. The body surface adopts sandblasting and plastic spraying technology, which is simple and elegant and does not lose paint, ensuring the durability of the machine. At the same time, it is equipped with a digital control system. The saw blade height, cutting angle, ruler position, and large ruler position can be accurately displayed on the LED panel. It has a high degree of intelligence and greatly improves the efficiency of wood cutting processing.
1. The wood cutting saw adopts a linear rail structure, and the saw axis moves to achieve balanced processing.
2. European electric push table, table width 410mm. Guide rail adopts round bar structure with high positioning accuracy. Made of high-strength extruded aluminum alloy, it has high strength and does not deform. The surface is oxidized, beautiful and wear-resistant.
3. This sliding table saw is equipped with an aluminum shell copper core 5.5kw+1.1kw=6.6KW motor, which has fast heat dissipation to ensure long-term processing and operation.
4. It adopts a linear guide electric lifting structure to ensure good stability, improving cutting accuracy and increasing production efficiency.
5. The ruler is regulated by CNC, and the large ruler is adjusted manually. CNC sizing changes the traditional manual positioning, improves efficiency, saves costs, achieves 0 error rate, and controls the accuracy within 0.1.
| Model | CNC-32TA |
| Dimension of sliding table | 3200x410mm |
| Gross cut capacity | 3200mm |
| Width of cut between saw blade and rip fence | 1250mm |
| Saw blade diameter | 300(250-400)mm |
| Height of cut (300mm) | 80mm |
| Height of cut with saw blade 300mm at 45 degree | 60mm |
| Speed of main saw spindle | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45 and 90 degree |
| Main motor | 5.5kw |
| Scoring saw blade diameter | 120mm |
| Speed of scoring saw blade | 7000-8000rpm/min |
| Scoring spindle diameter | 20mm |
| Scoring motor | 1.1kw |
| Gross weight (with wooden package) | 1050kg |
| Packing size of the machine body(L*W*H) | 2200*1150*1100mm |
| Packing size of the siding table(L*W*H) | 3950*480*320mm |
Click for details

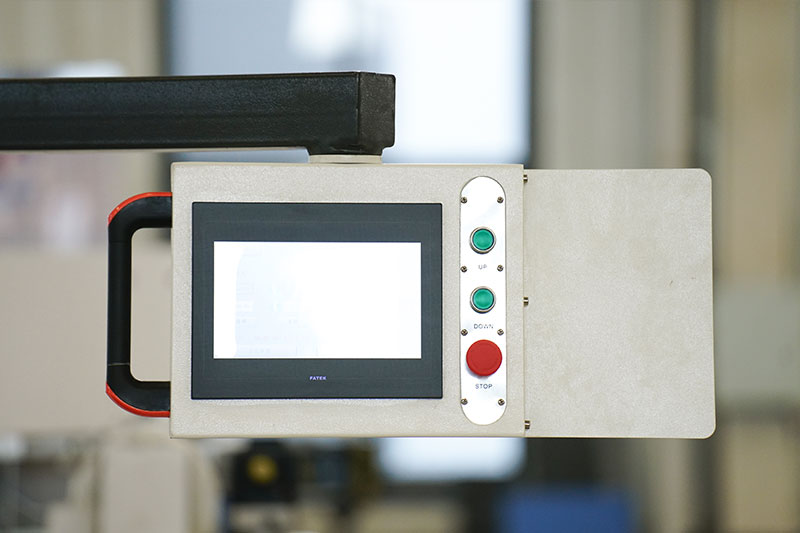

LED Panel

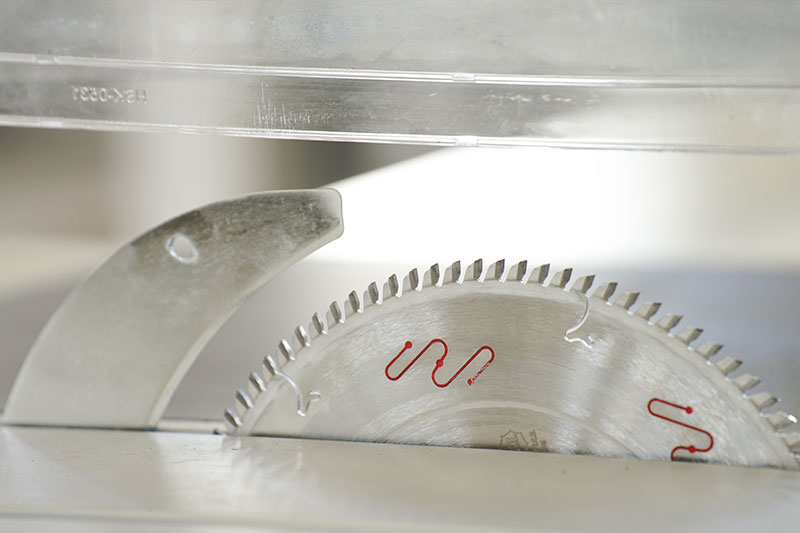

Saw Blade

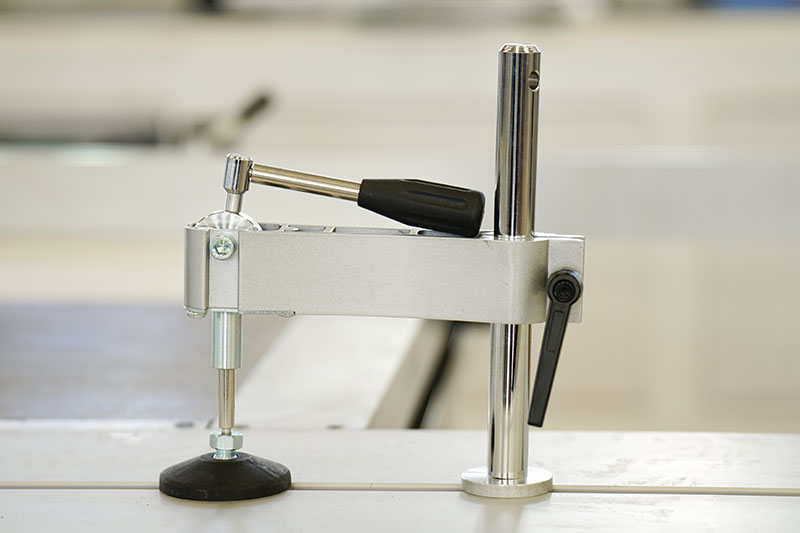

Table Saw Presser

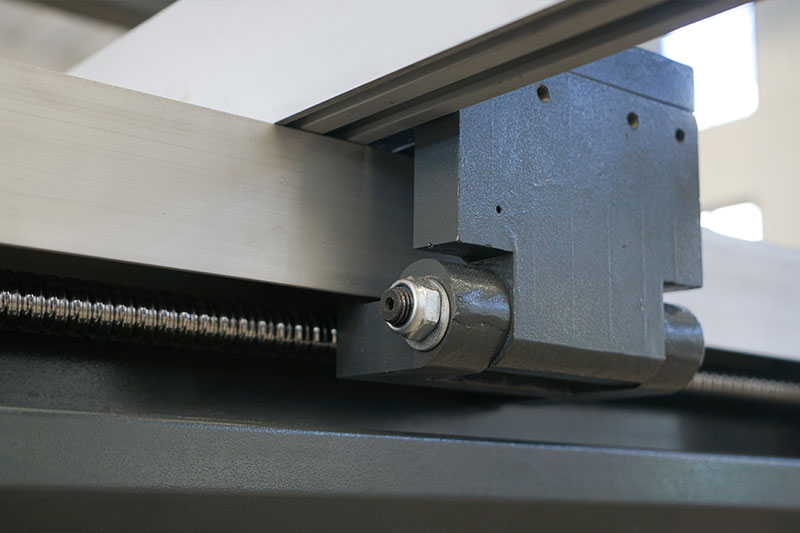

Sliding Table Saw Part
