Rear Loading Computer Beam Saw
Front Feeding Panel Dividing Saw

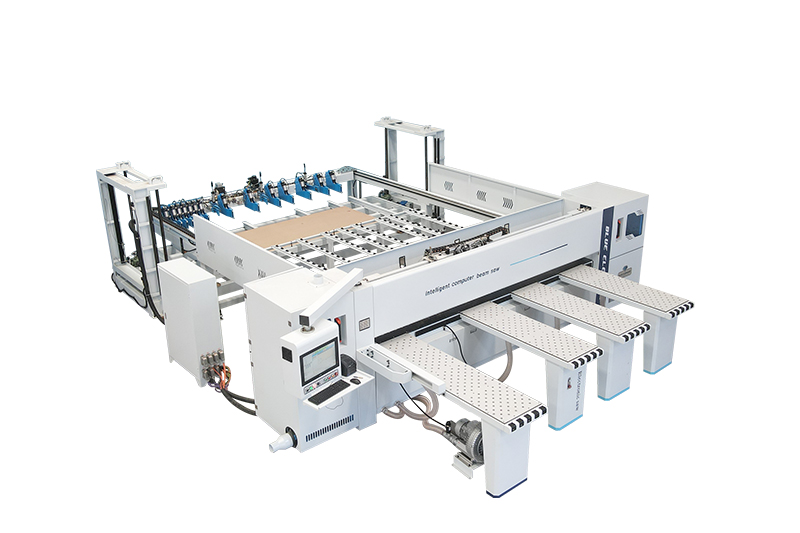

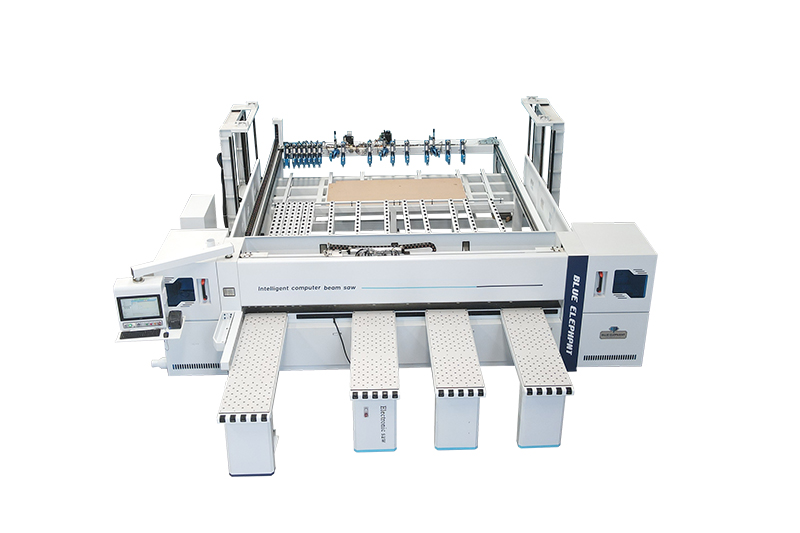

The rear loading computer panel saw machine is specially designed for panel cutting in the mass production of panel furniture. It improves the panel cutting efficiency by 70% compared with a manual sliding panel saw machine. This panel dividing saw can connect to any intelligent logistics system or warehousing to form smart nesting workstation.
1. The main and subsidiary workbenches are welled with 25mm and 18mm thick steel plates respectively to ensure long-term sawing accuracy.
2. High-quality and stable electrical appliances can prolong the service life of the panel saw machine.
3. The air pressure is kept at 0.6-0.8kgf/cm2, which ensures stable operation, excellent cutting accuracy and outstanding durability.
4. The rear feeding lifting platform automatically feeds the panels, saving time and manpower and improving efficiency.
| Model | ELECNC-330C |
| Overall dimension | 5900x5800x1800mm |
| Max. cutting length | 3300mm |
| Max. cutting thickness | 100mm |
| Positioning accuracy | ±0.02mm |
| Cutting accuracy | ±0.15mm |
| Main saw rotating speed | 4100r/min |
| Max. auto feeding speed | 100m/min |
| Groove saw rotating speed | 6200r/min |
| Main saw motor | 15kW |
| Groove saw motor | 2.2kW |
| High pressure fan | 2.2kW |
| Total power | 23kW |
| Air pressure | 0.6-0.8MPA |
Click for details

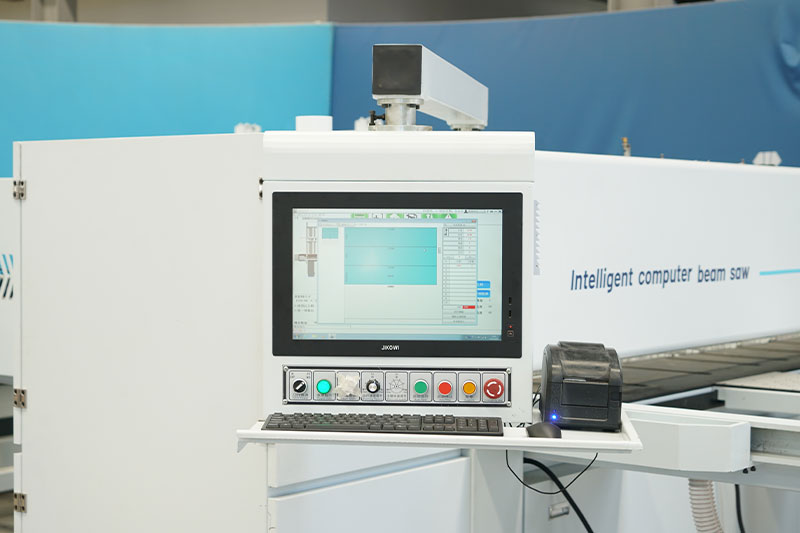

Screen

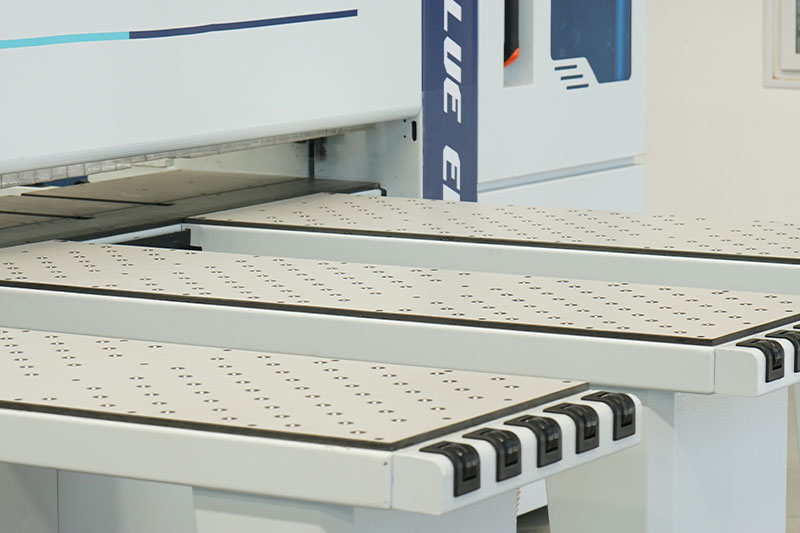

Workbench

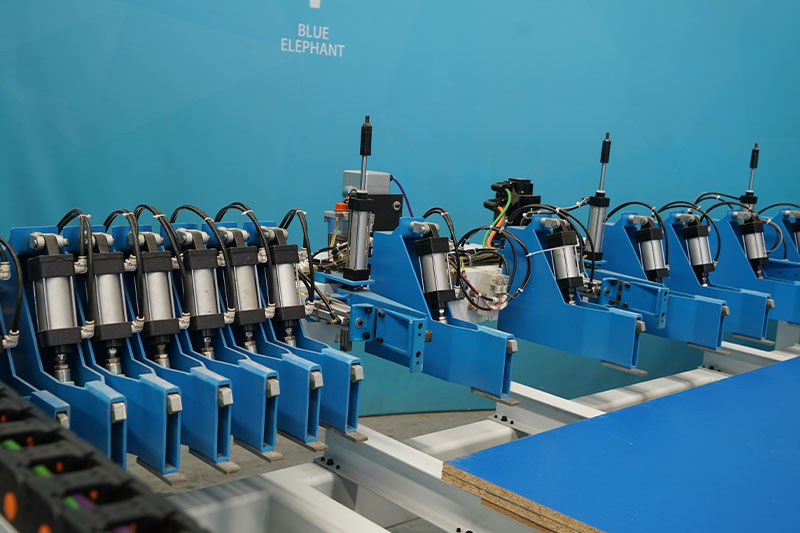

Clamps

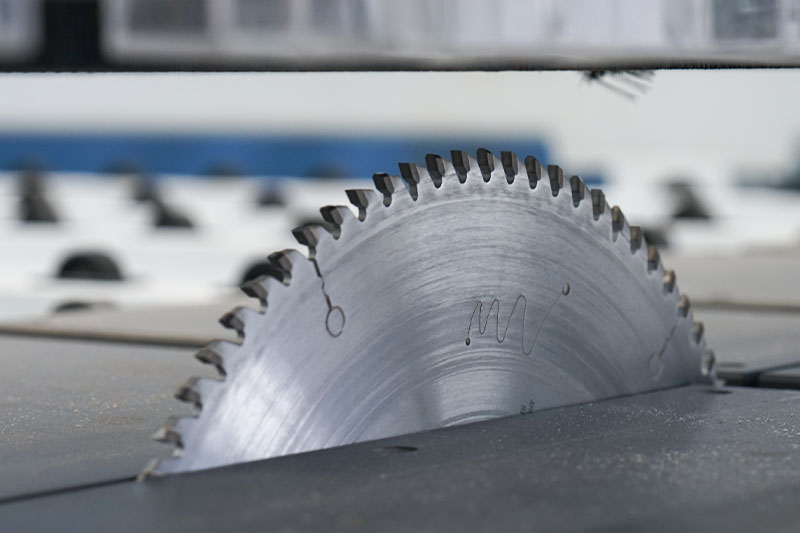

Saw blade
