H45E Precision Table Saw
6132Y Sliding Panel Saw

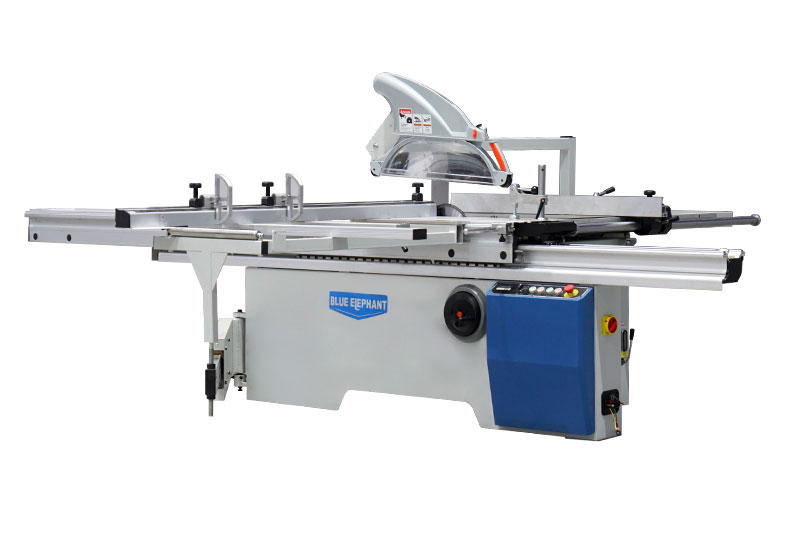

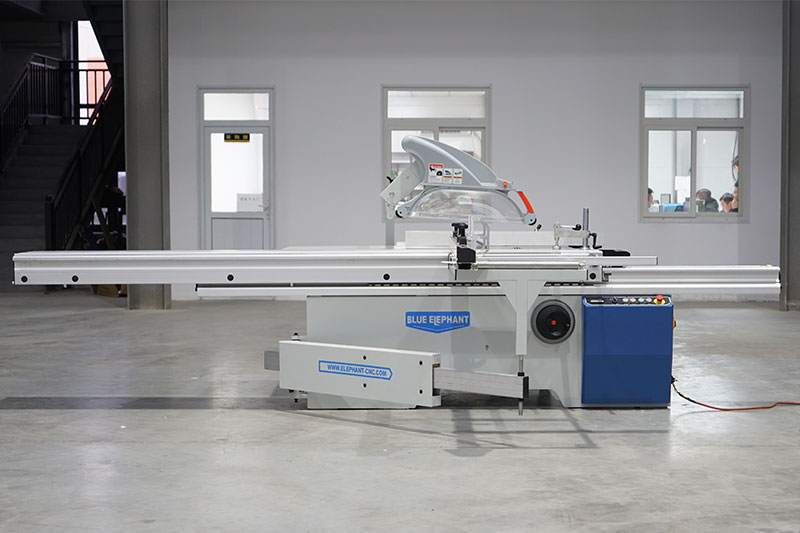

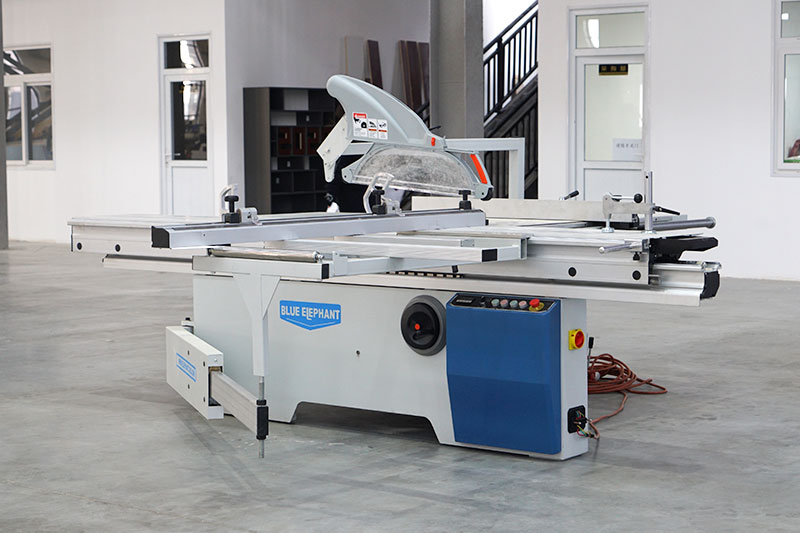

This Blue Elephant CNC board precision saw is mainly used for longitudinal sectioning, cross-section or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blackboard, spliced solid wood board and plastic board to obtain a board that meets the specifications.
1. The whole equipment has the characteristics of stable frame, fine manufacturing, beautiful and durable coating, which ensure that the machine runs stably with low vibration and low noise.
2. The main components, purchased parts and electrical parts are all imported international brands.
3. Push-pull slides are precise, reliable, flexible, durable, easy to maintain, and they have adjustable travel limits.
4. The operation table on the left and right sides of the saw blade has a convenient baffle and a ruler scale line for convenient and efficient cutting.
| Dimensions | 3200*2540*900mm |
| Sliding table size | 3200*375mm |
| Sawtooth length | 3000mm |
| Sawtooth width | 1200mm |
| Sawtooth thickness | 78mm |
| Main saw diameter | 300mm |
| Scribing saw diameter | 120mm |
| Main saw speed | 4000/6000rpm |
| Scribing saw speed | 7000rpm |
| Spindle diameter | 30mm |
| Counter spindle diameter | 20mm |
| Main motor power | 5.5kw |
| Counter motor power | 0.75kw |
| Saw blade angle | 0-45° |
| Net weight | 700/800kg |
Click for details

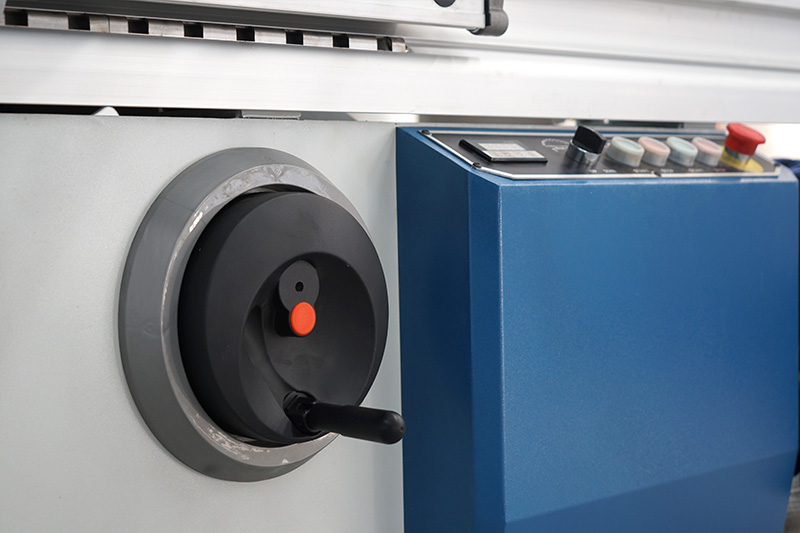

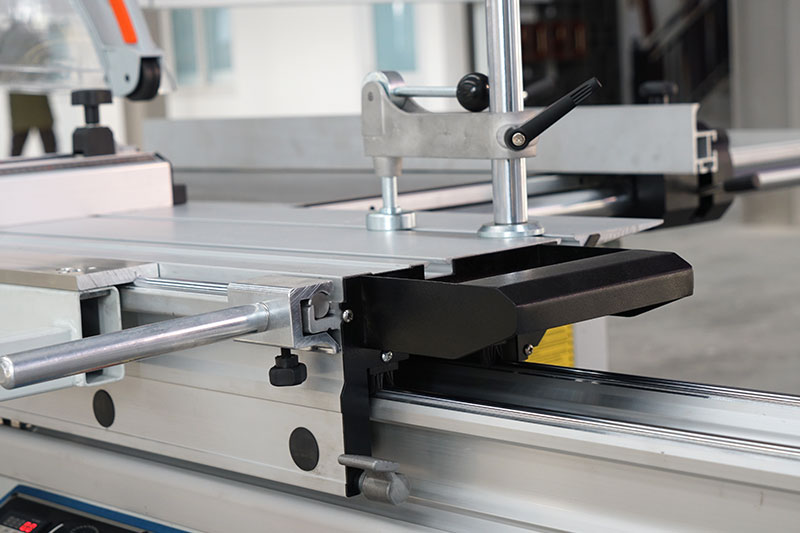

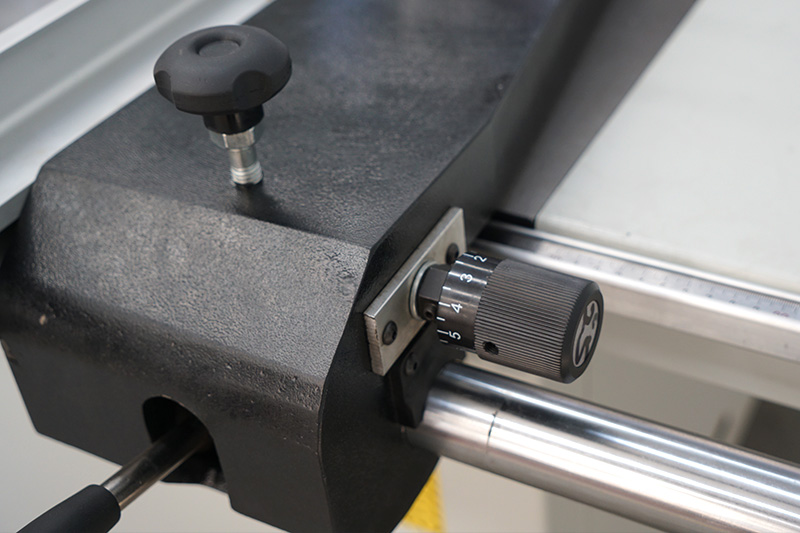

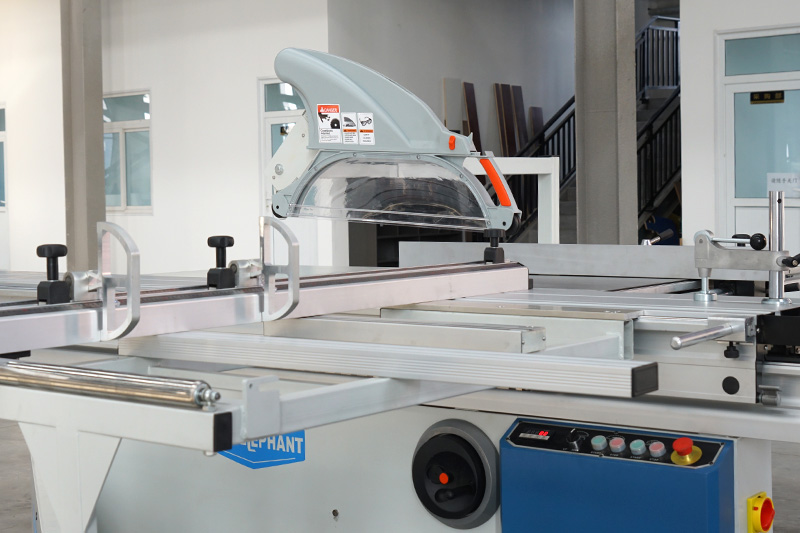

Table saw part
Table saw part
Table saw part
Table saw part
