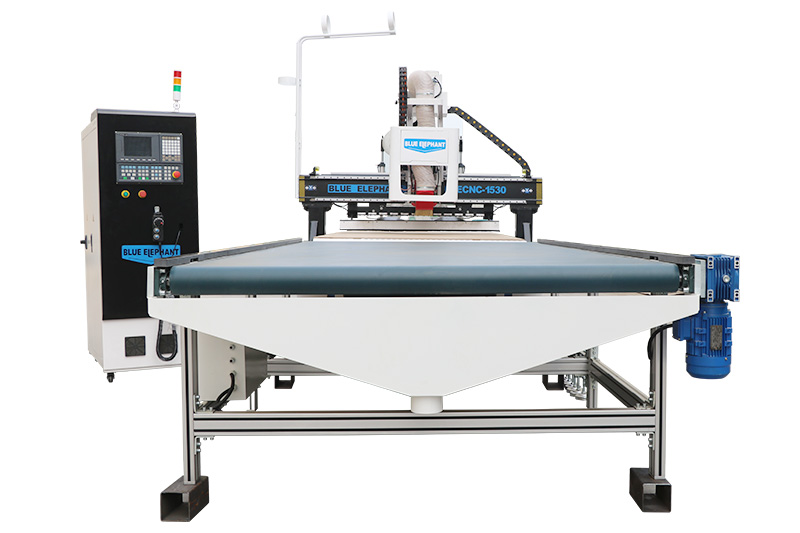

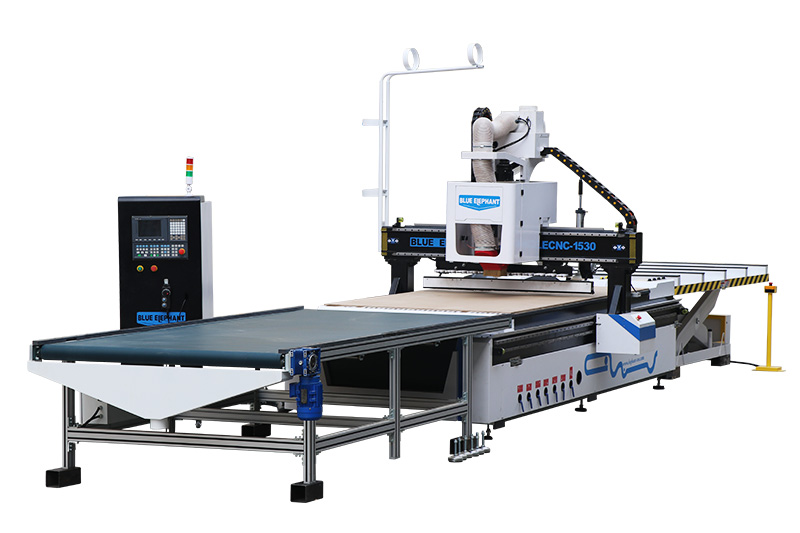

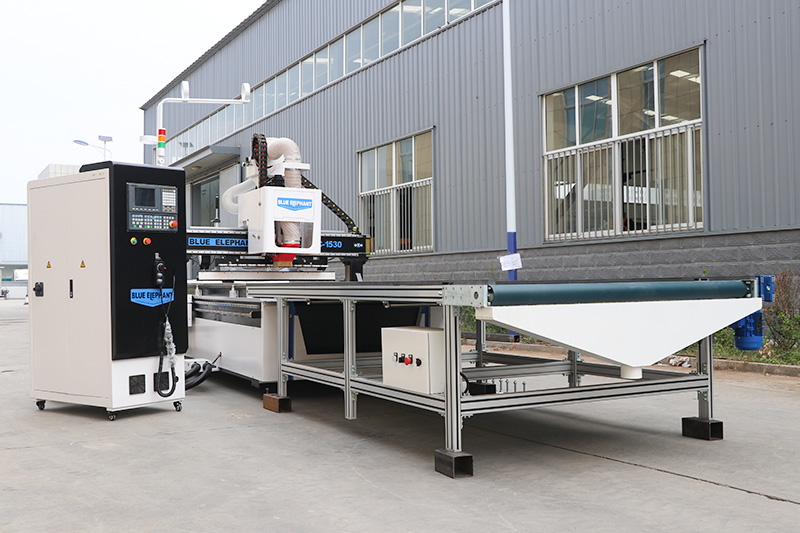

ELECNC-1530 5x10 Nesting CNC Machine is a Wooden Furniture production line, it includes loading equipment, auto-feeding equipment, Nesting CNC Router with auto tool changer, unloading equipment, it automatic the whole process of MDF prepare, feeding, fixing, cutting, carving and unloading; best choice for Wooden Furniture making.
1. Linear automatic tool changer system saves lots of time of tool changing;
2. With auto loading and unloading function, it’s more efficient and faster;
3. Quality CNC Kits, such as the Italy HSD spindle, Japan YASKAWA servo motor, Syntec control system, etc.;
4. Strong steel machine body can suffer a long time and continuous working;
| Model; | 1530 5x10 Nesting CNC Machine for Wooden Furniture |
| X,Y axis travel | 1500x3000mm,;option:1300*2500mm;2000*3000mm;2000*4000mm,etc |
| Z axis travel | 200mm;option:300mm,400mm,500mm,600mm,etc |
| Spindle type | 9.0kw ATC Spindle |
| Inverter type | 11kw Delta |
| Rotary device | Option: Rotary device |
| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ER32; collet:φ4,φ6,1/8,1/2 |
| Control system | Taiwan Syntec controller; option：Taiwan LNC |
| Driving system | Japan Yaskawa servo 850W Motor and 1000w driver Option: 1300W Leadshine servo motor and servo drivers |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy;duty;body;with;quenching;treatment |
| Work table | Aluminum T-slot work table |
| Positioning cylinder | Optional: 7 pieces (X3,Y4) |
| Linear guide | #25 Taiwa Linear guide |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis:;Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Manual;tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible Software | Artcam,Alphcam,Type 3,Ucancam,Aspire,etc |
| Command Language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw(ISO30,HSK F63),etc |
Click for details
Linear Tool Changer

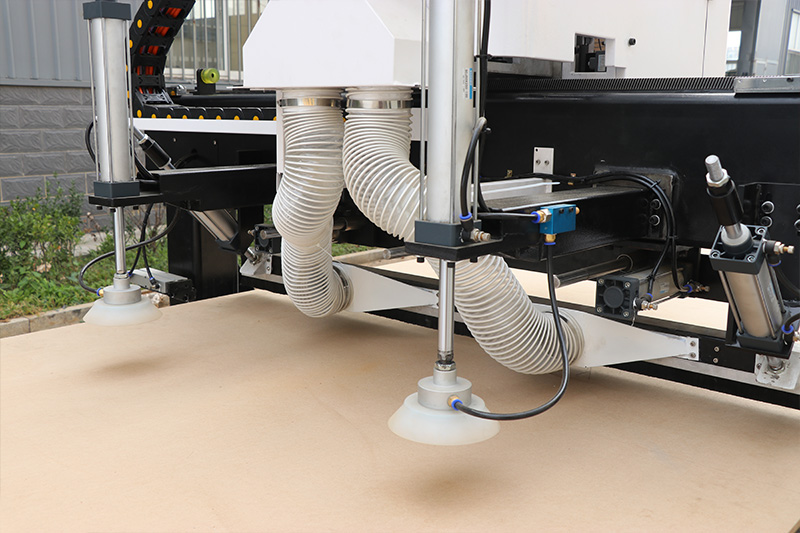

Sucker

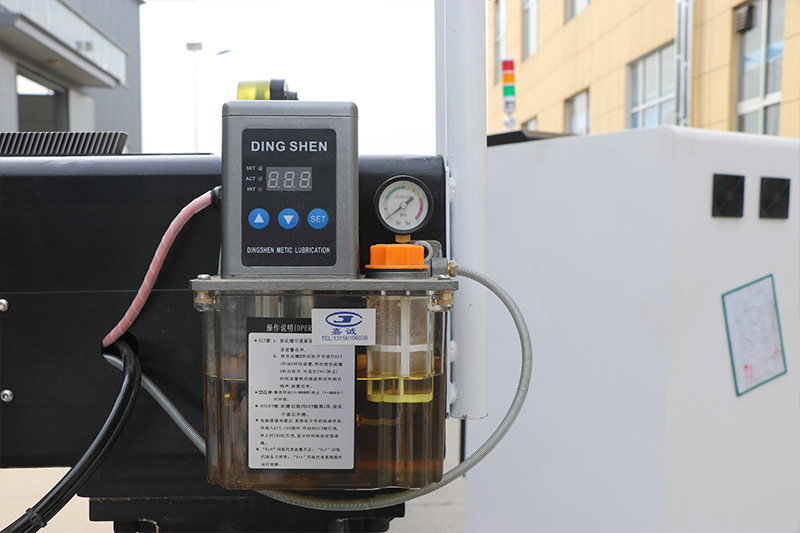

Lubrication system

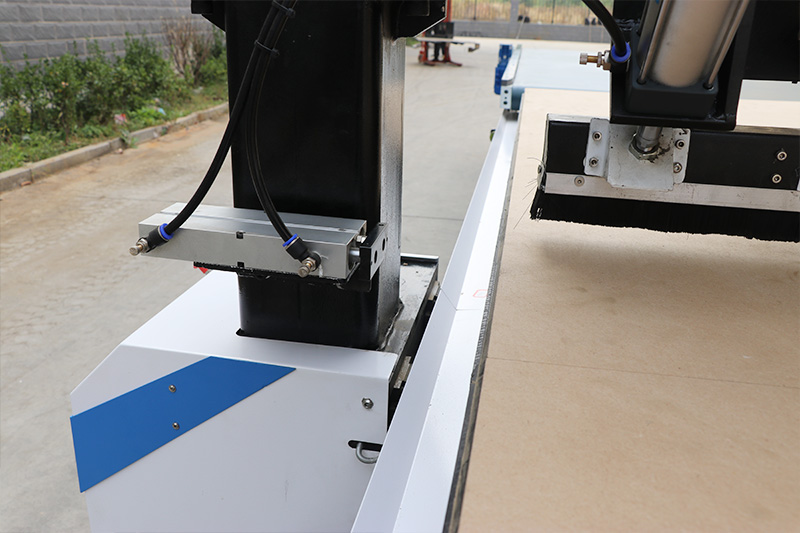

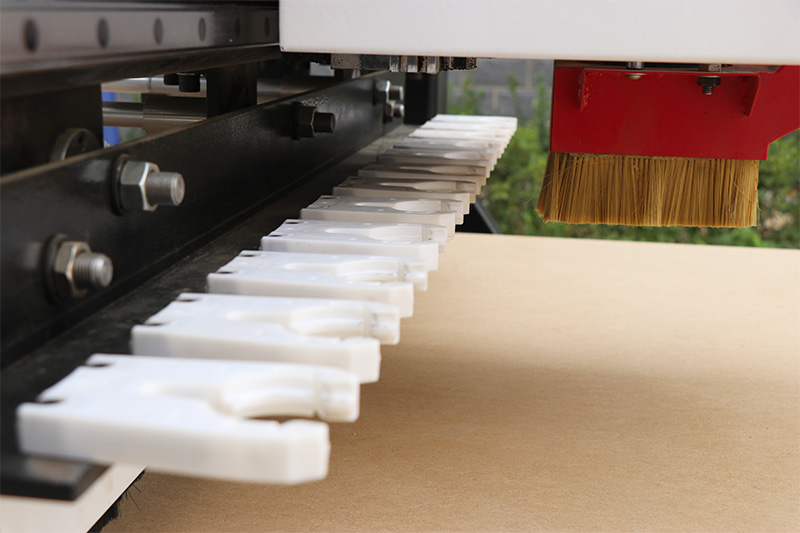

Pusher
