Affordable CNC Door Lock Machine
CNC Door Lock Making Machine

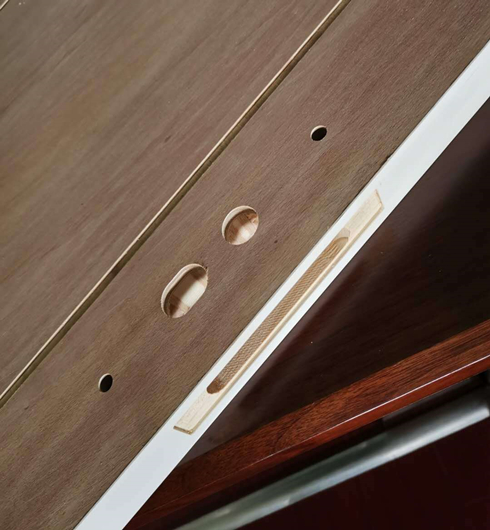

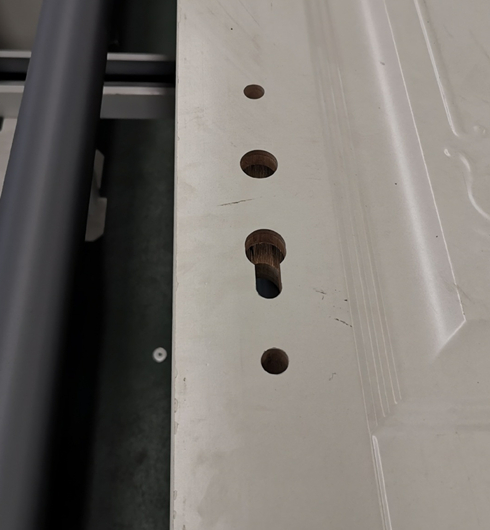

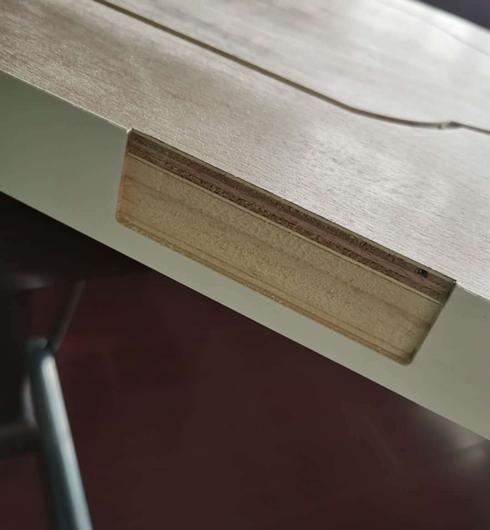

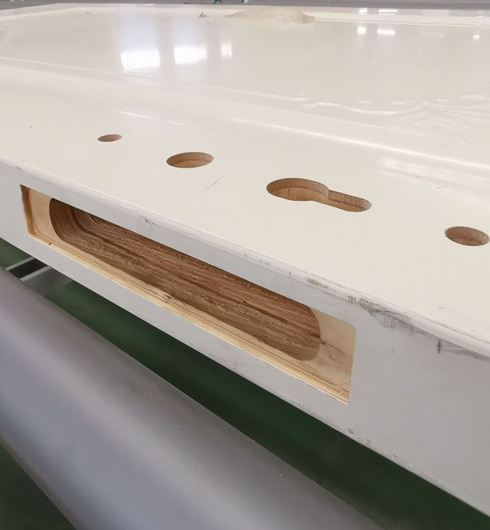

The CNC woodworking door lock hole drilling machine for making door lock holes, hinge holes, and hinge slots for a variety of wooden doors, fireproof doors, windows, etc. It includes two vertical and two horizontal spindles to achieve different drilling, milling, and trimming functions.
1. The worktable adopts high-strength PVC to avoid errors caused by table wear. Besides, the thick-walled square steel machine bed can effectively avoid the vibration during operation.
2. With four different spindles of different power, this machine can complete a variety of drilling work with high efficiency and excellent drilling precision.
3. The machine is equipped with an oil injection system, which can lubricate the oil circuit to ensure smooth operation. In addition, the oil-water separator can effectively filter the water vapor in the air to guarantee the service life of internal components.
| Dimension | 3600x1300x1450mm |
| Worktable height | 750mm |
| Power of 4 spindles | T1 vertical spindle for boring:3.5KW T2 vertical spindle for milling: 3.5KW T3 side spindle for milling: 6KW T4 side spindle for trimming: 2.2kW |
| Max. travel of each spindle | T1: 2500x90x70mm T2: 2600x90x70mm T3: 2700x100x70mm T4: 2400x90x70mm |
| Spindle rotating speed | 18000RP m/min |
| Max. processing size | 2800x1000x70mm |
| Idling speed | 10-100m/min |
| Processing speed | 10-80m/min |
| Motor | 750W servo motorx3 |
| Inverter | 7.5kw |
| Lubrication | Automatic lubrication system |
| Ball screw | #25 Taiwan high-precision ball screw |
| Guide rail | #20 Taiwan Linear guide |
| Bearing and bearing seat | Taiwan High precision bearing |
| Cable | High flexible double shielded wire |
| Reducer | Planetary Reducer |
| Rack | high precision rack gear |
Click for details

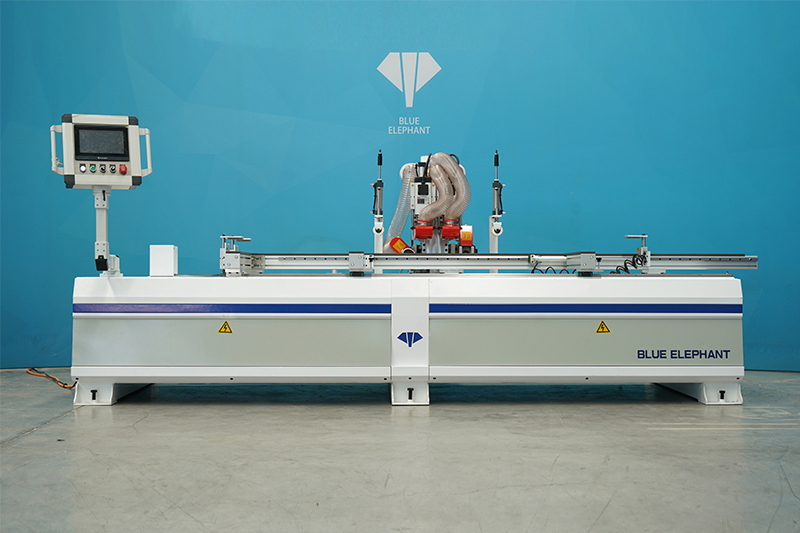

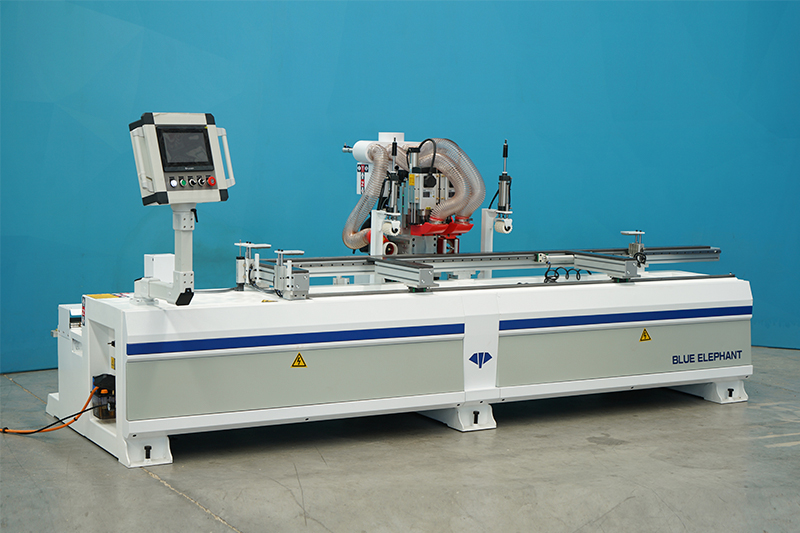

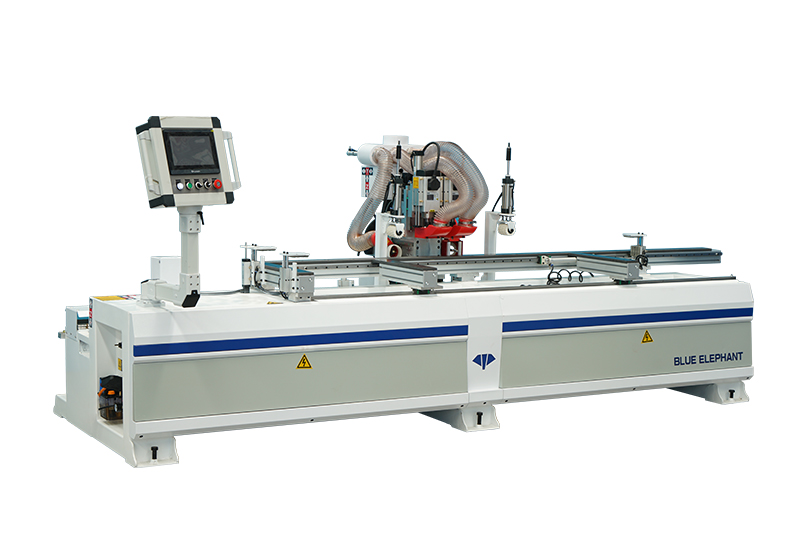

Appearance
