Double Head Side Hole Drilling Machine for Drilling Holes in Wood

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC200
Category : CNC Drilling Machine
Price Range : $4000 to $5000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

Compared with the single head side drilling machine, this machine has more functions such as side holes, dowel holes, blind holes, as well as locating the slot, opening the slot, and hiding parts.

Features

1. It can complete three-in-one side hole/wood pinhole/blind hole/fixed groove/through groove and side hole drilling of four kinds of hidden parts.
2. Adopting the American Bonner laser probe, it has the features of high drilling accuracy;
3. Equipped with dual-system dedicated code scanning gun, which has the advantages of fast speed and high efficiency.
4. With the features of simple operation and convenient use, the operator can use the machine without no special training.

Parameters

Model	ELE200
Spindle	2.2kw*2
Spindle speed	0-18000RPM
Idling speed	100m/min
Working speed	80m/min
Working travel	2800mm
Height of table	750mm
Drive and motor	Dongling servo motor and drive
Sensor	BANNER
Controller	Luolunchi code scanning and laser scanning dual system
Guild	#20 square rail
Rack	Taiwan JUELI
Screw	TBI
Whole size	330012501300mm

Click for details

Frequent Asked Questions

What advantages do this drilling machine have?

The side drilling machine has 2 spindles,which can hold 2 pieces of tool bits. One bit is used for making side holes, and the other is for making slots. It is easy to use, doesn't need to change tool bits, and saves time.

Can this machine drill minifix holes?

Yes, the machine can drill minifix holes. It can scan minifix holes by red light positioning, then make side holes on the correct position.

How many wood boards can be drilled together?

The machine is provided with 3 working stations, so you can put 3 boards on it. It can drill side holes one by one.

CNC Drilling Machine Details

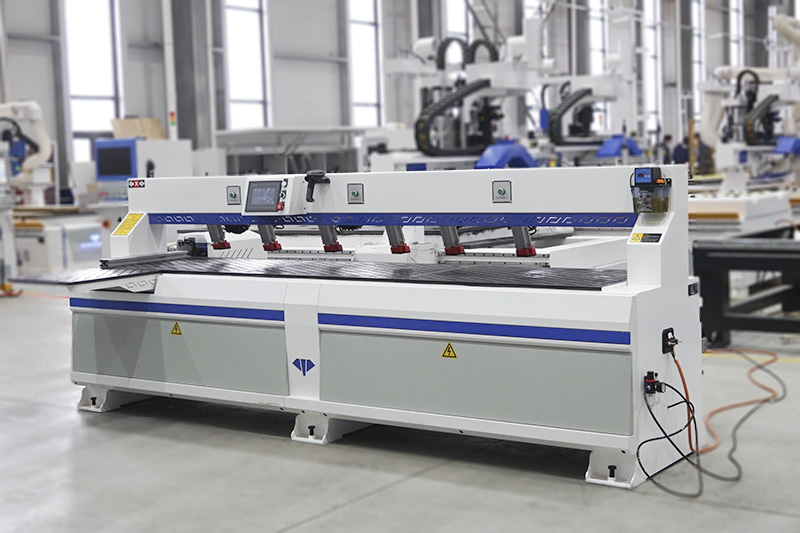

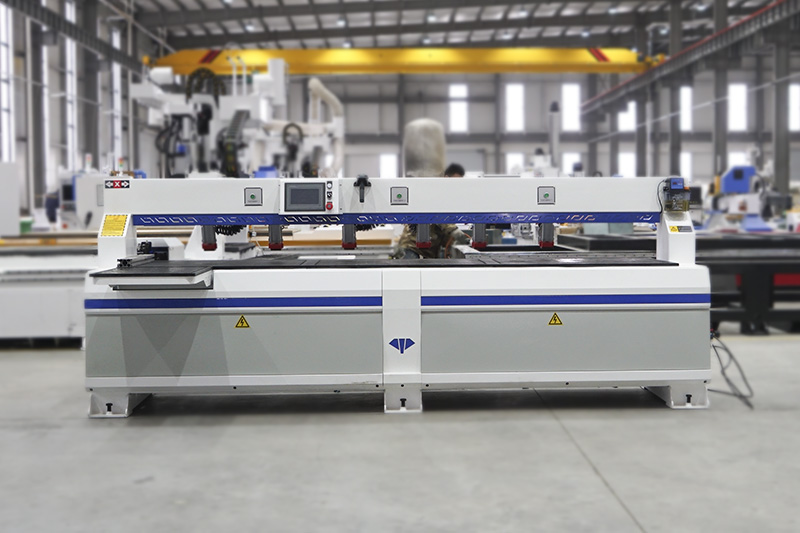

Appearance

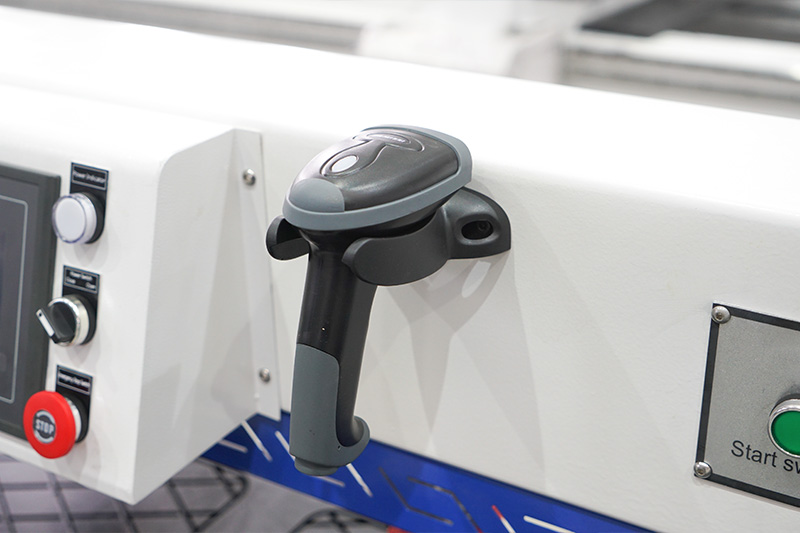

Scanner

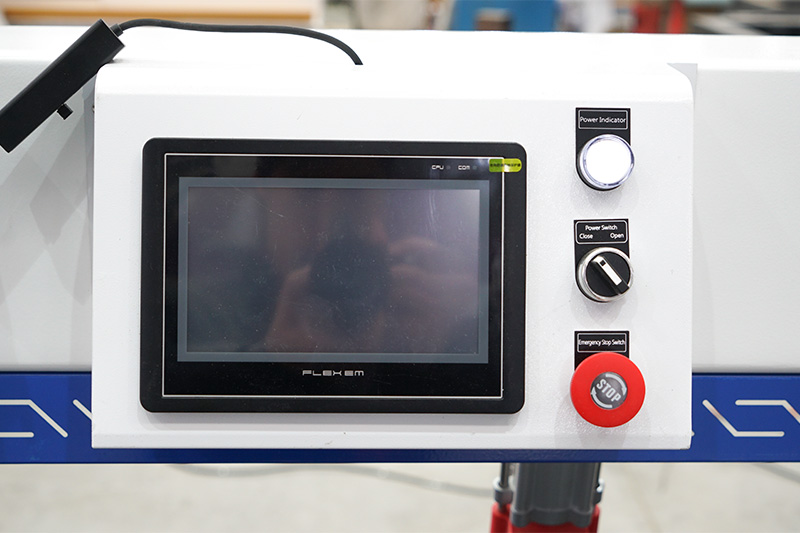

Screen

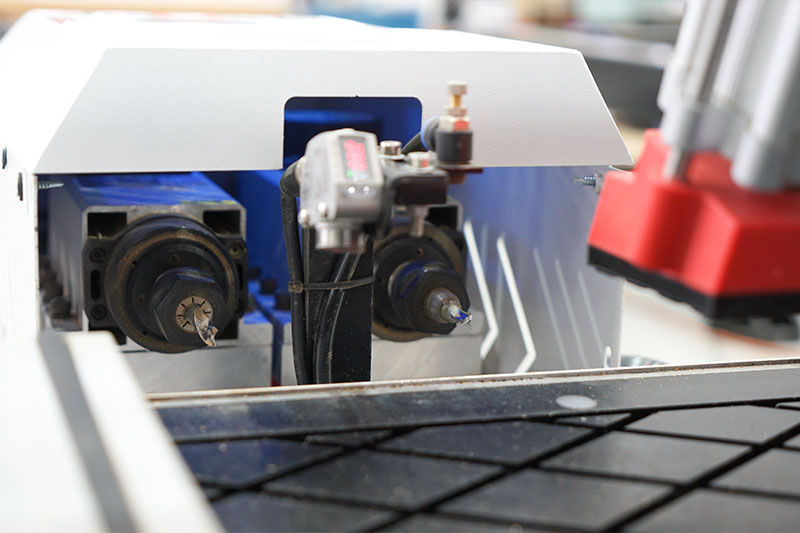

Two bits

Application

Side drilling machines are mainly used to drill side holes or make slots or grooves on side surface of wooden panels. It is designed with simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blade that they have. All three models of side hole drilling machine have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.

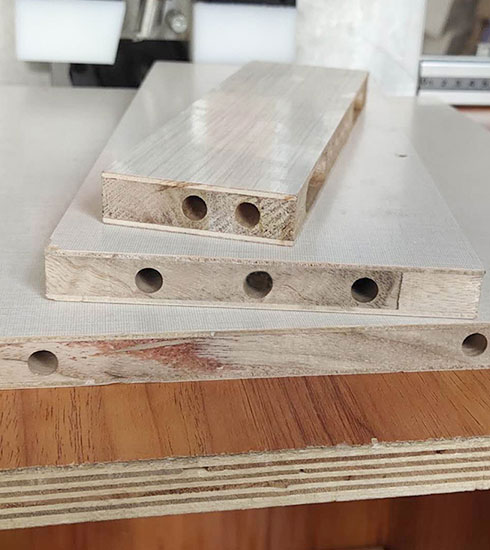

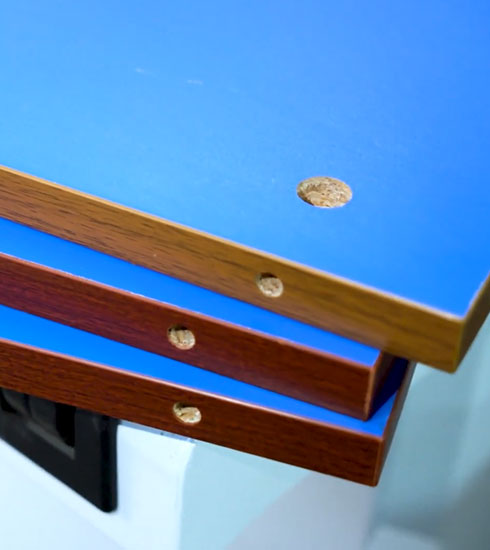

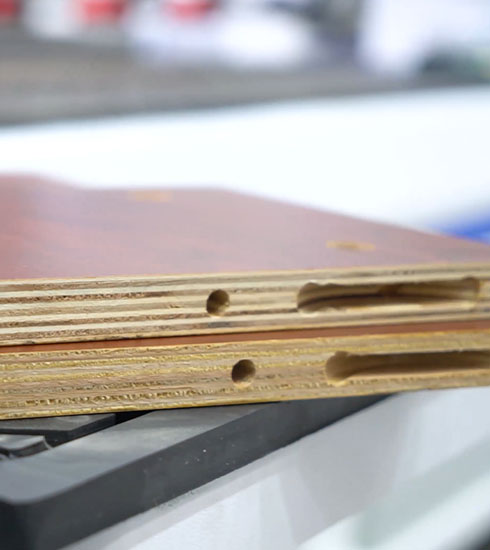

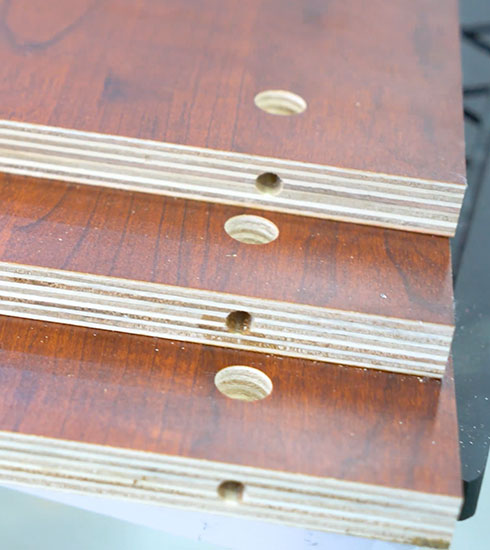

Samples
