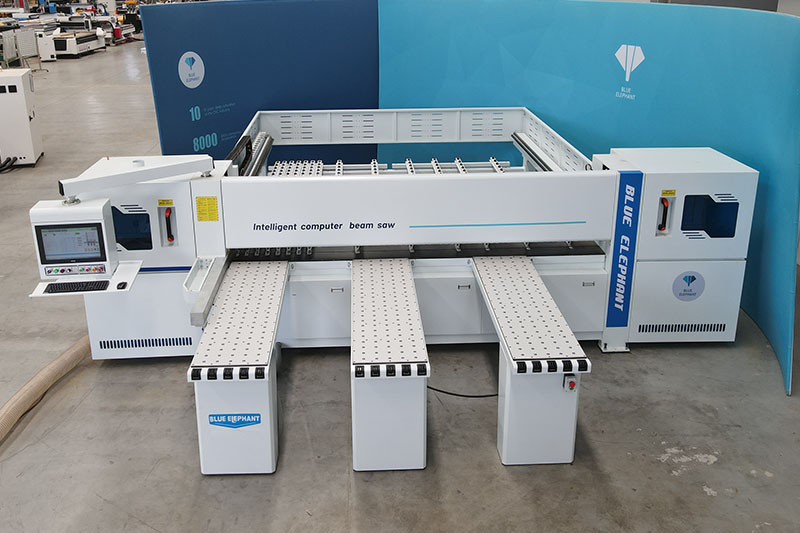

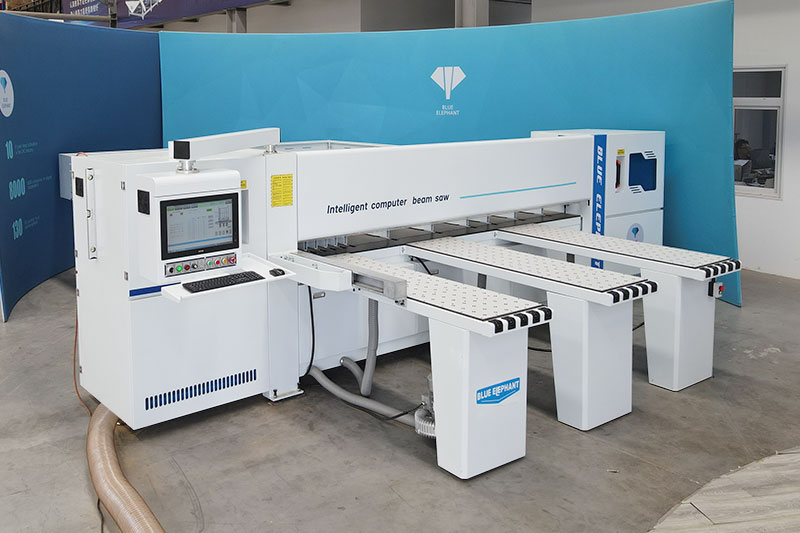

Wood Panel Computer Beam Saw
Computer Panel Saw for Cutting Panels
This high speed computer beam saw is capable of cutting wooden panels with a maximum length of 3700mm. It features intelligent high-speed cutting, excellent precision, high stability and easy operation. More and more panel furniture makers choose the computer beam saw for their automatic production line.
1. Equipped with a warning device, it will automatically shut down when a fault occurs and has the function of automatic fault detection to help you find the reason.
2. Use Fatek PLC, which has stable mass storage and high-speed processing ability.
3. Adopt INVT high-performance servo motor to run control demand fast and precisely to guarantee efficient cutting.
4. Key components and other electrical appliances or toggle components are all from international brand-name products to ensure accuracy and reliability.
5. Due to the intelligence system, the worker only takes 2 hours of training before using it.

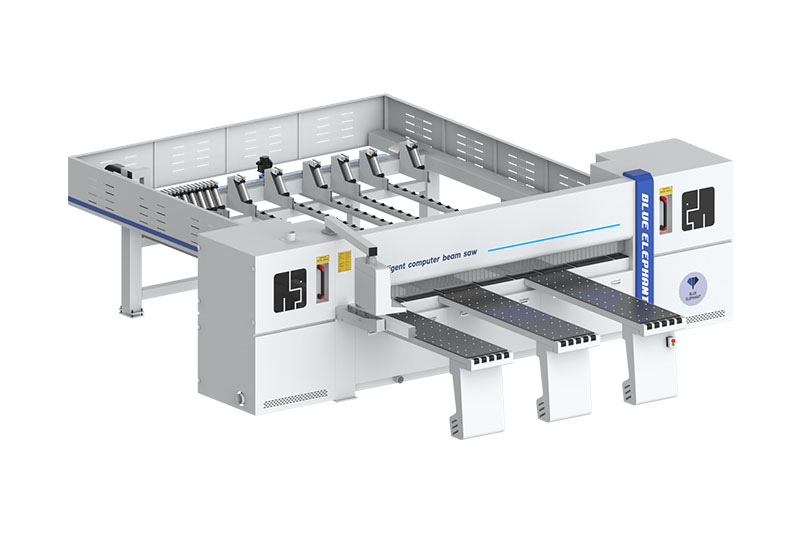

| Model | ELECNC-380 |
| Overall dimension | 6400x6300x1800mm |
| Cutting length | 3700mm |
| Cutting thickness | 100mm |
| Main saw blade diameter | 350mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 16kW |
| Groove saw motor | 2.2kW |
| Auto feeding motor | 1.5kW (AC, servo) |
| High-press ventilating motor | 2.2kW |
| Total power | 23kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm2 |
| Platform height | 950mm |
| Control switch | Schneider |
| PLC | Fatek |
| Converter | Invt |
| Screen | Fatek |
| Contactor | Schneider |
| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |
Click for details
Screen

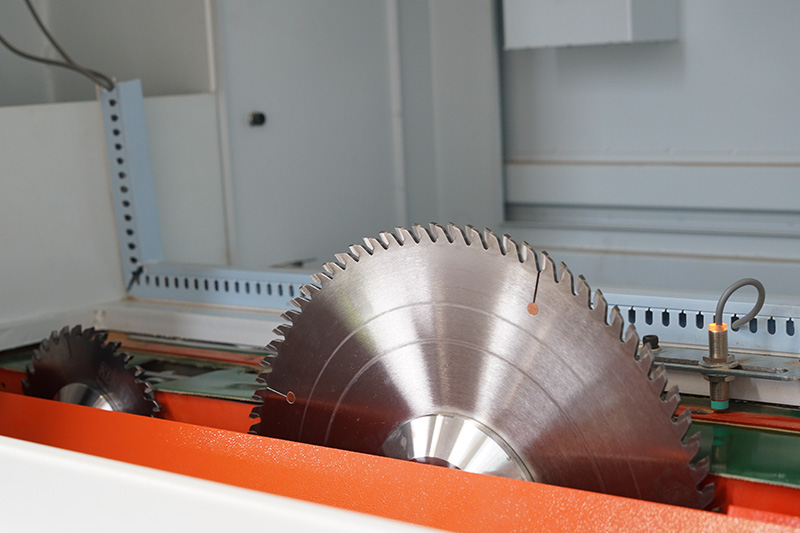

Saw blade
Worktable
Electric parts
