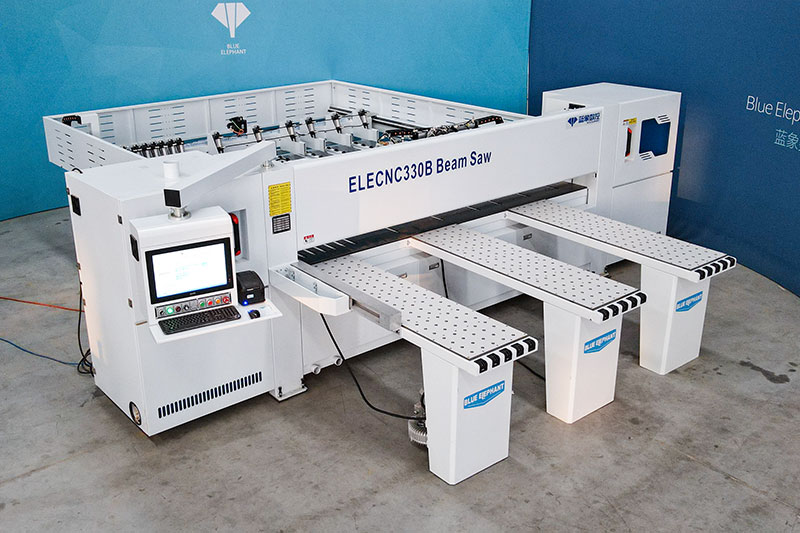

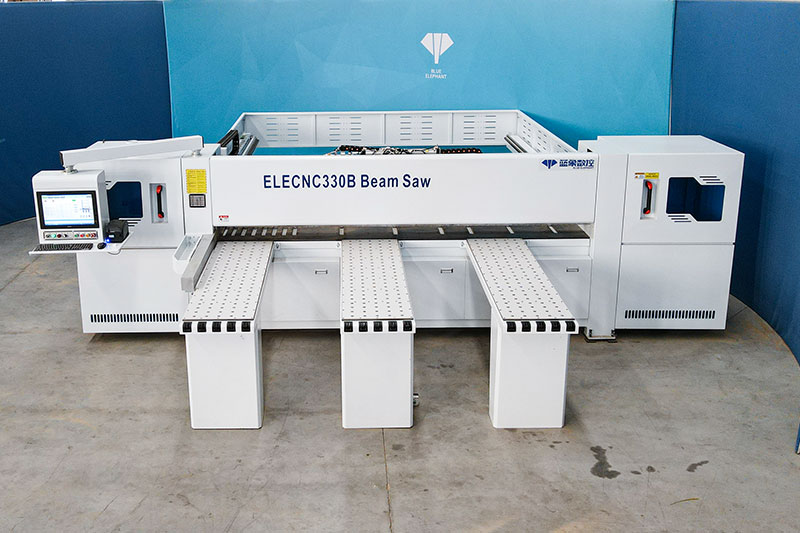

330B Computer Panel Saw

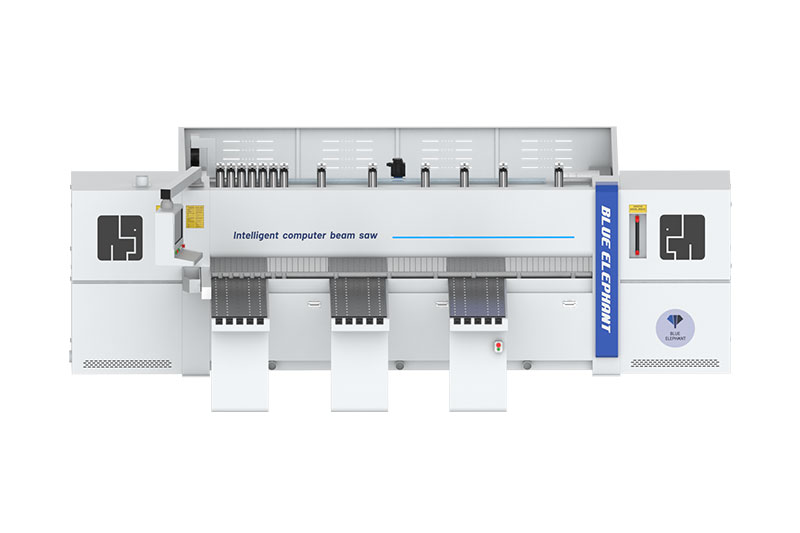

Intelligent Computer Panel Saw
This intelligent computer beam saw is good at cutting wooden panels in panel furniture manufacturing industry. It adopts the industrial computer control, which has an advanced but easy-to-operate man-machine interface.
1. The structure is welded by a high-density technique and annealing process to ensure working stability and longevity.
2. With a reliable control system, the interface is concise and easy to use.
3. It can edit or simulate saw-cutting programs through compatibility with optimization software, barcode management software, and automation software.
4. Key components and other electrical appliances or toggle components are all from international brand-name products to ensure accuracy and reliability.
5. It can realize remote monitor for running status and extend intelligent connections of internet of things (optional function).
| Model | ELECNC-330 |
| Overall dimension | 5900x5800x1800mm |
| Cutting length | 3300mm |
| Cutting thickness | 100mm |
| Main saw blade diameter | 350mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 15kW |
| Groove saw motor | 2.2kW |

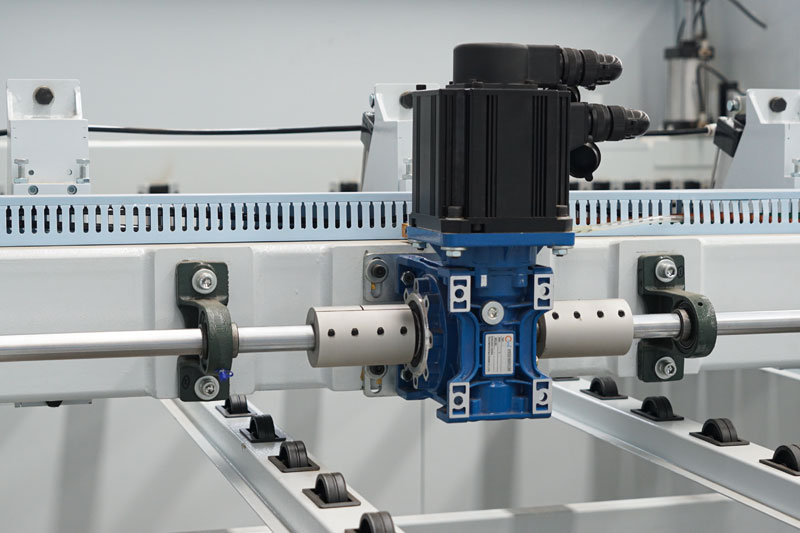

| Auto feeding motor | 2.0kW (AC, servo) |
| High-press ventilating motor | 3kW |
| Total power | 23kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm2 |
| Platform height | 950mm |
| Control switch | Schneider |

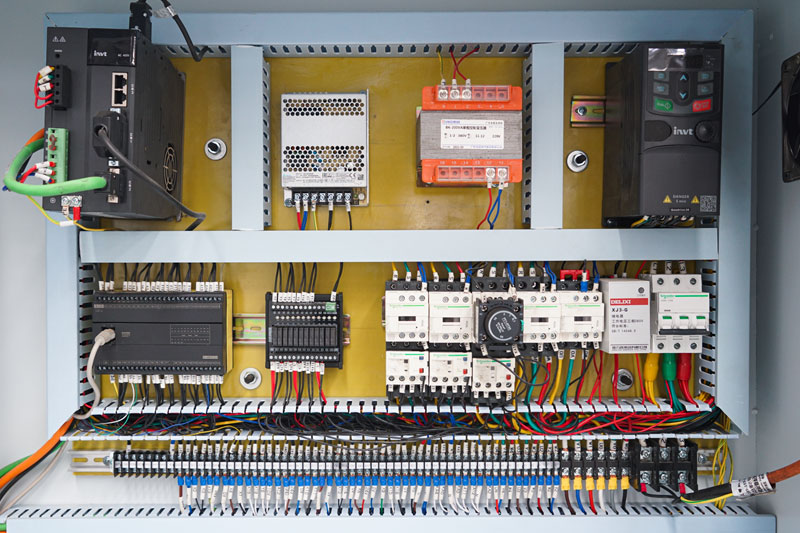

| PLC | Fatek |
| Converter | Invt |
| Screen | Jikowi |
| Contactor | Schneider |

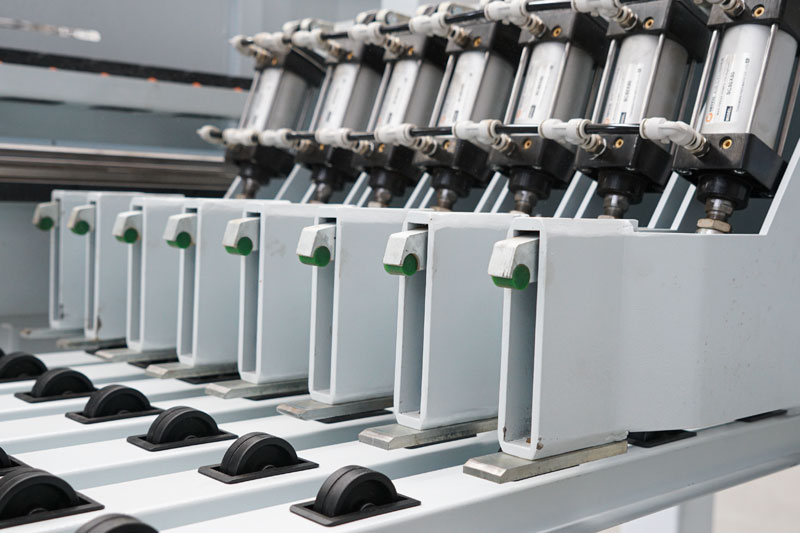

| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |
