How to use rotary device

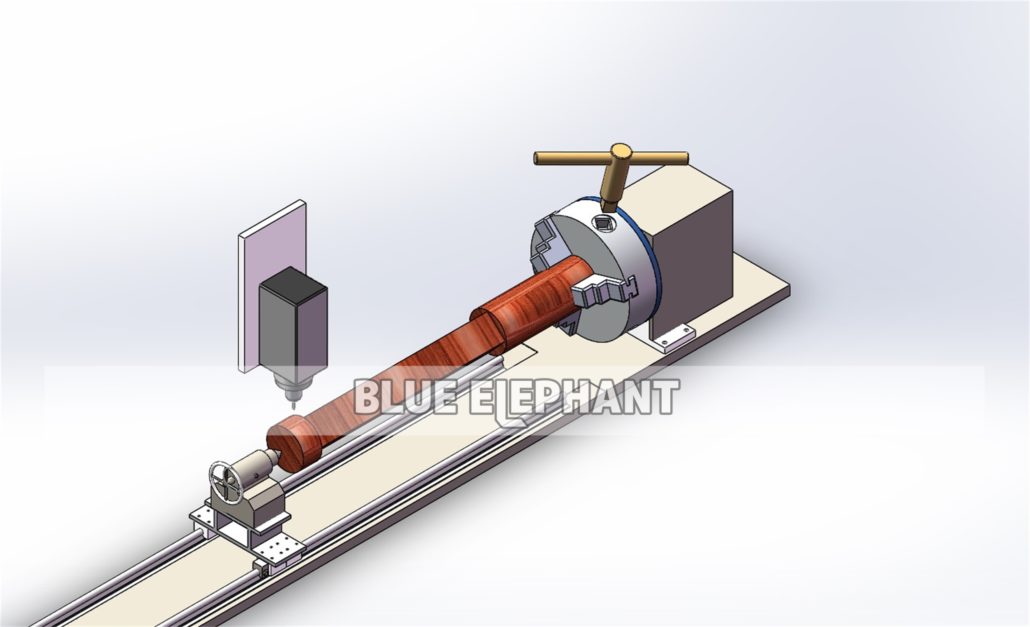

1, Introduction

•
•

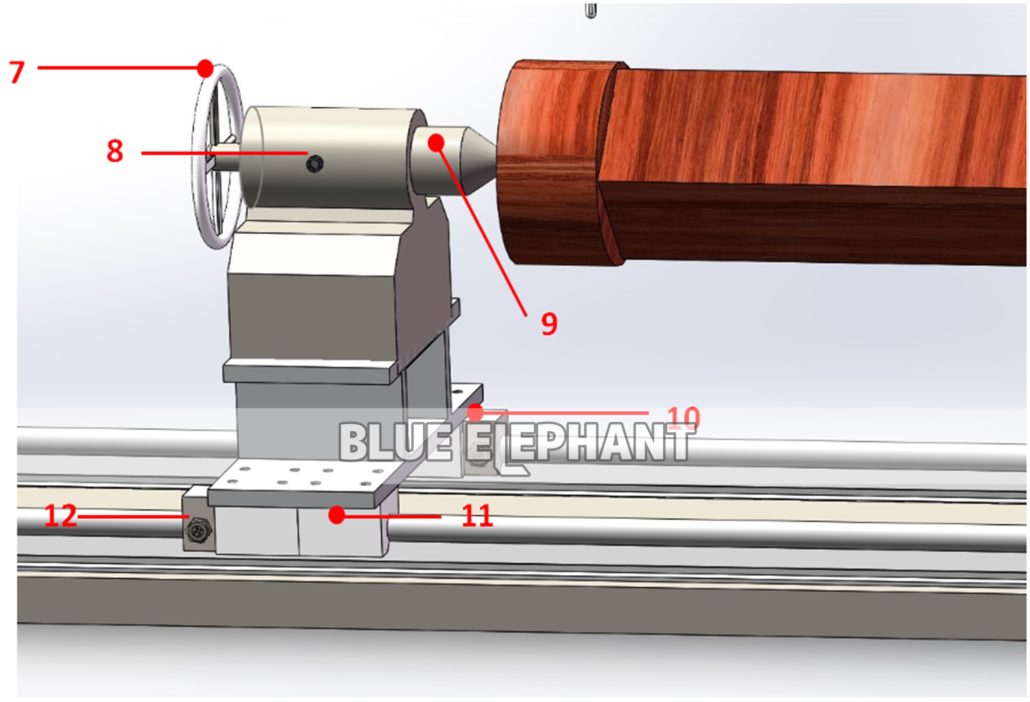

• 1): Key for the three jaw chuck   7): Wheel
• 2): Three jaw chuck     8): Set screw
• 3): Motor and gear box     9）：Tailstock center
• 4): Jaw       10）：Locking block
• 5): Tailstock      11）:Slider
• 6): liner       12）：Locking block screw.

2, Installing and fixing workpiece

• a: loose the 8) Set screw,let the ,let the 9）：Tailstock center free.

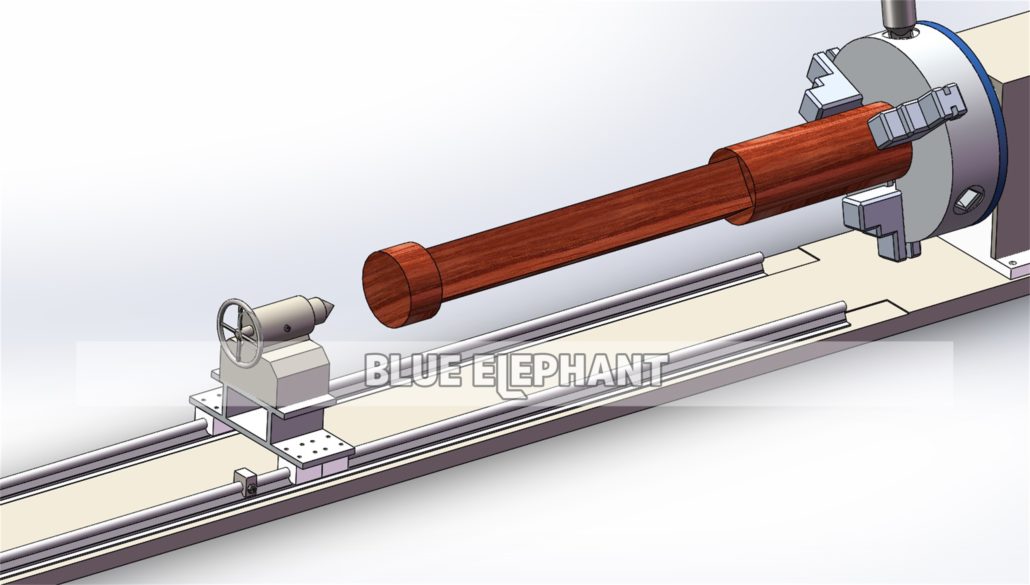

• b: loose 12)Locking block screw, let the 5): Tailstock free.like the picture .
•

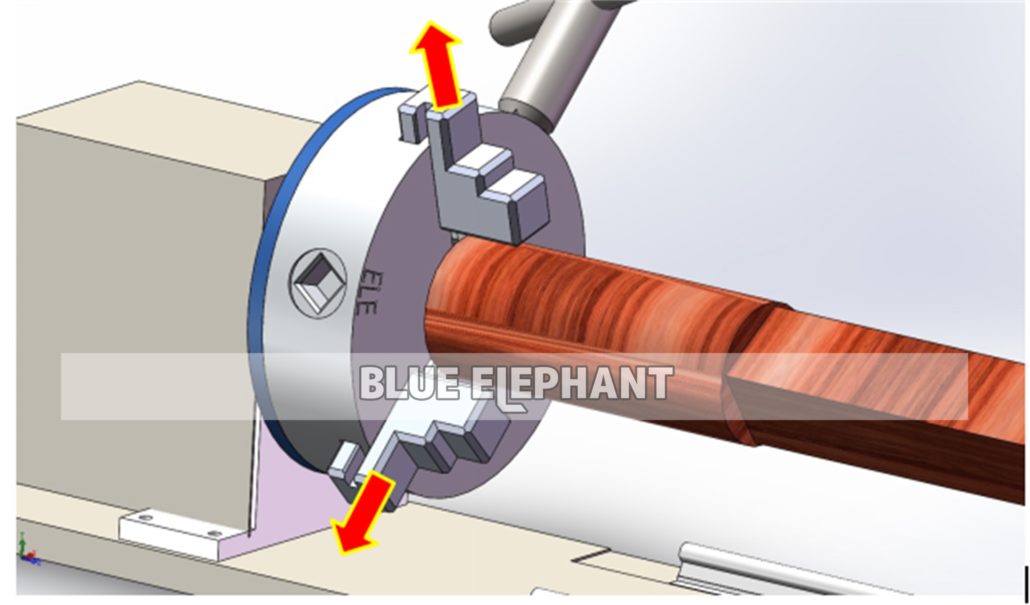

• c: Use 1): Key for the three jaw chuck. let the jaw distance bigger than the workpiece diameter.
• Like this .
•

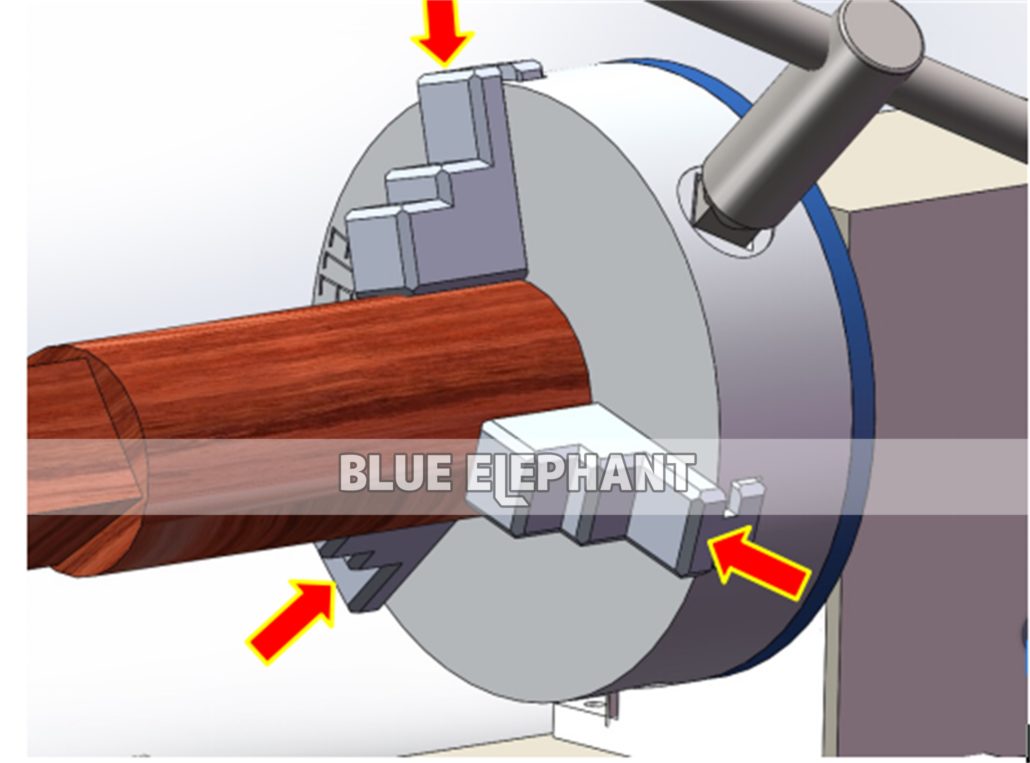

• Then install the workpiece. Clamp the workpiece by the key .
•

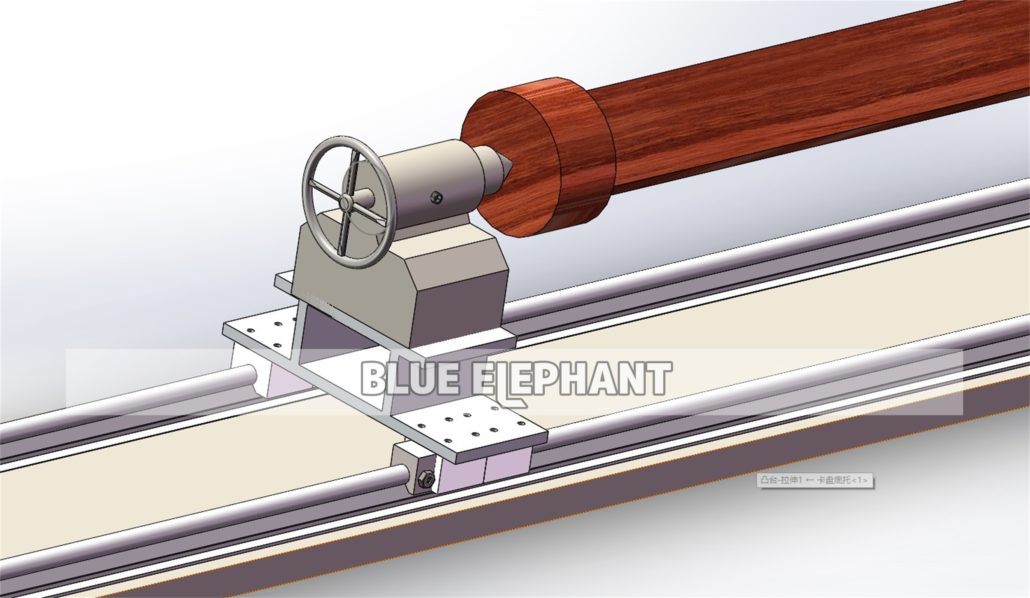

• d: Adjust the 5): Tailstock , let 9）：Tailstock center in the center of workpiece.
•
• e: Tight the screw.

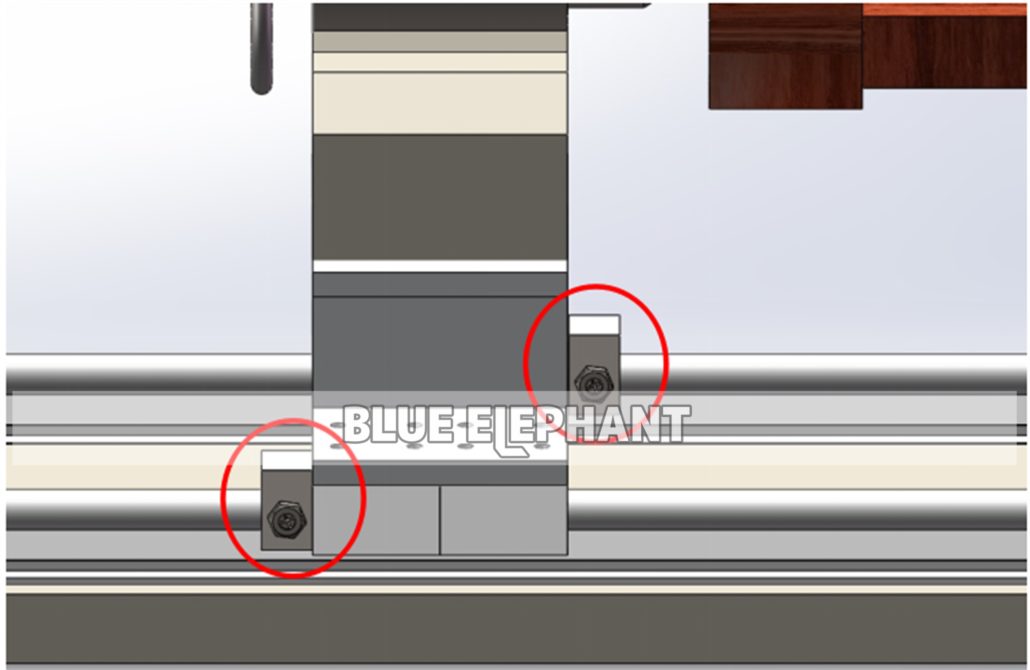

• Adjust10）：Locking block,Tight Locking block screw,do not let the block move ,then 5): Tailstock
• can not move .
•

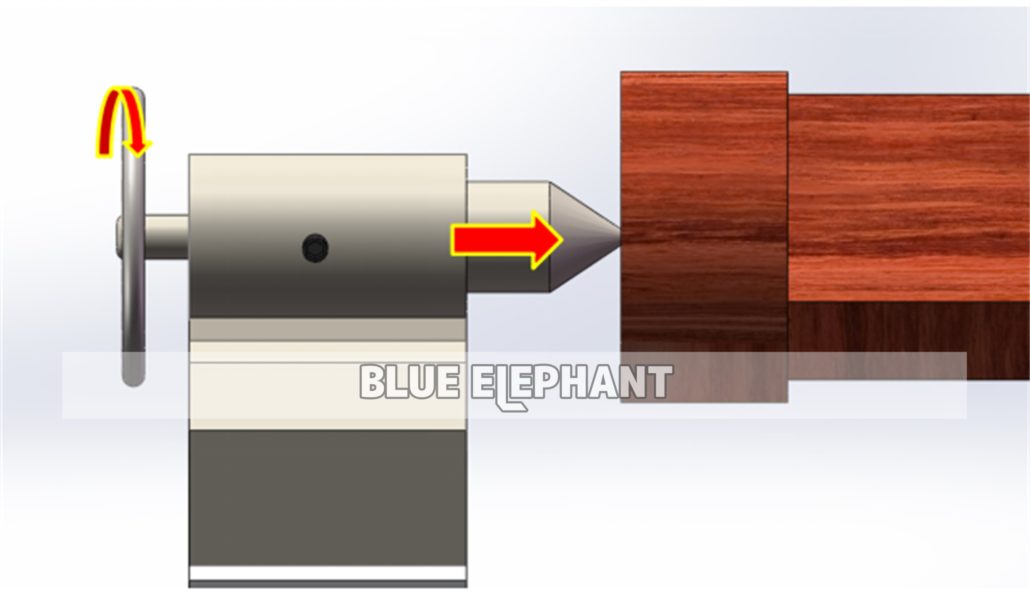

• f: Adjust the 9）：Tailstock center, do not let the workpiece have space to move.
•
• Tight the 8): Set screw, Tailstock center will not move.
• Ok finish.
•

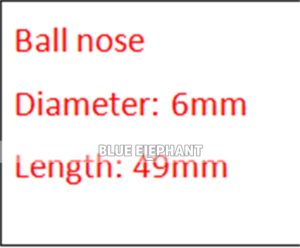

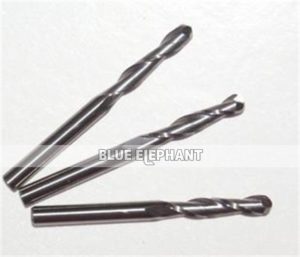

• Here is an example .

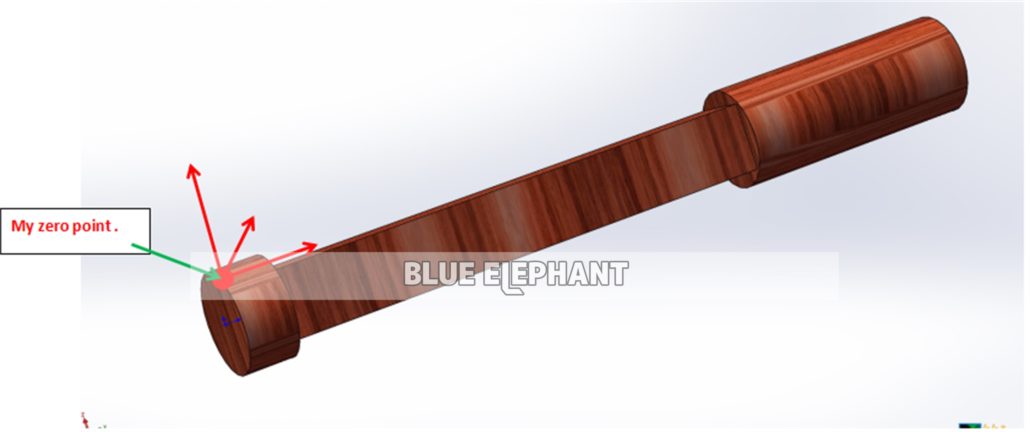

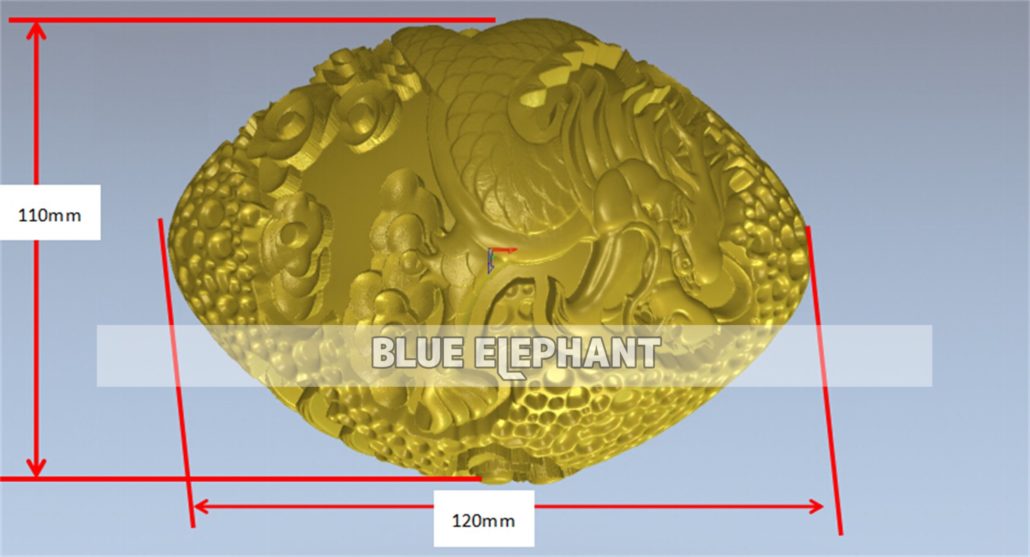

• My workpiece look like this .
•

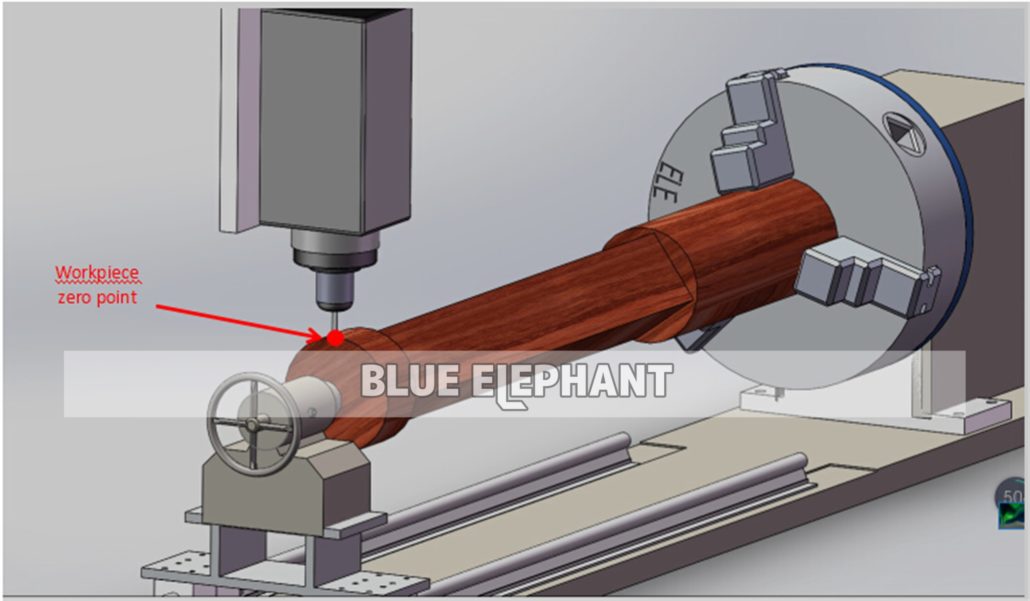

• Move tool to here.
•

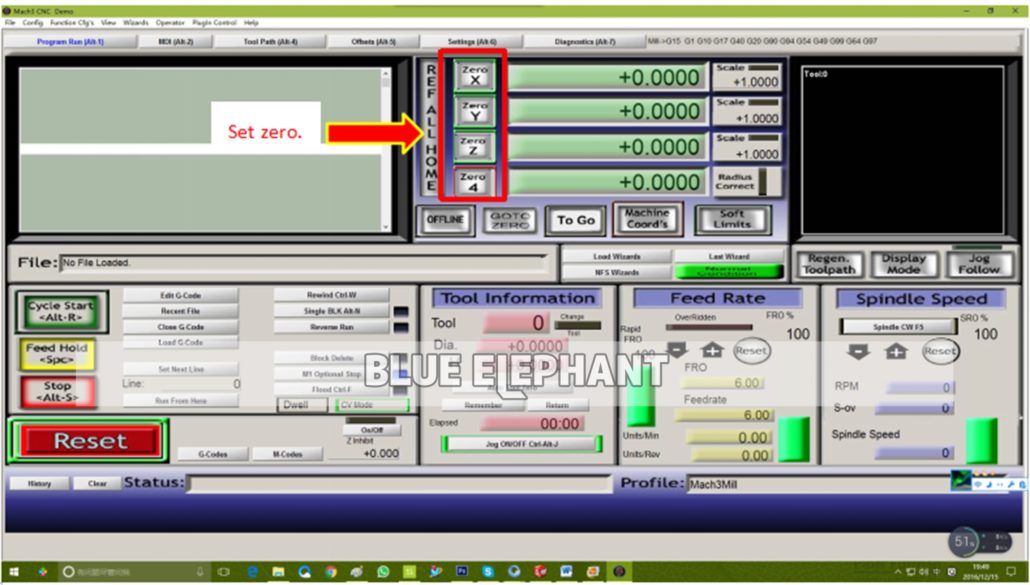

• Then ,Control system
•

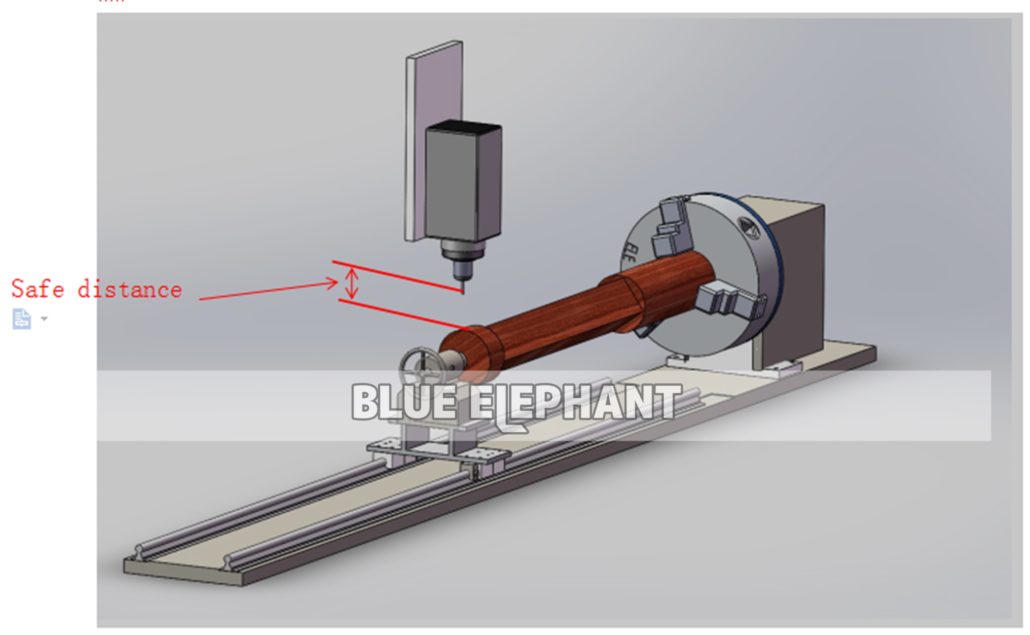

• Ok .Move z axis up ,give machine a safe distance .
•
•
• 1, load G-code
• 2, Spindle turn on . let the spindle work first .
• 3, Cycle start , start work .
• Am real example ;
•
•
•
• The rotary is parallel to the Y axis。
• (if your rotary is parallel to the x axis,just Replace the Y axis with X, Except for the second line.)
