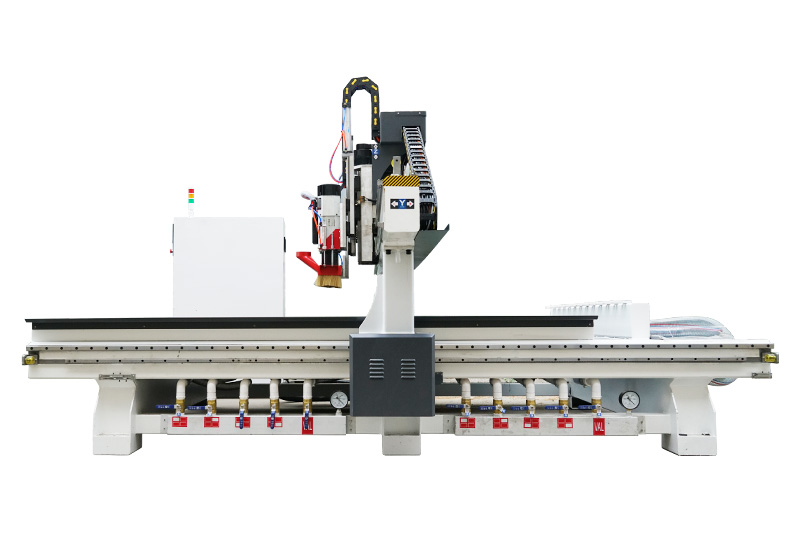

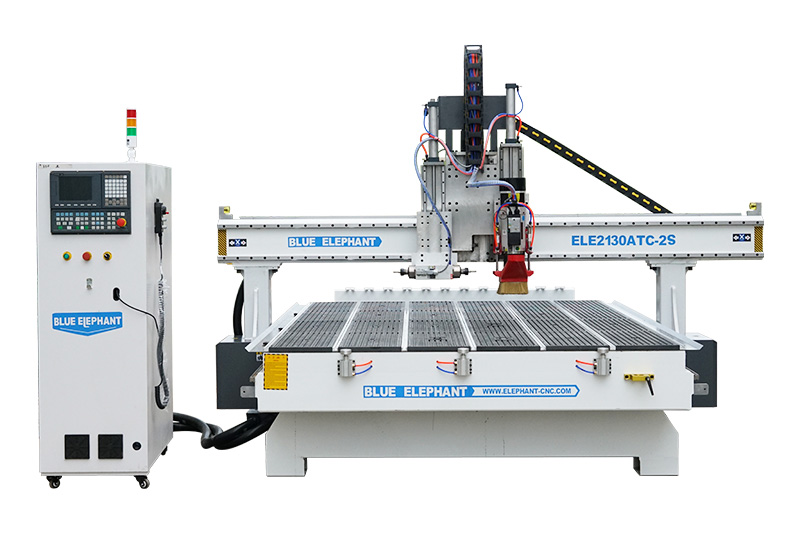

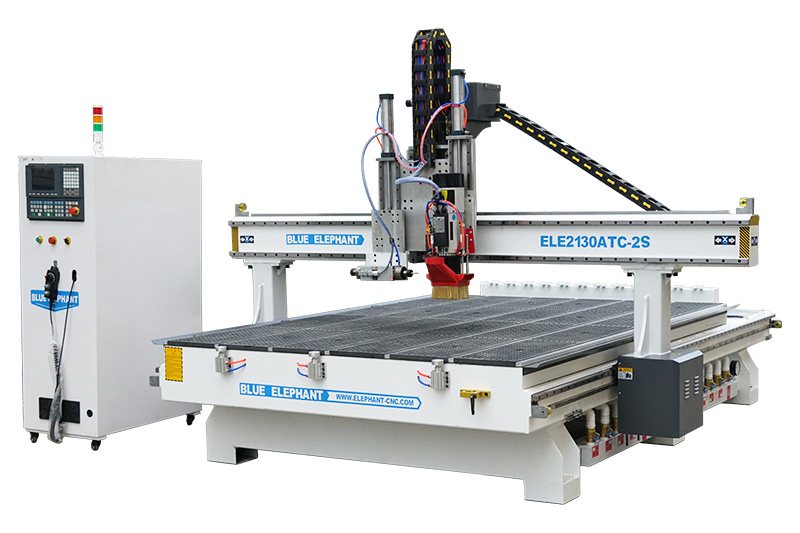

Linear ATC 2130 Multi Spindle CNC Machine with Two Spindels

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-2130atc
Category : Multi-head CNC Router
Price Range : $13,000 to $30,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

This is an automatic tool changer engraving machine with two spindles. It has the advantages of fast tool change speed, high production efficiency, and good processing quality. It is suitable for users with large production volume and high processing accuracy requirements.

Features

1. Adopting 9KW HQD spindle and imported bearings, which effectively prolongs the service life of the machine.
2. With horizontal spindle, can drilling side holes.
3. Adopting 850w Leadshine servo motor, it has the features of sufficient power, fast speed.
4. Equipped with Japan Shimpo reducer to make the machine run more smoothly and improve the processing accuracy accordingly.

Parameters

Model	ELECNC2130 ATC
X,Y axis travel	2100x3000mm, option: 15003000mm; 21003000mm; 2100*4000mm, etc
Z axis travel	200mm, option: 300mm, 400mm,500mm, 600mm, etc
Spindle type	9kw HQD air cooling spindle 3.5kw changsheng air cooling spindlein horizontal
Inverter type	11kw Fuling inverter
Drilling bank	Taiwan or Italy 5+4 vertical drills
Tool magazine	Linear type auto tool changer 8pcs Option: carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan Syntec 60WE controller, option：LNC MW2200
Driving system	850W Japan Yaskawa Servo Motor & driver
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	T-slot & vacuum work table option：aluminum working table
Positioning cylinder	7 pieces (X3, Y4)
Linear guide	Taiwan linear guide
Transmission	X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool sensor	Automatic tool setting
Cables	Germany Igus cables with CE certificate
Compatible software	Artcam, Aspire software
Command language	G Code
Traveling speed	30m/min
Working speed	0-10m/min
Re-positioning accuracy	±0.01mm
System resolution	±0.0025mm
Working accuracy	±0.1mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	1. Water circulation 2. JQT Vortex pump 3. Tongyou 4. Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type 1.5KW
Air compressor	air compressor
Protection device	Light curtain
Spindle	6kw HQD air cooling spindle

Click for details

Frequent Asked Questions

1. Should I choose an ATC CNC machine？

If your work needs to change different tools frequently, it will be better to choose an ATC CNC machine, which can improves your processing efficiency and saves tool changing time.

2. Tool change method?

Automatic tool changer and carousel tool changer both need to connect with air compressors.

3. Is it possible to raise the Z axis or add a rotary device?

Yes. We can customize a higher Z-axis. If you need, we can also add a rotary device for you.

Multi-head CNC Router Details

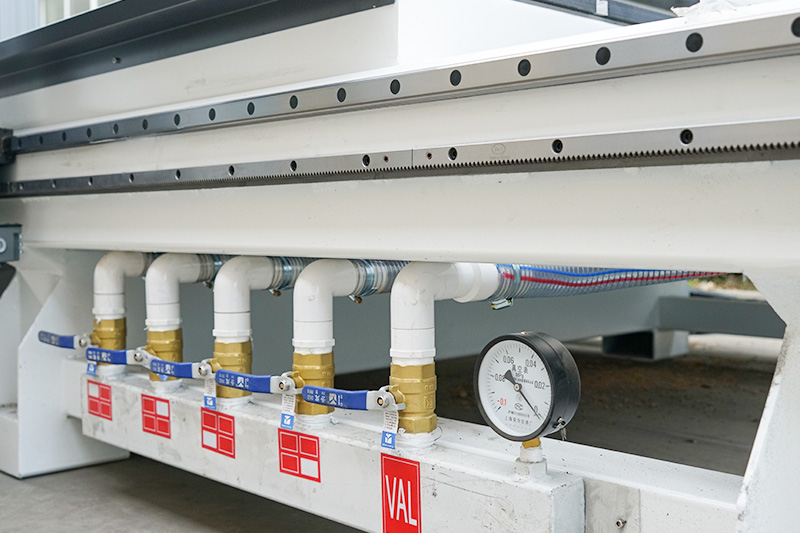

Linear Guide

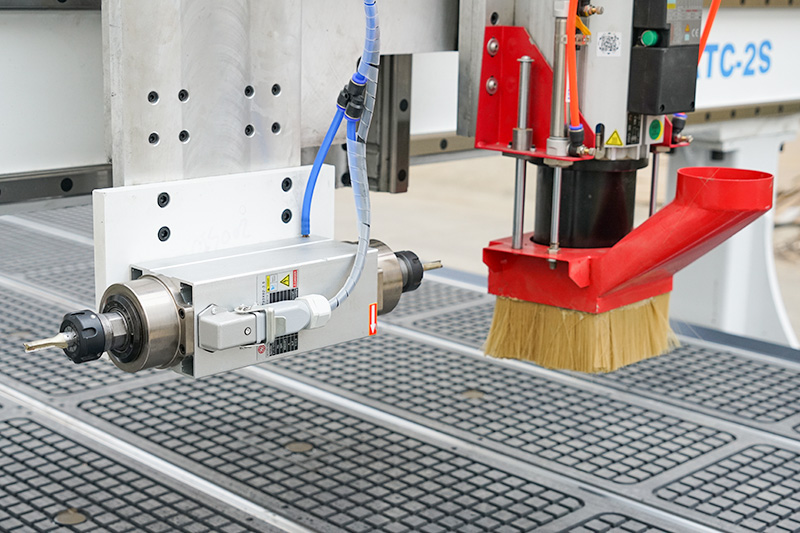

ATC Spindle

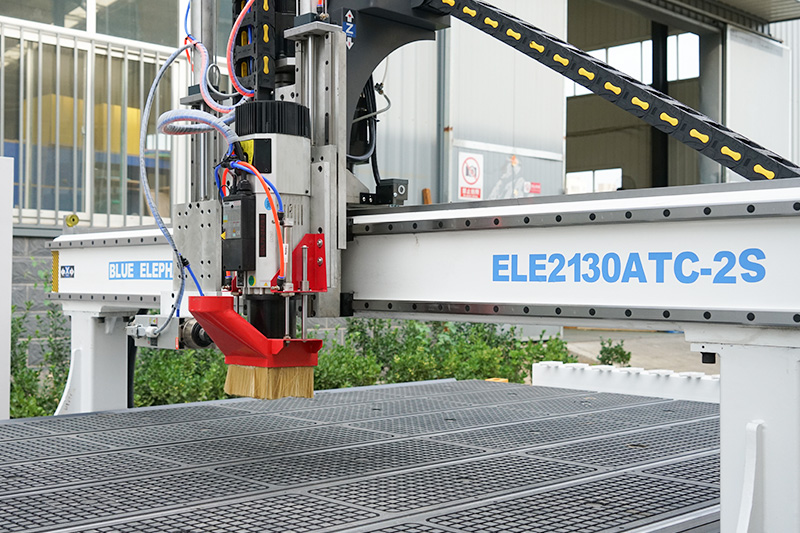

Dust Brush

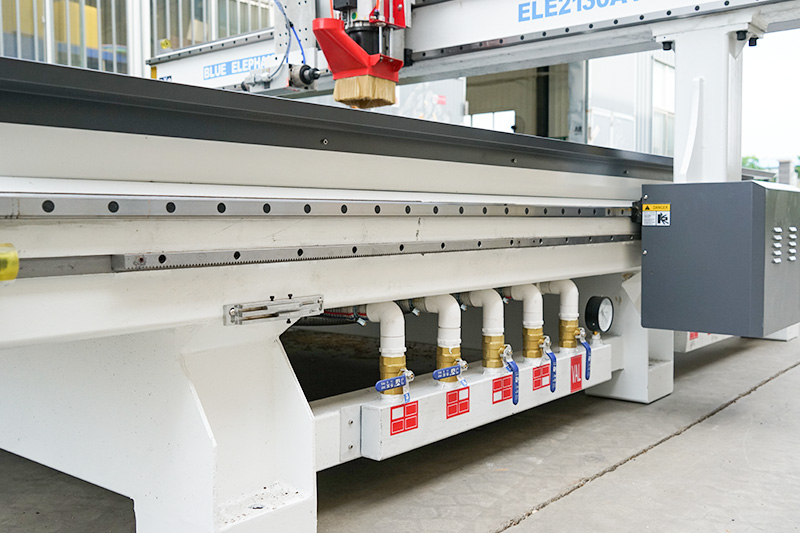

Valve

Application

Main application: process 3D wave boards, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, craft window, art embossed screens,embossed craft gifts, solid wood art murals, woodwork calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arcs, non-ferrous metal carving and cutting. Widely used in antique furniture, European-style furniture and other furniture industries.

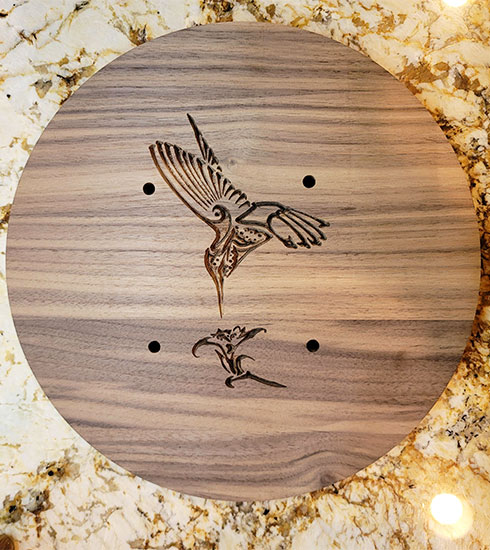

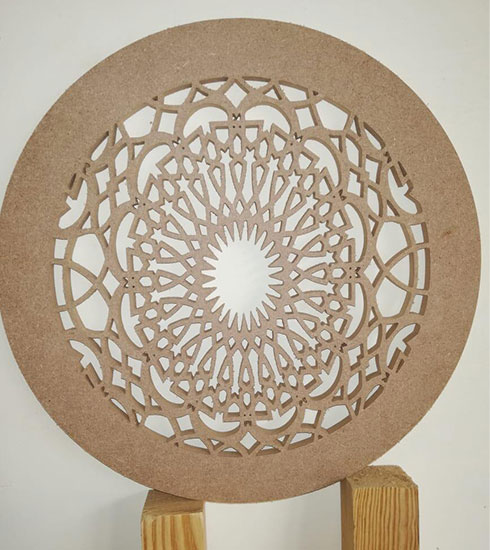

Samples

Click for solution

Production Facility

Quality Control & Testing
