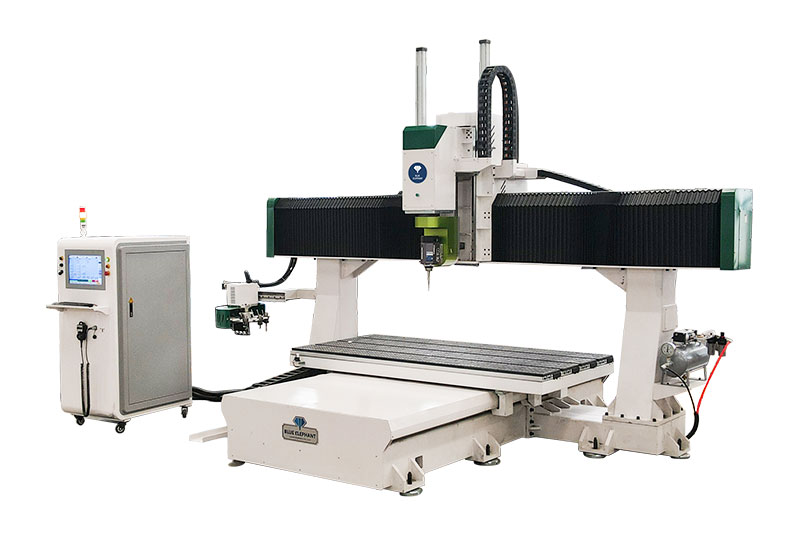

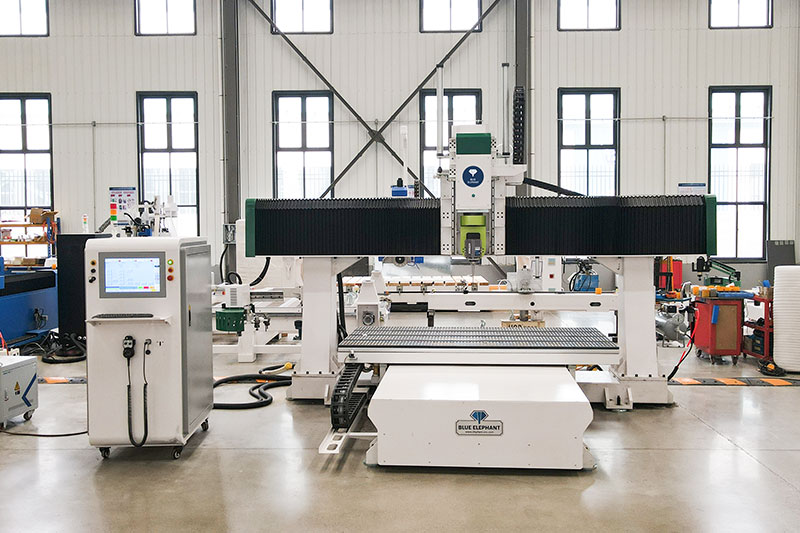

EW1 1325ATC 5 Axis CNC Machining Center for Sale
2040 Foam 5 Axis ATC CNC Maching Center for Sale
This upgraded 5 axis CNC machining center is added with a protective cover, carousel ATC magazine and T slot & vacuum table. Therefore, it is widely used in aerospace, automotive, mold manufacturing, artwork manufacturing, medical equipment and other fields. It can realize more complex and precise parts processing. So it is an ideal machine for improving production efficiency and product quality.
1. The T slot & vacuum table has stronger adsorption capacity and is easier to fix the material.

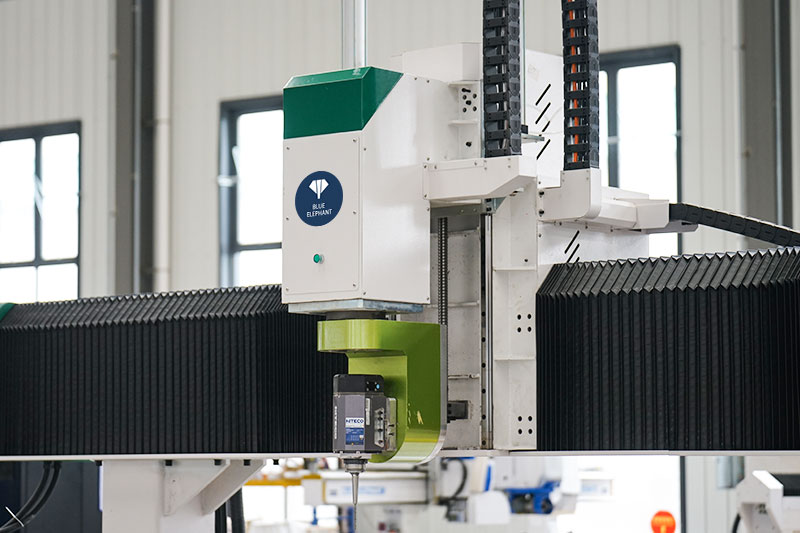

2. The metal sheet cover on the Z axis is both beautiful and dustproof.
3. 8-tool carousel magazine can automatically change tools to realize more complex works.
4. The 11kw liquid cooling spindle can rotate for fast 3d engraving.
5. All accessories are from international first-line brands, ensuring the processing accuracy and quality.
| Model | ELE1325ATC-5 EW1 |
| Five-axis travel | 1300*2500*500mm |
| Number of tool magazines | 8 pcs magazine |
| Tool magazine type | Beam end disc |
| Tool handle specifications | F63 |
| Voltage/frequency | 220V/3PH/6OHZ |
| Control system | Syntec 610 5 axis control system with RTCP functions |
| Spindle power/speed | LX500 5 Axis Head＋Italy Hiteco 11KW liquid cooling spindle 24000rpm |
| Inverter | Delta 15KW inverter |
| Drives and motors | YASKAWA Servo motors Y:1.8KW X Z:1.3KW |
| Bed structure | EW1 moving table |
| X axis reducer | Shimpo reducer |
| Table structure | T-slot & Vacuum working table |
| Transmission | Y: Taiwan TBI screw 4040 Z: Taiwan TBI screw 3210 |
| Chassis | Rittal |
| Linear guide | Taiwan SHAC 30mm |
| X rack | Taiwan JT 2M |
| Lubrication system | 1.5L automatic lubrication |
| Vacuum pump | Ribake 7.5KW double vortex pump 220V/3PH/60HZ |
| Chiller | Taiwan TEYU chiller CW5300BI 220V/1PH/60HZ |
| Tool setting | Automatic tool setting |
Click for details

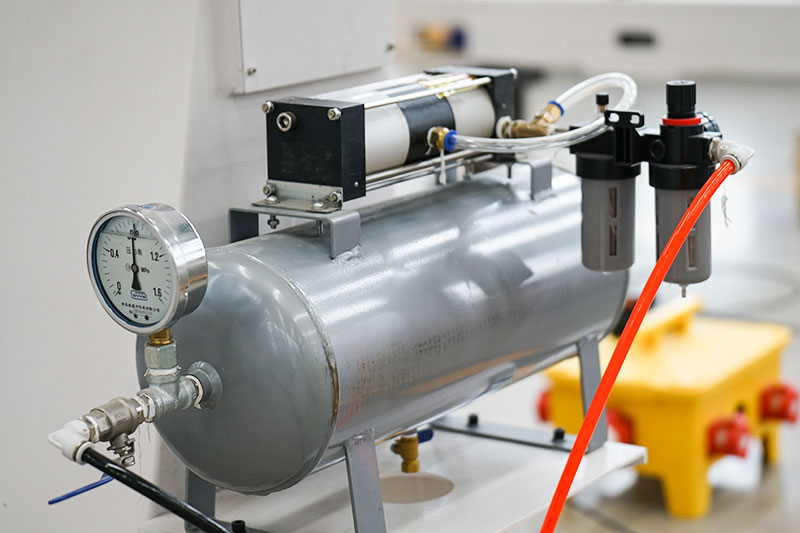

Booster pump

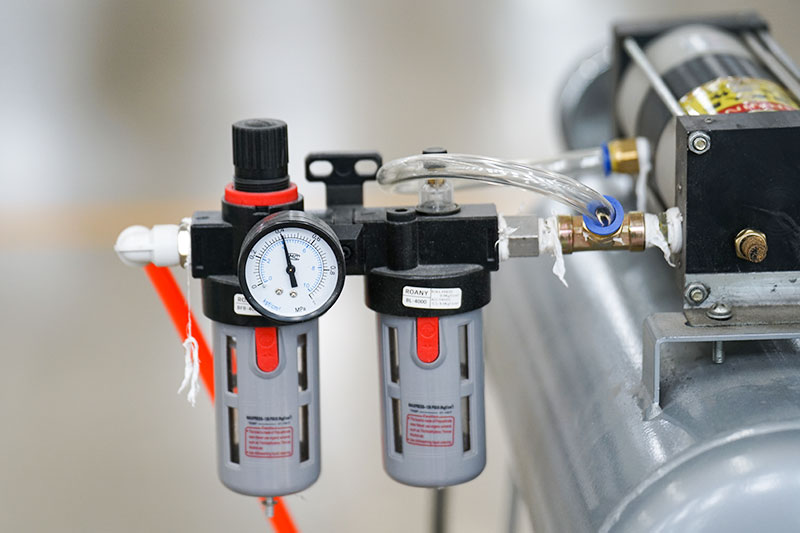

Oil-water separator

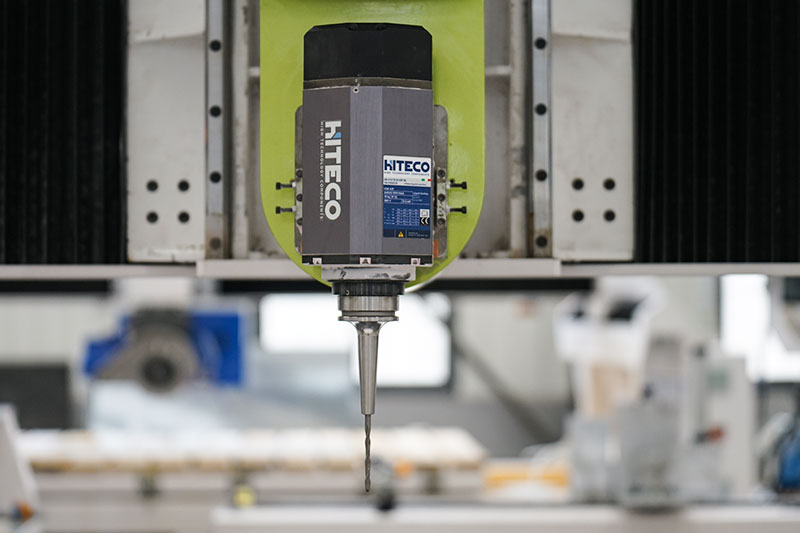

Spindle

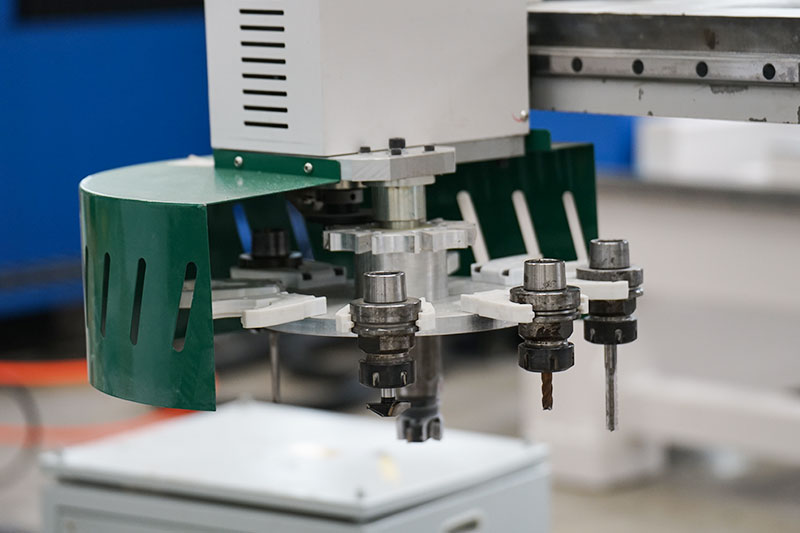

Tool magazine
Click for solution
Click for quotation
