Powerful 5 Axis CNC Machining Center for 3D
5 Axis CNC Engraving Machine Process Foam

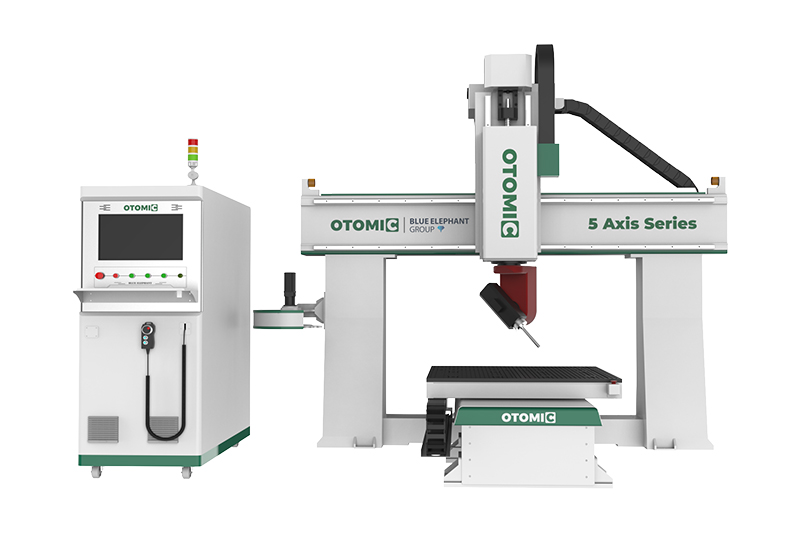

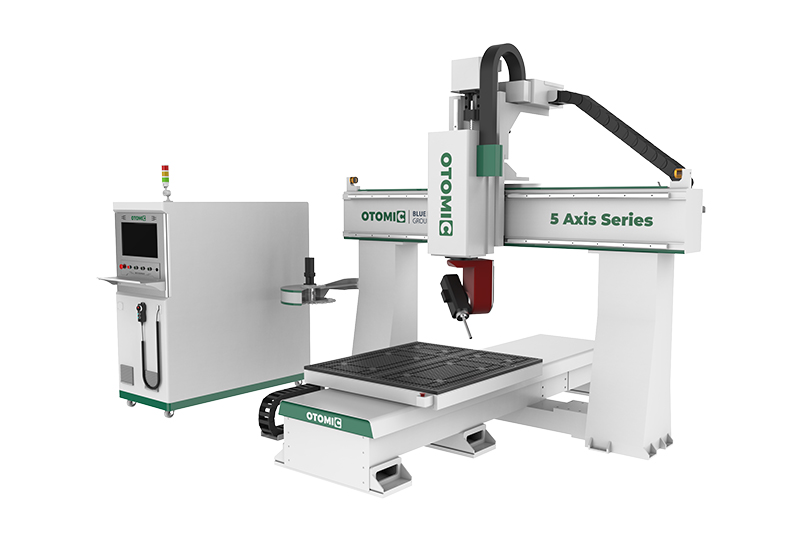

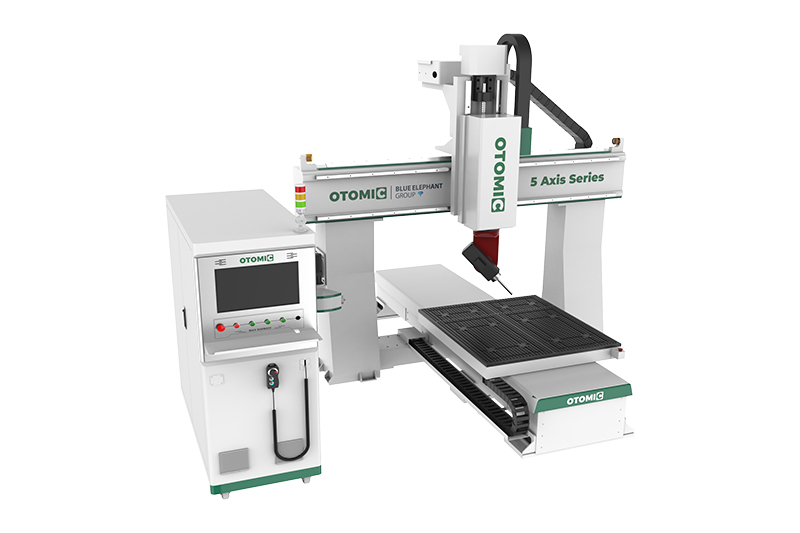

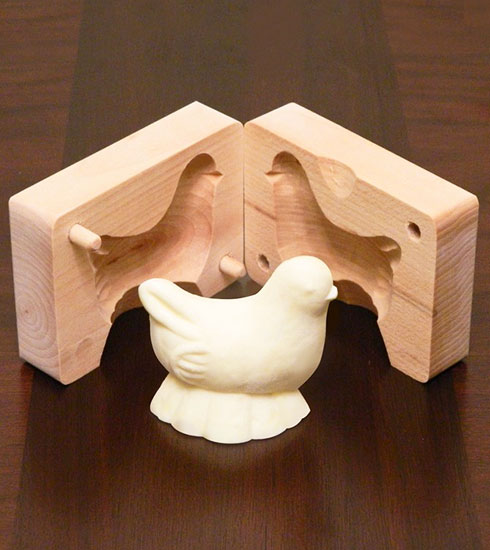

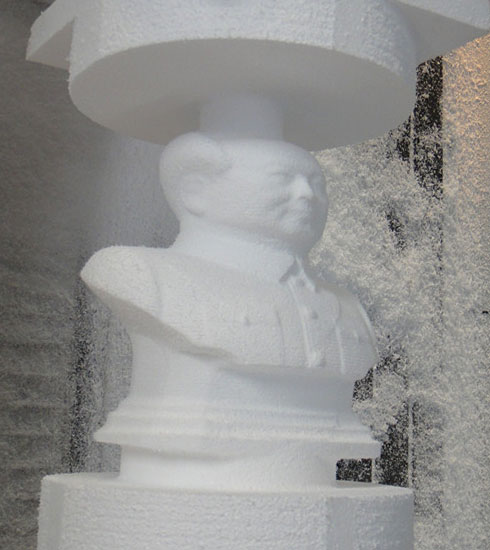

This small table 5 axis CNC router is an entry-level 5 axis CNC machining center for 3D woodworking projects. It’s gantry beam is fixed but the small worktable is movable. So this 5 axis CNC router is good at carving and engraving various 3D molds, statues, and other items.

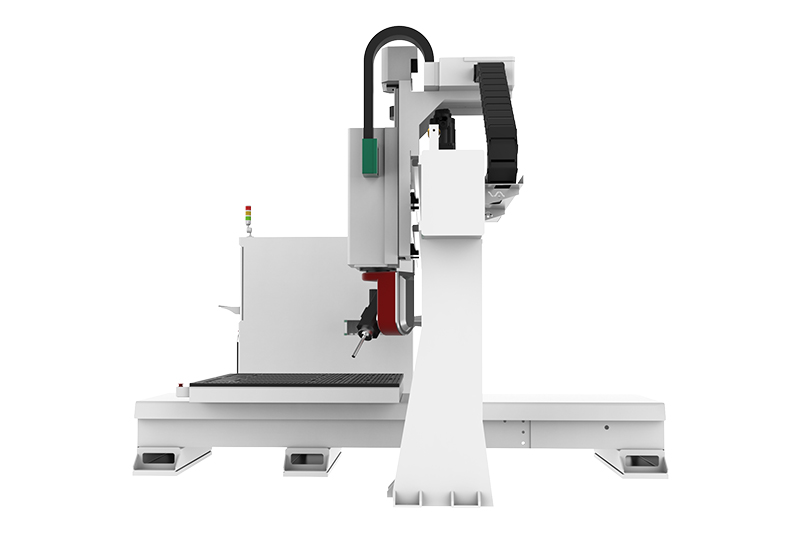

1. It adopts the fixed-gantry and movable table structure, and the worktable can move back and forth during the machining process. This helps ensure that all side surfaces can be processed.
2. The 5 axis CNC router has powerful functions and stable performance. It can carve and engrave multiple non-metal materials and soft metal materials.
3. All parts and components adopt high-quality or world famous brand products to guarantee smooth operation and high processing quality. For example, Yaskawa servo motor and driver, Shimpo reducer, Syntec control system, etc.

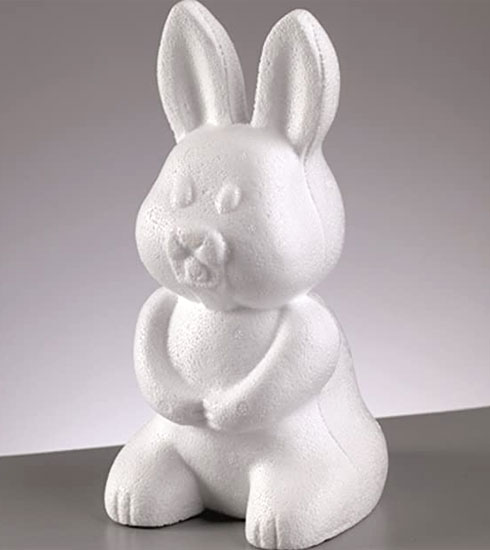

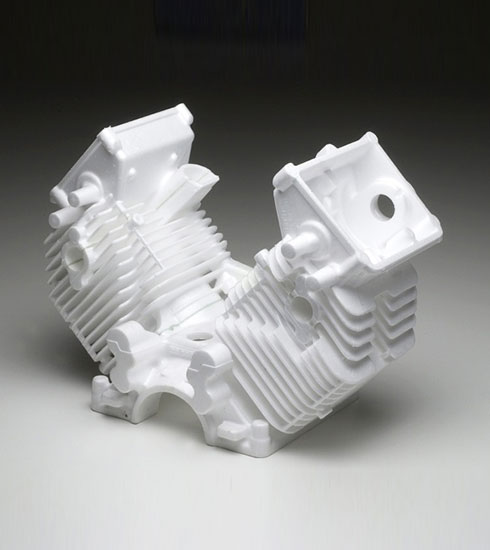

4. Applicable materials include wood, EPS, resin, plaster and other non-metallic compound, and soft metals.
5. With a carousel tool magazine, this CNC router can change tools automatically, extending the processes and increasing work efficiency.
| Model | Omic 1212F |
| X,Y axis travel | 1200X1200mm |
| Z axis travel | 500mm-700mm |
| Spindle type | 10kw-12kw water cooling ATC spindle，24000RPM |
| Inverter type | 15kw Taiwan Delta inverter |
| Tool magazine | Carousel tool changer with 8/12pcs magazine |
| Tool holder with collet | HSK F63 tool holder |
| Control system | Syntec 610-E5 5 axis control system with RTCP functions |
| Driving system | X, Zaxis 1.3kw Y axis 1.8kw Japan Yaskawa servo motors |
| Reducer | Japan Shimpo |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Removable working table |
| Linear guide | X axis: Taiwan 30# Linear guide Y axis: Taiwan 30# Linear guide Z axis: Taiwan 30# Linear guide |
| Transmission | X axis:Taiwan Linear Grinding grade racks M2-1000 Y axis:Taiwan TBI Grinding grade screw, 4040-3100 Z axis:Taiwan TBI Grinding grade screw, 3210-1300 |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill software |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-60m/min |
| Working voltage | 380V 3PH 50HZ/ 60HZ（220V for option） |
| Vacuum pump | Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air Compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| table type | Vacuum table |
