Description

ELECNC-2040 ATC CNC router machine has a front-end rotary device, which saves space and is good at processing cylinder carving and engraving, such as columns, pillars, chair legs, etc. And the ATC spindle fetches tool from tool magazine according to your setting.

Features

1. Italy HSD ATC air cooling spindle and the spindle can swing 180 degrees which makes 3D wood carving better;
2. Carousel tool change magazine holds 12 sets of tools;
3. Front-end rotary device helps process cylindrical workpiece like Roman column, furniture legs;
4. Larger working table, it can improve the production efficiency greatly;

Parameters

Model	ATC2040-4A
X,Y axis travel	2000x4000mm, option: 1300x2500, 15003000mm; 20003000mm; 200*6000mm, etc.
Z axis travel	400mm, option: 500mm, 600mm, etc.
Spindle type	Italy 9kw HSD air cooling spindle, ER32
Inverter type	11kw Delta
Drilling bank	Optional
Tool magazine	8 carousel type tool magazine Option: linear type auto tool changer
Tool holder with collet	ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan Syntec controller, option: Taiwan LNC
Driving system	850w Japan Yaskawa AC servo driver and 750w AC servo motor,5 sets. option: 1kw Taiwan SYNTEC servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	Optional: 7 pieces (X2,Y3)
Linear guide	Taiwan Linear guide
Transmission	X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Manual tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire,etc
Command language	G Code & M Code
Traveling speed	65m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working Accuracy	±0.05mm
Working air pressure	0.8MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, all full set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63),etc
Rotary	100mm, 200mm, 300mm,400mm diameter rotary

Click for details

Frequent Asked Questions

1. Do we need the mist spray cooling system if we often work on ACP?

No. But if you want, you can add one.

2.How many kinds of tool magazines do we have?

Usually, 8 tool change magazine is common. As you want, it can still be with 10 , 12, 16, or more tool change magazine.

3.What diameter do we have if we want a rotary device to engrave cylinders?

You can customize a rotary device of any size according to your processing needs, such as rotary devices with a diameter of 200mm, 300mm, 400mm, etc.

ATC CNC Router Details

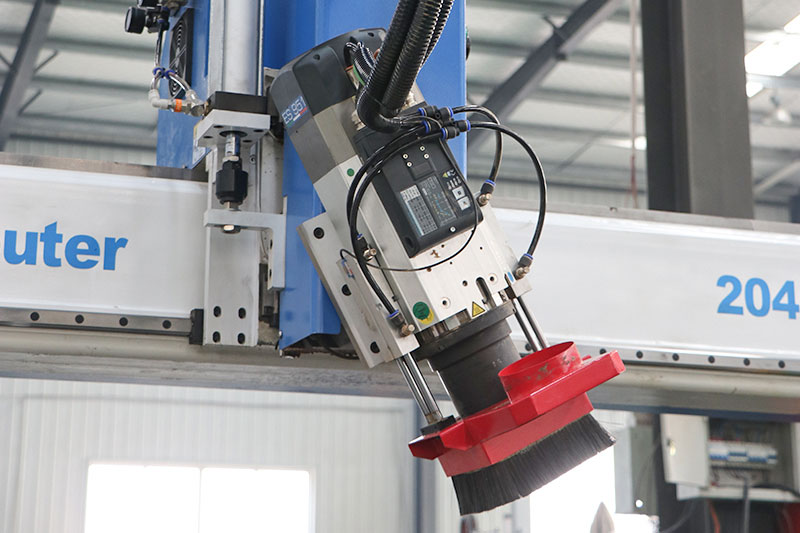

9kw ATC spindle

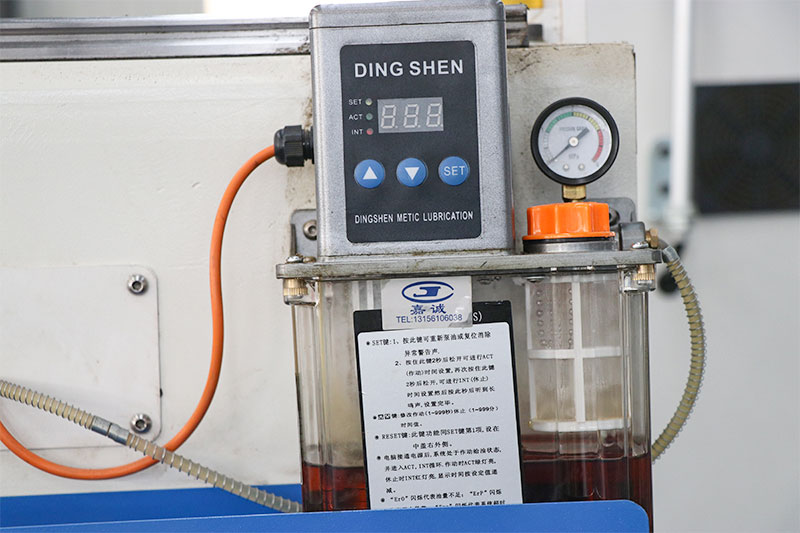

1.5L Automatic lubrication

Ball screw

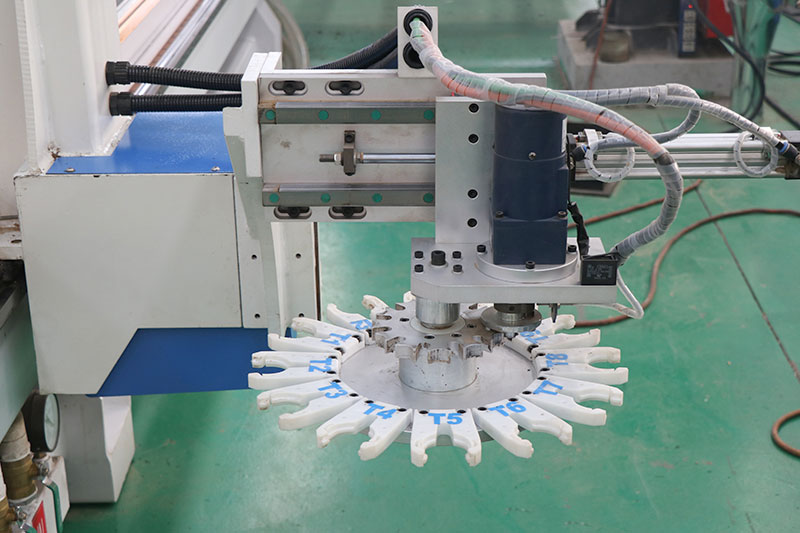

Carousel tool change

Application

INDUSTRIES

4 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 4 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 4 Axisrouter can process various wood materials, plastics, stone, soft metals and composites.

MATERIAL

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones
Soft metal: aluminum, brass, copper, mild steel
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
