1325 4 Process Furniture Making Machine

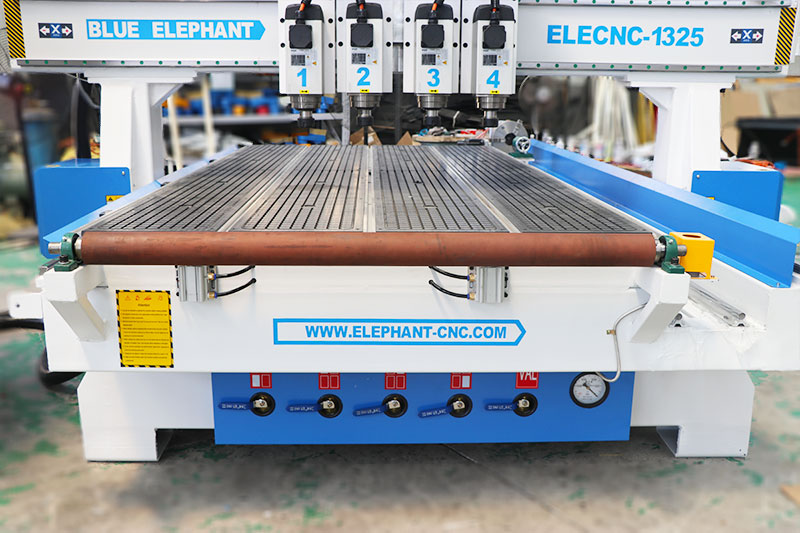

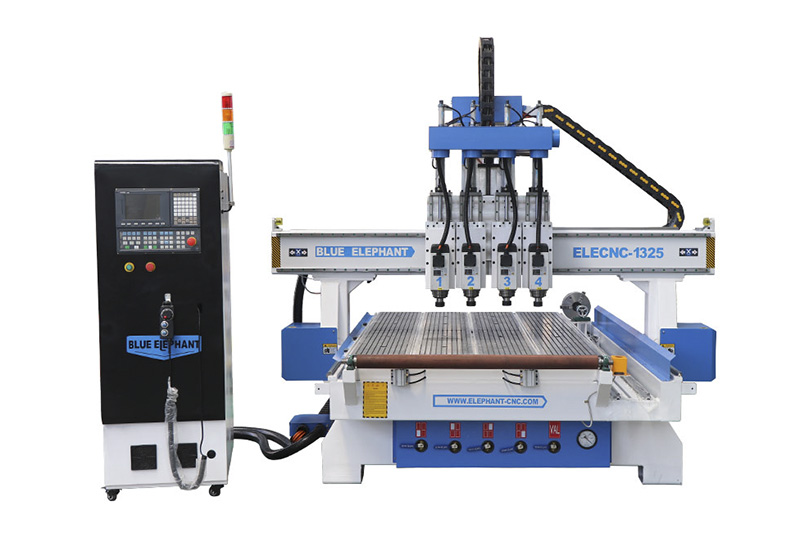

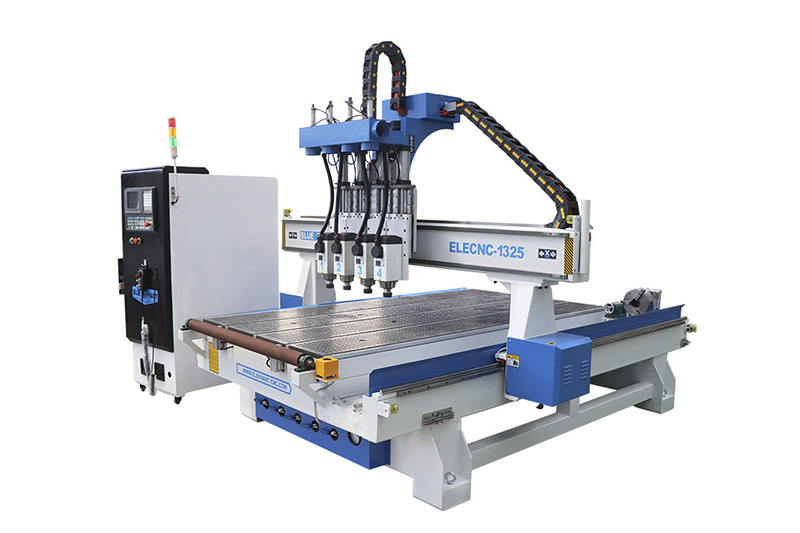

4x8 4 Spindle CNC Wood Router Machine
This 4 processes CNC router is suitable for the processing requirements of changing a variety of tools. No manual tool change is required during the machining process, and the program is automatically executed.
1. Its main features are including low investment, high profit, low maintenance and easy operation.
2. This machine is equipped with a rotary device, which can not only do flat engraving, but also can do some three-dimensional engraving.
3. This machine is widely used in making such as chair legs, stair rails and other cylindrical work pieces.
4. Widely used in the decorative industry, wood products industry and furniture industry.
| Model | ELECNC-1325 |
| X,Y axis travel | 1300x2500mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 3x3.5kw HQD air cooling spindle, ER20 |
| Inverter type | 3.7kw |

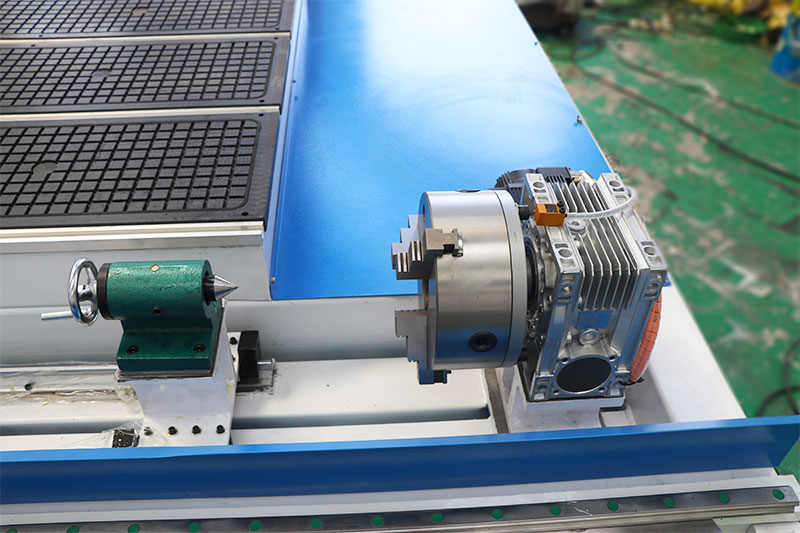

| Rotary device | 300mm diameter rotary device |
| Control system | DSP A123, option: Japan Syntec 60we, Taiwan LNC 2200 |
| Driving system | Stepper FL118 motor and drivers. option: 850w Japan Yaskawa servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | 10-12mm steel plant heavy duty body |
| Work table | Vacuum & T-slot work table |
| Positioning cylinder | Optional: 5 pieces (X2, Y3) |
| Linear guide | 20# Taiwan linear guide |
| Transmission | X,Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK, F63),12kw (ISO30, HSK, F63), etc. |
Click for details

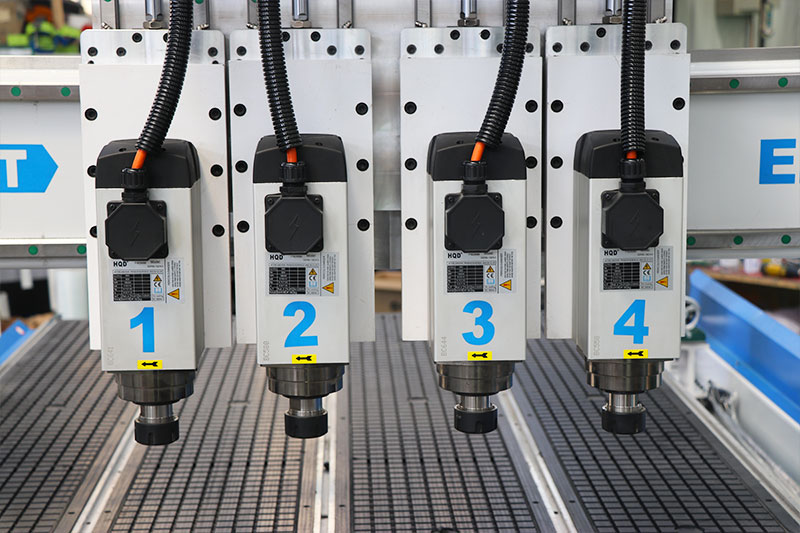

Spindles
