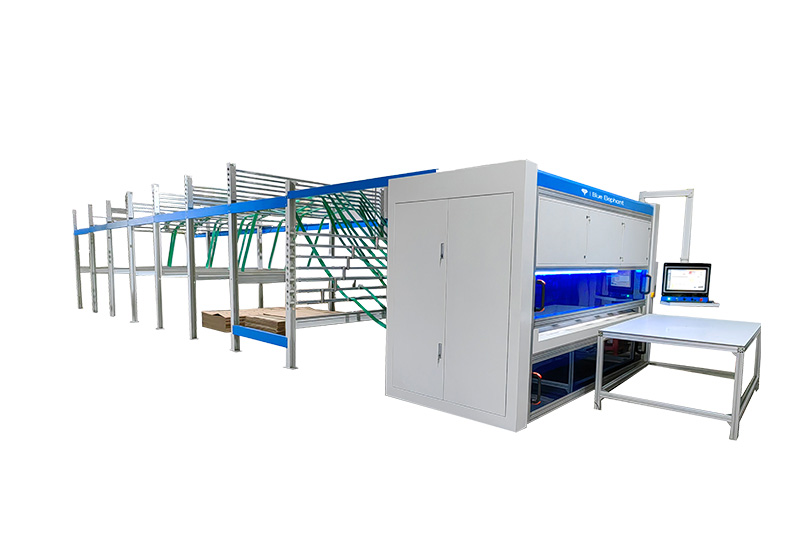

Custom Corrugated Box Making Machine
Custom Corrugated Box Making Machine
This corrugated box making machine is perfect for creating varied custom packages because it is specially crafted to fulfill those needs. With its ability to produce boxes at a moderate pace, it suits factories aiming for flexibility in designs without compromising on quantity. If you run a flexible box factory, consider using this Corrugated Box Making Machine.
1.The machine body is made of strong, heavy-duty structural steel, annealed and stress-relieved.
2.The gear rack is made of grinding grade high-precision material and is hardened by heat treatment.
3.This cardboard maker machine uses disc flat knife instead of saw blade, with super long service life.
4.Constant gap ensures no contact between the cutting blade and the all-steel backing plate, resulting in a very long service life.
5.Continuous and efficient processing of corrugated paper.
6.Creasing and cutting without dust, no need for dust collection system.
| Size | 14920(L)×3800(W)×3000mm(H) |
| Weight | 3300kg |
| Total Power | 7.65KW |
| Production efficiency | 4-8 pieces/min |
| Cutting box size | Length: 300mm or more Width: 250-1200mm Thickness: 25-600mm |
| Single-layer/double-layer corrugated | Thickness: 2.0-7.0mm |
| Max. speed of horizontal cutting | 90m/min |
| Max. speed of longitudinal cutting | 90m/min |
| Horizontal cutter motor power | 0.75KW |
| Longitudinal cutter motor power | 2.4KW |
| Feeding motor power | 3KW |
| Material selection motor power | 1.5KW |
Click for details

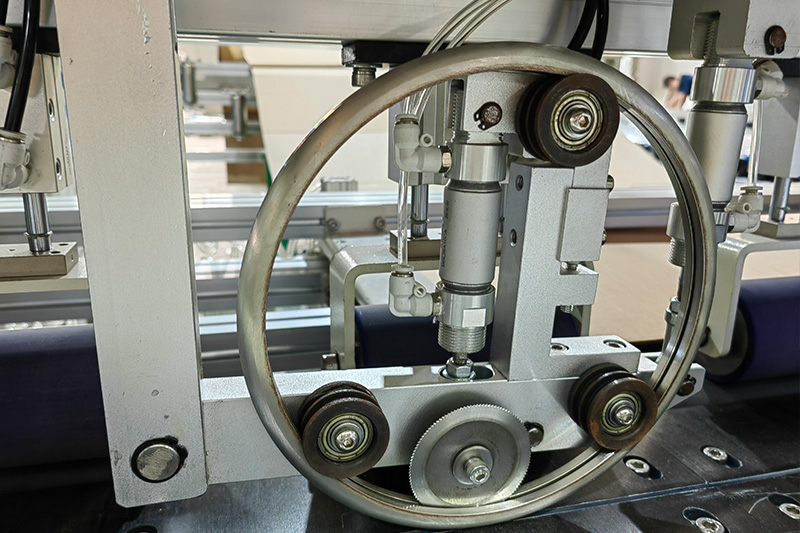

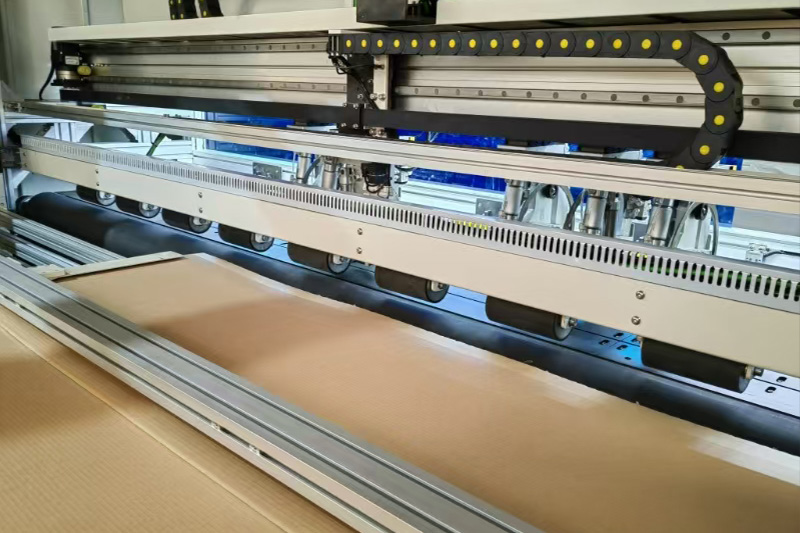

Corrugated box making machine part

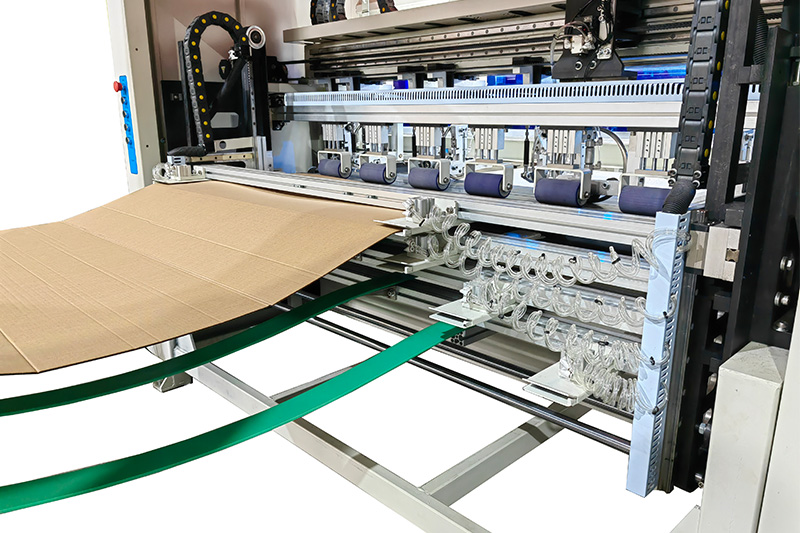

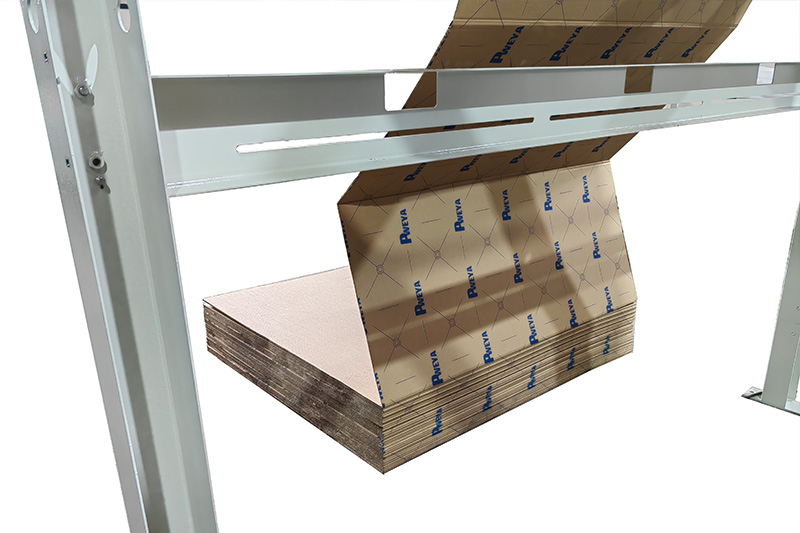

Corrugated box making machine part

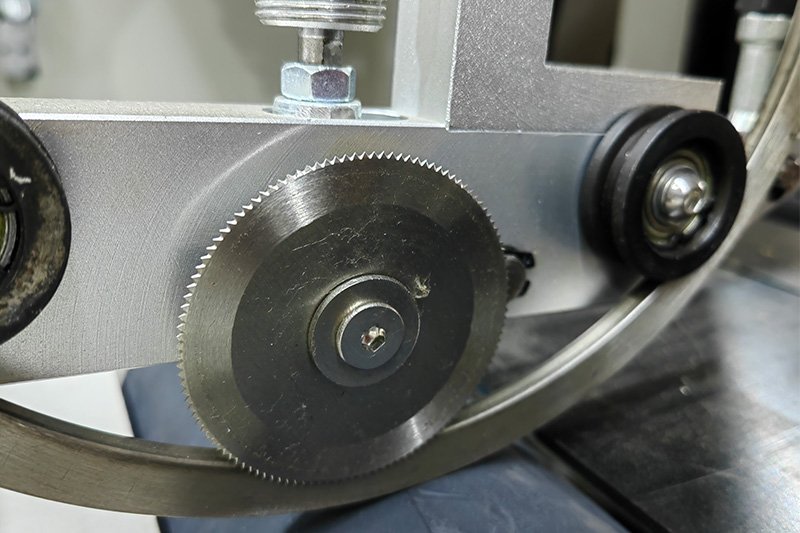

Corrugated box making machine part

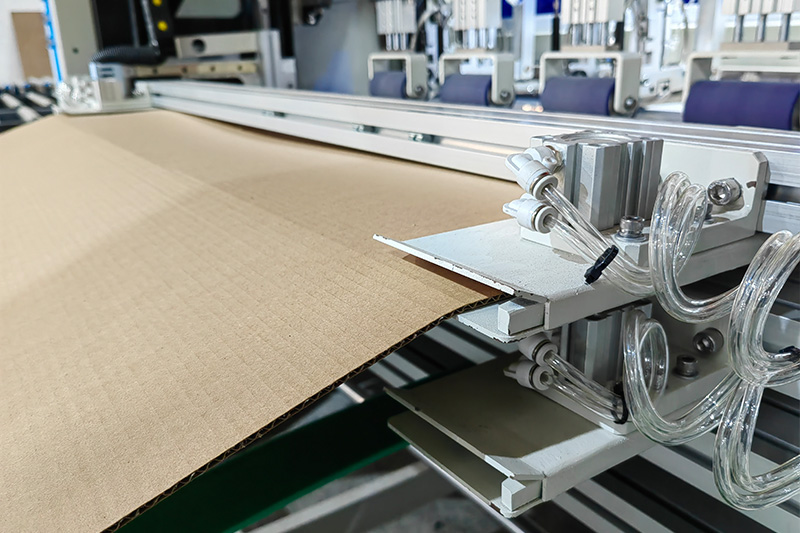

Corrugated box making machine part
