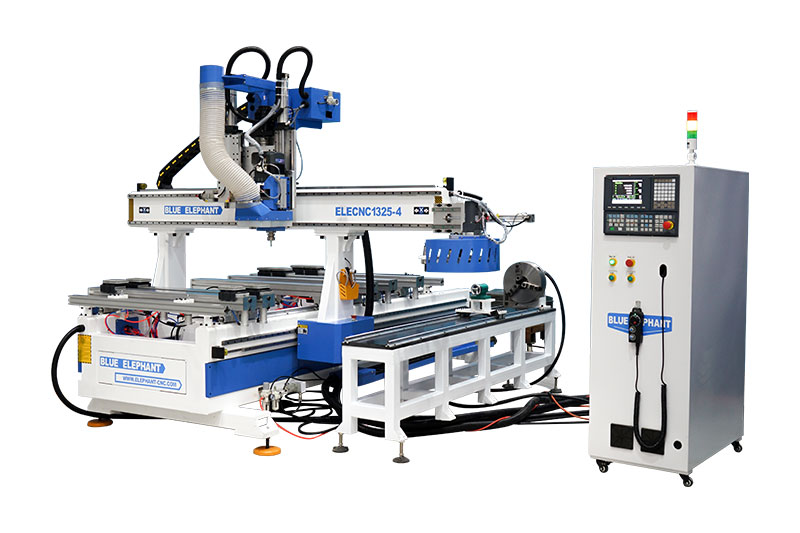

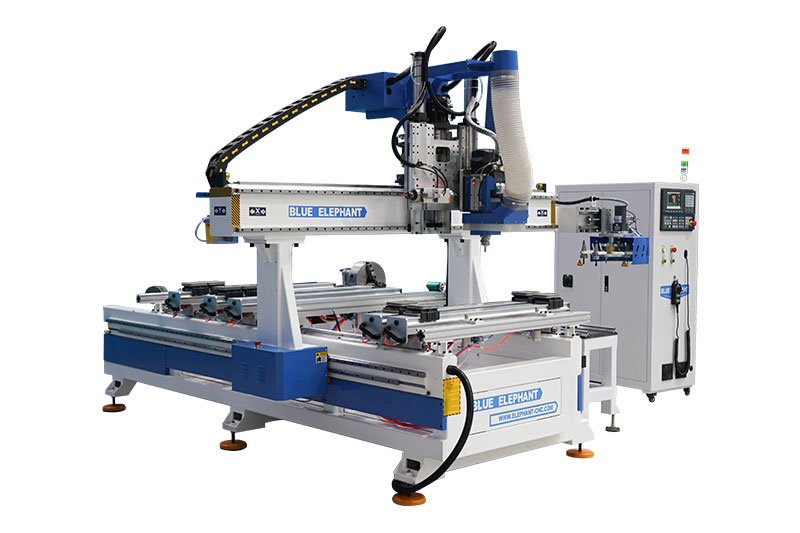

Best Custom 1325 ATC C and C Router with PTP Table for Sale at Affordable Price

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-1325ATC-4
Category : ATC CNC Router
Price Range : $20000 to $40000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

This custom ATC C and C router is equipped with a Germany imported PTP table. So it is very suitable for cabinet door, cabinet, and door making. With the movable adsorption blocks, it is good at processing the wood panels of both full size and small size. And with a 8-tool carousel tool magazine, this ATC CNC router can change tools automatically, improving work efficiency.

Features

1. Germany imported PTP worktable (6 lines) has good flexibility and strong absorption capacity, suitable for processing panel furniture.
2. The independent rotary axis is flexible to use and good at carving a variety of cylindrical workpieces, such as furniture legs, columns, handrails, statues, etc.
3. Adopting the SYNTEC control system and MPG handwheel, it is easy to learn and operate the CNC router machine.
4. It is compatible with multiple CAD and CAM software and file formats.

Parameters

Model	ELECNC1325ATC-4
X,Y axis travel	1300x2500mm, option: 15003000mm, 21003000mm, 2100*4000mm, etc.
Z axis travel	200mm, option: 300mm, 400mm, 500mm, 600mm,etc.
Spindle type	9.6kW HSD ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
Tool magazine	Carousel type auto tool changer Option: linear type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC 6MB controller, option: Ncstudio
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces (X2,Y3)
Linear guide	Taiwan linear guide with dust proof
Transmission	X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc.
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	380V 3PH 50HZ, 220V optional

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, all full set New type
Air compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc.

Click for details

Frequent Asked Questions

What software can I use for this CNC router machine?

CAD→CAM→G code→machine
About our CNC machine software,we have ARTCAM software and Aspire software free of charge.

Can I customize the size of the machine?

Sure. You can customize not only the size of the machine but also many other configurations.

How to transport the machine?

LCL or FCL, after packing in a wooden box, the CNC router machine will be shipped by sea.

ATC CNC Router Details

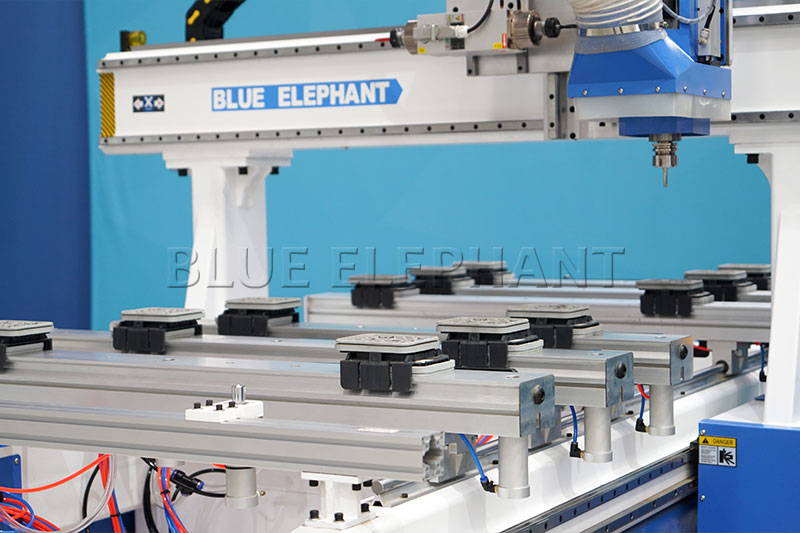

PTP table

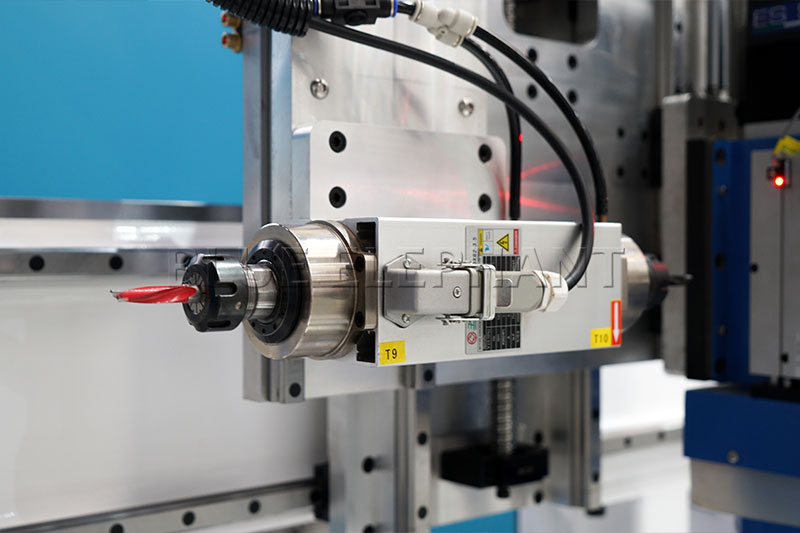

Horizontal spindle

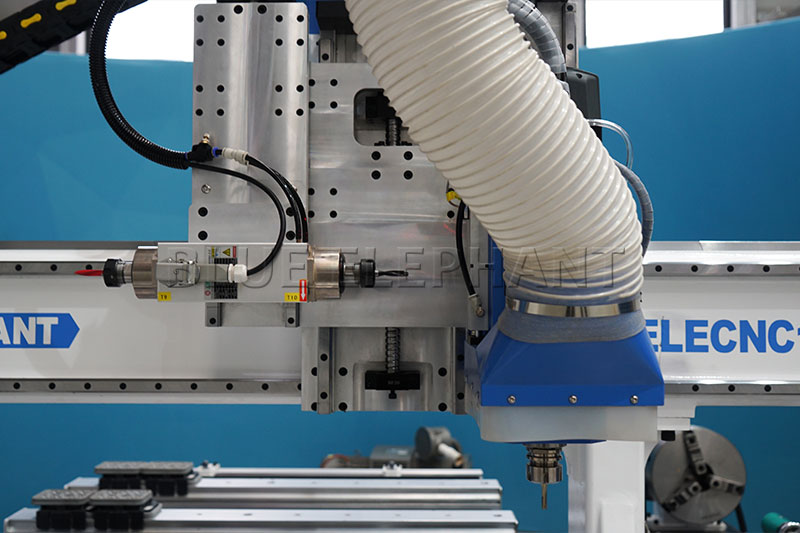

Z axis

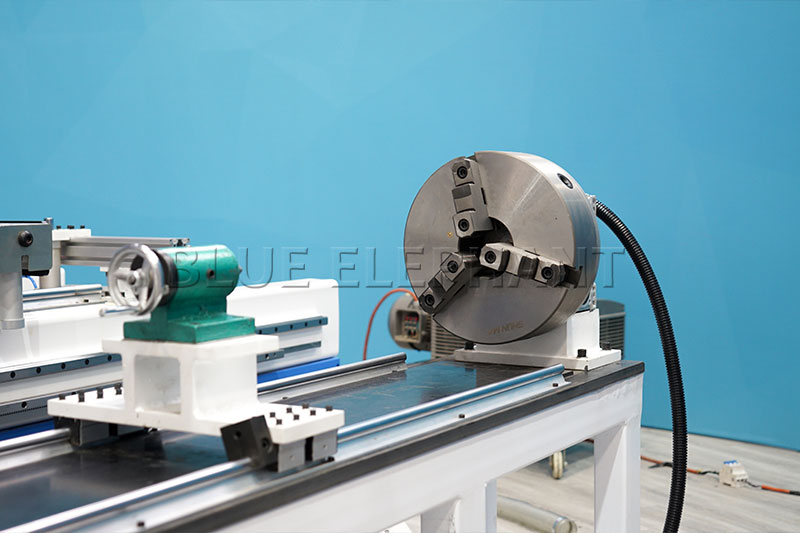

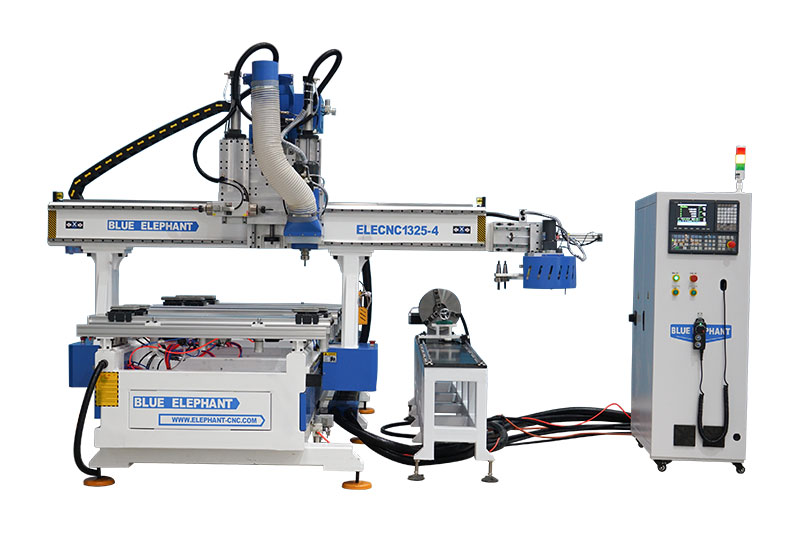

Rotary axis

Application

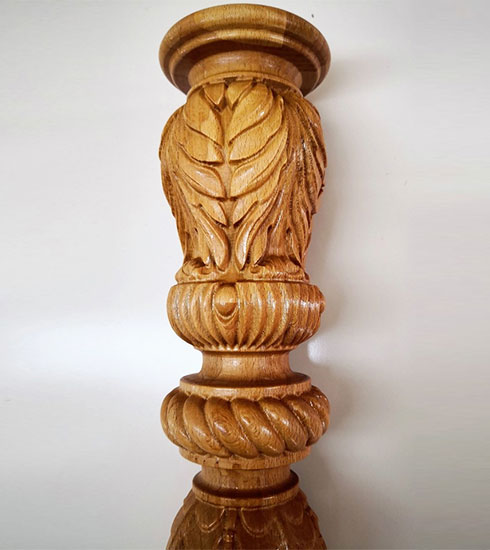

A rotary axis CNC wood router is good at carving wood cylinders with the help of the rotary device. For example, square or rectangle wooden sticks, round sticks, rubber sticks, etc. This helps make table legs, chair armrests, stair armrests, handrails, building columns, pillars, posts, 3D statues, molds, and other three-dimensional workpieces. In addition, it can complete all the work that a 3 axis CNC wood router could do.

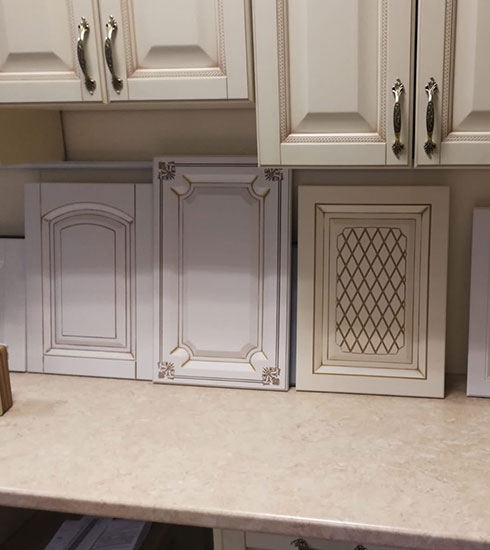

Samples

Click for solution

Production Facility

Quality Control & Testing
