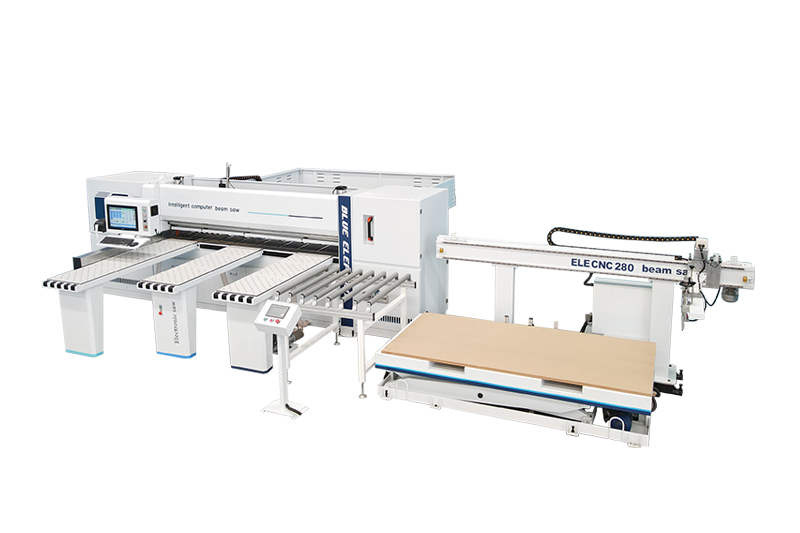

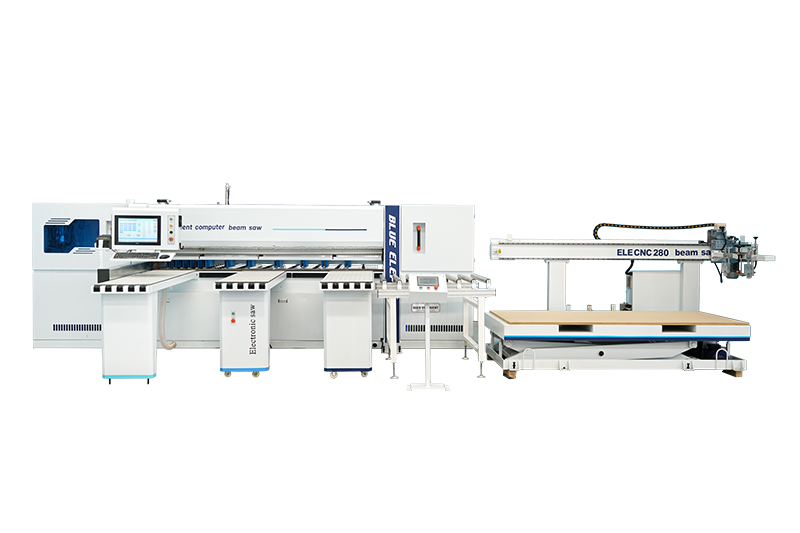

Auto Loading 280 Panel Dividing Saw
Computer Beam Saw for Cutting Panels
ELECNC-280HG is an intelligent panel dividing saw with a front automatic loading platform. It is widely used for wooden panel cutting in furniture-making, decoration, construction, and other woodworking industries. All its electronic elements and key parts adopt famous brand products, guaranteeing cutting precision, stable operation, and long lifespan.
1. The automatic loading platform greatly improves loading efficiency and saves human labor.
2. Equipped with a warning device, it will automatically shut down when a fault occurs. Besides, it has an automatic fault detection function to help you find the cause.
3. It can edit or simulate saw-cutting programs through compatibility with optimization software, barcode management software and automation software.
4. The high-performance servo motor can run control demands fast and precisely to guarantee efficient cutting.
5. It adopts an air-floating worktable, which is convenient for panel feeding.
| Model | ELECNC-280HG |
| Panel saw dimension | 5400x5300x1800mm |
| Cutting length | 2700mm |
| Cutting thickness | 100mm |
| Main saw blade diameter | 350mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 15kW |
| Groove saw motor | 2.2kW |
| Auto feeding motor | 2.0kW (AC, servo) |
| High-press ventilating motor | 3kW |
| Total power | 23kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm2 |
| Platform height | 950mm |
| Control switch | Schneider |
| PLC | Fatek |
| Converter | Invt |
| Screen | Jikowi |
| Contactor | Schneider |
| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |
Click for details
1) Optimized nesting software, maximizes the utilization of boards.
2) Automatic side leaning function, can cut small and narrow boards.

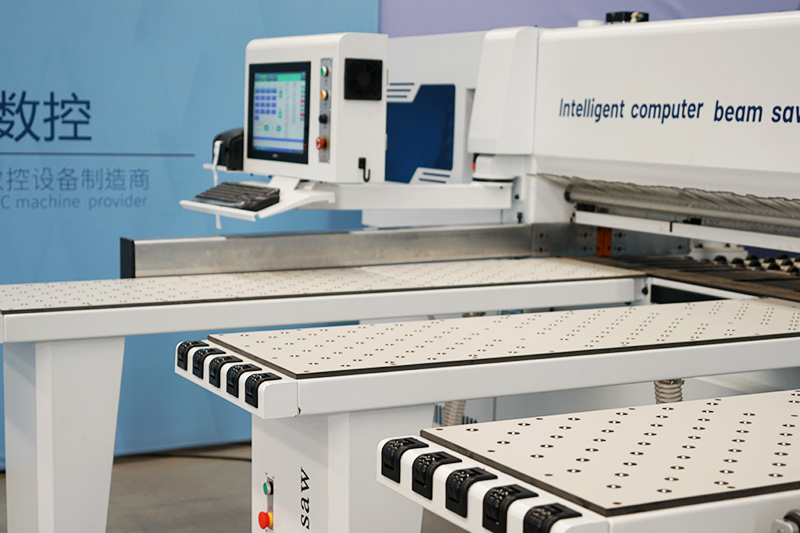

Worktable

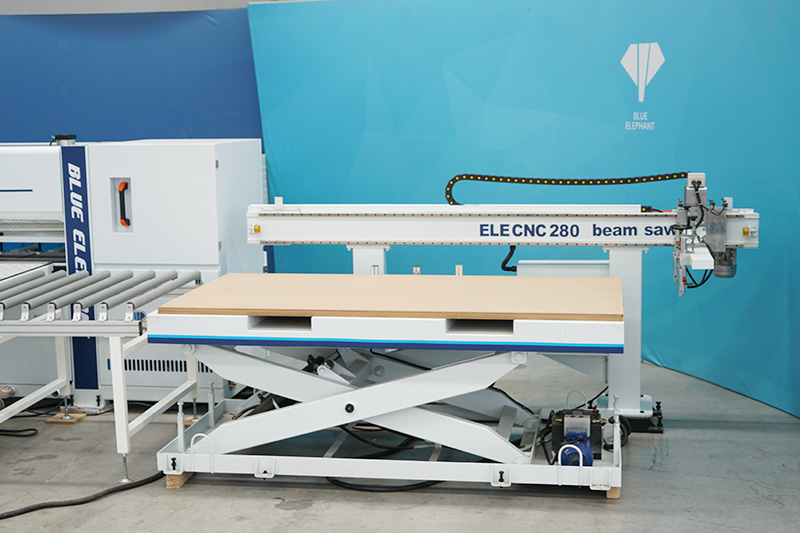

Auto loading platform

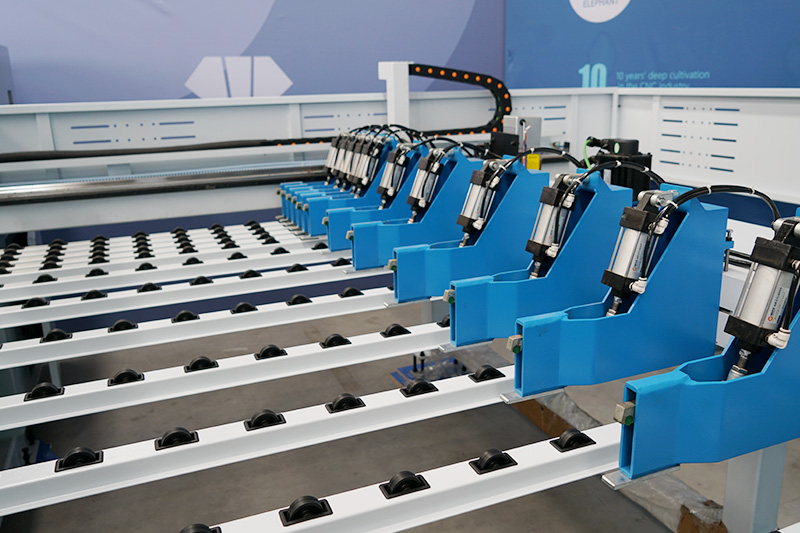

Feeding clamps

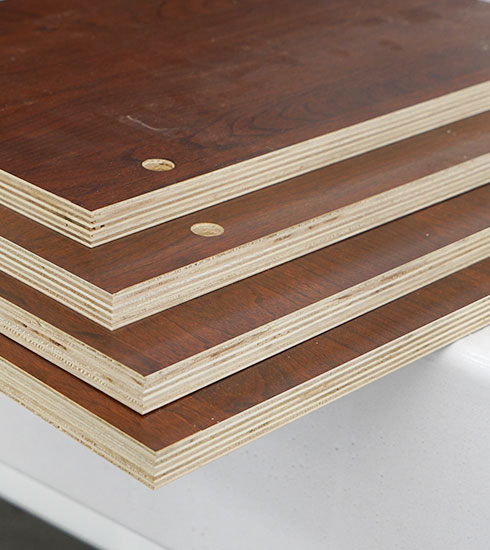

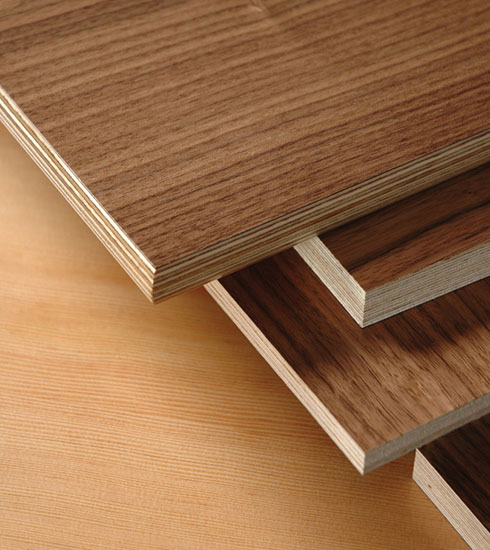

Sample
