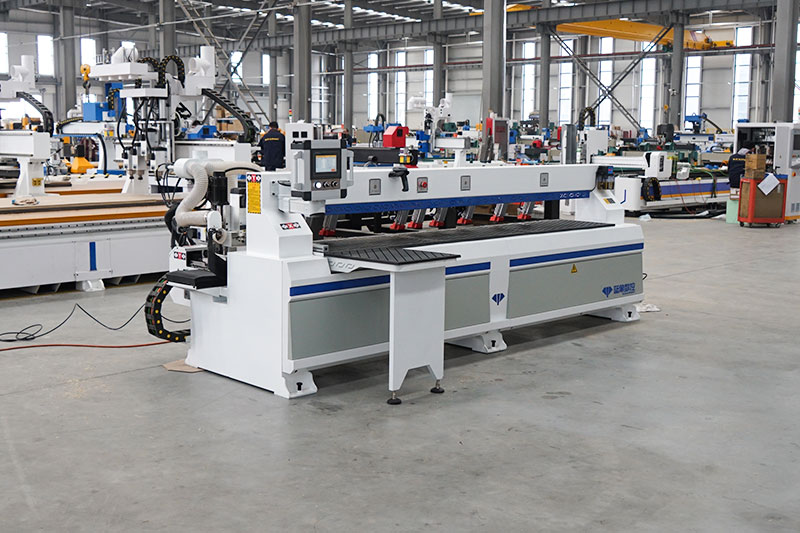

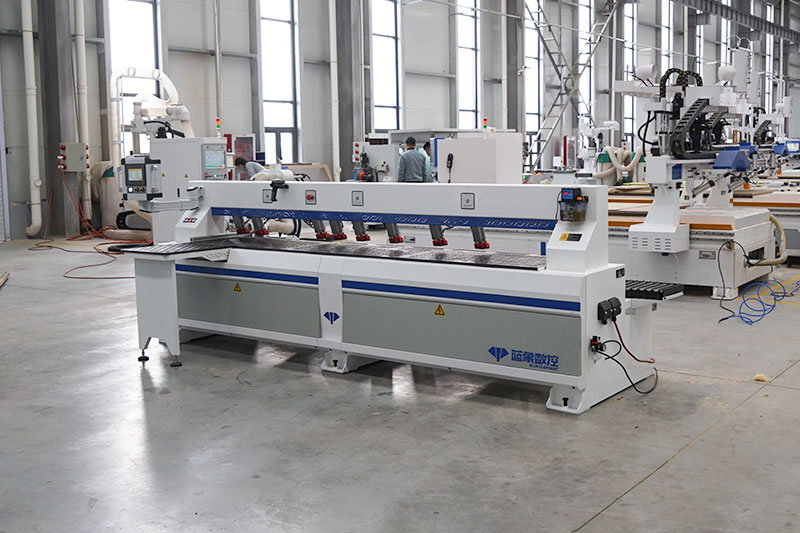

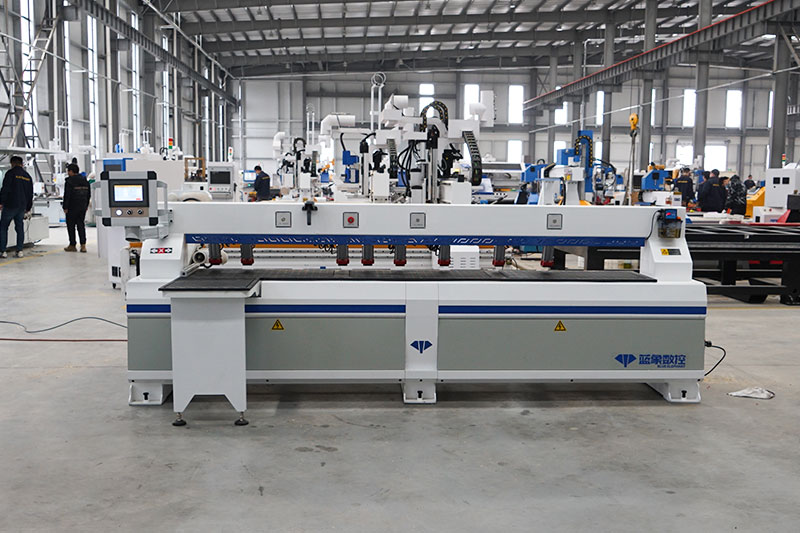

Multi Head Drilling Machine with Saw for Deep Hole Drilling

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC300
Category : CNC Drilling Machine
Price Range : $5000 to $6000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

The multi head drilling machine is a practical numerical control equipment for plate furniture. It can solve the problem that the CNC nesting machine cannot punch or boring side holes. And the precision of ordinary pneumatic row drills is not high, and needs repeated positioning. So lots of operators that need high quality drilling choose it.

Features

1. Support various docking furniture design production software with opening worktable port.
2. Simple operation. Without any software, it can directly blind play truly intelligent production
3. Zero-based staff are qualified for operation after only one hour of professional training, which saving labor costs.
4. Please notice that all the specifications can be customized according to your special requirements.

Parameters

Model	ELE300
Drilling spindle power	2.2kw
Saw spindle	2.2kw AKEMDE/JST spindle
Spindle speed	0-18000rpm
Idling speed	100m/min
Working speed	80m/min
Working travel	2800 mm
Height of table	750 mm
Drive and motor	0.75kW Dongling servo motor*3
Sensor	BANNER
Controller	Luolunchi code scanning and laser scanning dual system
Guild	#20 square rail
Rack	Taiwan JUELI
Screw	High precision grinding screw
Whole size	360012501300mm

Click for details

Frequent Asked Questions

What job can this machine do?

This side drilling machine can drill multiple types of holes, such as minifix holes and Lamello holes and make slots on side surface of the wooden panels.

Can this machine make 45 degrees Lamello?

No. This machine can not make 45 degrees Lamello. But we can change the structure of one spindle to enable it to make 45 degrees Lamello according to your requirements.

What is the difference between ELE200 and ELE100?

A: ELE200 side drilling machine can complete all the work that the ELE100 machine can do, and ti can also make Lamello holes, which is an additional function.

CNC Drilling Machine Details

Worktable

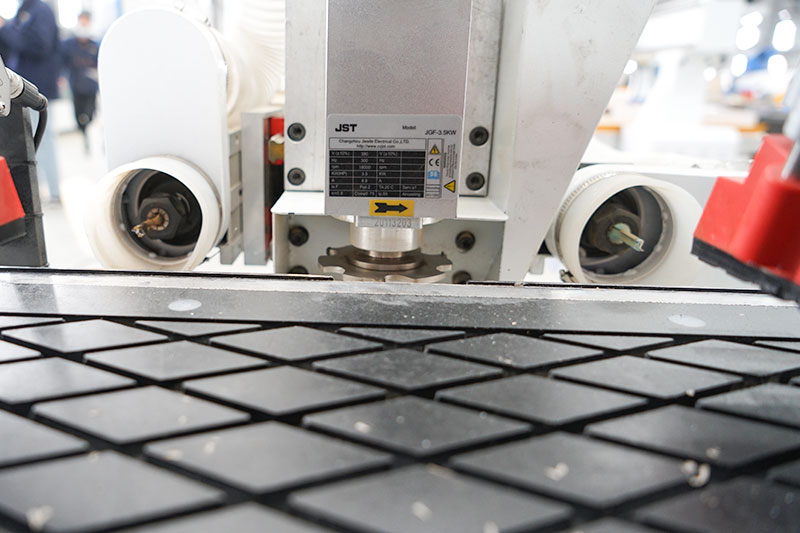

Bits and saw

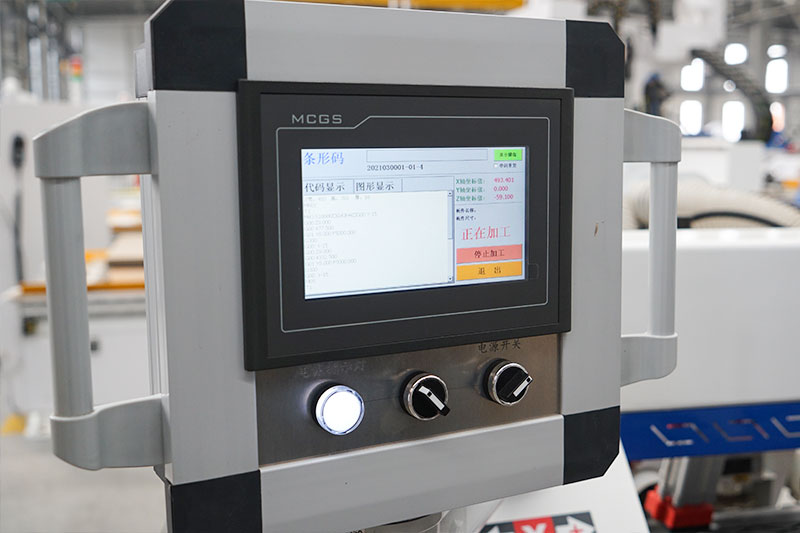

Screen

Application

Side drilling machines are mainly used to drill side holes or make slots or grooves on side surface of wooden panels. It is designed with simple structure and easy operation. We provide three major side drilling machine models for now. The major difference between them is the number of drill bits or saw blade that they have. All three models of side hole drilling machine have three work stations, which enables to process three panels at the same time. It greatly improves the side drilling efficiency.

Samples

Click for solution

Production Facility

Quality Control & Testing
