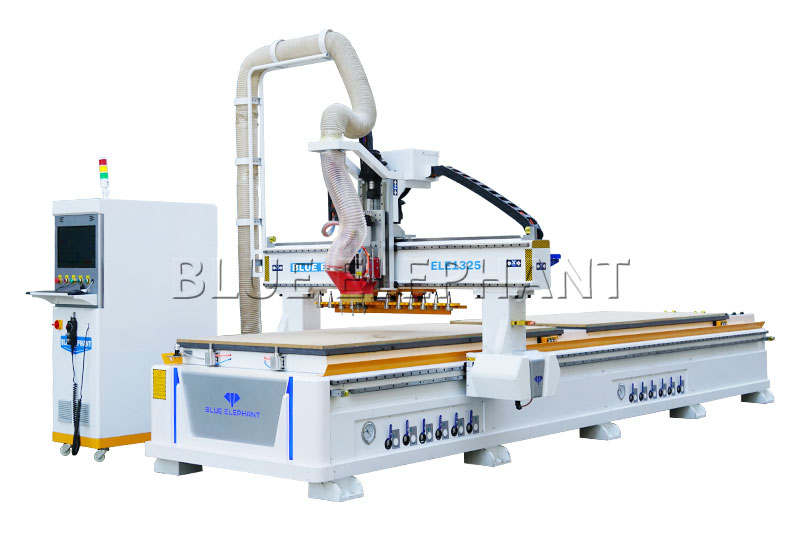

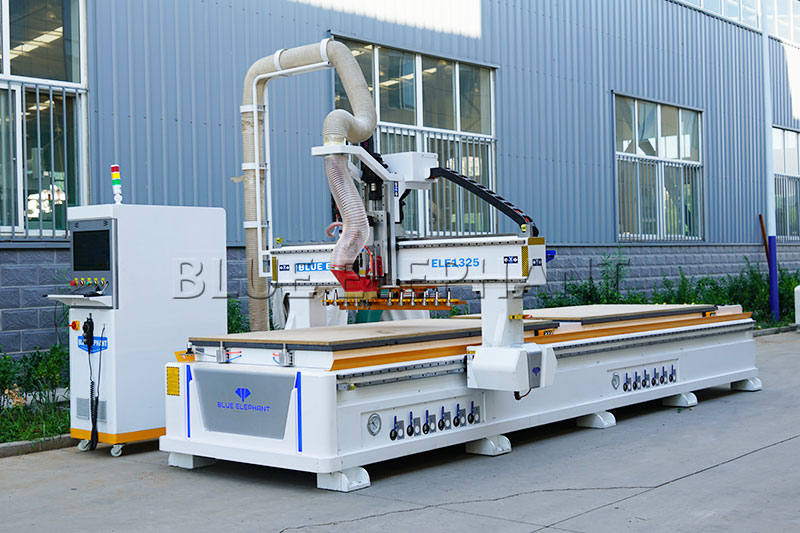

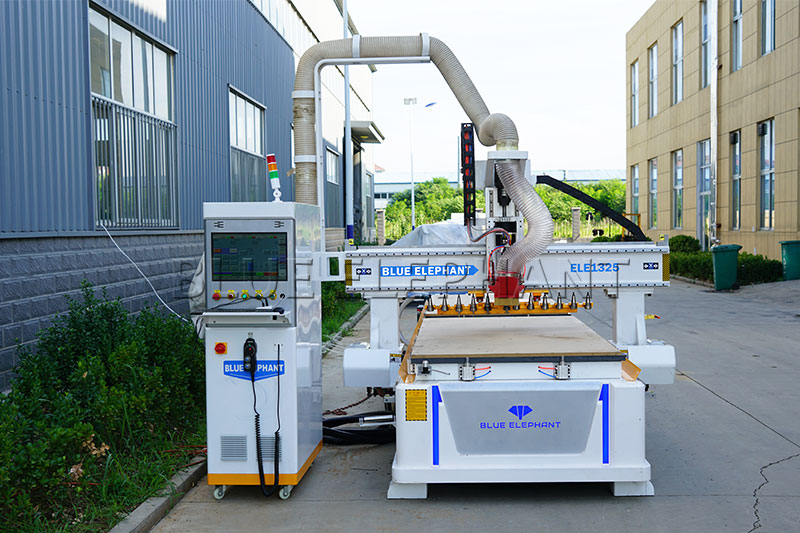

This linear ATC nesting CNC cutting machine adopts double-station processing, which greatly improve the efficiency. Two working platform can realize automatic loading and unloading operation, no idle time, and it can increase capacity by 30%-40%.
1. Equipped with double working platform, it can realize automatic loading and unloading, saving time and improving efficiency.
2. Manufactured with linear tool magazine with 12 tools, it can realize automatic tool change according to customer needs.
3. With complete function, it can realize the whole board cutting processing and whole board perforation processing.
4. All the parameters can be customized according to your processing requirements.
| Model | ELECNC1325ATC nesting machine with double platform |
| X,Y axis travel | 1300x2500mm,option:1500*3000mm;2000*3000mm;2100*4000mm,etc |
| Z axis travel | 200mm |
| Spindle type | 9kw ATC HQD air coolingspindle, ER32 |
| Inverter type | 11kw Fuling inverter |
| Control system | Taiwan LNC 2200 control system with MPG , key board and mouse |
| Driving system | Leadshine 1.3KW servo motor and drivers |
| Reducer | Japan Shimpo reducer |
| Machinestructure | Heavy duty welded steel frame |
| Work table | Full-page vacuum working table, double working table |
| Linear guide | TaiwanLinear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L Autolubrication system |

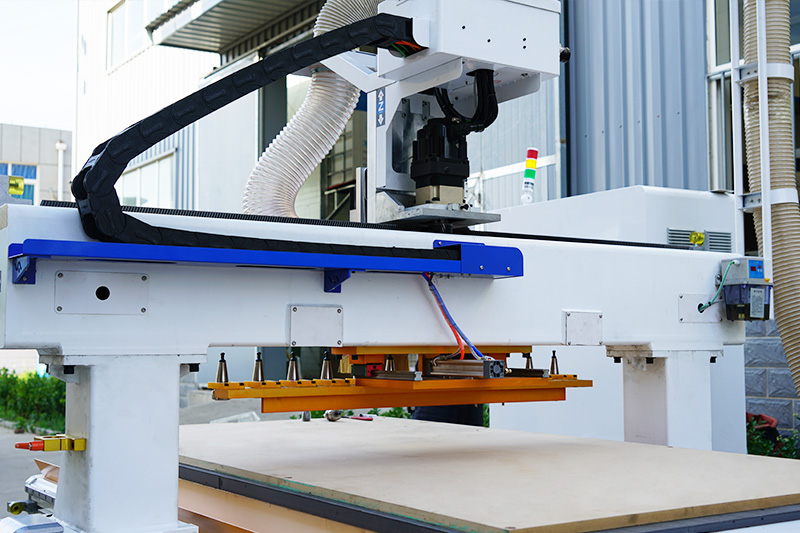

| Tool magazine | 12pcs linear tool magazine, under the gantry |
| Tool Calibration | Autotool sensor |
| Cables | Germany Igus cables with CE,UL certificate |
| CompatibleSoftware | Artcam, Hisoon,etc |
| CommandLanguage | GCode |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioningaccuracy | ±0.03mm |
| WorkingAccuracy | ±0.03mm |
| Working voltage | 220V 3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Protection device | Light curtain |
| Spindle type | Water/air cooling spindle 4.5kw, 5.5kw, 6kw, etc |
Click for details
Spindle

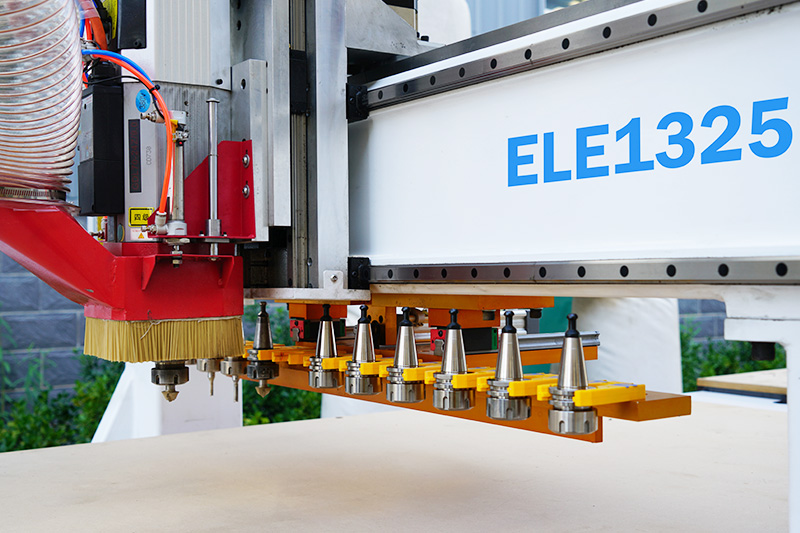

Linear Tool Magazine

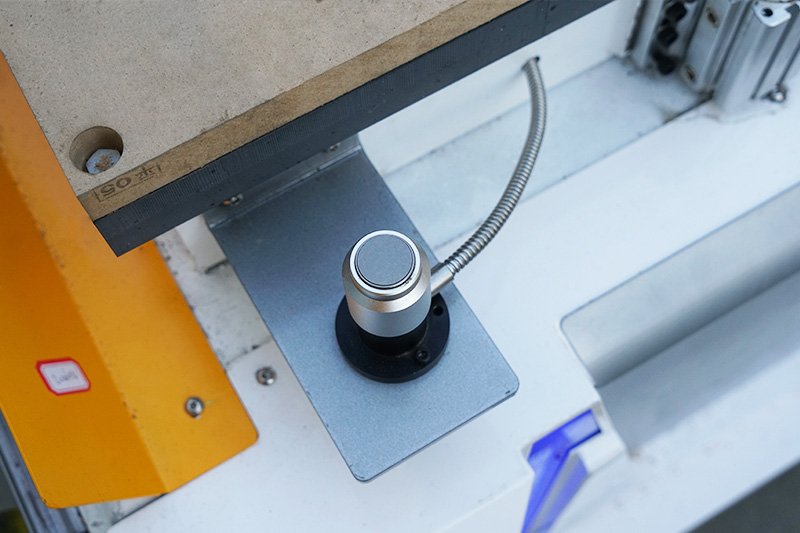

Tool sensor

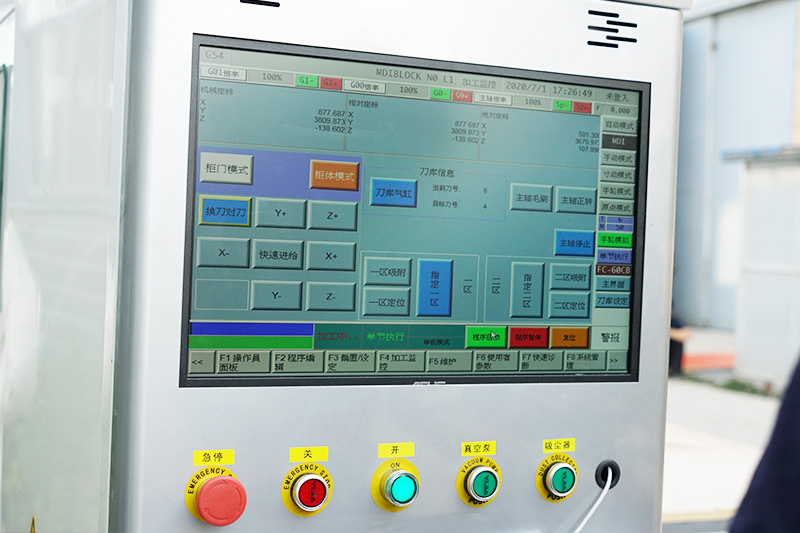

Control panel
