How To Use Tool Sensor In Mach3 Control System

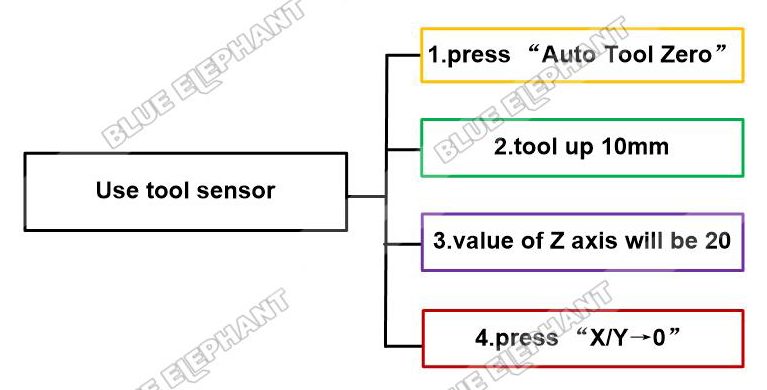

The steps are as follows.

• Press”Auto Tool Zero”to start.
• When the tool touch tool sensor,the tool will up 10 mm automatically
• The sickness of tool sensor is 10 mm
• So the value of coordinate Z is 20
• Press “zero X”and “zero Y”

The video is as follow.
