How To Set The Zero Point Of Workpiece And Working In DSP B58

The steps are as follows.

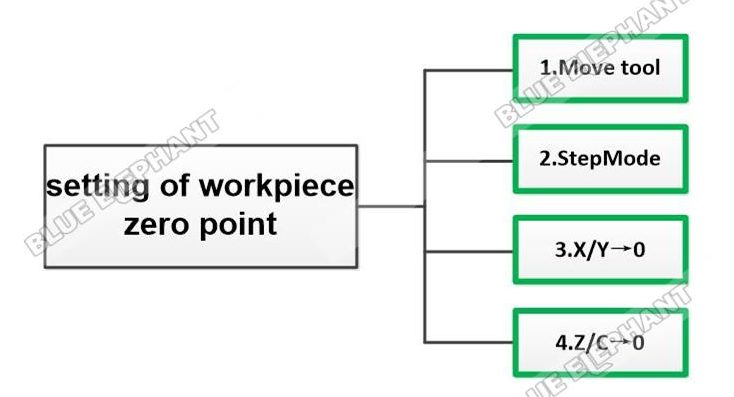

• The first part is setting of workpiece zero point.
  • 1.Move tool
  • 2.When the tool is near workpiece,press”MODE”button,change “ContinueMode” to “StepMode”.
  • 3.The Z axis will move step by step.
  • 4.Now the tool has touched workpiece,PRESS “X/Y→0”, please notice the coordinate
  • 5.PRESS “Z/C→0”, choose “clear Z”,please notice the coordinate

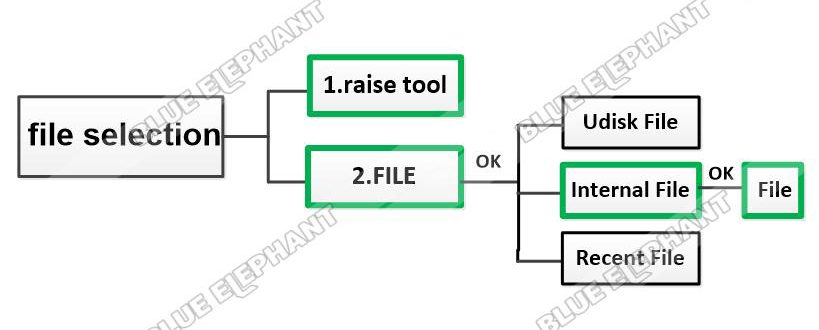

• The second part is file selection and working
  • 1.Press”Z+”,raise tool.
  • 2.Press”FILE”,choose “Internal File” For example,we select the file named “SONIC.TXT”,press “RUN/PAUSE/DELETE”button,
  • 3.Enter”start speed setting”interface The “Y+(F+%)”and”Y+(F-%)” button is for adjusting “Feed Speed”.

The video is as follow.
