How To Set Pulse Equiv And Machine Stroke In NK105 G3

The steps are as follows.

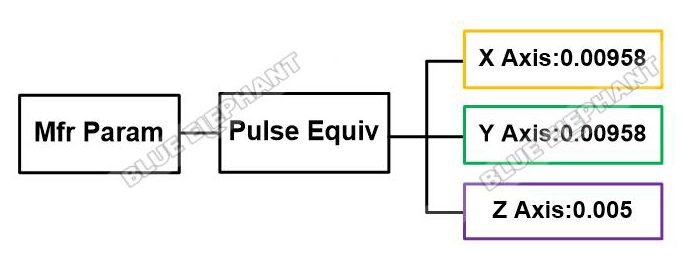

• The first part is”Pulse Equiv”
•
  • Press menu button ,choose “Mfr Param”
  • Choose “Pulse Equiv”
    “X Axis” is 0.00958,“Y Axis” is 0.00958,“Z Axis” is 0.005

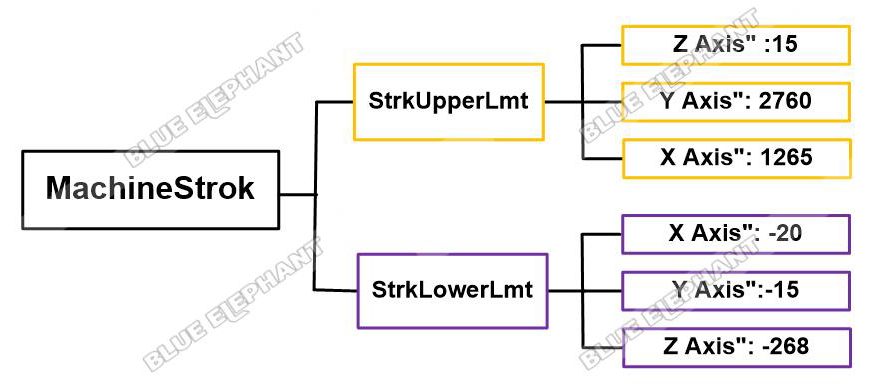

• The second part is “MachineStrok”
•
  • Press “ESC” button back to menu list,choose “MachineStrok”
  • Set”StrkUpperLmt”
    “Z Axis” is 15 ,“Y Axis” is 2760 ,“X Axis” is 1265
  • Press “ESC” button back to Machine Strok list
  •  Set”StrkLowerLmt”
    “X Axis” is -20,“Y Axis” is -15,“Z Axis” is -268

The video is as follow.
