The water cooling installation steps are as follows .

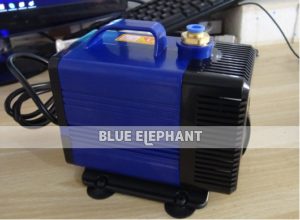

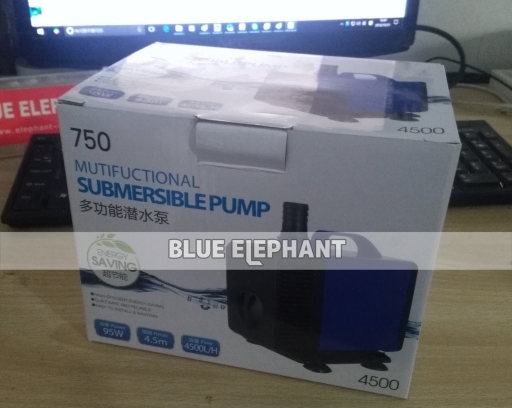

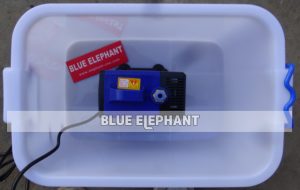

1,Find the box of the pump .

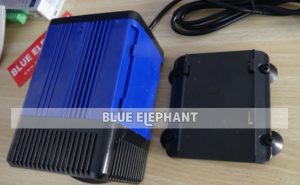

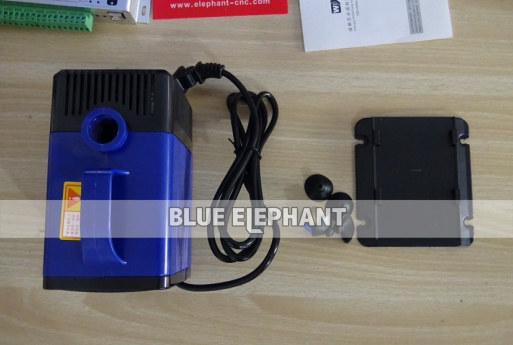

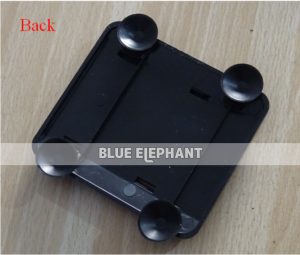

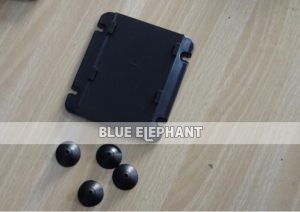

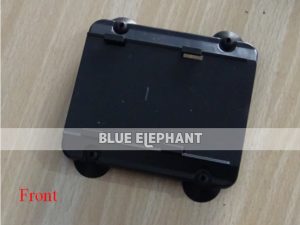

Open,then you will see .

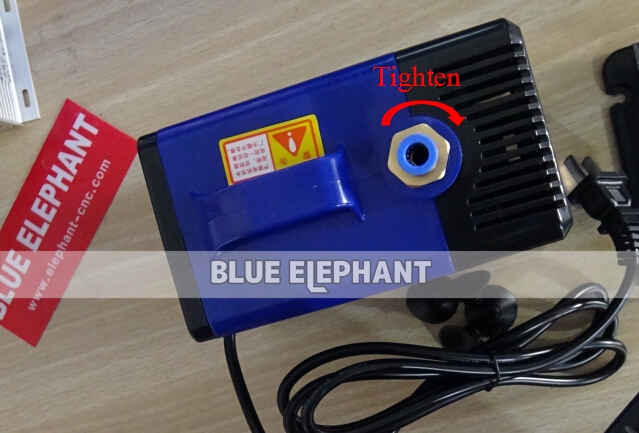

We will do like this .
Then .
Next .
Ok,finish .
Now ,we go to the machine .

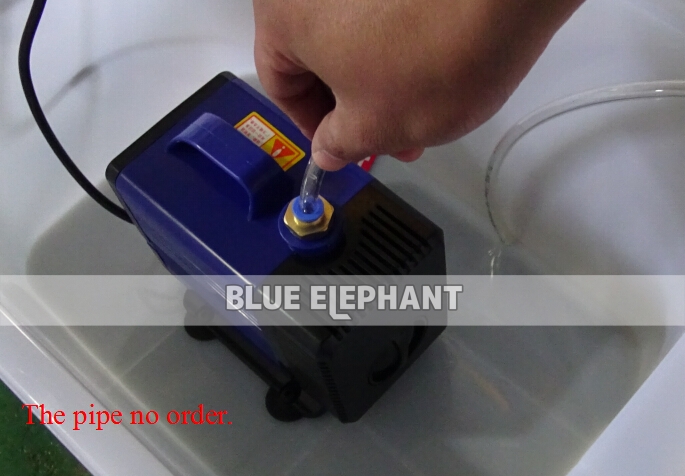

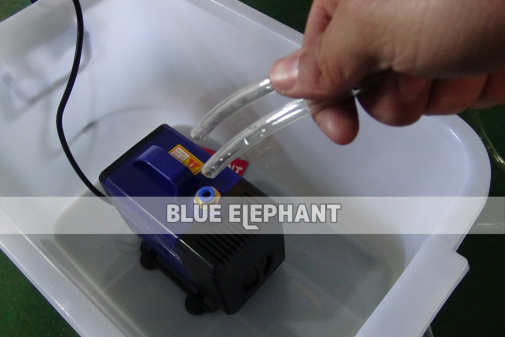

Then connect the pump .
Ok,finish .
After the machine power on,the pump must be working .

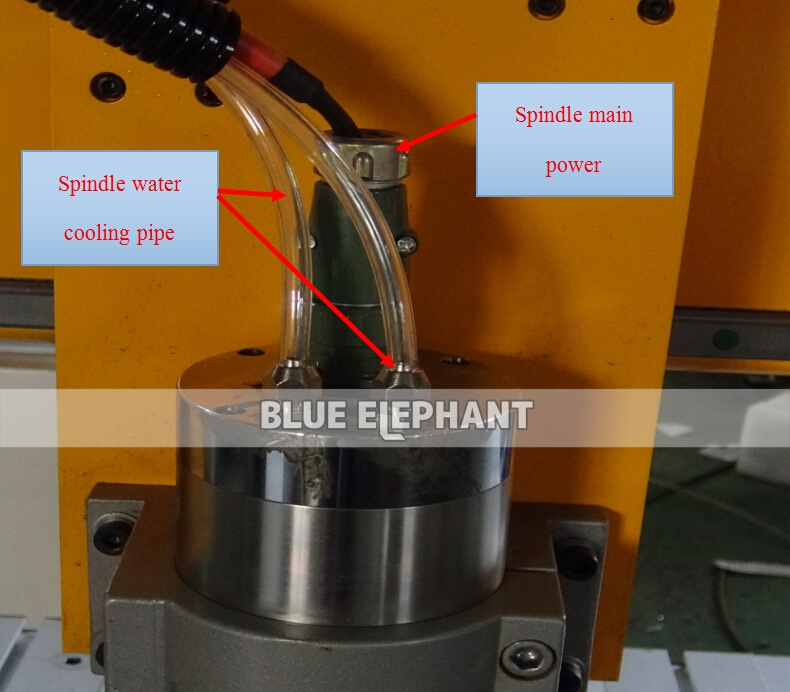

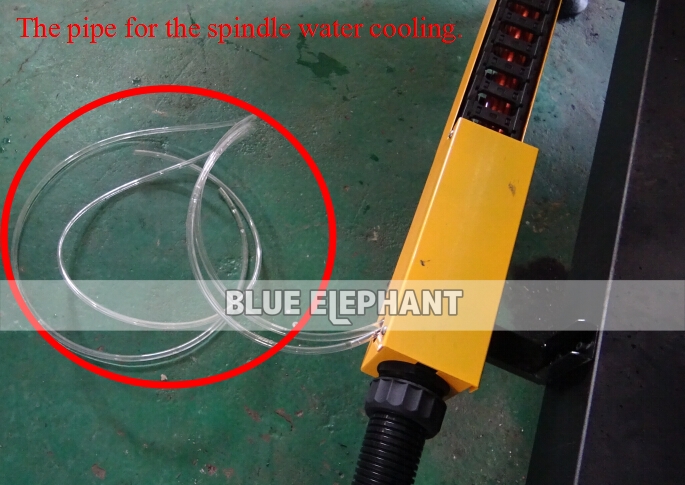

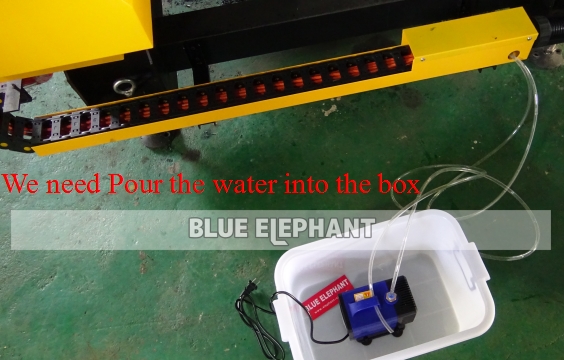

Watering the water tank more and better. The spindle is cooled by water, so there is one water pump to offer running water through the spindle. Then there are two tubes is outside of the machine, one tube is installed on water pump, pump will get water into the tube and go through the spindle, then out from another tube. They are transparent pipe.

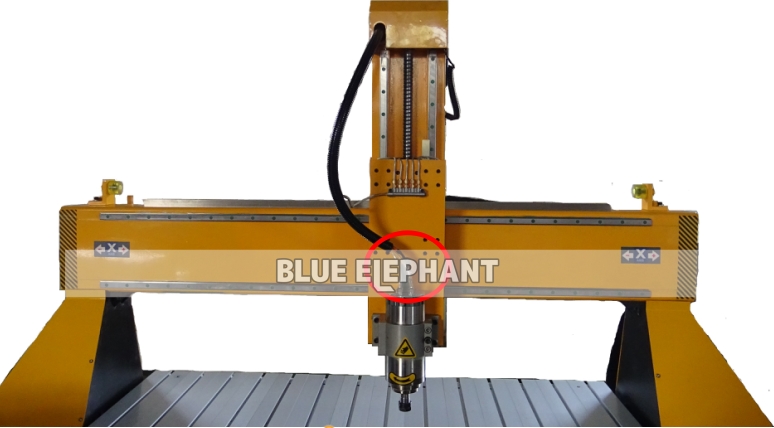

If you choose metal engraving type. There will be second water pump（also need another water tank , please don’t use same one with a ) to cool the bits , we use orange color pipe .(b), there is a water jet beside spindle. You can see
Note :
for water pump cooling spindle. The water is cyclic , so please add enough water and be careful about the temperature of water in the tank. If it become hot, please change cool water.
For water pump cooling bits. The water is not cyclic, so it will need more water. Please be careful about the water in the tank to avoid the empty of water.

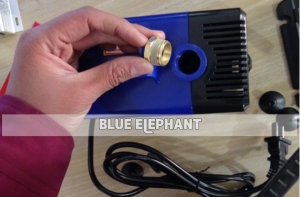

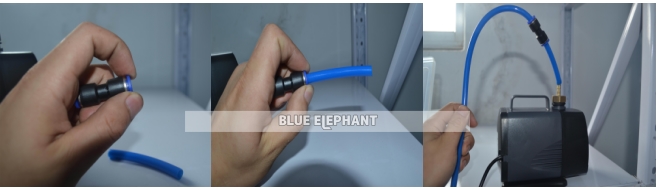

Here we offer a quick fitting connector with pump. So you can plug in or off the tube very easily when you want. This is the way you can refer to:
