There are two ways to change tool. One is change tool automatically,the other is manually.
Firstly,we will show you how to change tool automatically.
The steps are as follows.

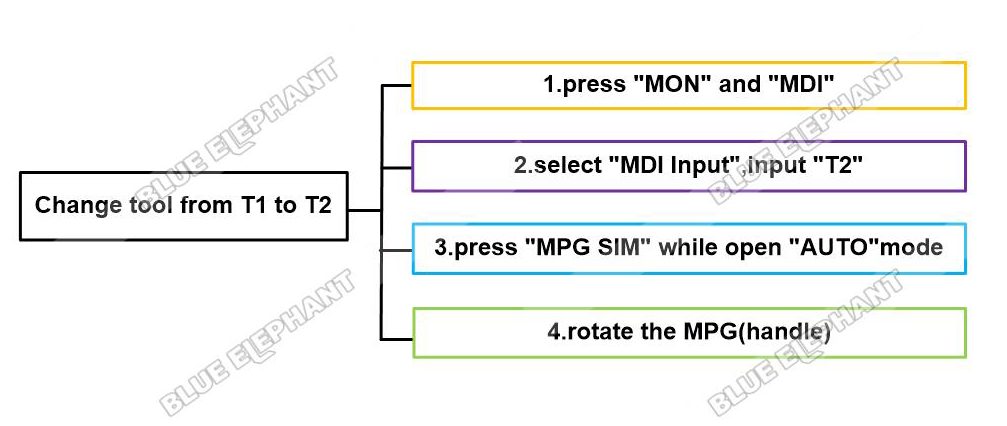

we will change tool from T1 to T2
Press “MON” and “MDI”buttons in control panel.
Select “MDI Input”,input “T2”
Press “MPG SIM” while open “AUTO”mode
By Rotating the MPG(handle) to control the speed of moving
The video is as follow.
Then we will show you how to change tool manually.
The steps are as follows.
we will change tool from T1 to T2
Press green button on spindle,the tool will loose from spindle. ATTENTION:PLEASE MAKE SURE THE TOOL WAS HELD WHEN YOU PRESS THE GREEN BUTTON. IF NOT,THERE WILL BE A RISK OF DAMAGE TO THE TOOL.
