About ARTCAM postprocessor
Click:
- 1. THREE AXIS MACHINE
- A : Mach3
- B : Ncstudio 53C,95A-3l 95A-4A(rotary)
- C : DSP A11 B11 A18 B18 A51 B51
- Please select this one processor
- Name: Model Master 3 Axis Flat(.*mmg)

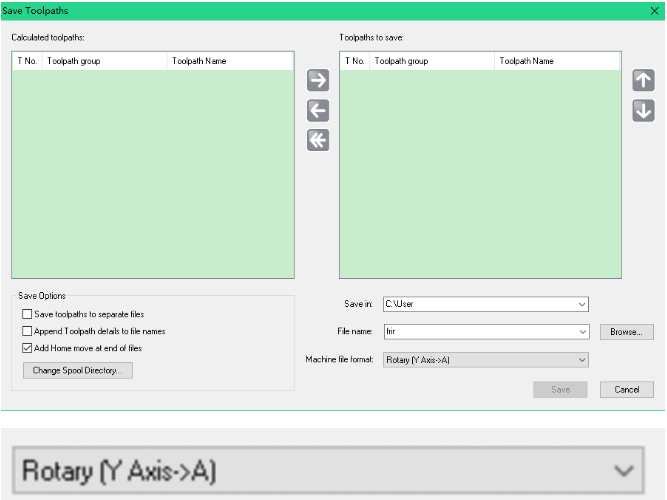

- 2. All the rotary , please select this one postprocessor .
- Name ：Rotary (Y Axis-> A)

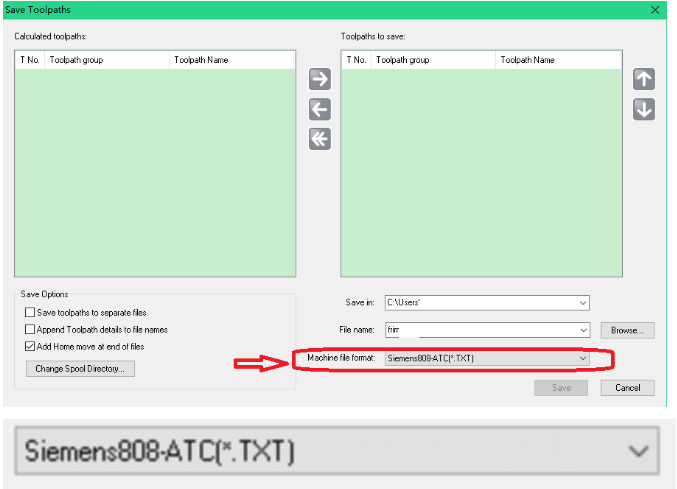

- 3. Siemens 808/828 ordinary triaxial and Siemens 808/828 ATC machines.
- Please select one.
- Name : Siemens808-ATC(*.TXT)
- Attention

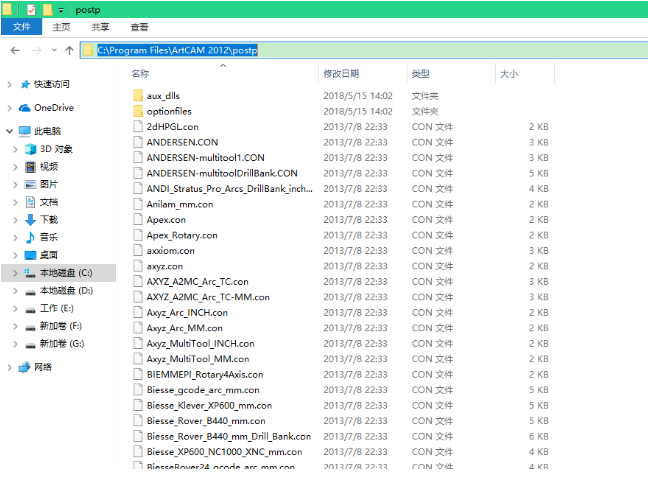

- After install ARTCAM , Please find then copy this file
-
Then patse it to ARTCAM install folder ,here is am example :
- C:/Program Files/ArtCAM 2012/postp

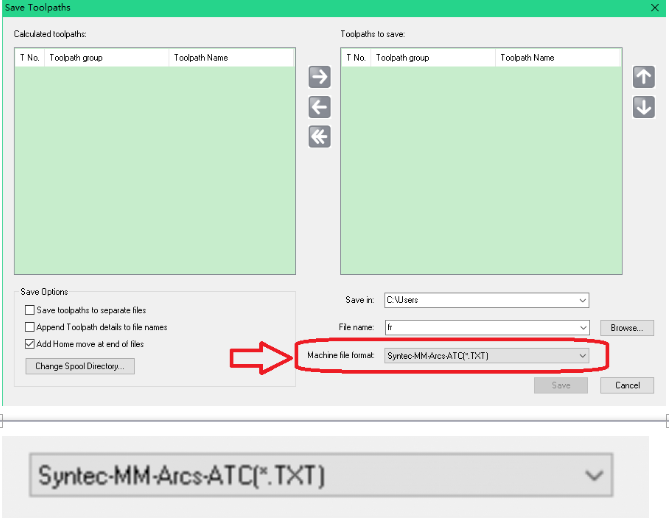

- 4. Syntec 3 axis and Syntec ATC,please select this one .
- Name : Syntec-MM-Arcs-ATC(*.TXT)
