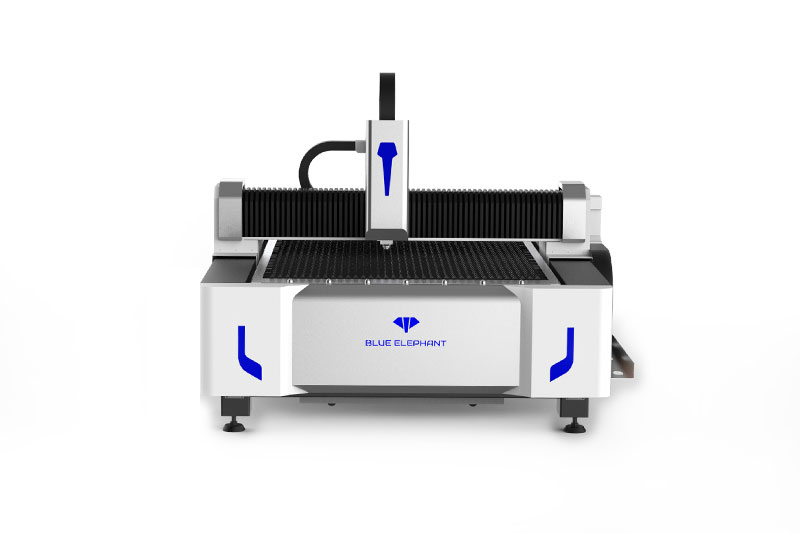

This fiber laser cutting machine is a good choice for the large metal production factories . In addition, it is equipped with an exchange platform, increasing productivity by 50%.

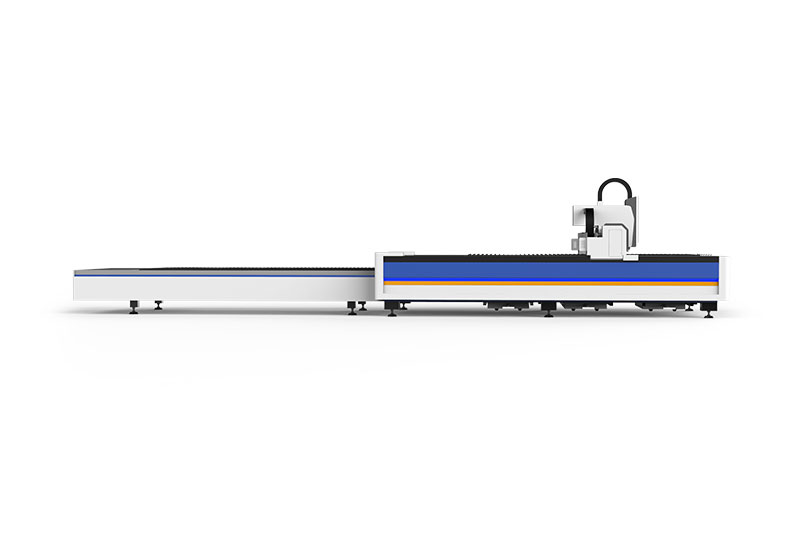

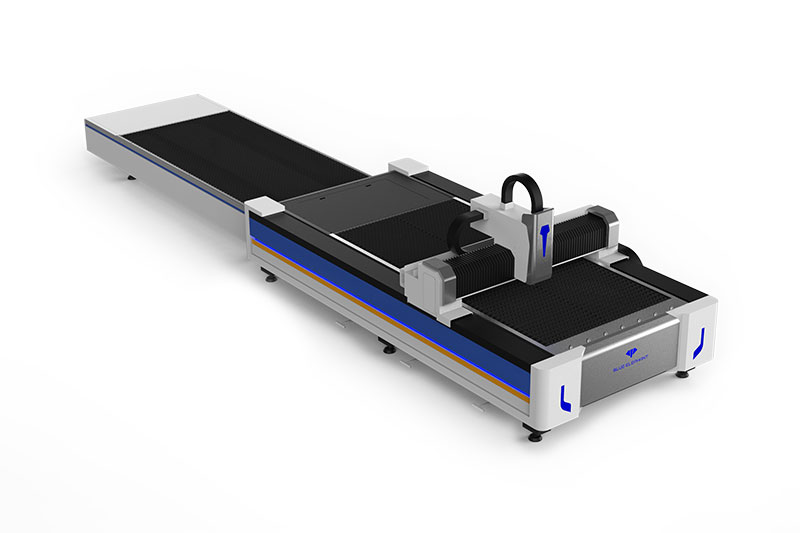

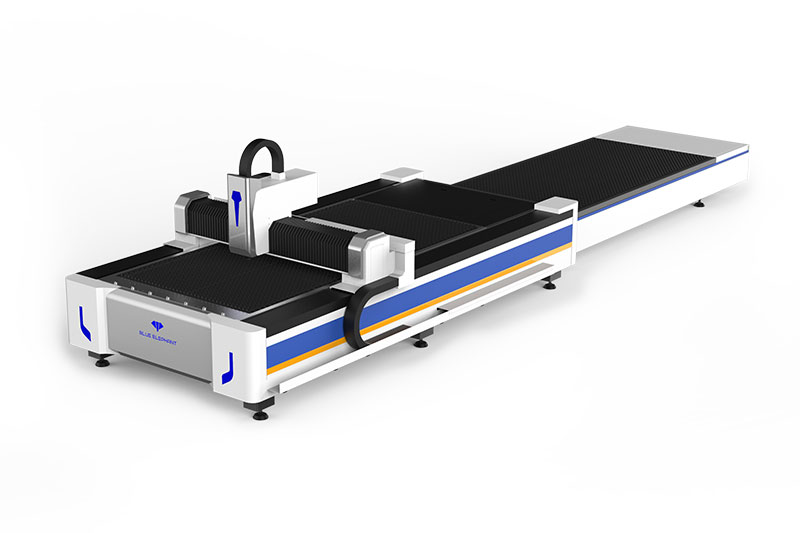

1. Automatic exchange platform
Two platforms can exchange automatically with the exchanging time of 20s to 25s, which improve work efficiency greatly.
2. Intelligent automatic focusing laser head
Automatic focusing mode of the laser head reduces human interference with a focusing speed of 10m/min and repeated positioning accuracy of 50um.
3. Aircraft-grade aluminum beam
Aircraft-grade aluminum is corrosion resistant, lightweight and highly rigid, guaranteeing high speed laser cutting. Besides, it also guarantee the excellent cutting precision due to the perfect dynamic performance.
4. High quality thick wall carbon steel sheet welded bed
High strength machine bed is more stable and durable. After 600℃ stress relief annealing treatment, the machine bed has strong structural rigidity. The overall mechanical structure of the machine has small deformation, low vibration, ensure cutting accuracy.
5. Integrated large volume dust removal system
The dust removal system can remove all the smoke generated from the cutting process with large air volume. This helps protect the operator’s health and the working environment.
| Model | ELECNC-1530E | ELECNC-1540E | ELECNC-2560E |
| Working area (mm) | 1515*3030 | 1515*4050 | 2520*6050 |
| Worktable bearing capacity | 950kg | 1250kg | 2300kg |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. exchange time | 25s | 35s | 40s |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Laser power | 1kW - 6kW | 1kW - 6kW | 1kW - 6kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Machine bed | Tube welding bed/Sheet welding bed | Tube welding bed/Sheet welding bed | Tube welding bed/Sheet welding bed |
| Max. running speed | 140m/min | 140m/min | 140m/min |
