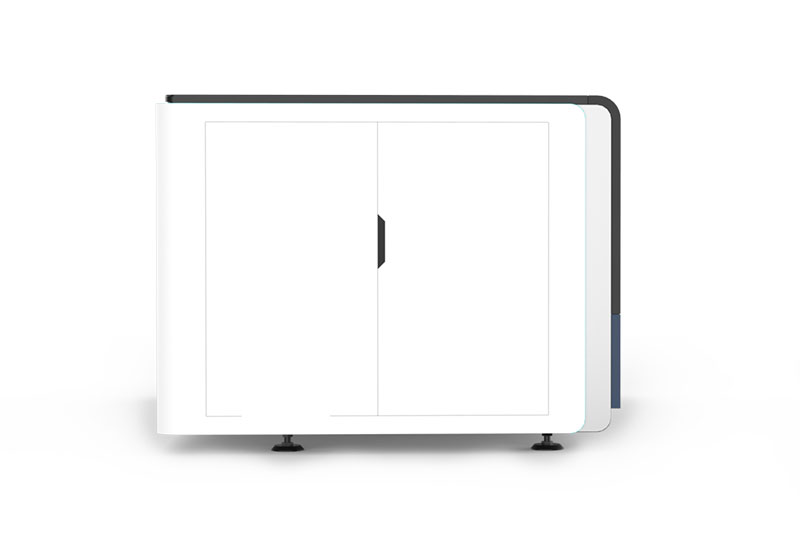

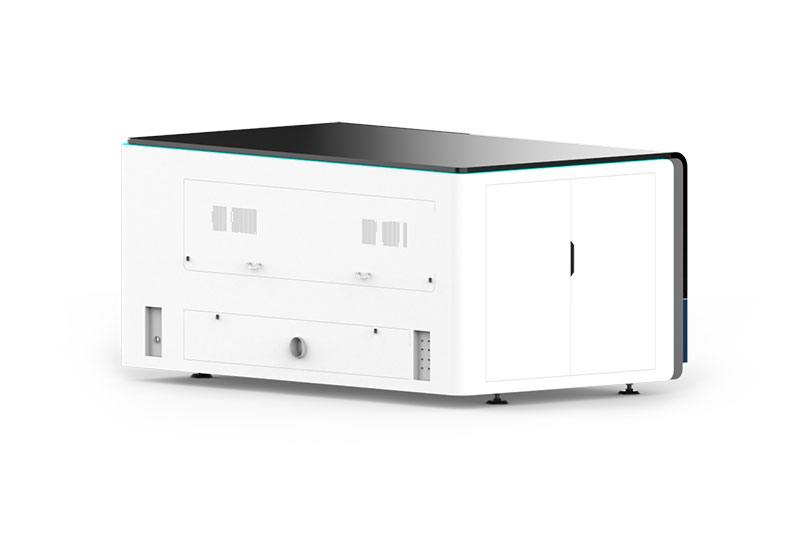

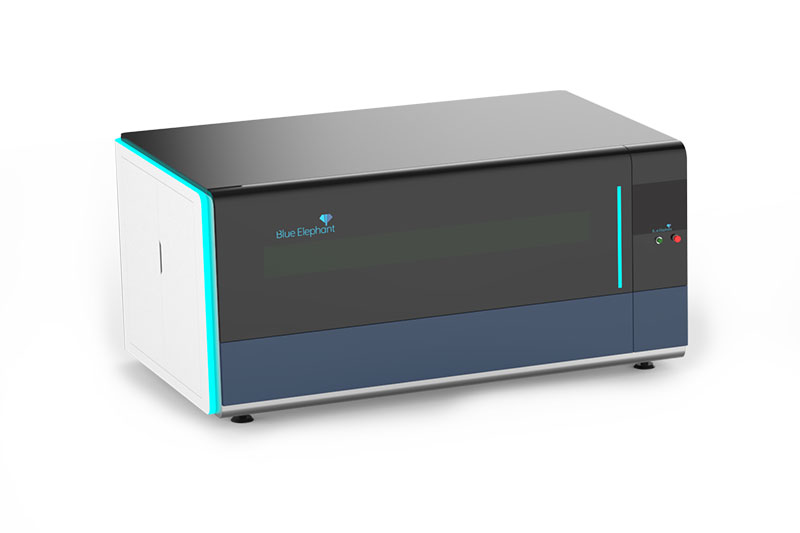

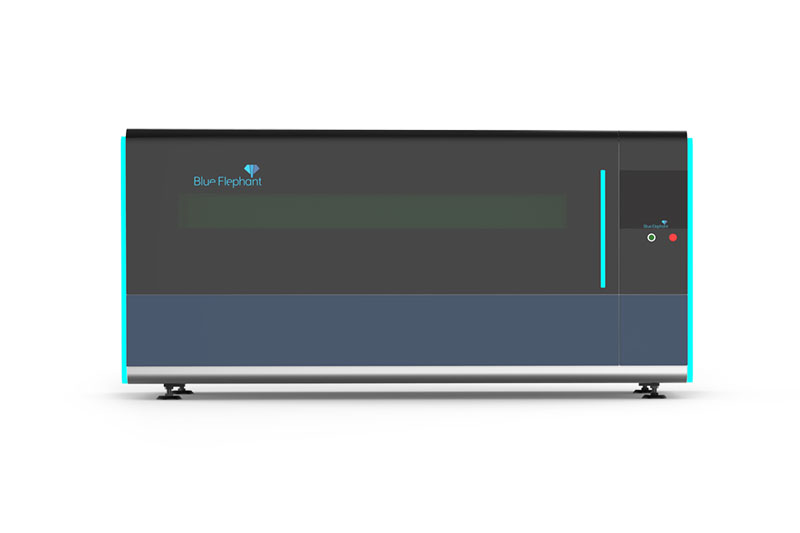

This high precision laser cutting machine provides excellent precision and accuracy for metal sheet cutting. It has big, middle and small dimensions to meet the demands of various customers. It is widely used in precision mechanical hardware, microelectronics and other precision requirements.
1. Strong stability, high precision, 20 years without deformation.
The laser cutting machine bed uses the carbon structural steel with good toughness, ductility, welding properties and heat treatment properties. The machine structure goes through stress annealing and vibration aging treatment to reduce the stress, so that the machine bed can maintain its high precision for a longer time.
2. Cast aluminum crossbeam.
The crossbeam has good integrity, rigidity, surface quality, toughness and ductility after artificial aging and solid solution treatment. The crossbeam is characterized by light weight and high rigidity, which is conducive to high speed movement during processing.
3. Professional marble countertop.
The marble countertop has high precision, low coefficient of linear expansion; no rust, and easy maintenance. Besides, it is acid and alkali resistant, wear resistant, and anti-magnetic with high hardness.
| Model | ELECNC-9090Q | ELECNC-1390Q | ELECNC-1313Q |
| Working area | 905*905mm | 1305*905mm | 1305*1305mm |
| Machine size | 2500*2250*1950mm | 2500*2250*1950mm | 2500*2250*1950mm |
| Machine weight | 1.3t | 1.4t | 1.5t |
| Worktable bearing capacity | 140kg | 210kg | 300kg |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.2G | 1.2G | 1.2G |
| Laser power | 1kW - 3kW | 1kW - 3kW | 1kW - 3kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto | Auto | Auto |
| Machine bed | Sheet welded bed | Sheet welded bed | Sheet welded bed |
| Max. running speed | 100m/min | 100m/min | 100m/min |
