6090 Hobby CNC Router Carving MDF
6090 CNC Router Cutting Aluminum

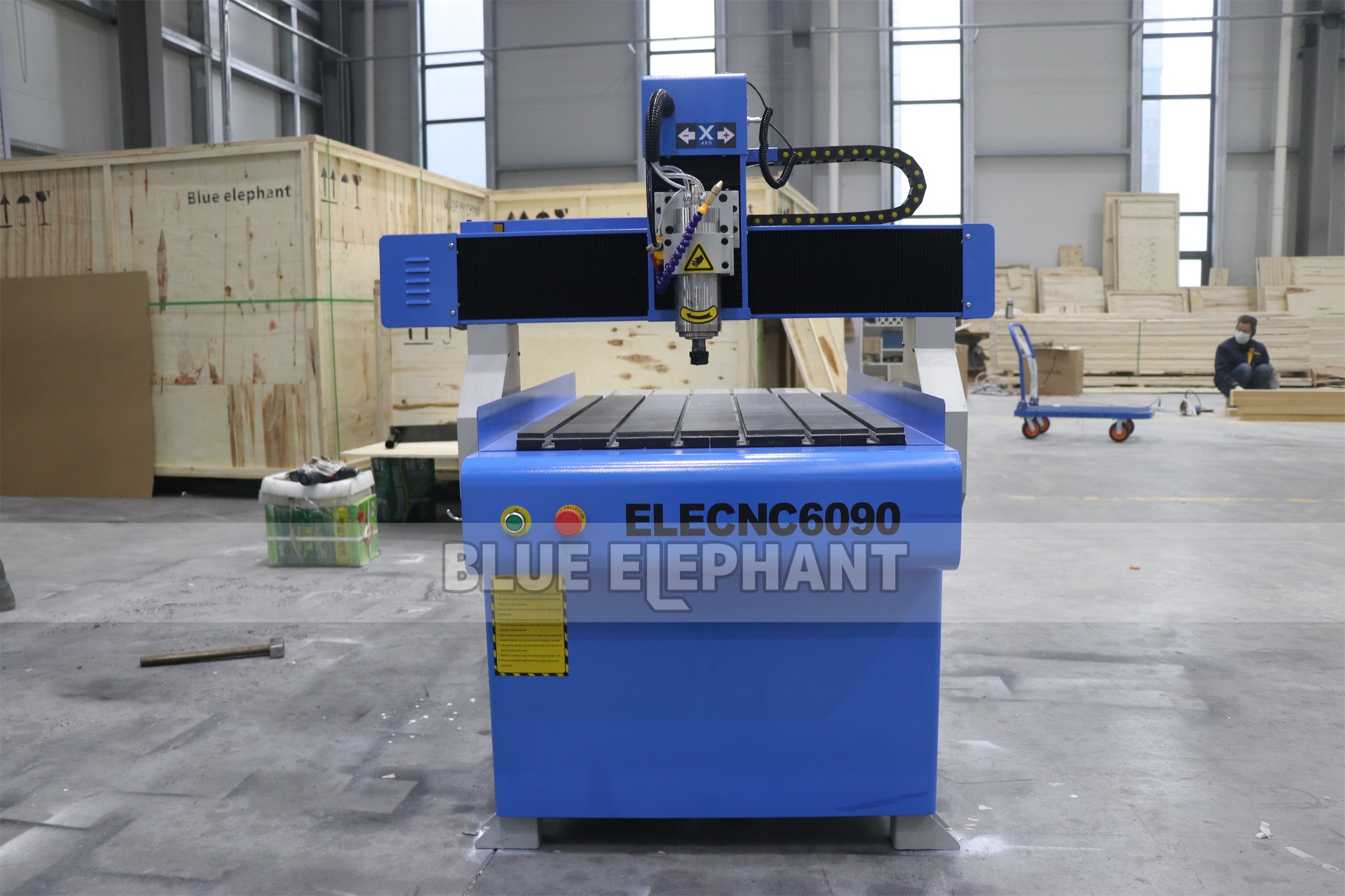

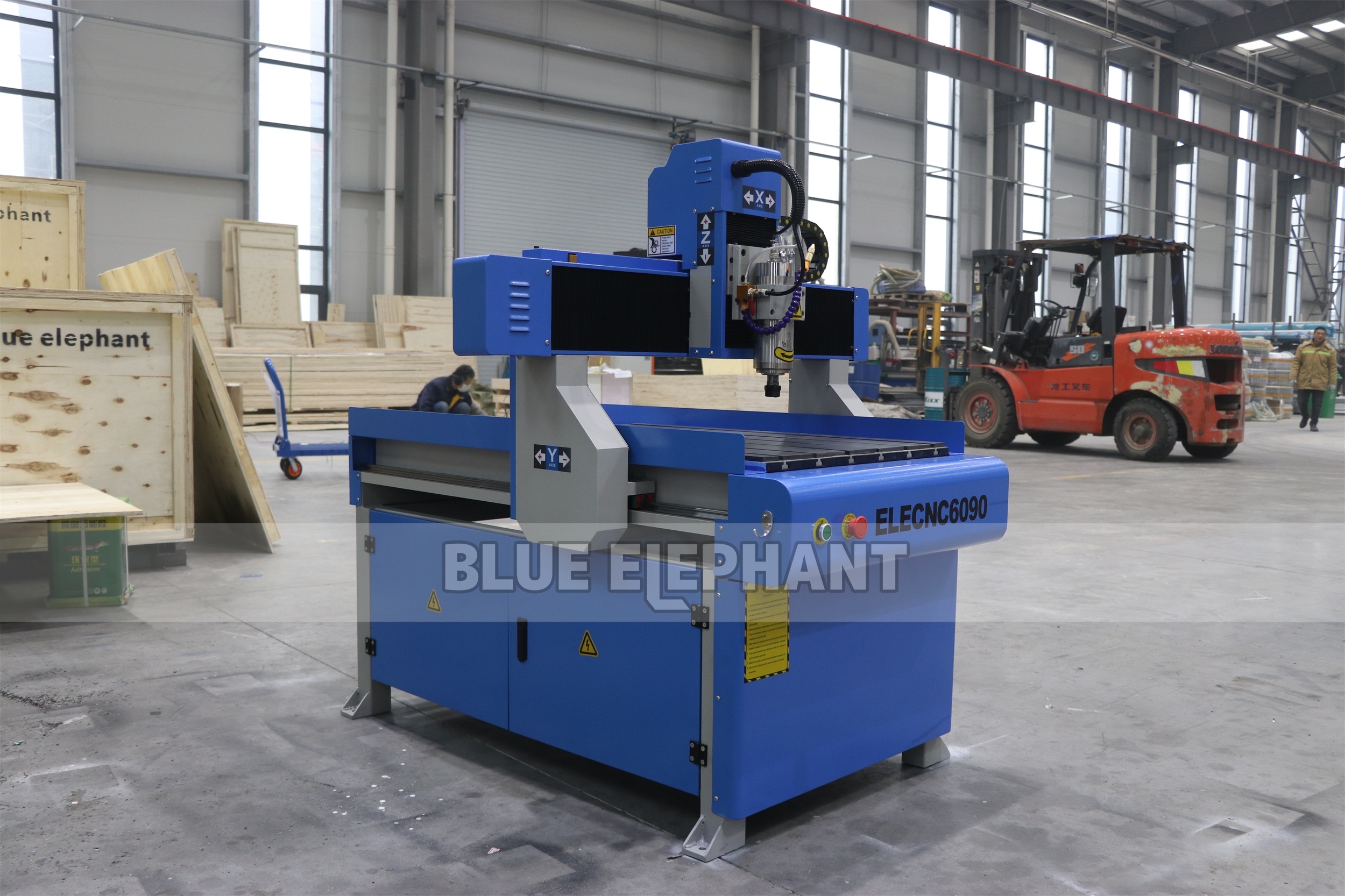

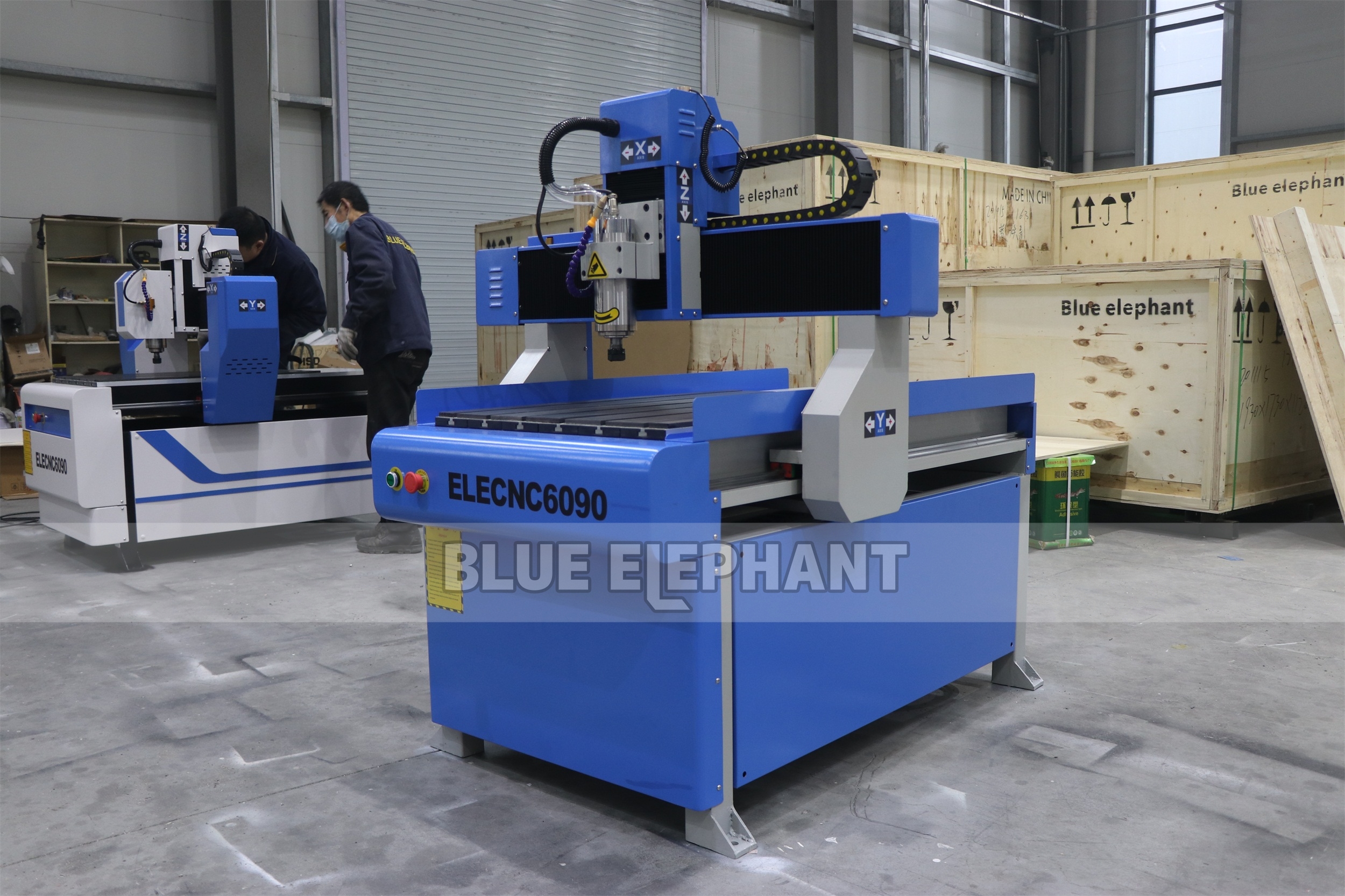

Mini 2'x3' 6090 mini wood carving machine has a smaller working table of 24x36 inches. With the advantages of small footprint, easy operation, best price, it is especially suitable for the hobby users or smaller shop.
1. The effective working table size can be increased and designed according your requirements.
2. Adopting a water cooling spindle, it brings good cooling effect and less noise.
3. Adopting an integral cast iron frame, the machine is more durable and stable in operation.
4. With Taiwan TBI ball screw for Z axis, it has the advantages of high precision and smooth transmission.
| Model | ELECNC6090 |
| X,Y axis travel | 600x900mm, option: 1200*1200mm; 600*1500mm |
| Z axis travel | 160mm, option: 200mm |
| Spindle type | 2.2kw water cooling spindle, ER20 |
| Inverter type | 2.2kw |
| Tool magazine | No tool magazine Option: Linear type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Mach3, option：DSP A11 |
| Driving system | Stepper motor 450A and Leadshine M542 |
| Machine structure | Special desktop type design |
| Work table | T-slot work table with PVC protection |
| Water misting spray | include |
| Water tank | SS water tank |
| Linear guide | #20 Taiwan Square Linear guide |
| Transmission | X, Y, Z axis: Taiwan TBI high precision ball screw |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 25m/min |
| Working speed | 20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.003mm |
| Working accuracy | ±0.07mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ |
| Work table | Vacuum work table |
| Lubrication system | automatic lubrication system |
| Dust collect system | 1.5, 2.2kw, etc., including dust hood, pipe, all full set |
| Spindle type | Air cooling spindle, ATC spindle,etc |
| rotary | 80mm diameter, 100mm diameter |
Click for details

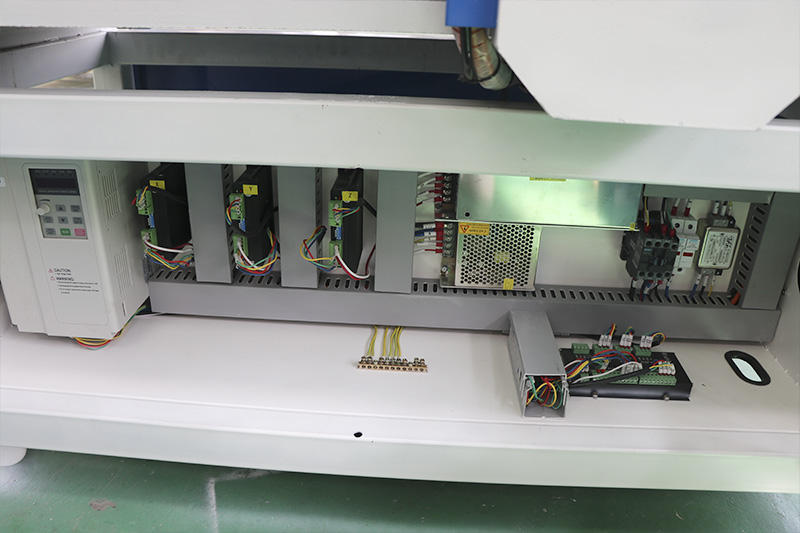

Electric parts

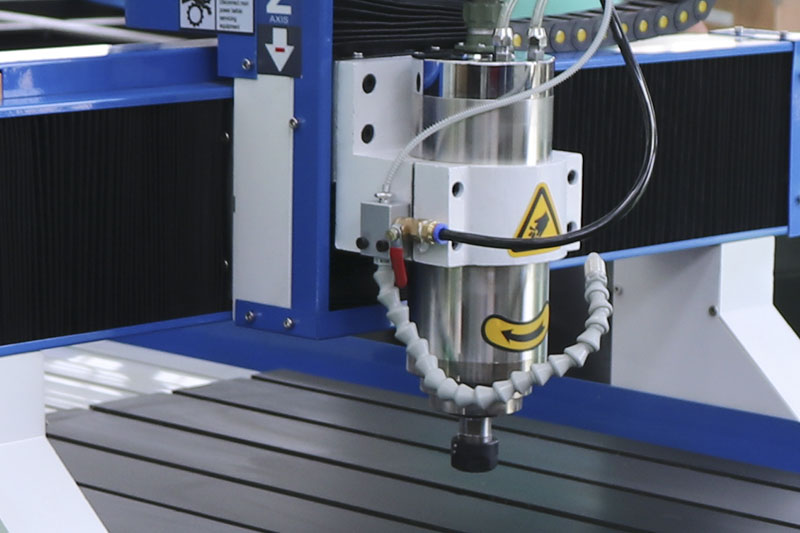

Spindle

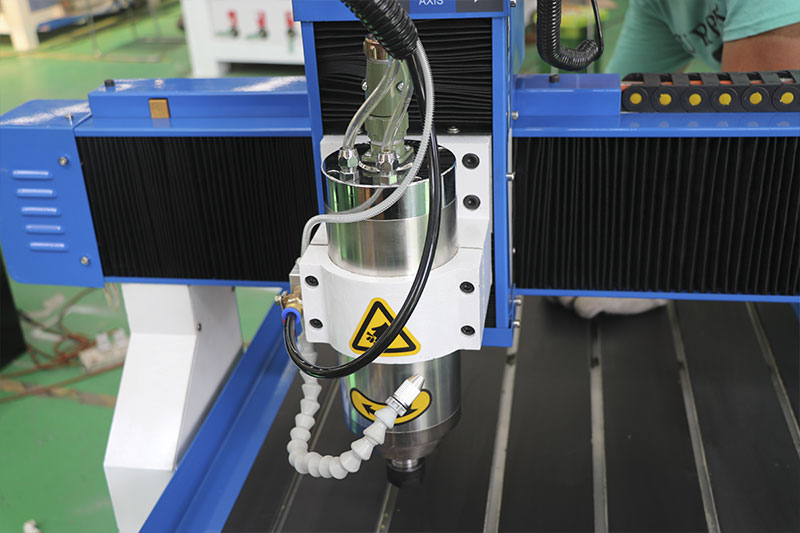

Spindle

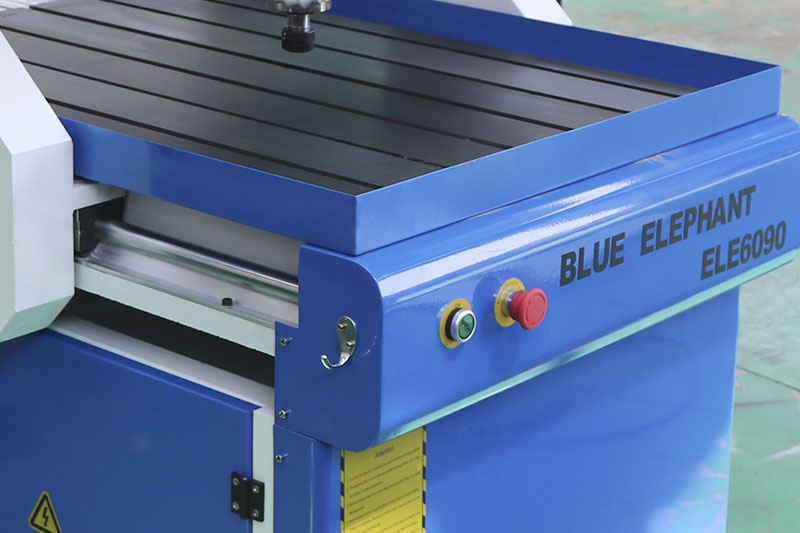

Worktable
Click for solution
Click for quotation
It cuts well. I have been recommending it to others that I know to buy. Thank you, hopefully I will be able to buy more in the future.
The small CNC machine is installed and debugged. Can't wait to try the processing, it's simpler than I thought. It is very easy to operate. Look at my first processed sample, I am really satisfied.
These very simple decorations are made by this small cnc machine. I have always liked to make some more creative trinkets. This machine occupies a small area and is easy to move. I am very satisfied that these ideas can be realized through this machine.
I like this CNC machine, it is working very good. And if she would have ATC CNC router I would be happy. I am really want to congrats to you and your people this machine is best packing wood box I ever receive very strong and good build.
