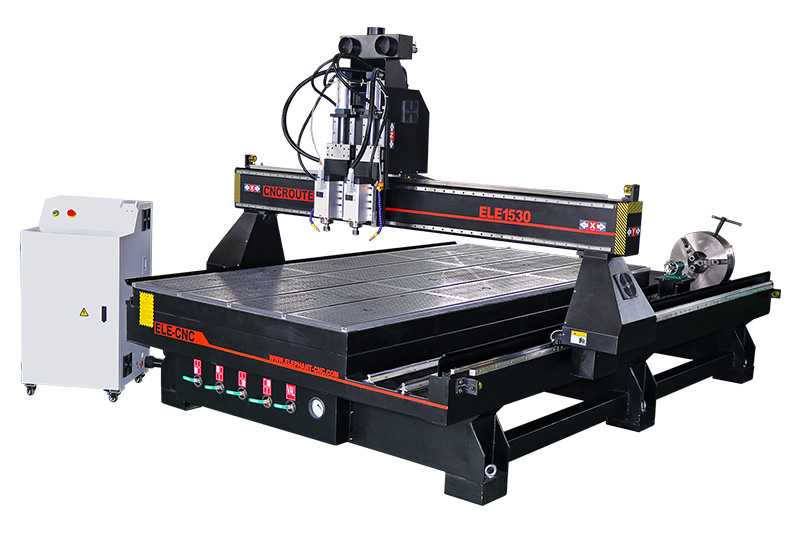

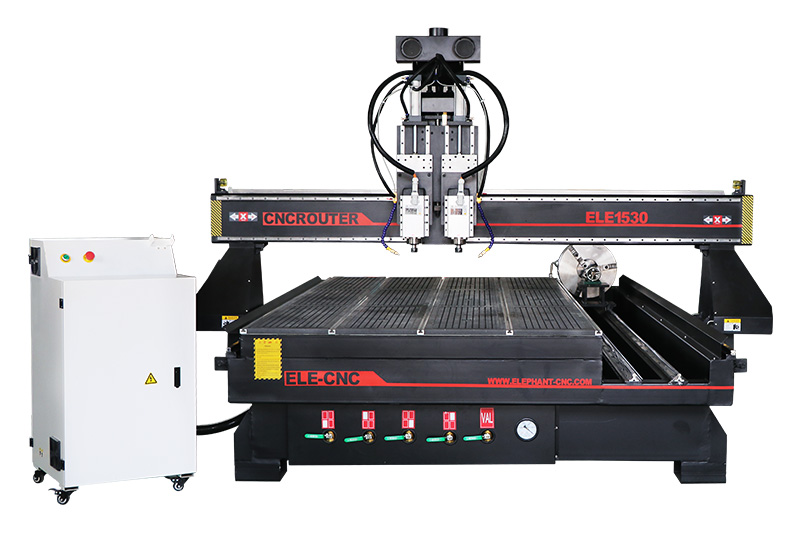

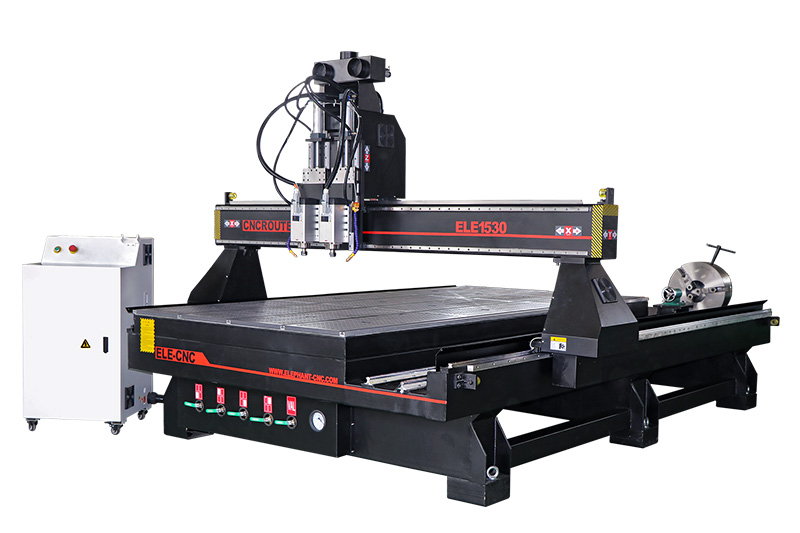

5×10 Rotary Axis CNC Router
Compared with other rotary axis CNC routers, this rotary CNC machine is equipped with two spindles. And the spindle works one by one, which greatly improve the processing efficiency. This is the main reason why this rotary carving machine is popular.
1. Heavy-duty frame and gantry makes this machine durable.
2. The machine was designed with two spindles, which works one by one and with different tool/bits.

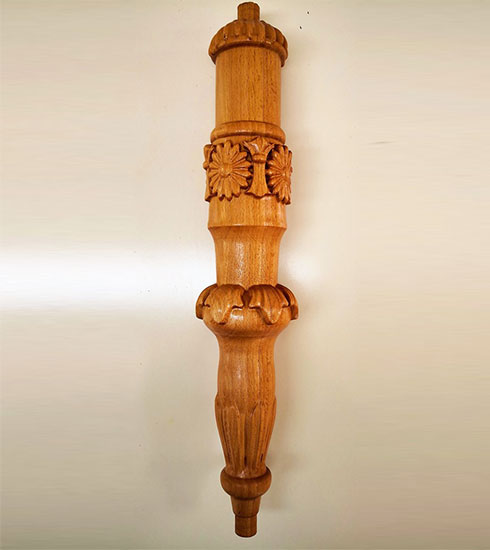

3. Equipped with a 400 mm diameter rotating device in the Y axis direction, the machine can be used to process the cylinder, which is different from 3 Axis CNC router Machine.
4. With DSP control system, it is easy to use and operate.
| Model | ELECNC1530 |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3KW air cooling spindle, ER25, 2 sets |
| Inverter type | 3.7kw |
| Drilling bank | Taiwan or Italy 5+4 verticaldrills |
| Tool magazine | Linear type auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ER25 collet: φ4, φ6, 1/8, 1/2 |
| Control system | PM95A-4A |
| Driving system | FL118 stepper motor and Leadshine driver, 5sets. |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | TaiwanLinear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Semi-autolubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump | Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system | 3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type |
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5KW, 6KW spindles |
Click for details

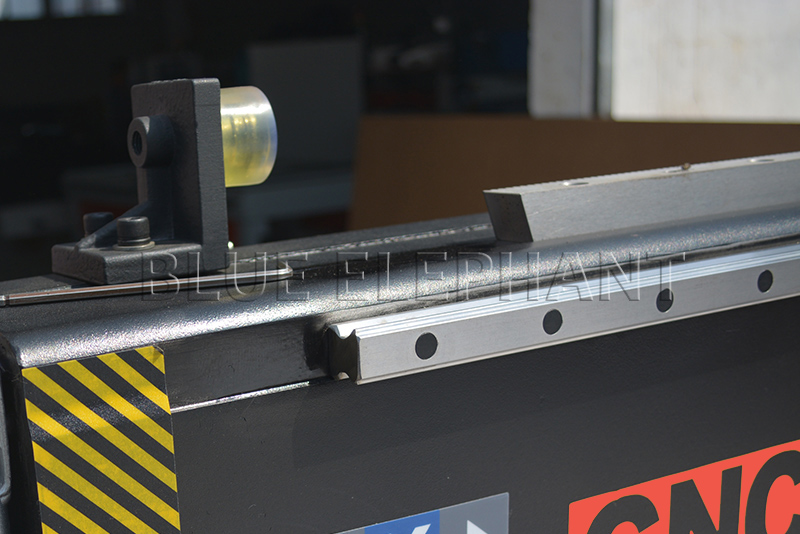

Linear Guide

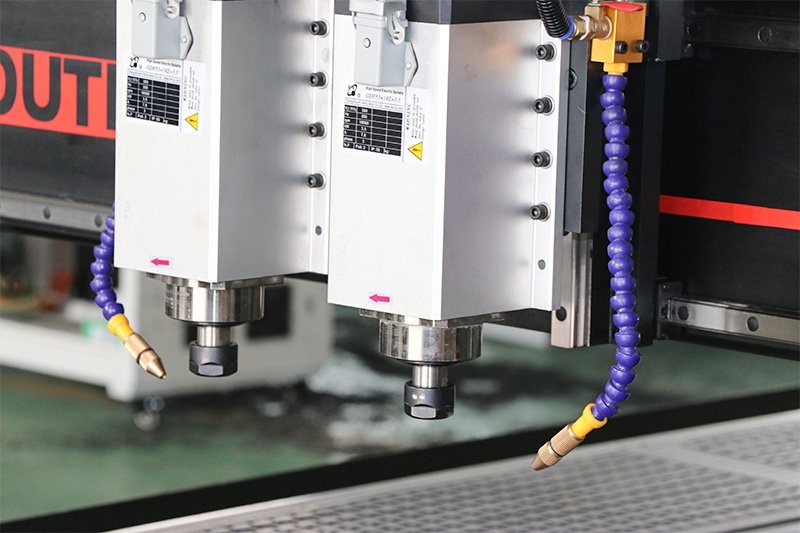

Double Head

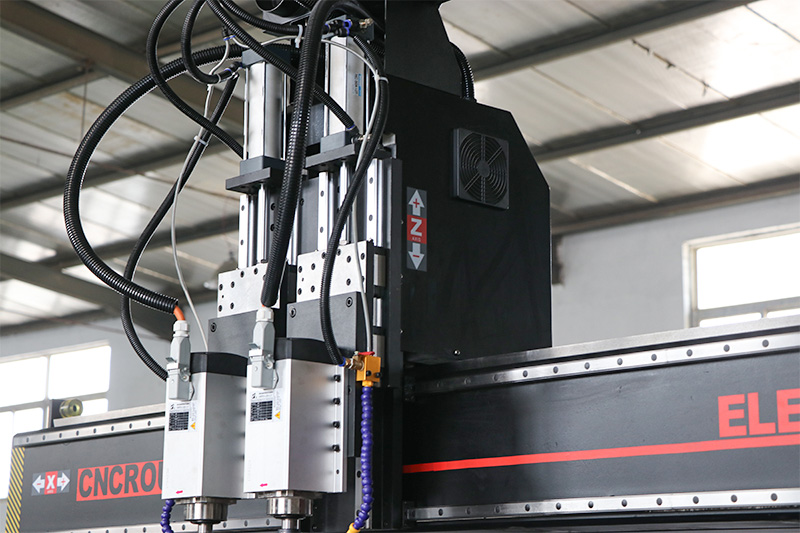

Water Cooling Spindle

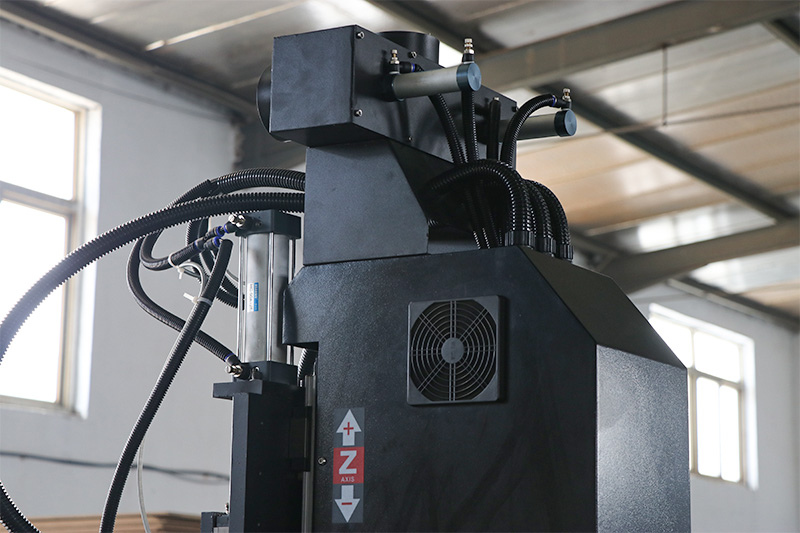

Lifting Cylinder
