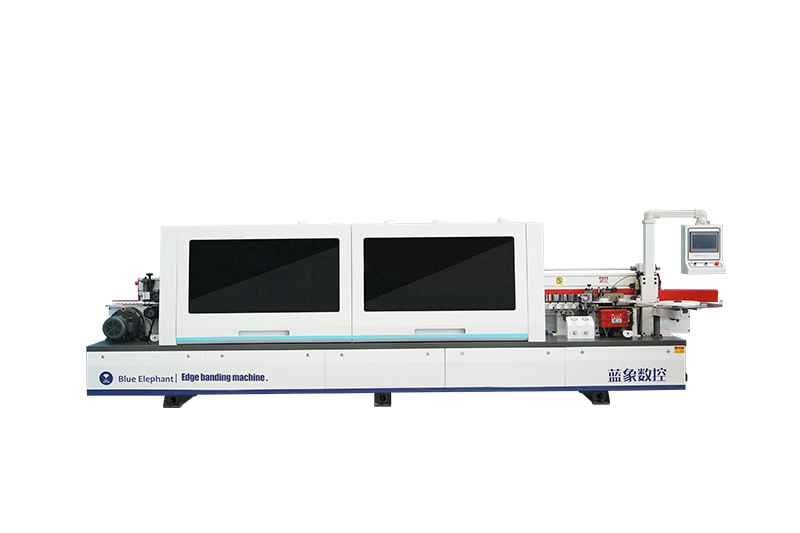

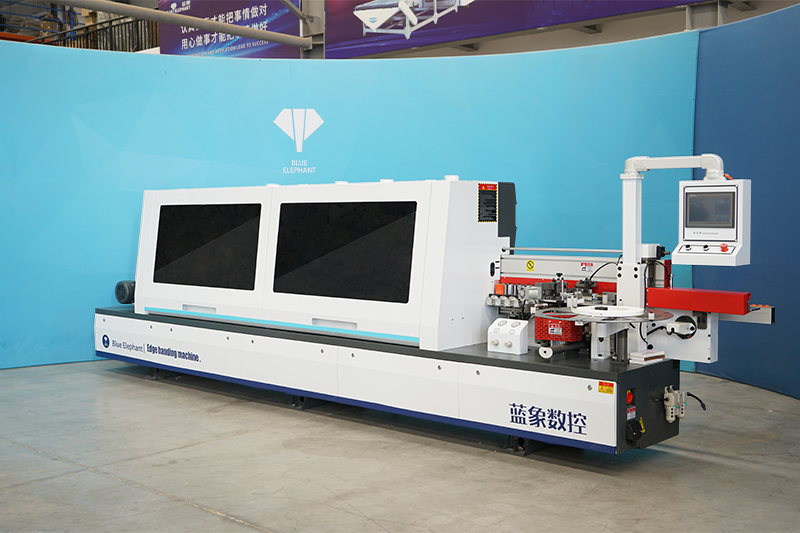

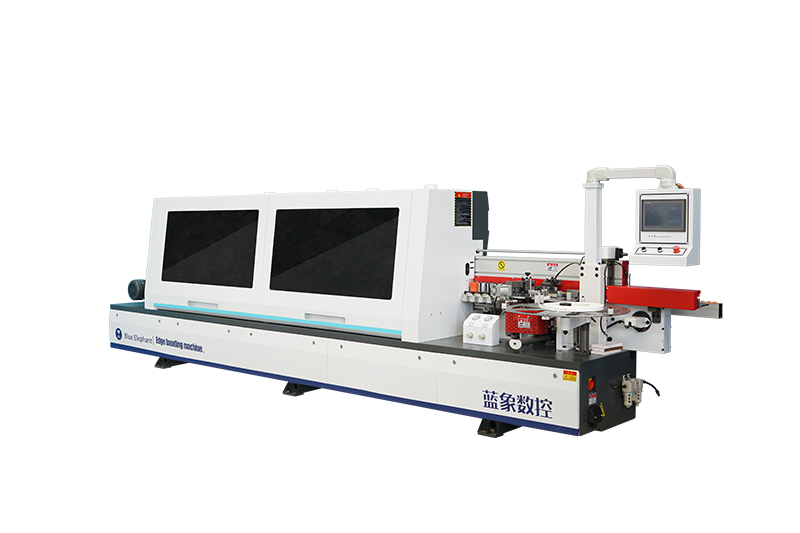

E-70A Penumatic Adjusting Edgebander
E-70JDSR Wood Edge Banding Machine

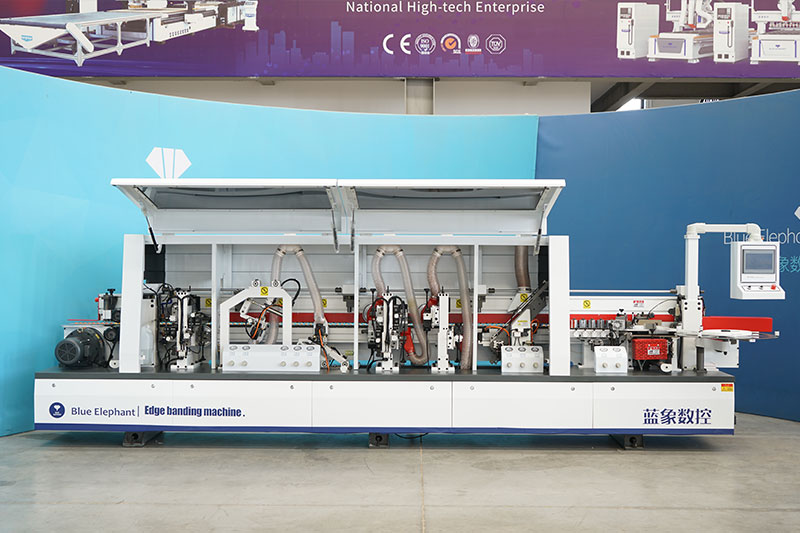

E-70A edge banding machine adds a cutter pneumatic adjustment function compared with the E-70 model edge bander. It can realize multiple functions in edge banding process automatically and quickly. For example, edge banding, end cutting, rough and fine trimming, tracking and corner rounding, scraping, polishing, etc. It is an indispensable edge banding machine for cabinet and office furniture making.

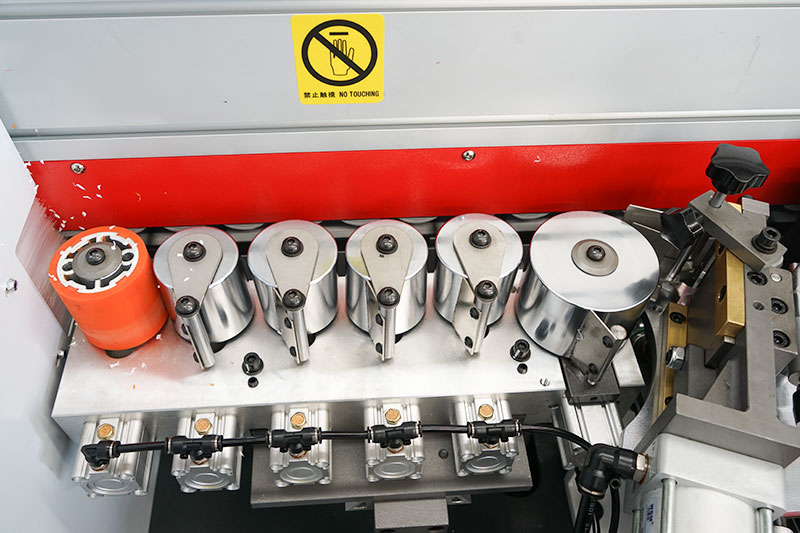

1. The pneumatic adjustment function allows the operator to adjust the edge band thickness from the screen directly.

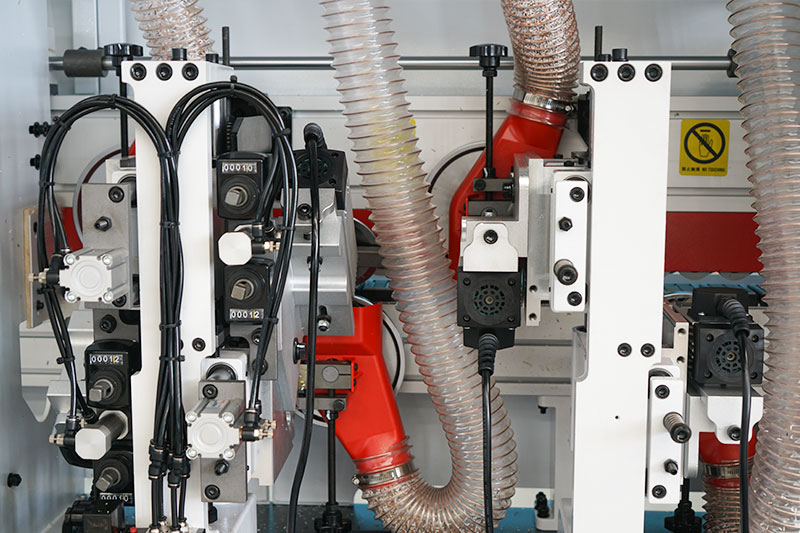

2. This model of edge banding machine is provided with the profile tracking and trimming function, which can make the banded panel corners more smooth. The self-designed tracking motion and gas circuit stabilize the tracking and rounding process.
3. The high-strength aluminum alloy structure ensures stable, safe, and efficient edge banding operation.

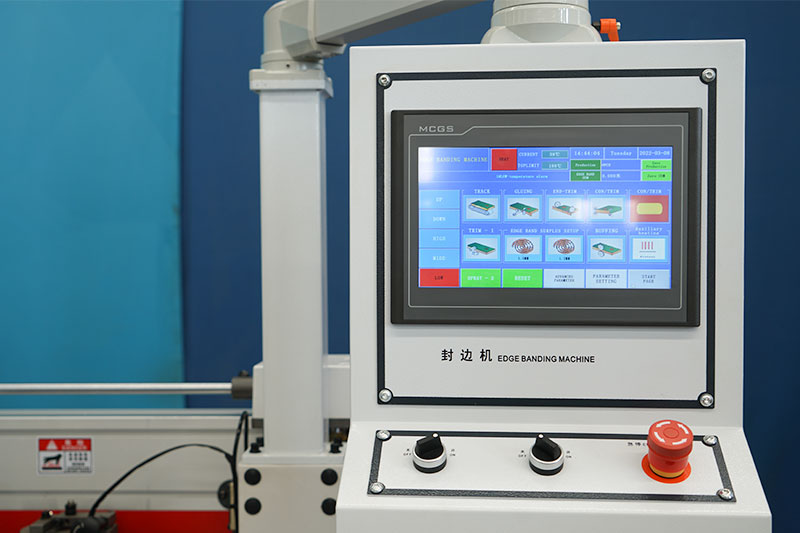

4. It adopts an industry-leading touchscreen, which has a friendly man-machine interface and quick response.
| Model | E-70A |
| Overall size | 5840x970x1800mm |
| Total power | 12kW |
| Feed speed | 15-23m/min |
| Electric lifting | 0.37kW |
| Panel Thickness | 10-60mm |
| Panel length | ≥120mm |
| Panel width | ≥80mm |
| Edge band thickness | 0.4-3mm |
| Working pressure | 0.6Mpa |
| Voltage | 380V, 50Hz, 3PH Optional: 220V 3PH; 220V 1PH |
