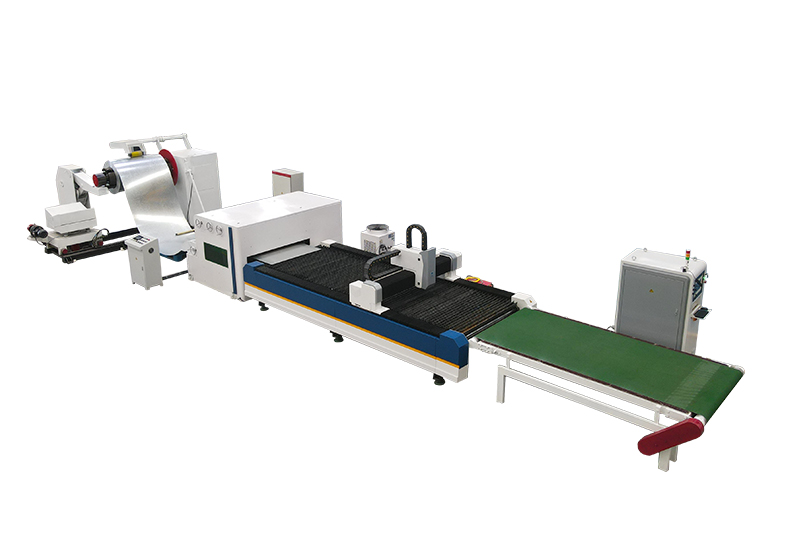

The coil fed laser cutting machine is specially designed for automatic cutting of thin metal sheets. Especially thin stainless steel sheets. It realizes the loading, uncoiling, leveling and cutting processes automatically, which saves labor and improves working efficiency.
1. Improved loading efficiency.
The coil material weight reaches up to 20T, breaking through the limit of ordinary 3T loading. It is 6 times efficiency of ordinary loading equipment.
2. Stress relief.
After uncoiling the coil, the leveling machine will level the metal sheet and, at the same time, eliminate the stress of the sheet in the leveling process. This makes the sheet material more flat and suitable for cutting.
3. Ultra-precision transmission structure.
The machine adopts an ultra-precision transmission system, making the sheet material transmission accuracy within ±0.5mm and guaranteeing higher precision.
4. Automatic production line design.
This machine completes the whole cutting process automatically from feeding, uncoiling, leveling, cutting to discharging. The whole automated process saves labor, realizes the zero waste of coil material, and improves the utilization efficiency of sheet metal.
5. Unlimited material length.
This coil fed laser production line breaks through the limit of the previous laser cutting machine in the cutting length limit, and in some special areas, has a subversive significance.
| Model | ELECNC-1530FC | ELECNC-1540FC | ELECNC-2040FC |
| Total machine weight | 6.2t | 6.7t | 6.9t |
| Working area (mm) | 1515*3030 | 1515*4040 | 2020*6060 |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Worktable | Rolling blade | Rolling blade | Rolling blade |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repositioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Laser power | 1kW - 2kW | 1kW - 2kW | 1kW - 2kW |
| Coil sheet thickness | 0.5-3mm | 0.5-3mm | 0.5-3mm |
| Machine bed | Plate welded bed | Plate welded bed | Plate welded bed |
| Laser | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual | Auto/manual |
| X/Y-axis max. linkage speed | 140m/min | 140m/min | 140m/min |
| Leveling speed | ≤20m/min | ≤20m/min | ≤20m/min |
| Coil weight | ≤15t | ≤15t | ≤15t |
